You are here: Home / Products / Laser Module / Fiber Coupled Laser Module / 375nm 200mw Fiber Coupled Diode Laser Module for PCB Exposure

Product Category

375nm 200mw Fiber Coupled Diode Laser Module for PCB Exposure

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • LY3720AS10A-105


Overview
375nm 200mw Fiber Coupled Diode Laser Module

375nm 200mW Fiber-Coupled Laser Module

Introducing our top-of-the-line 375nm 200mW Fiber-Coupled Laser Module, designed to meet the highest industry standards. This professional-grade product is perfect for a wide range of applications, guaranteeing exceptional performance and reliability.


Equipped with advanced PCB board exposure technology, our Fiber-Coupled Laser Module ensures precise and accurate exposure for your PCB board manufacturing needs. With its cutting-edge features, this module delivers unparalleled results, making it an indispensable tool for any professional in the field.


Crafted with meticulous attention to detail, this laser module boasts a robust construction, ensuring durability and longevity. The 375nm wavelength offers optimal performance, making it ideal for demanding tasks that require high precision and efficiency.


With a power output of 200mW, this laser module provides ample strength to tackle even the most intricate projects. Its fiber-coupled design guarantees seamless integration and compatibility with existing systems, allowing for easy installation and operation.


Our Fiber-Coupled Laser Module is backed by extensive quality testing and meets all necessary safety regulations, providing you with peace of mind and confidence in its performance. Trust in our product to deliver exceptional results, time and time again.


Invest in the 375nm 200mW Fiber-Coupled Laser Module and elevate your PCB board exposure process to new heights. Experience the professional-grade quality and precision that our product brings, ensuring your projects are executed flawlessly.

Product Description

Feature

1. High reliability, Low power consumption

2. Wavelength (375nm-980nm) and output power can be customized

3. Low Power Consumption

4. Small size, 20*10*10mm.

5. High coupling efficiency: 85%

8. Fiber Core diameter: Standard 105um, 125um cladding diameter

6.  Application : Laser fiber Communication, Laser engraving, laser marking, laser cutting, printing and plate making, Medical equipment, Medical applications, Sensing equipment, biological trace rapid Discovery instruments, Medical, laser 3D scanning etc.


Specification


Absolute Maximum Ratings (Tc=25℃)

Item

Symbol

Ratings

Unit/Condition

Optical Output Power

PO

200

mW

LD Reverse Voltage

VR(LD)

T.B.D

V

Operating Temperature

TOPR

17-25

Working Relative Humidity

RH

50%-70%

No Condensation

Storage Temperature

TSTG

-10~+80


Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Threshold Current

Ith

/

160

/

mA


Operating Current

Iop

/

300

320

mA

PO=180mW

Operating Voltage

Vop

/

5

/

V

PO=180mW

Lasing Wavelength

λ

370

375

380

nm

PO=180mW

Coupling Efficiency

η

85

90

/

%

Fiber Core Diameter 105/125um

Shell Polarity




0

+/-/0

No Polarity

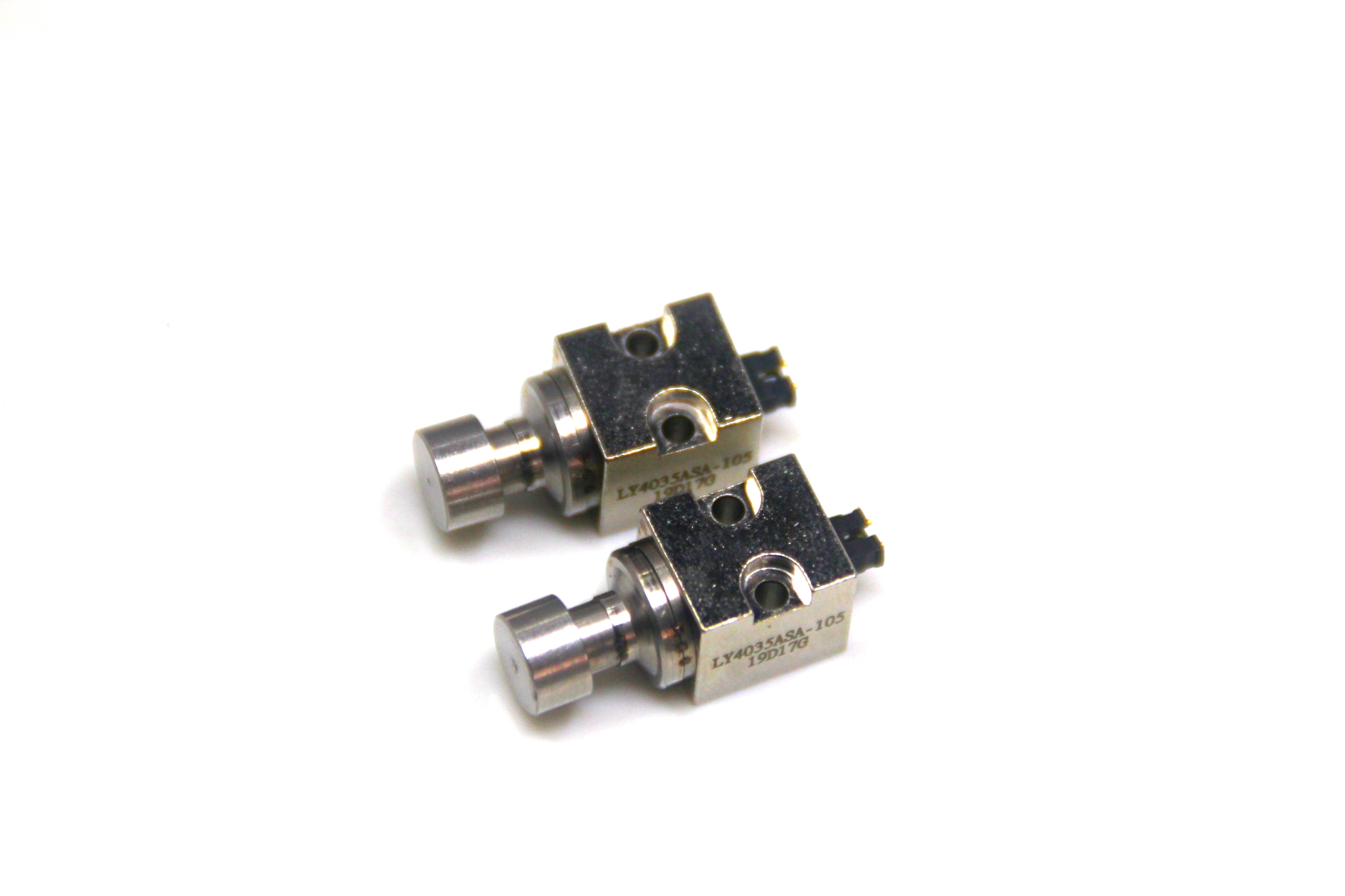

375nm 200mw Fiber Coupled Diode Laser Module

375nm 200mw Fiber Coupled Diode Laser Module

Product Display

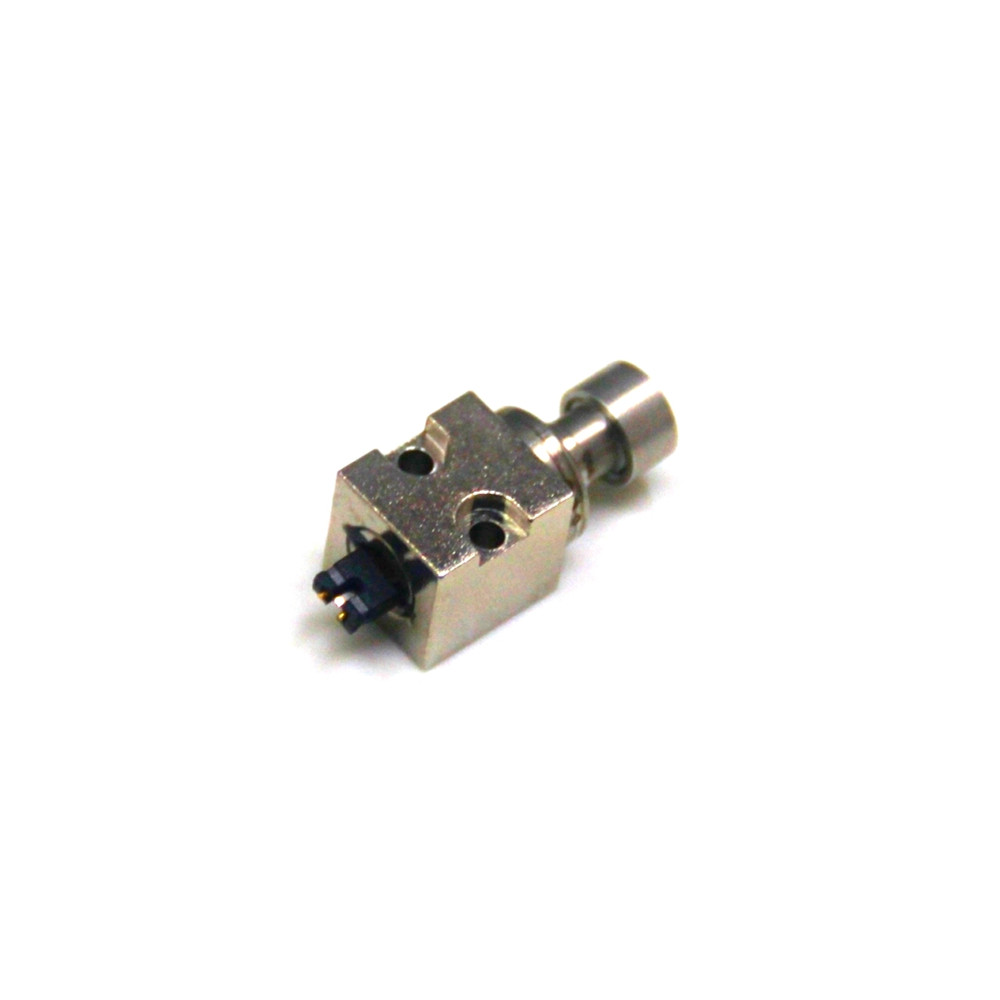

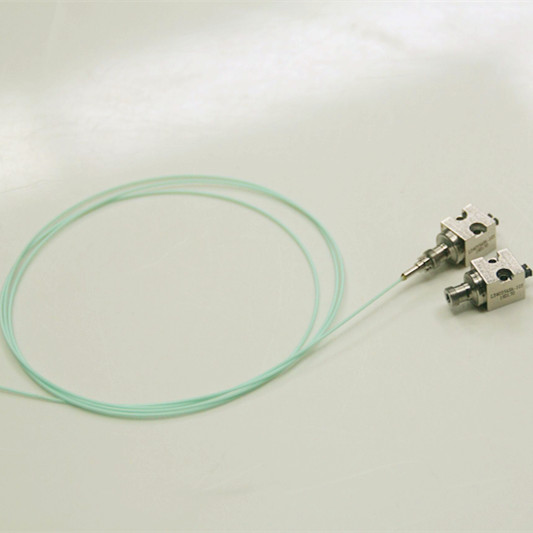

375nm 200mw Fiber Coupled Diode Laser Module

375nm 200mw Fiber Coupled Diode Laser Module

375nm 200mw Fiber Coupled Diode Laser Module

375nm 200mw Fiber Coupled Diode Laser Module

Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mw-3W 20mw-3W 10mw-1.6W 5mw-2.5W 5mw-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc.
CDRH Class class1/class2/class3R/class3B/class4

The Below are other laser pattern options you can select:
