NUBM3L
Introducing the Nichia High-Power Blue Laser Diode Array – a brand-new LD chip package engineered for industrial-grade performance, boasting a 455nm wavelength and an impressive 164W total output power. Crafted by Nichia, a globally trusted leader in laser component manufacturing renowned for precision and reliability, this array stands out as a top-tier solution for high-demand laser applications.

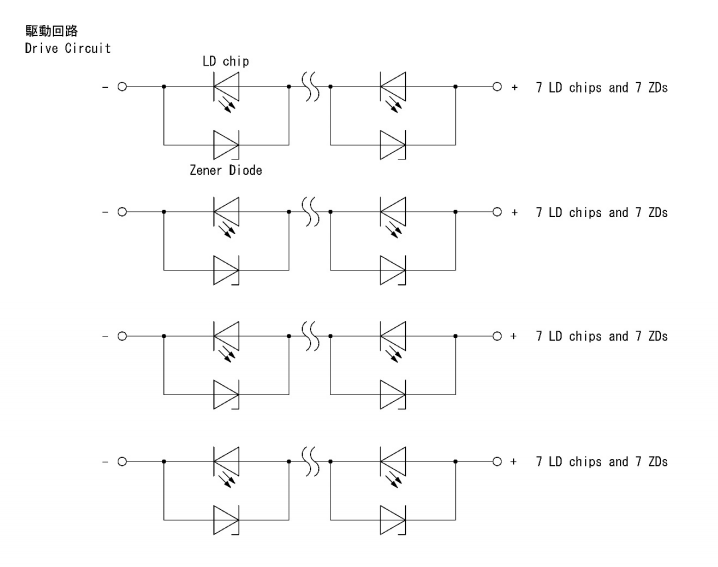

At its core, the array integrates 28 high-performance 6W blue laser diode chips, each optimized for exceptional electro-optical conversion efficiency and long operational lifespan – a key advantage for continuous-duty industrial and professional use. Complementing the chips is a precision-machined front collimating lens (optical grade glass material), which delivers superior beam collimation with a low divergence angle (<1.5 degrees), ensuring consistent energy distribution across all output beams. The result is 28 tightly collimated laser beams arranged in a flexible 7-series × 4-parallel array – a configuration designed to adapt seamlessly to various equipment integration requirements, from compact projectors to heavy-duty industrial machinery.
This versatile laser diode array excels across multiple high-value applications:
Laser Projectors & Stage Shows: Delivers vibrant, high-brightness blue light with stable output, perfect for large-venue projections, immersive multimedia installations, and dynamic stage performances.
Industrial Laser Engraving: Provides concentrated energy for precise, fast engraving on materials like metal, plastic, wood, and acrylic – ideal for batch production and high-precision customization.
Precision Laser Soldering: Offers controlled heat input and uniform beam profile, enabling reliable soldering of micro-components in electronics manufacturing (e.g., circuit boards, sensors) with minimal thermal damage.
Additional Use Cases: Also suitable for laser cutting (thin materials), scientific research, and medical device integration (where high power and stability are critical).
Introducing the Nichia High-Power Blue Laser Diode Array – a brand-new LD chip package engineered for industrial-grade performance, boasting a 455nm wavelength and an impressive 164W total output power. Crafted by Nichia, a globally trusted leader in laser component manufacturing renowned for precision and reliability, this array stands out as a top-tier solution for high-demand laser applications.
At its core, the array integrates 28 high-performance 6W blue laser diode chips, each optimized for exceptional electro-optical conversion efficiency and long operational lifespan – a key advantage for continuous-duty industrial and professional use. Complementing the chips is a precision-machined front collimating lens (optical grade glass material), which delivers superior beam collimation with a low divergence angle (<1.5 degrees), ensuring consistent energy distribution across all output beams. The result is 28 tightly collimated laser beams arranged in a flexible 7-series × 4-parallel array – a configuration designed to adapt seamlessly to various equipment integration requirements, from compact projectors to heavy-duty industrial machinery.
This versatile laser diode array excels across multiple high-value applications:
Laser Projectors & Stage Shows: Delivers vibrant, high-brightness blue light with stable output, perfect for large-venue projections, immersive multimedia installations, and dynamic stage performances.
Industrial Laser Engraving: Provides concentrated energy for precise, fast engraving on materials like metal, plastic, wood, and acrylic – ideal for batch production and high-precision customization.
Precision Laser Soldering: Offers controlled heat input and uniform beam profile, enabling reliable soldering of micro-components in electronics manufacturing (e.g., circuit boards, sensors) with minimal thermal damage.
Additional Use Cases: Also suitable for laser cutting (thin materials), scientific research, and medical device integration (where high power and stability are critical).
