What if we told you that a tiny device powers much of today's communication and medical technology? A laser diode (LD), also known as a semiconductor laser or diode laser, is at the heart of many innovations. From fiber-optic networks to medical equipment, laser diodes are vital to modern advancements.
In this article, you'll learn what laser diodes are, how they work, and explore the materials used in laser diodes, their key features, and future innovations.

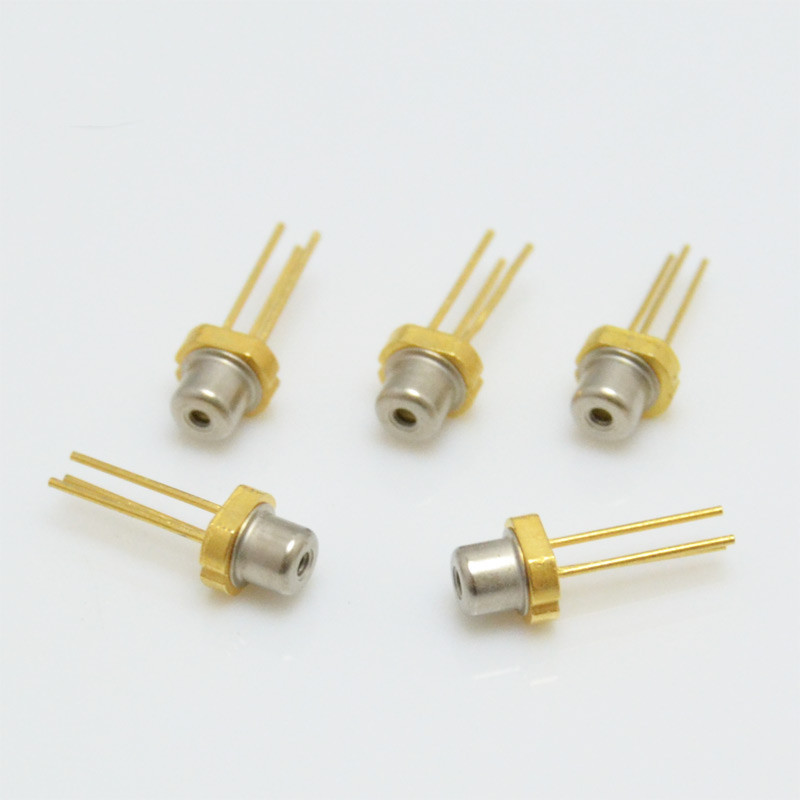

A laser diode(LD), also known as a semiconductor laser, is a device that emits coherent light through a process called stimulated emission. Unlike regular LEDs, laser diodes are designed to produce a narrow, focused beam of light with high coherence.
Laser diodes work by passing an electrical current through a semiconductor material. The current excites electrons, which then recombine with holes (positive charge carriers), releasing energy in the form of light. This process, called recombination, produces photons.
The light produced in laser diodes is highly coherent, meaning the light waves are in sync. The construction of the diode—using a p-n junction—helps confine the photons, which are reflected back into the active region to stimulate more emission, creating a powerful beam.
Laser diodes have become essential in numerous industries. Here are some common applications:
● Telecommunications: Laser diodes power fiber-optic communication systems, enabling fast data transmission over long distances.
● Medical: Used in surgery, dental procedures, and diagnostics, laser diodes provide precision and minimal invasiveness.
● Industrial: From laser cutting to welding and barcode scanning, laser diodes are widely used for their accuracy and efficiency in manufacturing.
A laser diode works by applying an electrical current to a semiconductor material, creating conditions for light emission. This current excites electrons, causing them to move to a higher energy level. When the electrons fall back, they release energy in the form of photons. The key to producing laser light is the process of stimulated emission, which is different from the spontaneous emission seen in regular light sources.
Semiconductors play a vital role in laser diodes. Materials like gallium arsenide (GaAs) and indium phosphide (InP) are commonly used due to their direct bandgap properties. These materials allow electrons to move efficiently and release energy as photons when they recombine with holes. The choice of material affects the wavelength and efficiency of the light emitted.
In a laser diode, there are two types of emission: spontaneous and stimulated.
● Spontaneous Emission: Occurs when an electron drops to a lower energy level and releases a photon randomly. This is the same process that happens in regular light bulbs.
● Stimulated Emission: Happens when an electron is forced to drop to a lower energy state by another photon. This results in the creation of a new photon with the same phase, direction, and wavelength. Stimulated emission is what makes laser light so powerful and coherent.
For a laser diode to produce coherent light, a phenomenon known as population inversion is essential. This occurs when there are more electrons in a higher energy state than in a lower one, creating the conditions needed for stimulated emission. Without population inversion, spontaneous emission would dominate, and the light emitted would not be coherent.
Laser diodes rely on a p-n junction to function. A p-n junction is a boundary formed between p-type and n-type semiconductor materials. When current flows through the junction, it excites electrons in the n-region and holes in the p-region. These excited electrons move to the p-region, where they recombine with holes, releasing energy as light. The p-n junction is the core of the laser diode, making it possible to generate light efficiently.
The key to efficient laser diode performance lies in the choice of semiconductor material. Compound semiconductors, which consist of two or more elements, offer significant advantages over single-element semiconductors like silicon. These materials can efficiently produce light and operate at high temperatures, making them ideal for laser diode applications.
They also allow for precise control of the wavelength and better performance in high-power applications. As a result, compound semiconductors are widely used in modern laser diodes, providing both high efficiency and reliability.
A direct bandgap semiconductor is one in which the minimum of the conduction band and the maximum of the valence band occur at the same momentum. This alignment allows electrons to recombine with holes, releasing energy in the form of photons (light). Direct bandgap materials are essential for laser diodes because they efficiently convert electrical energy into light, unlike indirect bandgap materials like silicon, which are inefficient for this purpose.
Three of the most commonly used direct bandgap materials in laser diodes are:
● Gallium Arsenide (GaAs): GaAs is one of the most widely used materials for laser diodes. It is especially effective for producing infrared light and is used in applications such as fiber-optic communication and laser printing.
● Indium Phosphide (InP): InP is used in high-power, high-efficiency laser diodes, particularly for telecommunications and data transmission. It allows for the emission of longer wavelengths compared to GaAs.
● Gallium Nitride (GaN): GaN is a material used for blue and violet laser diodes. It is known for its ability to handle high temperatures and produce light at shorter wavelengths, making it popular for applications like Blu-ray players and high-intensity lighting.
Direct bandgap semiconductors are crucial in laser diodes because they directly convert electrical energy into light without needing additional mechanisms. This leads to higher efficiency and better performance. Gallium arsenide (GaAs) and gallium nitride (GaN) are two prime examples of direct bandgap materials used in laser diodes, making them ideal for both low and high-power applications.
Compound semiconductors, such as those made from elements in the III-V group of the periodic table, offer excellent performance for laser diodes. They are highly efficient, can operate at higher temperatures, and can be tuned to emit light at specific wavelengths. These characteristics are essential for laser diodes that power applications like fiber-optic communication, barcode scanning, and medical devices. Compound semiconductors help achieve the desired light output, improve the durability of the diode, and reduce manufacturing costs over time.
Laser diodes are known for their high efficiency in converting electrical energy into light. One of the most important features of a laser diode is its low threshold current, which is the minimum amount of current required to initiate lasing. A low threshold current means that the diode can produce light with minimal power input, making it energy-efficient. This efficiency is especially important in applications where power consumption is a concern, such as in portable devices or long-distance communication systems.
Another critical feature of laser diodes is their beam quality. The quality of the beam determines how tightly the light is focused and how well it can be directed toward a specific target. A high-quality beam has a narrow divergence, meaning it maintains its focus over long distances. However, the beam can spread out as it moves further from the source. This spreading is known as beam divergence.
The relationship between beam divergence and application suitability is important. For applications requiring precise targeting, such as barcode scanning or optical communication, a narrow, focused beam with low divergence is ideal. In contrast, for tasks like industrial cutting or medical treatments, where a broader beam may be useful, some beam divergence is acceptable.
Laser diodes can emit light across a broad range of wavelengths, from infrared to visible and even ultraviolet. The emitted wavelength depends on the material used in the diode and its bandgap properties. This wide range of wavelengths makes laser diodes versatile, allowing them to be used in various applications such as:
Laser Type | Applications |
Infrared lasers | Fiber-optic communication, night-vision technologies |
Visible lasers | Laser pointers, DVD players |
Ultraviolet lasers | Medical treatments (phototherapy, sterilization) |
Beam divergence is a crucial factor in determining the application suitability of a laser diode. For tasks requiring long-range precision, a narrow beam with low divergence is preferred. Applications like 3D scanning or fiber-optic data transmission benefit from the tight focus that minimizes energy loss over distance. On the other hand, for medical or industrial applications that require spreading or diffusing the laser, a greater beam divergence is acceptable and useful.
Laser diodes have already transformed many industries, but the future holds even more exciting possibilities. As technology advances, we can expect new materials, applications, and improvements to enhance their performance.
One of the main goals for the future of laser diodes is to improve efficiency and power. Researchers are exploring new semiconductor materials and innovative designs that can reduce energy consumption while increasing output power. These improvements will allow laser diodes to be used in more demanding applications, such as high-performance industrial processes or long-range communication systems.
By making laser diodes more energy-efficient, we can reduce costs and environmental impact. New materials, such as advanced III-V compound semiconductors, are being developed to enhance performance and allow laser diodes to operate at higher power levels without compromising energy efficiency.
Laser diodes are already widely used, but new applications are on the horizon. Here are some exciting areas where laser diodes will play a major role:
● Automotive (LiDAR): Laser diodes are expected to revolutionize the automotive industry, particularly in LiDAR (Light Detection and Ranging) systems for self-driving cars. These systems require high-power, precise laser diodes to map the surrounding environment in real time, ensuring safety and navigation accuracy.
● Medical Fields: Laser diodes are increasingly being used in medical treatments, such as laser surgery and diagnostic equipment. Future innovations may lead to more compact, efficient laser diodes that provide less invasive procedures with greater precision.
The development of new materials plays a critical role in the evolution of laser diodes. Gallium nitride (GaN) and other advanced semiconductors are making it possible to create more durable and efficient laser diodes that can operate at higher temperatures and produce shorter wavelengths.
Researchers are exploring the use of quantum dots to further enhance the performance of laser diodes. These nanometer-sized materials can tune the emitted wavelength and improve efficiency, opening up new possibilities for applications requiring specific wavelengths, such as medical diagnostics or advanced imaging.
