JAP6530-003

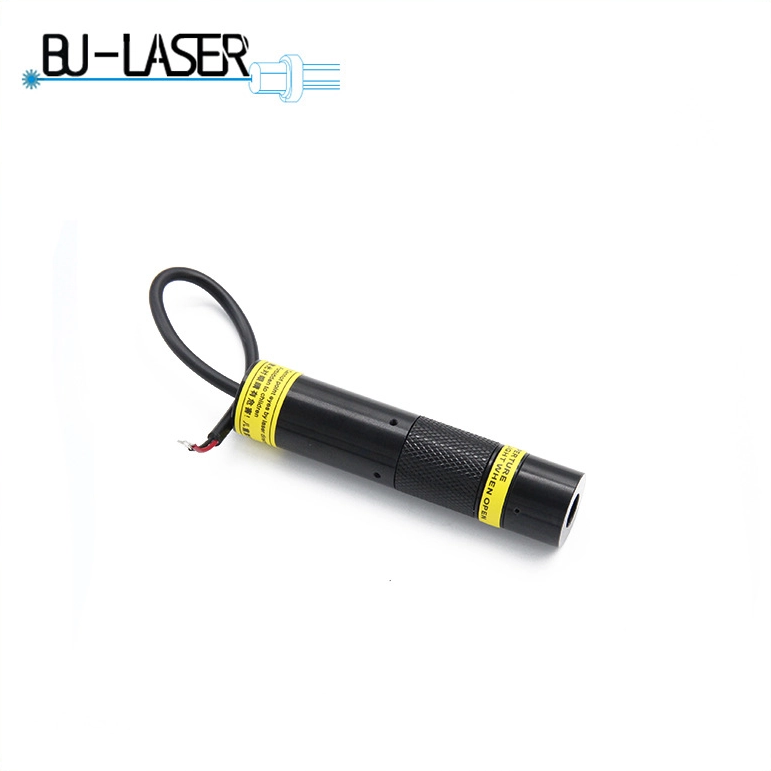

650nm 5mW Red Laser Diode Module
This is 650nm 5mW Red Laser Diode Module with 12mm diameter and can get a collimated beam as 7mm spot size at a 30m working distance. This high-quality laser module is designed for precision aiming and positioning applications.
With its compact size and powerful 5mW output, this red laser module is perfect for tasks that require pinpoint accuracy. The 7mm spot size ensures a focused beam of light, making it ideal for tasks that require detailed targeting.
The 30m working distance allows for flexibility in a variety of applications, whether it be in industrial settings, construction projects, or scientific research. The laser module also features a horizontal level for added convenience and accuracy.
Trust in the reliability and performance of this 650nm 5mW Red Laser Diode Module for all your precision aiming and positioning needs.
Core Specification :
Wavelength | 650nm |
Output Power | 4-6mW |
Working Voltage | 3-5V |
Dot Beam Size | <30mm@100m distance |
Housing Size | 12*55mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
P
pRODUC
Product Display and Beam Performance:
Our Service
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/80°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
