JAP6505-118
Laser Target Shooting Training System
The simulated live ammunition target shooting training system is a kind of target training method using laser instead of bullet. Compared with traditional target shooting training, this method has the characteristics of high safety, low cost and more convenient analysis and statistics of target training results. The target of the simulated live-fire target shooting training system is also a physical object, but the gun is replaced with a laser transmitter and electronic accessories are added.

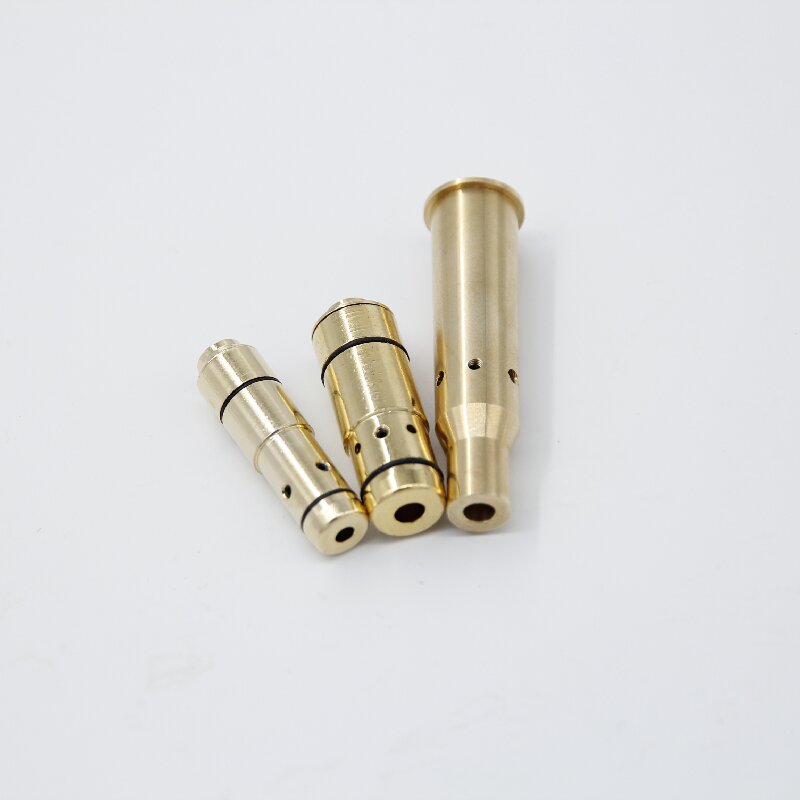

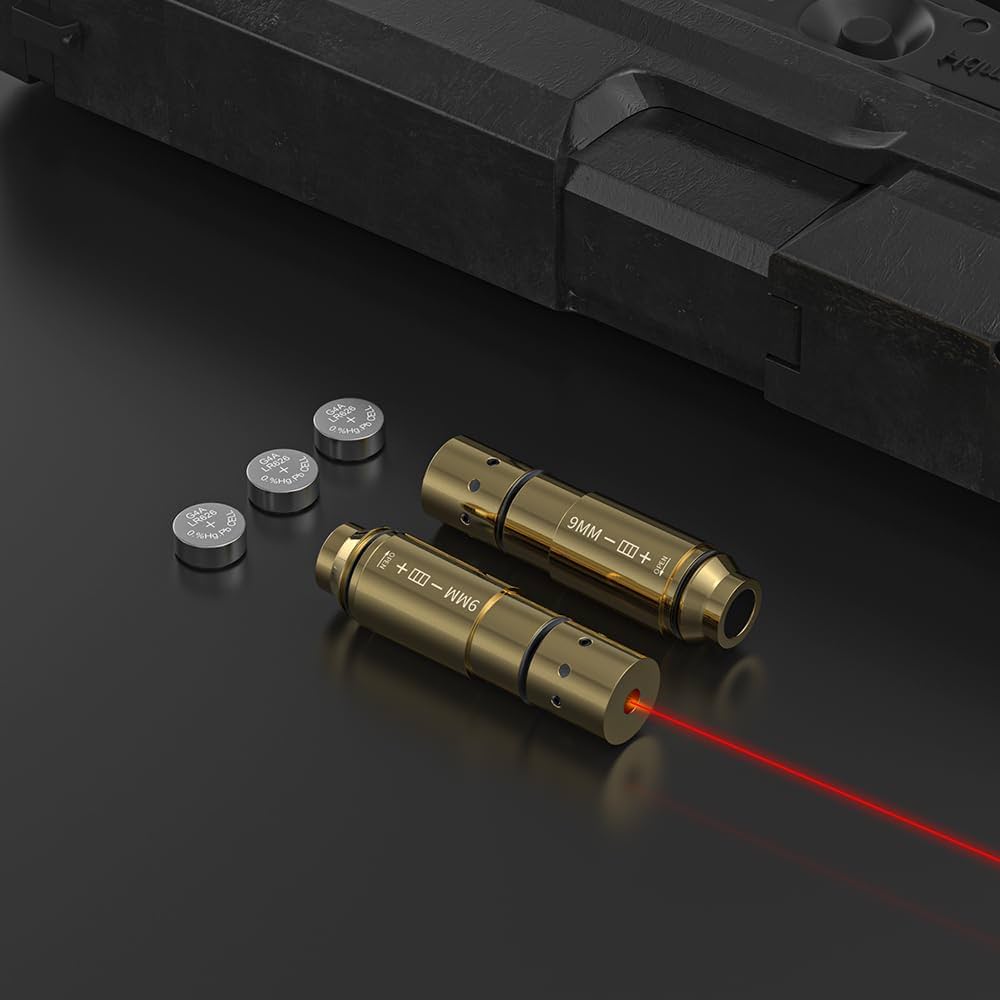

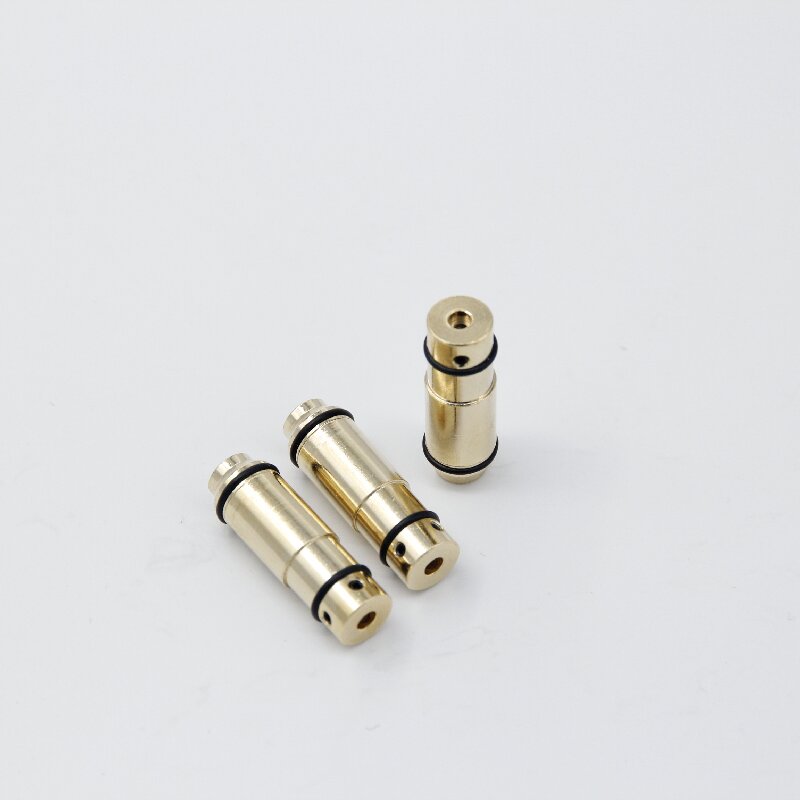

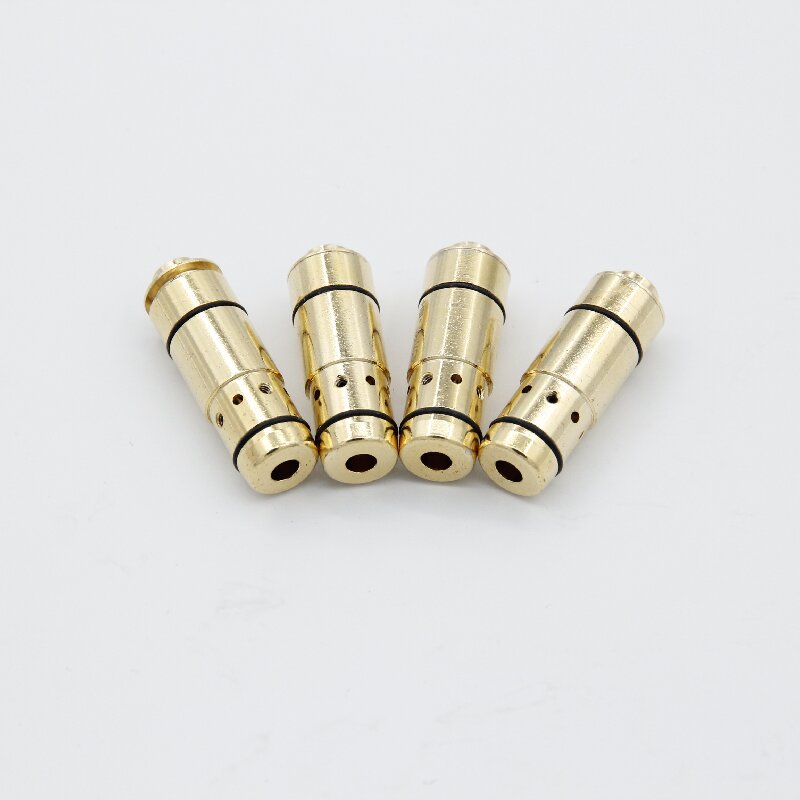

It is a small size laser training bullet with a 650nm red dot laser. It is widely used in simulated shooting, laser firearm training systems, dry fire training, aiming and positioning, laser bore sighter and so on.
Wavelength: Red 650nm
Output Power(CW): According to the different requirements of the customers, we can do it with 0.4mW, 1mW, 3mW output Power.
Dimension: the dimension can be customzied according to different requirements, the normal one we have do is 9mm, 223REM，45ACP，380ACP，40S&W , 12 Gauge and so on.
Working Voltage: 3-5V, working with LR626 button battery
Working Mode: CW work
Dot beam size: We normally adjust its infinity distance ( Parallel light), then get less than 15mm dot beam size at a 10m working distance. The concentricity of the laser bullet is less than 0.5deg.
| Wavelength | 650nm |
| Output Power | 2-3mW |
| Divergence | 0.1 mrad |
| Operating Current | <20mA |
| Material | Brass with gold-plated |
| Lens | Optical Glass |
| Lifespan | > 10,000 hours |
Laser Target Shooting Training System
The simulated live ammunition target shooting training system is a kind of target training method using laser instead of bullet. Compared with traditional target shooting training, this method has the characteristics of high safety, low cost and more convenient analysis and statistics of target training results. The target of the simulated live-fire target shooting training system is also a physical object, but the gun is replaced with a laser transmitter and electronic accessories are added.
It is a small size laser training bullet with a 650nm red dot laser. It is widely used in simulated shooting, laser firearm training systems, dry fire training, aiming and positioning, laser bore sighter and so on.
Wavelength: Red 650nm
Output Power(CW): According to the different requirements of the customers, we can do it with 0.4mW, 1mW, 3mW output Power.
Dimension: the dimension can be customzied according to different requirements, the normal one we have do is 9mm, 223REM，45ACP，380ACP，40S&W , 12 Gauge and so on.
Working Voltage: 3-5V, working with LR626 button battery
Working Mode: CW work
Dot beam size: We normally adjust its infinity distance ( Parallel light), then get less than 15mm dot beam size at a 10m working distance. The concentricity of the laser bullet is less than 0.5deg.
| Wavelength | 650nm |
| Output Power | 2-3mW |
| Divergence | 0.1 mrad |
| Operating Current | <20mA |
| Material | Brass with gold-plated |
| Lens | Optical Glass |
| Lifespan | > 10,000 hours |
