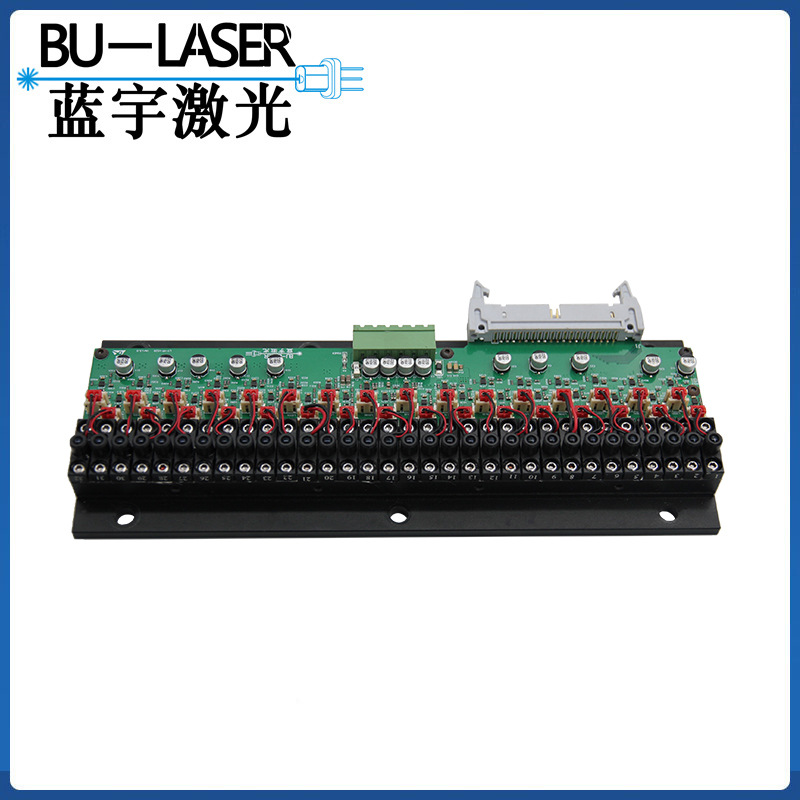

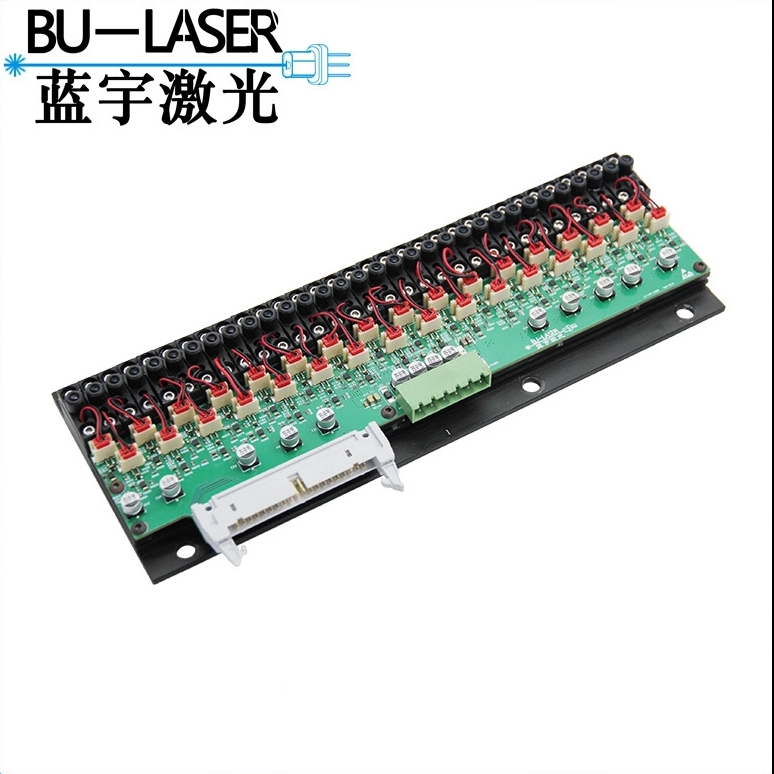

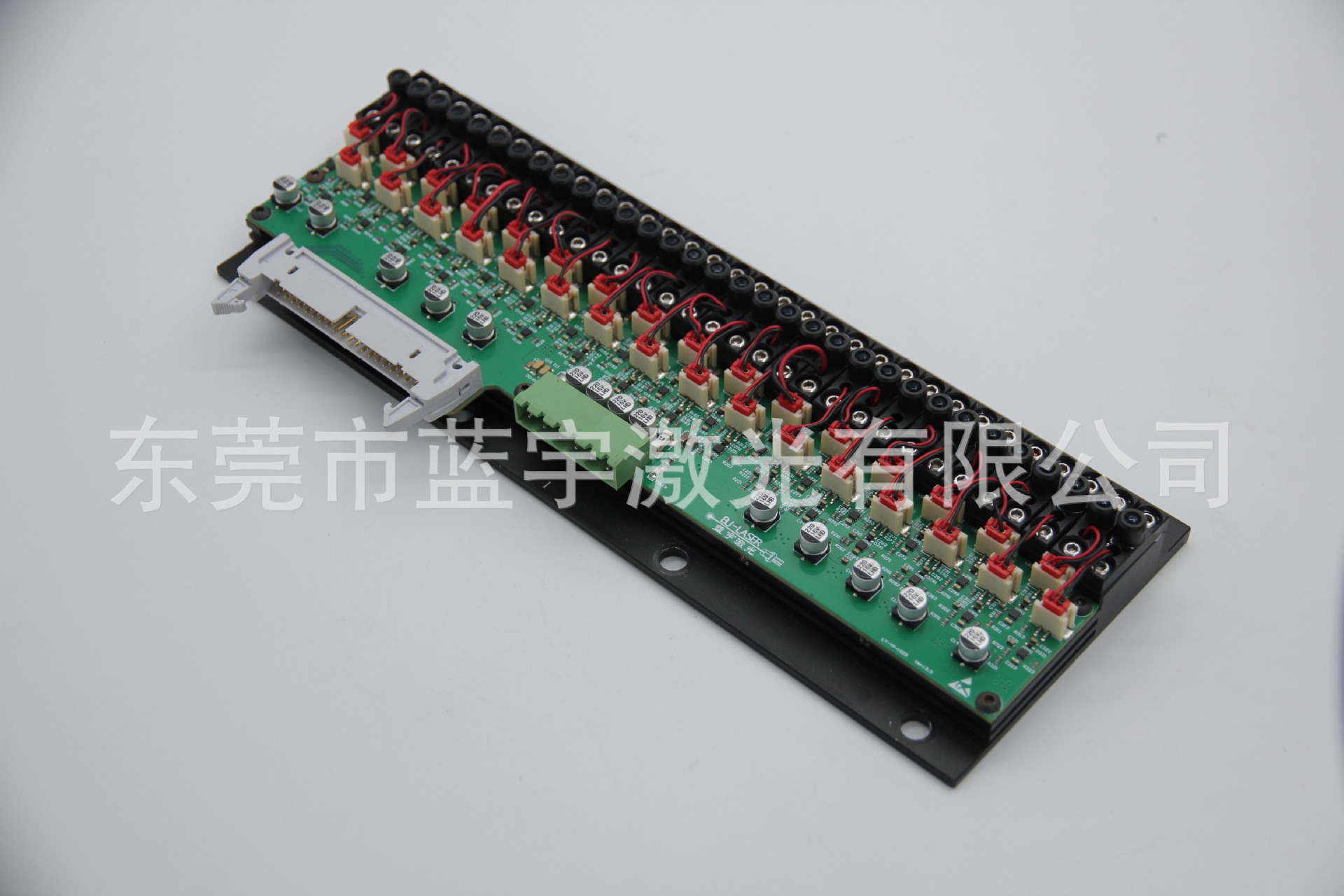

LY4035A-32-CTS
405nm 200mW Violet Laser Module for CTS Screen Printing

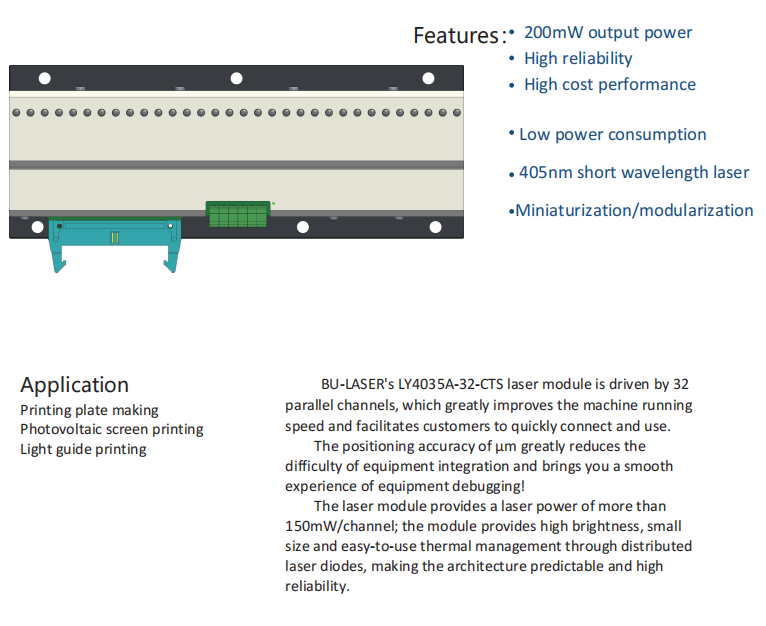

Introducing the 405nm 200mW Laser Module, a cutting-edge product designed for a variety of industrial applications. This high-powered laser diode is equipped with advanced features such as CTS technology, making it ideal for tasks such as printing plate making, photovoltaic silk screen printing, light guide printing, and silk screen printing.
With a wavelength of 405nm and a power output of 200mW, this violet laser module offers exceptional precision and accuracy, making it perfect for tasks that require fine detail and intricate designs. The CTS technology ensures that the laser diode operates efficiently and reliably, delivering consistent results every time.
Whether you are in the printing industry, electronics manufacturing, or any other field that requires precise laser technology, the 405nm 200mW Laser Module is the perfect solution for your needs. Trust in its superior performance and advanced features to take your projects to the next level.

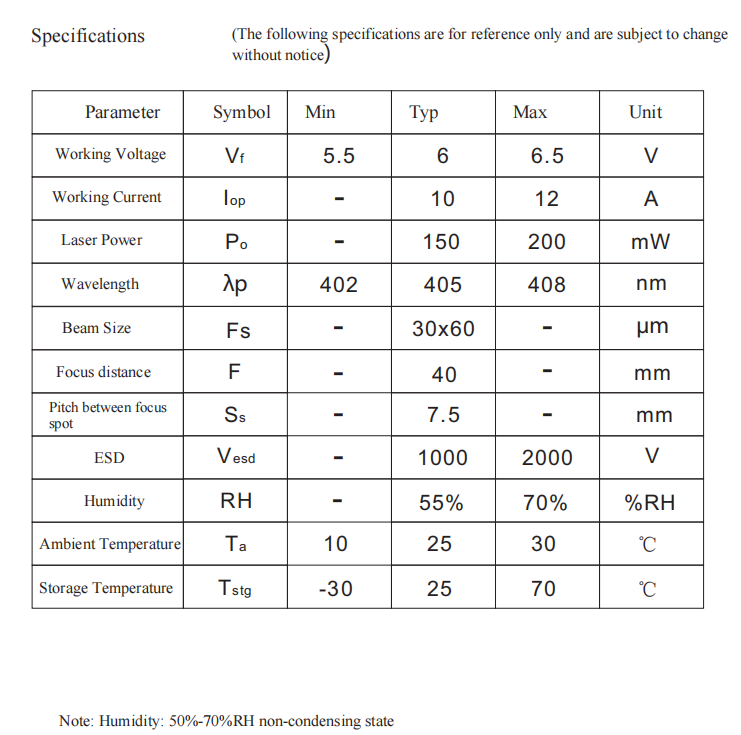

Core Specification :
Wavelength | 405nm |
Output Power | 200mW |

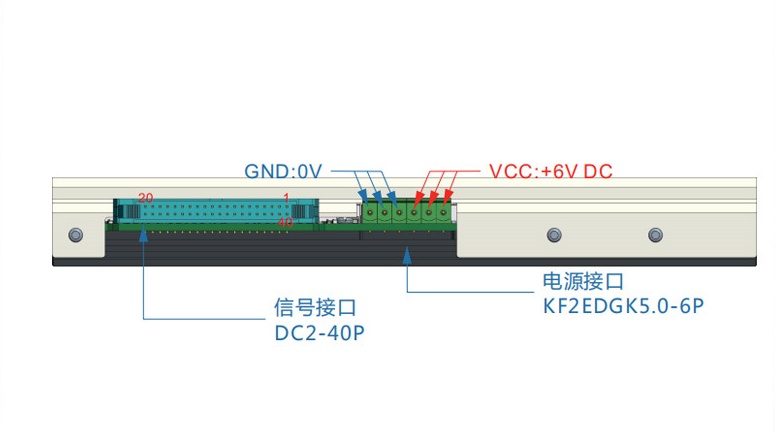

Working Voltage | 6V |
Beam Mode | Dot beam |

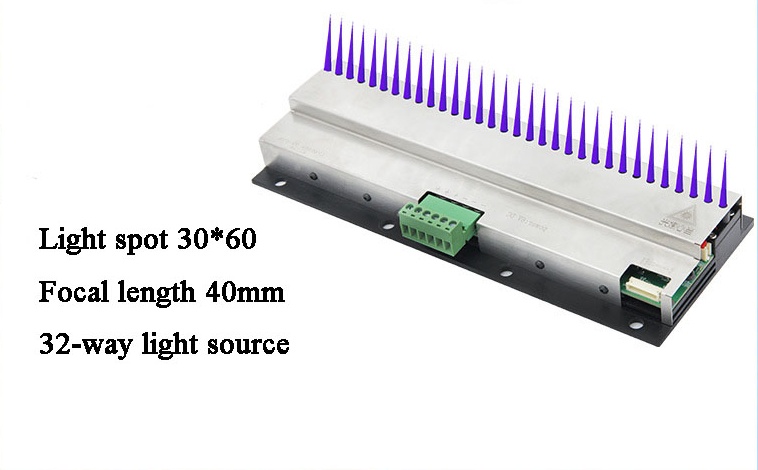

Beam Size | 30*60um@40mm (Customizable) |

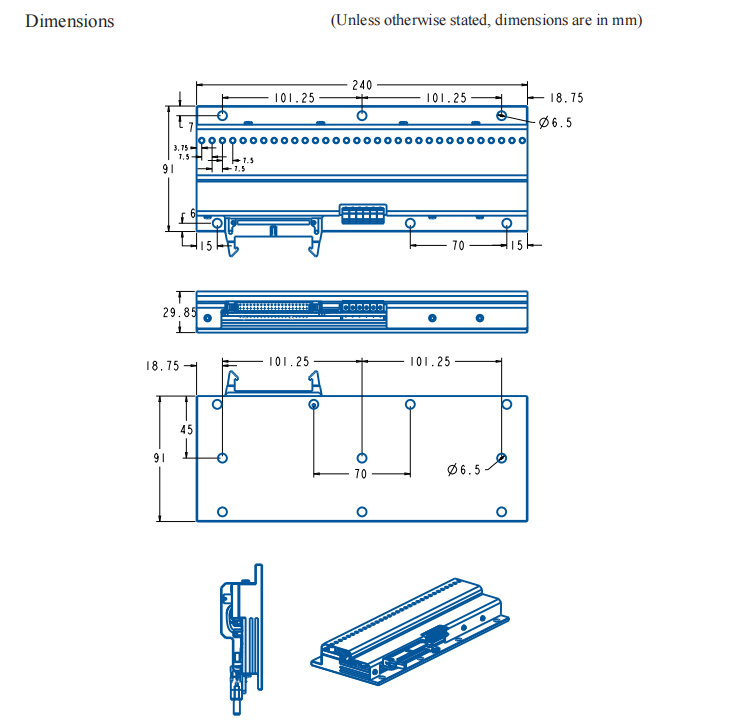

Housing Size | 240*91*30mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/80°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
