650nm Red Laser Bullet 223 Rem Laser Bore Sight for Laser Training Cartridge

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 223REM


Overview


51pNPqeS-kL._UF1000,1000_QL80_A Brief Introduction to Laser Bullets

Laser bullets, often referred to as laser-based projectile simulation systems, are advanced devices designed to mimic the trajectory and impact of traditional bullets using laser technology. Unlike actual ammunition, they emit focused laser beams to mark hits on targets, making them a safe and versatile alternative in training, military exercises, and recreational shooting scenarios.

These systems typically consist of a laser emitter integrated into a cartridge or projectile-shaped housing, compatible with standard firearms or specialized training weapons. When fired, the laser bullet activates upon trigger pull, emitting a brief, high-intensity laser pulse that registers on sensitive targets or sensors, providing instant feedback on accuracy and precision.

Laser bullets offer significant advantages, including eliminating the risk of physical harm from live ammunition, reducing costs associated with real bullets and range maintenance, and enabling training in environments where live fire is restricted. They are widely used in law enforcement and military training to practice marksmanship, tactical drills, and scenario-based exercises without the dangers of live rounds.

While they simulate bullet ballistics, laser bullets do not possess the destructive force of actual ammunition, focusing instead on realistic training and simulation. Their development has revolutionized safety and efficiency in shooting practice, making them an indispensable tool in modern training protocols.

Product Description

It is a small size laser training bullet with a 650nm red dot laser. It is widely used in simulated shooting, laser firearm training systems, dry fire training, aiming and positioning, laser bore sighter and so on.

2023060612063133e66f55a83644f89ea87d6c392b08ff


Wavelength: Red 650nm


Output Power(CW): According to the different requirements of the customers, we can do it with 0.4mW, 1mW, 3mW output Power.


Dimension: the dimension can be customzied according to different requirements, the normal one we have do is 9mm, 223REM,45ACP,380ACP,40S&W , 303, 308, 12 Gauge and so on.


Working Voltage: 3-5V, working with LR626 button battery


Working Mode: CW work


Dot beam size: We normally adjust its infinity distance ( Parallel light), then get less than 15mm dot beam size at a 10m working distance. The concentricity of the laser bullet is less than 0.5deg.

Specification


Wavelength 650nm
Output Power 2-3mW
Divergence 0.1 mrad
Operating Current <20mA
Material Brass with gold-plated
Lens Optical Glass
Lifespan > 10,000 hours

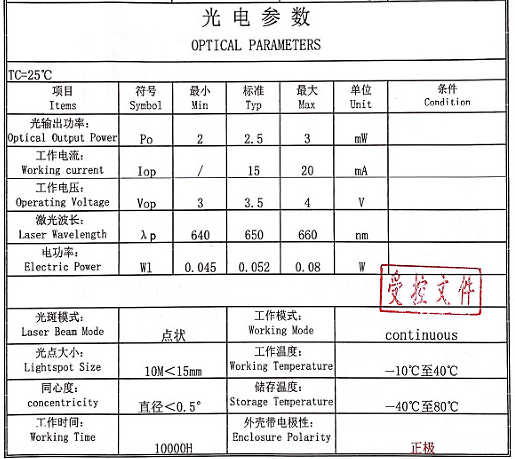

企业微信截图_17551427917127

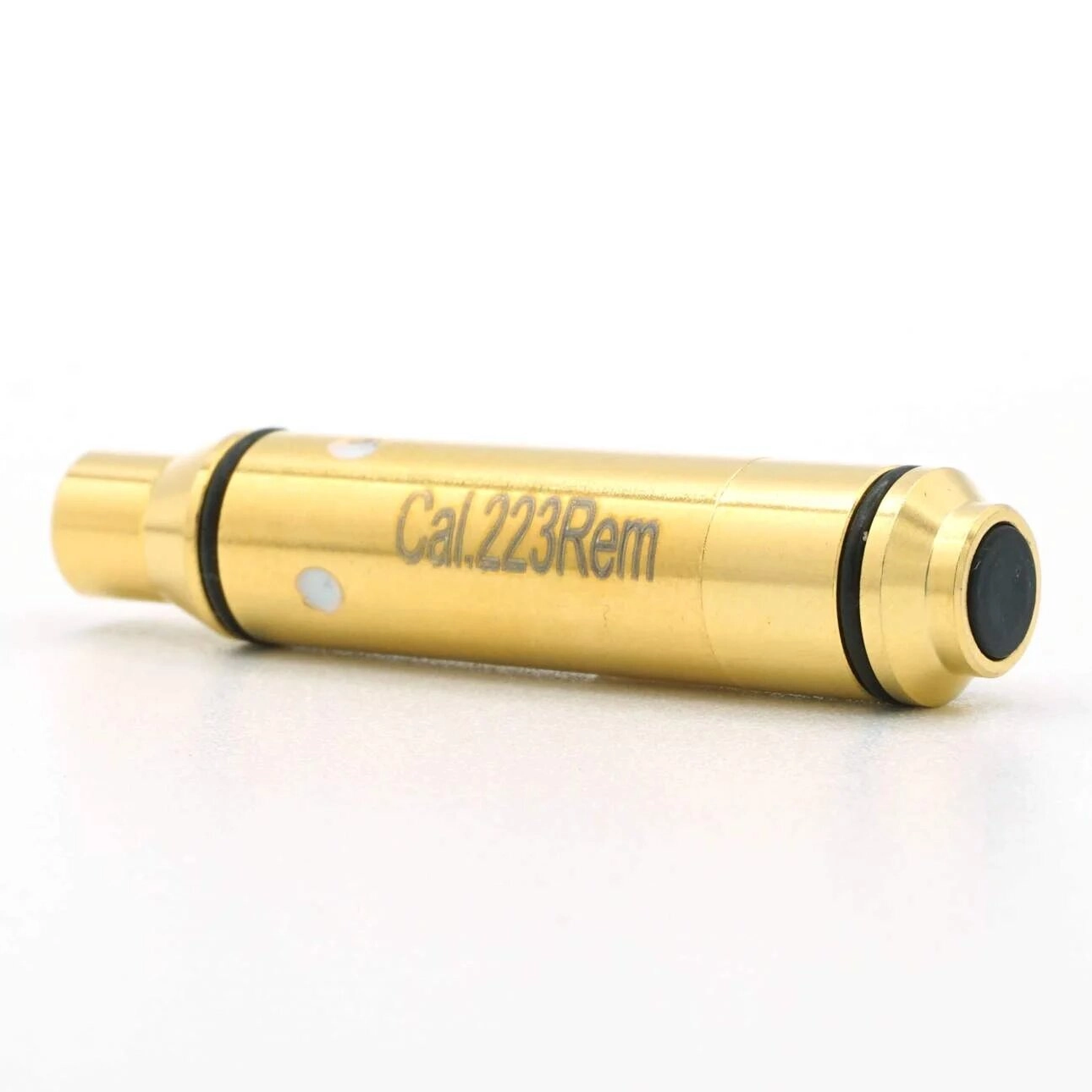

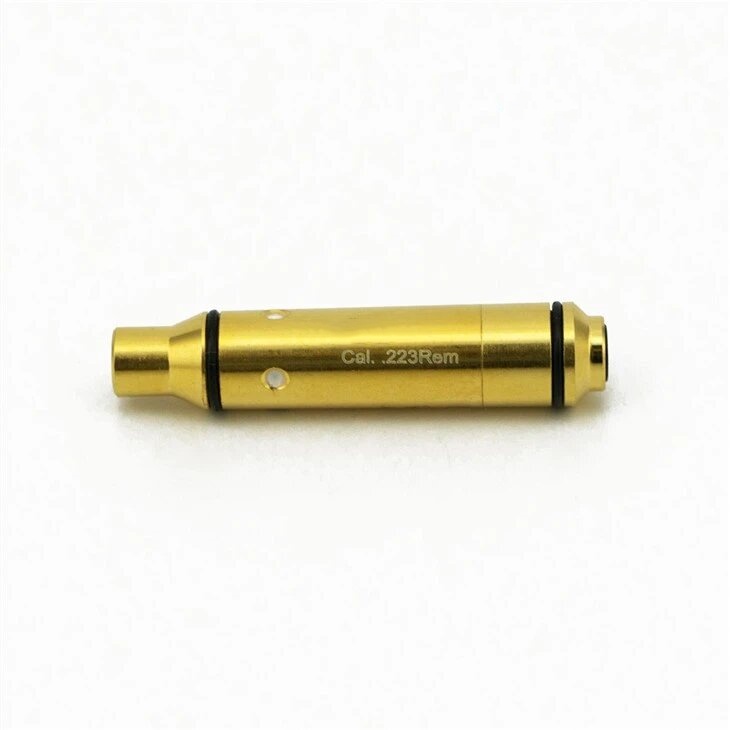

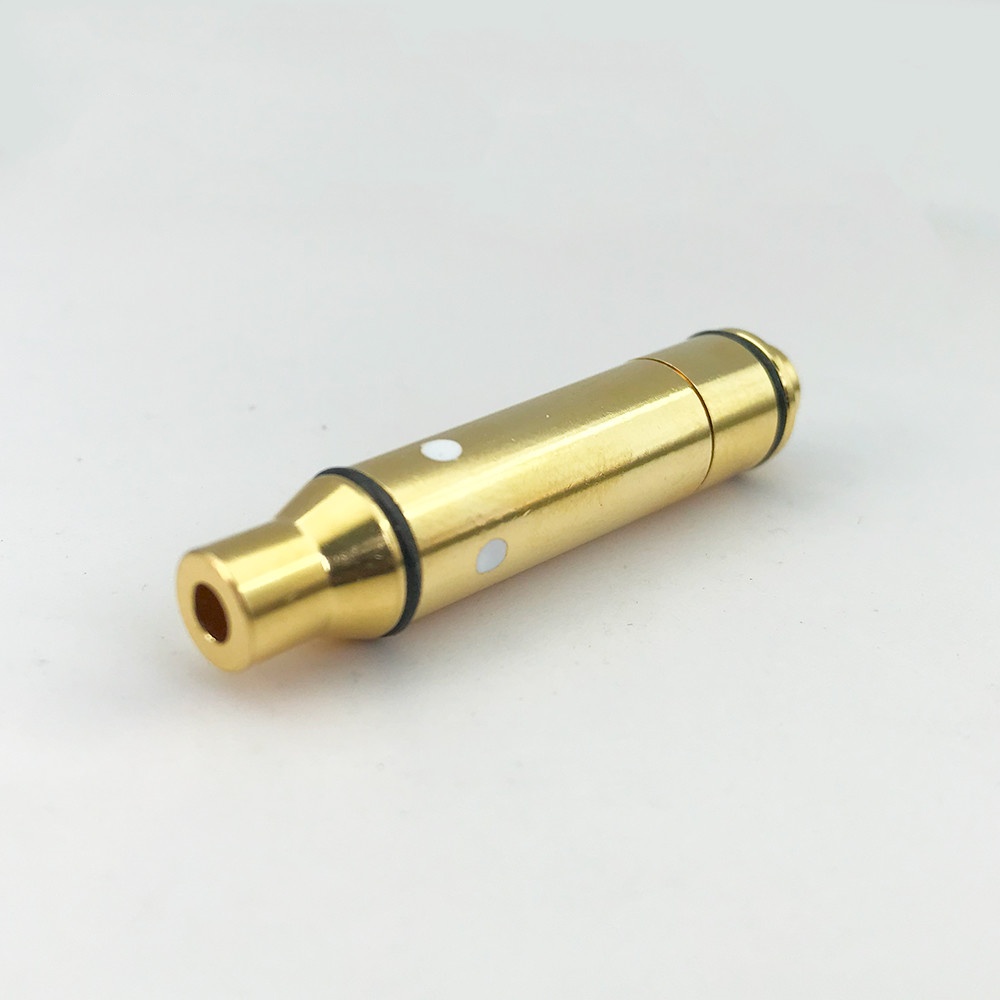

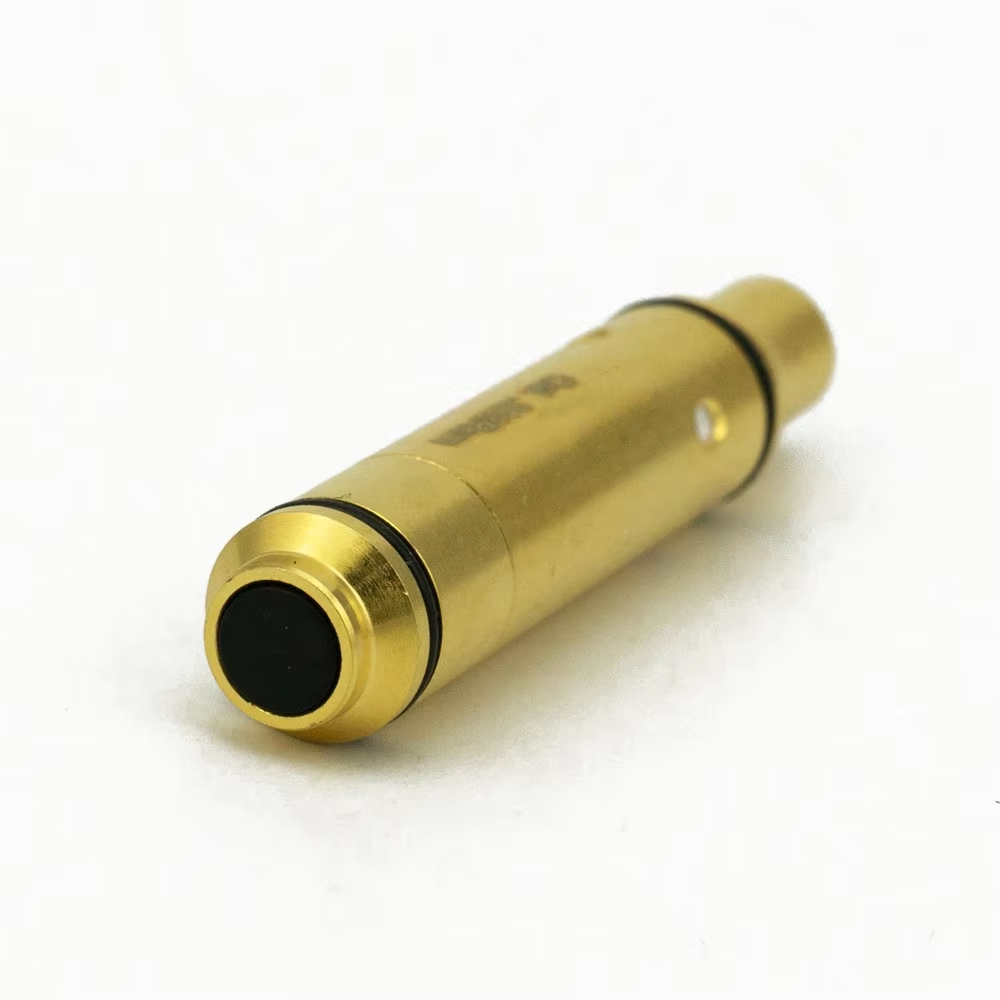

Product Display

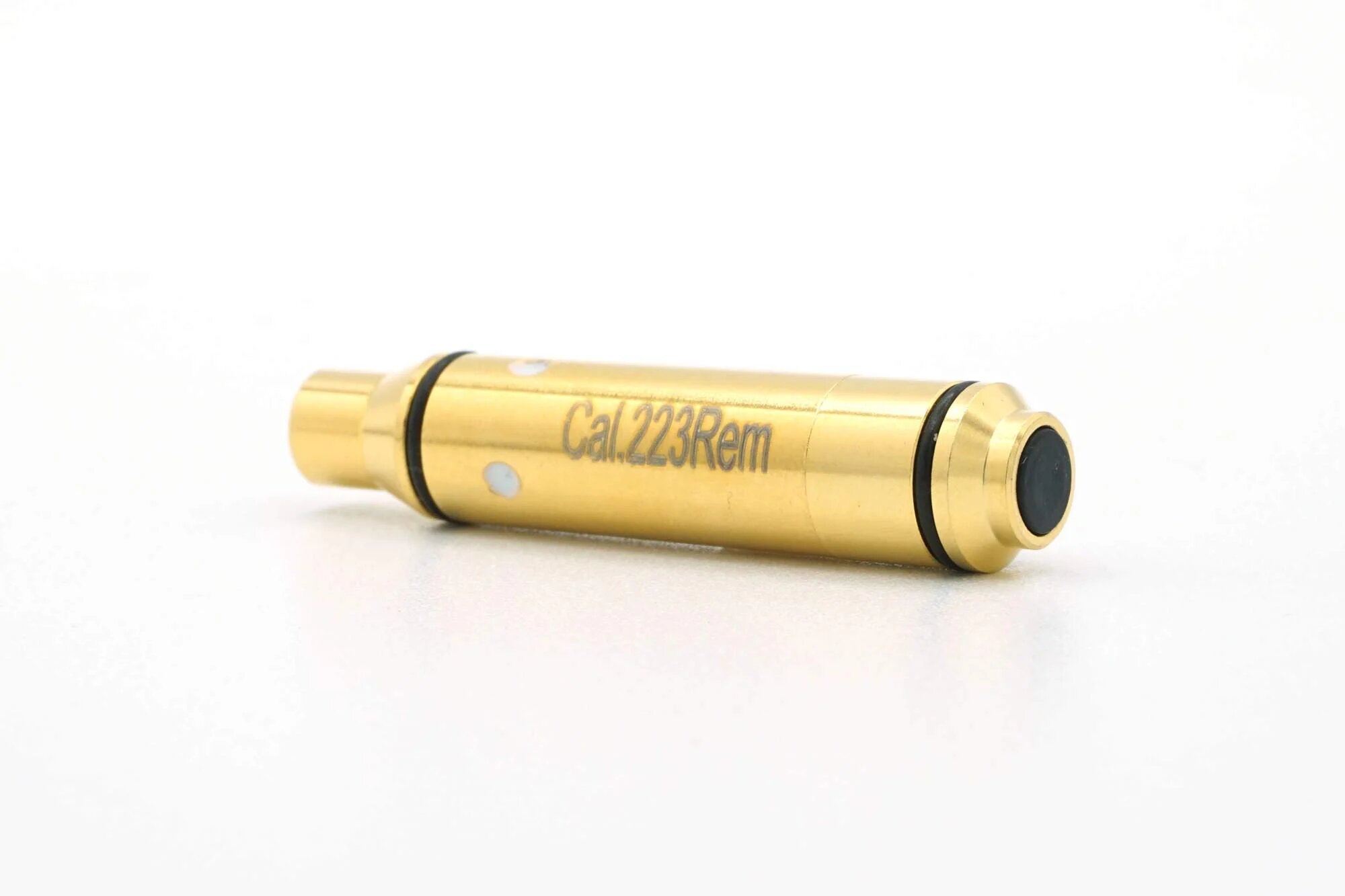

223REM5

_MG_5066_proc1659151932908企业微信截图_16591532078285

untitled-design-11
