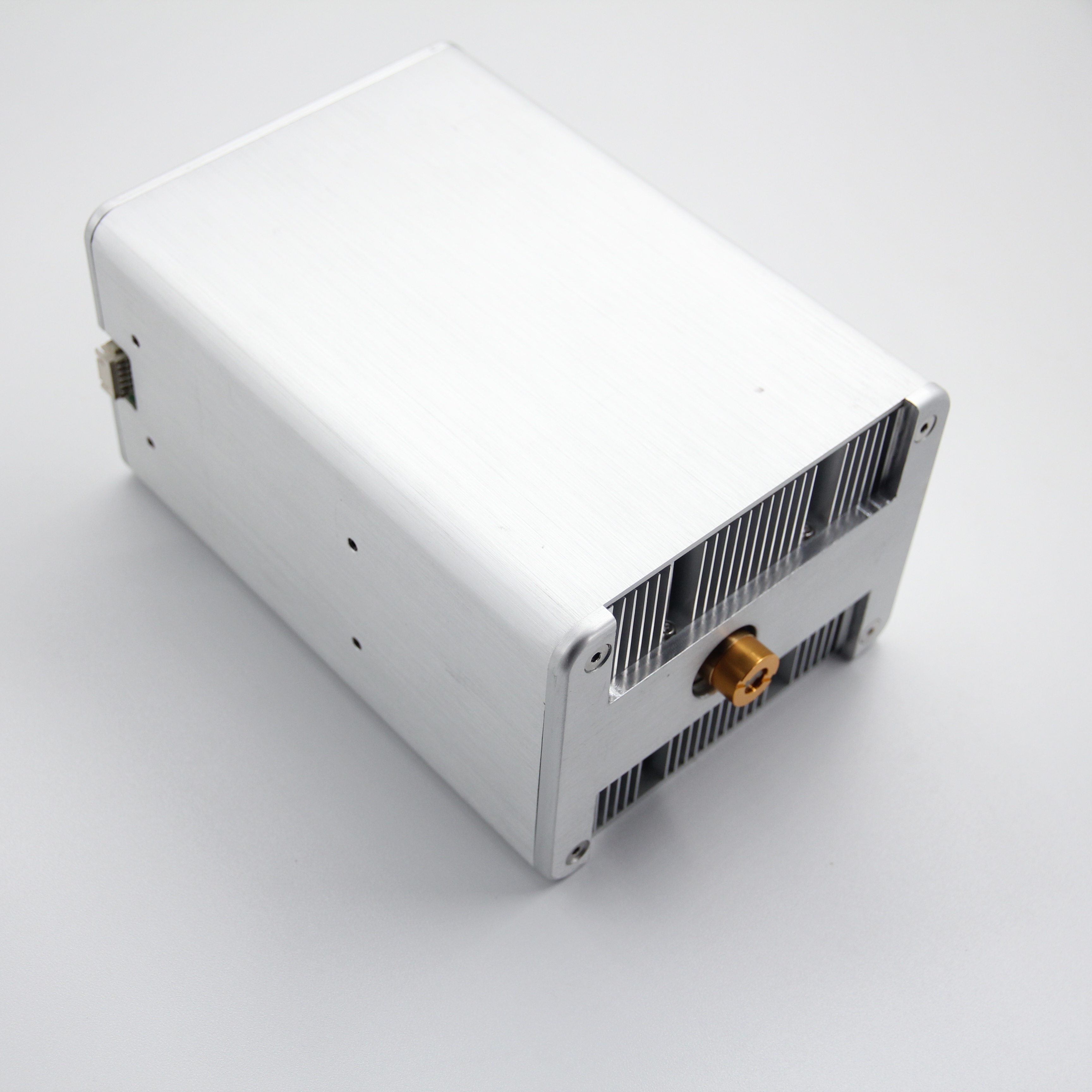

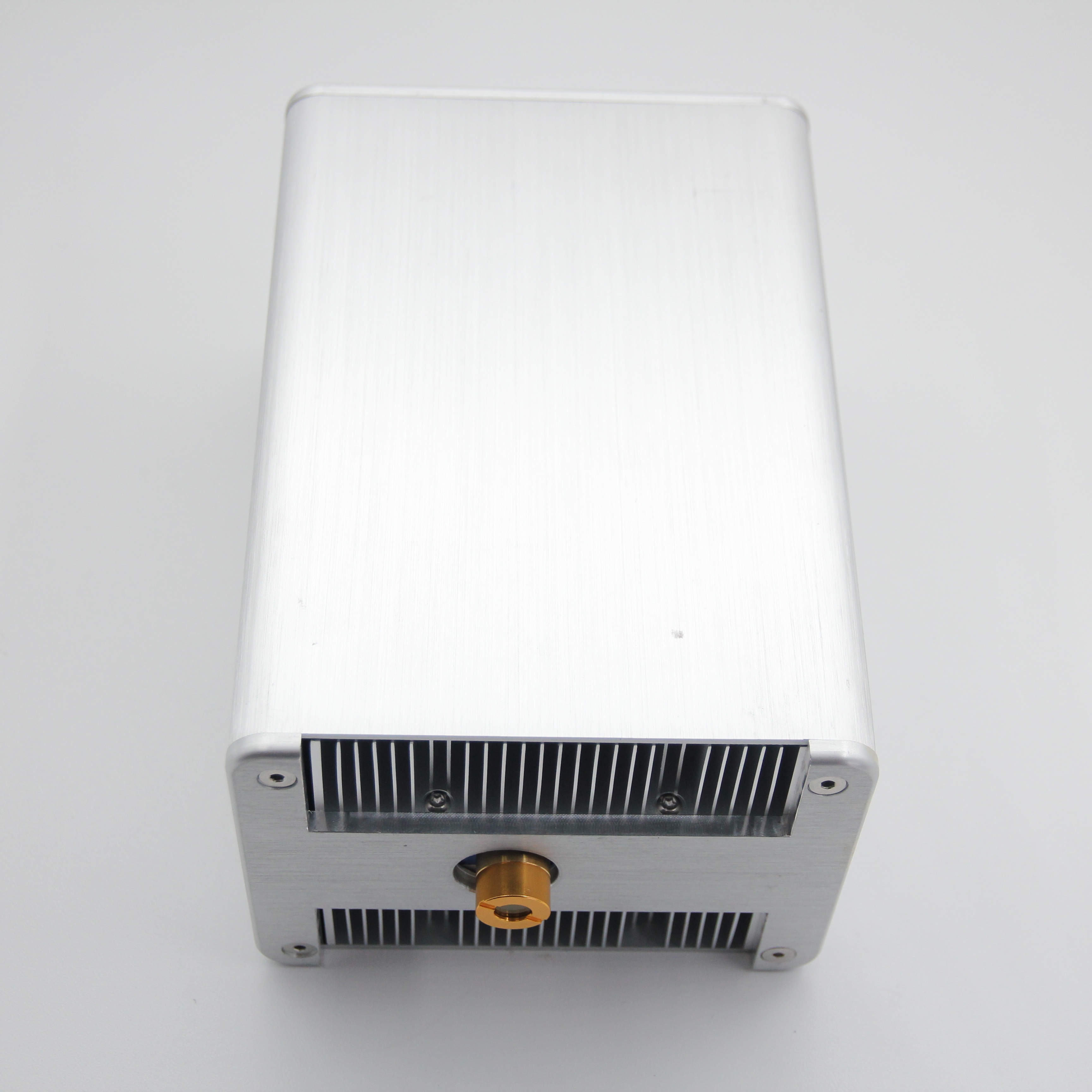

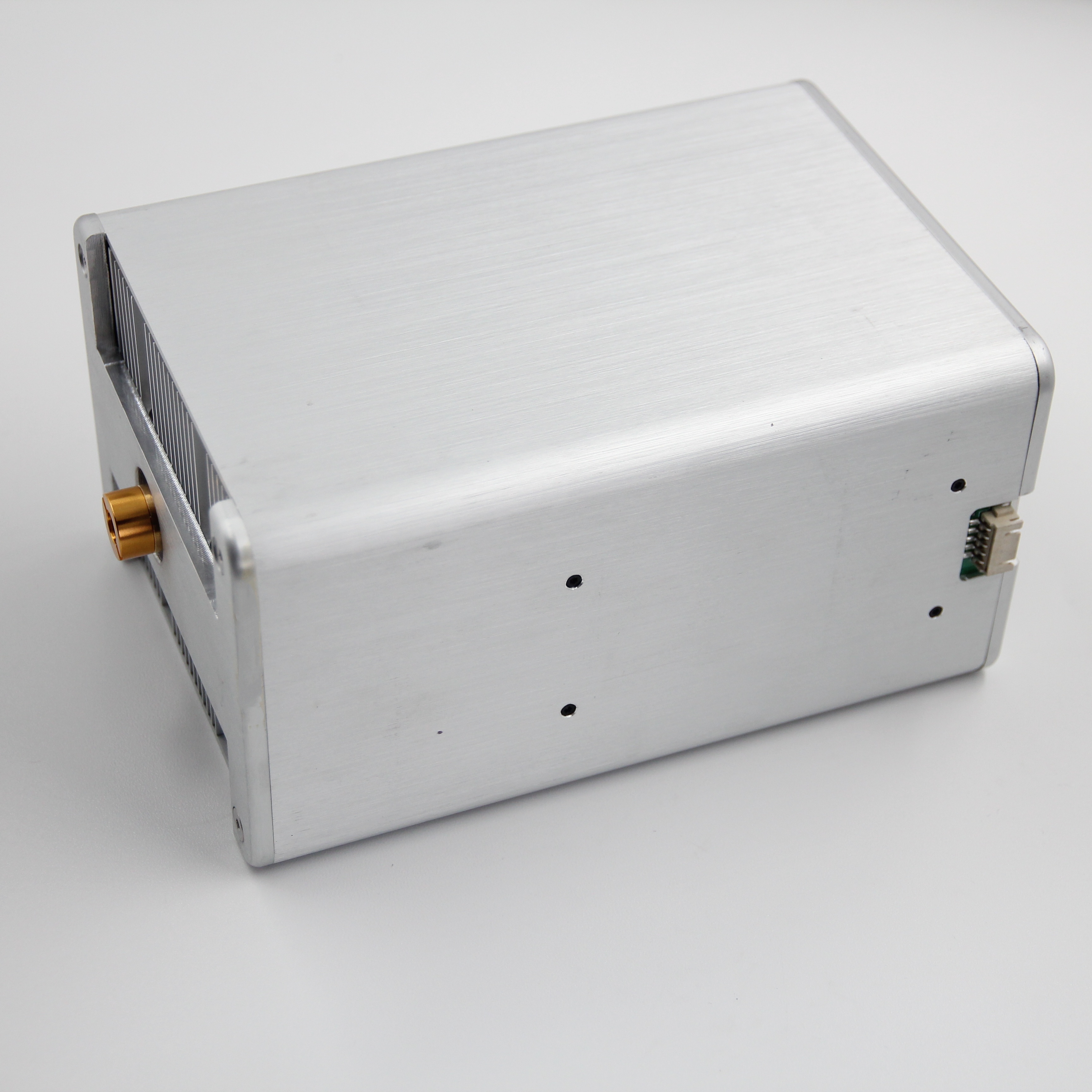

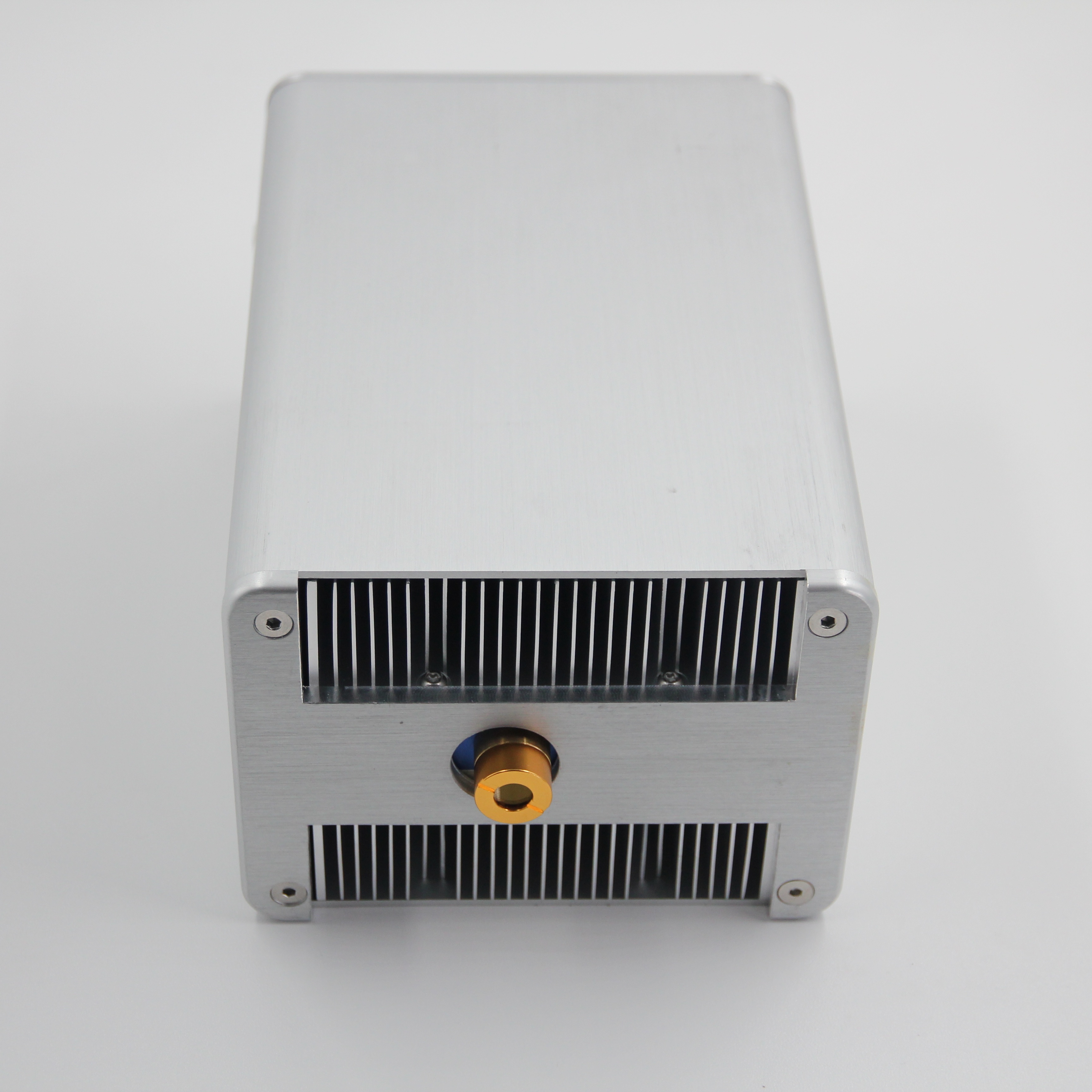

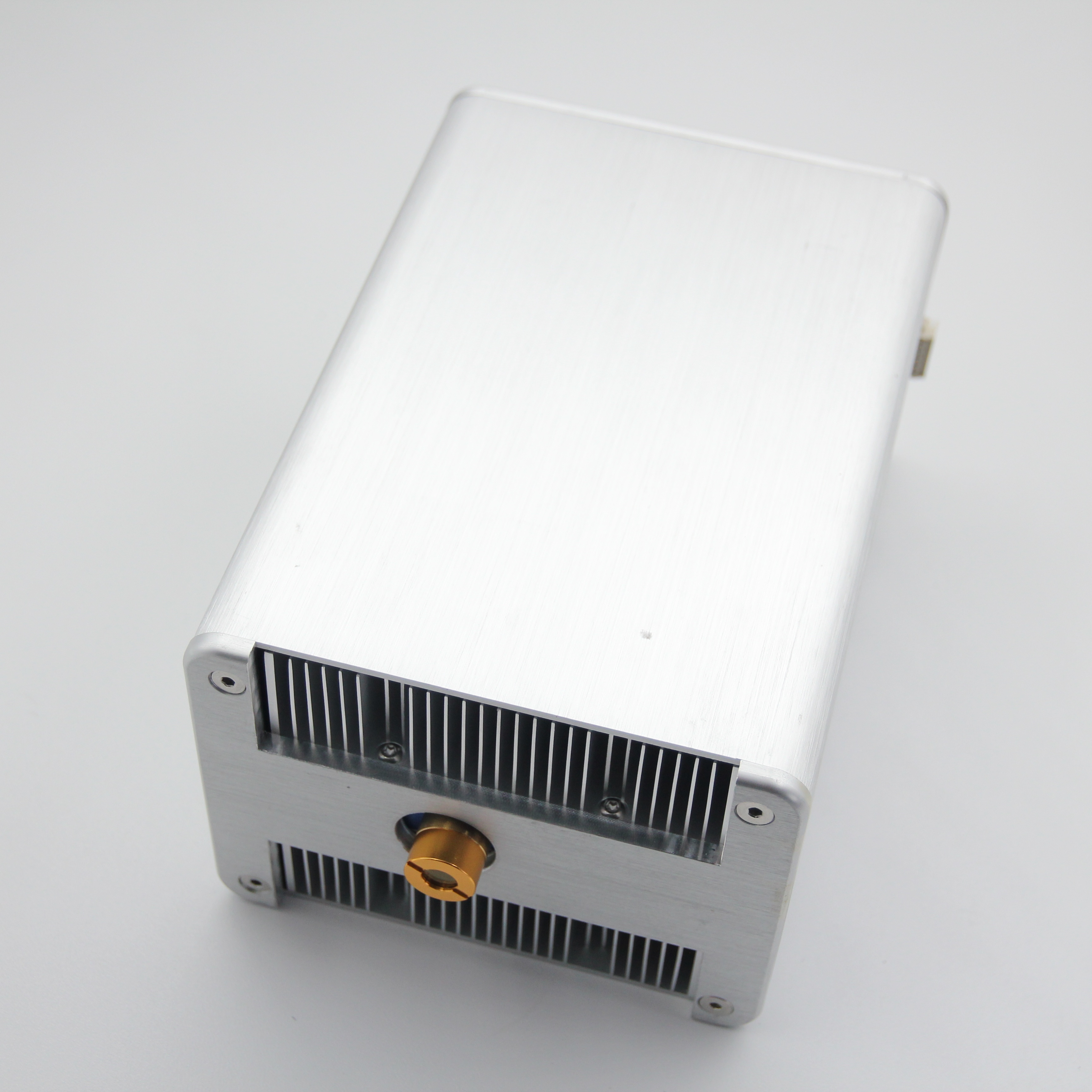

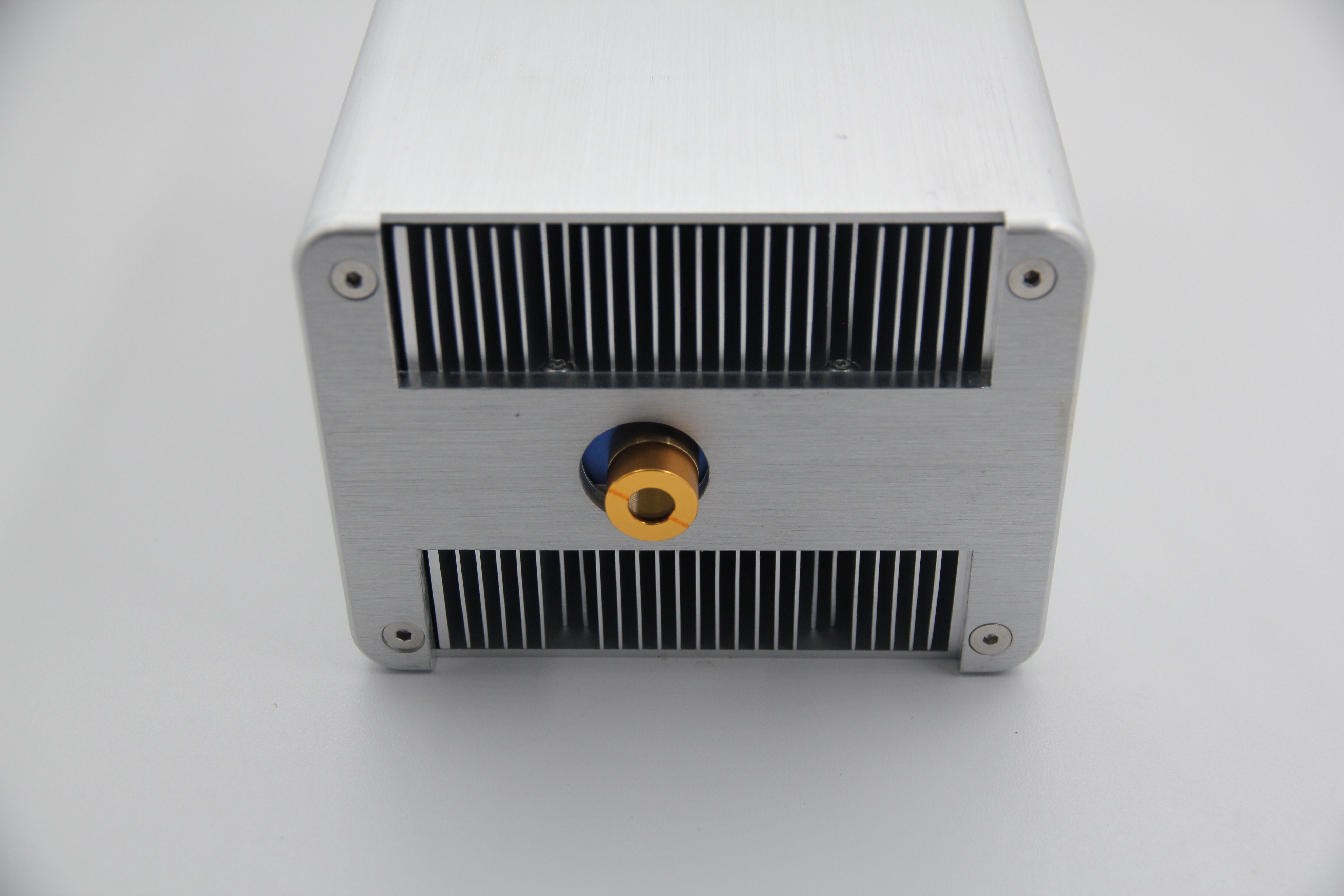

435nm 80W Blue Laser Module with Air Cooler & Driver
The 435nm 80W blue laser module is a high-power precision device specially developed for laser weeding and laser cutting scenarios. It integrates an efficient air-cooled heat dissipation system and a stable driver module. Relying on the high energy density and precise focusing characteristics of 435nm short-wave blue light, it achieves efficient, environmentally friendly, and high-precision operation effects in agricultural weeding, material processing and other fields, providing core power for the intelligent upgrading of industry and agriculture.
Core Advantages: Accurately Empowering Two Core Scenarios
Aiming at the different operation needs of laser weeding and cutting, the 435nm 80W laser module realizes the efficient application of "one machine with dual functions" through wavelength optimization, power control and heat dissipation upgrade:
Laser Weeding: Environmentally Friendly, Efficient and Precise Without Harming Seedlings: The 435nm blue light band has a special absorption peak for weed chlorophyll. The 80W high-power laser beam can instantly penetrate the surface tissue of weeds and destroy the cell structure to make them wither quickly. Compared with traditional chemical weeding, it has no pesticide residues and does not pollute the soil and water sources; combined with a precise positioning system, it can achieve "targeted weeding", avoiding damage to crop roots and leaves, especially suitable for organic agriculture, greenhouses, orchards and other scenarios.
Laser Cutting: High Absorption Rate, Fine and Burr-Free: For non-metallic materials such as film materials, acrylic, ABS plastic, thin wood panels, leather, etc., the absorption rate of 435nm blue light is much higher than that of infrared laser. The 80W power can realize rapid fusing and cutting. The cutting kerf is as narrow as 0.1-0.3mm, and the cutting surface is smooth and burr-free without secondary grinding, suitable for precision parts processing, handicraft production, packaging material cutting and other fields.
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item
Parameter
Wavelength
375-405nm
425-488nm
515-520nm
635-670nm
780-980nm
Single Diode Module Optical Power
20mw-3W
20mw-3W
10mw-1.6W
5mw-2.5W
5mw-75W
Multi Diodes Module Optical Power
3W-200W
6W-500W
1.6W-50W
2.5W-30W
75W-100W
Operating Voltage
3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode
Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam
5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens
Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension
4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc.
CDRH Class
class1/class2/class3A/class3B/class4
The Below are other laser pattern options you can select:
Overview
435nm 80W Blue Laser Module with Air Cooler & Driver
The 435nm 80W blue laser module is a high-power precision device specially developed for laser weeding and laser cutting scenarios. It integrates an efficient air-cooled heat dissipation system and a stable driver module. Relying on the high energy density and precise focusing characteristics of 435nm short-wave blue light, it achieves efficient, environmentally friendly, and high-precision operation effects in agricultural weeding, material processing and other fields, providing core power for the intelligent upgrading of industry and agriculture.
Core Advantages: Accurately Empowering Two Core Scenarios
Aiming at the different operation needs of laser weeding and cutting, the 435nm 80W laser module realizes the efficient application of "one machine with dual functions" through wavelength optimization, power control and heat dissipation upgrade:
Laser Weeding: Environmentally Friendly, Efficient and Precise Without Harming Seedlings: The 435nm blue light band has a special absorption peak for weed chlorophyll. The 80W high-power laser beam can instantly penetrate the surface tissue of weeds and destroy the cell structure to make them wither quickly. Compared with traditional chemical weeding, it has no pesticide residues and does not pollute the soil and water sources; combined with a precise positioning system, it can achieve "targeted weeding", avoiding damage to crop roots and leaves, especially suitable for organic agriculture, greenhouses, orchards and other scenarios.
Laser Cutting: High Absorption Rate, Fine and Burr-Free: For non-metallic materials such as film materials, acrylic, ABS plastic, thin wood panels, leather, etc., the absorption rate of 435nm blue light is much higher than that of infrared laser. The 80W power can realize rapid fusing and cutting. The cutting kerf is as narrow as 0.1-0.3mm, and the cutting surface is smooth and burr-free without secondary grinding, suitable for precision parts processing, handicraft production, packaging material cutting and other fields.
