IR Infrared 808nm 300mW Laser Diode Module with Scattered Spots for Robot Vacuum Cleaner

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 80MZ-45

Overview
808nm 300mW Laser Module

808nm 300mW Scattered Spot Laser Module

Introducing the 808nm 300mW Scattered Spot Laser Module, a cutting-edge product designed for a wide range of applications. This laser module is equipped with advanced technology that enables precise and efficient performance in various settings.


The 808nm wavelength ensures optimal visibility and accuracy, making it ideal for use in robotics, sensing, and 3D imaging applications. The 300mW power output provides a strong and reliable laser beam that can be easily controlled and adjusted to meet specific requirements.


This laser module is perfect for use in robotic systems, where precision and reliability are essential. Its scattered spot design allows for a wider coverage area, making it suitable for scanning and mapping tasks. Additionally, the module's compact size and lightweight construction make it easy to integrate into existing systems without adding unnecessary bulk.


Whether you are working on a robotic project, developing a sensing application, or creating a 3D imaging system, the 808nm 300mW Scattered Spot Laser Module is the perfect choice. With its high-quality construction and advanced features, this product is sure to meet your needs and exceed your expectations.

Product Description

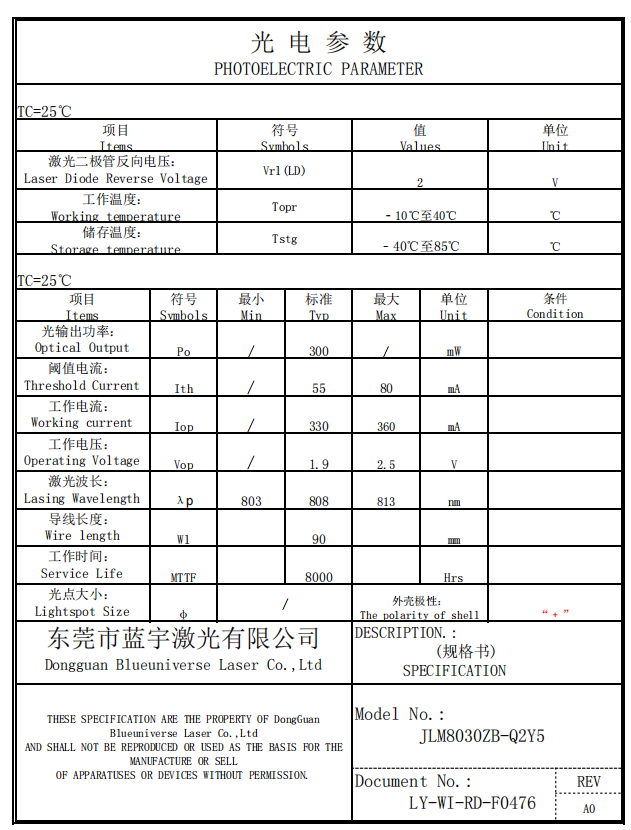

Core Specification :

Wavelength 808nm
Output Power 330-360mW
Working Voltage 1.9-2.5V
Beam Mode Random Scattered Spots
Dot beam size /

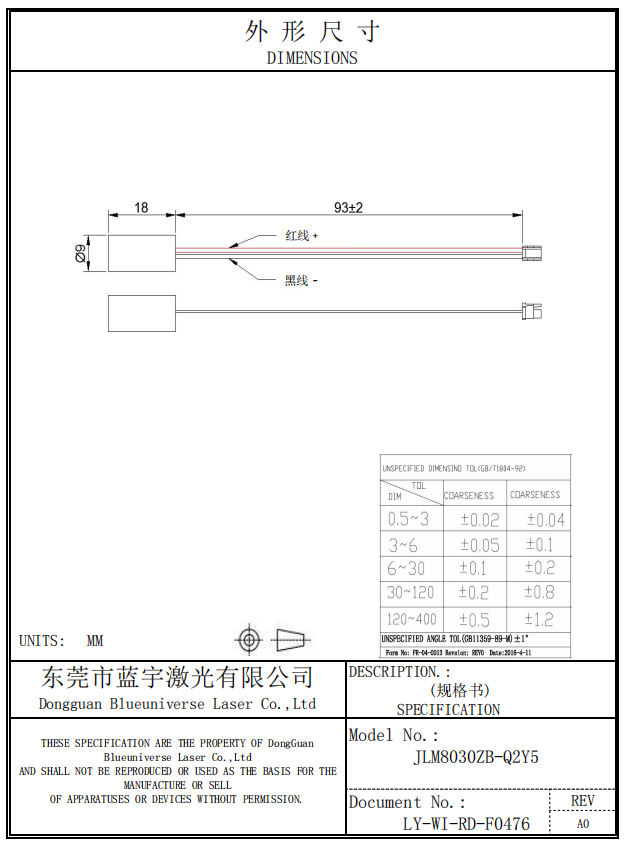

Housing Size 9*18mm (Customizable)
Lens Optical Glass +DOE
Lifespan > 10,000 hours

808nm 300mW Laser Module

808nm 300mW Laser Module

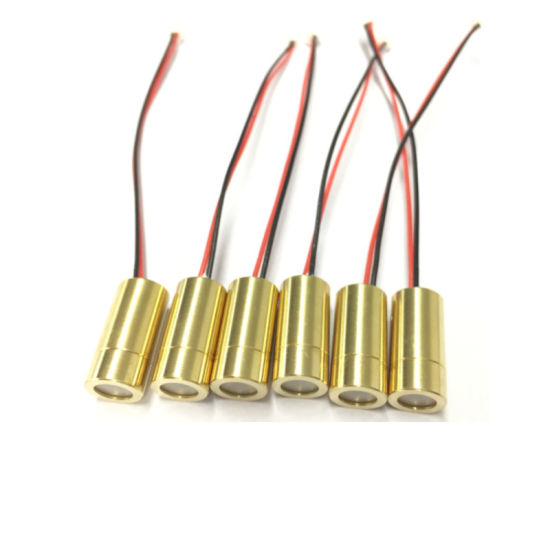

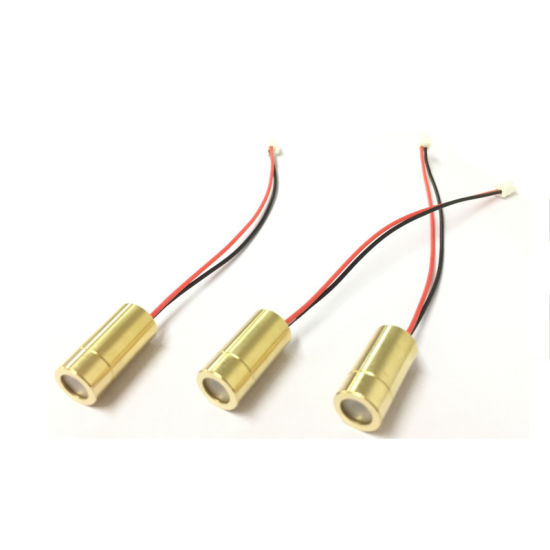

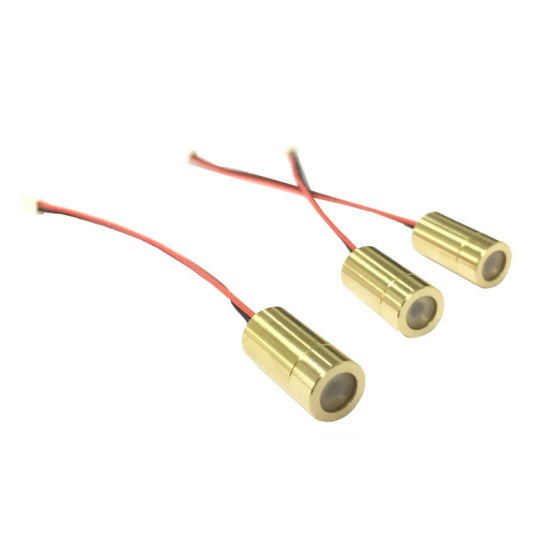

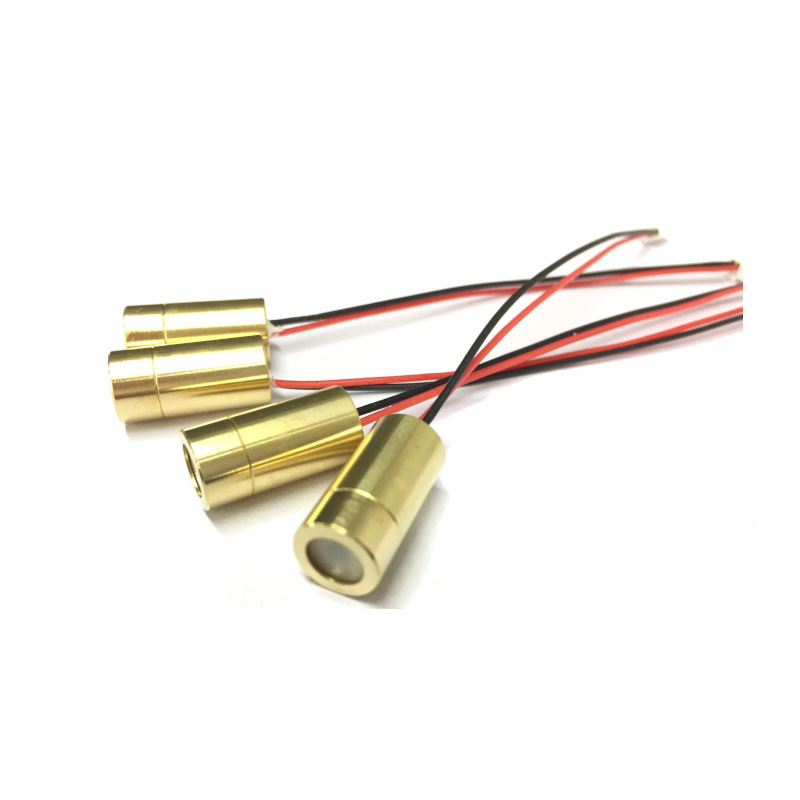

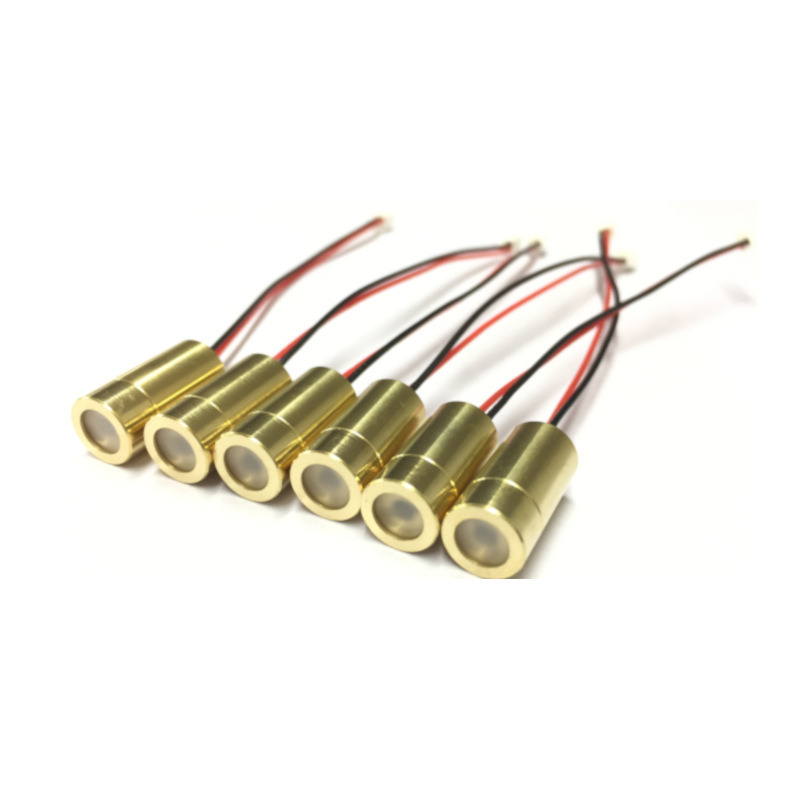

Product Dispaly

808nm 300mW Laser Module

808nm 300mW Laser Module


808nm 300mW Laser Module

v2-c6012077336883d67f69e44319b6aa3e_r


808nm 300mW Laser Module808nm 300mW Laser Module808nm 300mW Laser Module

The speckle laser uses imported laser diodes and glass lenses with clear points. You can choose 1000 points, 3000 points, 5000 points, 10,000 points, 30,000 points, and 50,000 points. It can be customized according to your needs.


The Below are other DOE pattern options you can select:

808nm 300mW Laser Module

808nm 300mW Laser Module

Application for Structured Light Laser:

808nm 300mW Laser Module

808nm 300mW Laser Module

Our Services
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mw-3W 20mw-3W 10mw-1.6W 5mw-2.5W 5mw-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc.
CDRH Class class1/class2/class3A/class3B/class4
