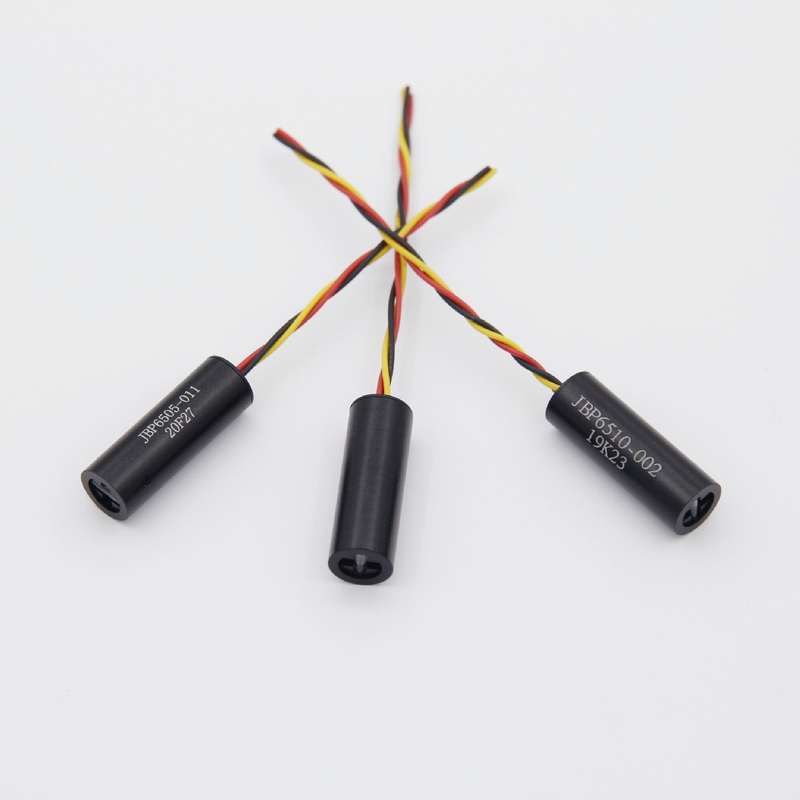

650nm 5mW Red Line Laser Module

The "Red 650nm 5mW Line Laser Module for Detection & 3D Machine Vision Inspection" is a laser module widely used in industrial detection and 3D machine vision systems. Here is an introduction to it:

Basic Characteristics

• Wavelength and Power: It has a wavelength of 650nm, which is in the visible red light range (620nm - 750nm), with high brightness and strong penetrability, making it highly recognizable to the human eye. The final power is 2mW, belonging to Class II, which is safe and can meet the needs of most industrial scenarios without causing harm to the eyes.

• Beam Shape: It is a line - type laser module. Through an optical lens, the laser is expanded into a clear straight line, which can provide a wide - range alignment, guidance, and positioning function, suitable for scenarios requiring large - area detection and measurement.

• Voltage Input: Usually, it supports a DC voltage input of 3V - 5V, with strong compatibility, and can be easily integrated into various devices.

Technical Parameters

• Beam Divergence Angle: For some 650nm 5mW line laser modules, the beam divergence angle may be 110°. For example, at a distance of 5cm, the line length can reach 15cm.

• Operating Temperature: The general operating temperature range is - 10°C to 40°C, and the storage temperature range is - 40°C to 80°C.

Application Scenarios

• 3D Printing: It can help quickly align the printing platform to ensure the accuracy of printing.

• Laser Engraving: Assist in precisely setting the engraving area to improve the engraving quality and efficiency.

• Robot Navigation: Provide clear path guidance for robots to enable them to move and operate accurately.

• Automated Production Lines: Assist in quickly positioning the workpiece, which is convenient for automated assembly and detection operations.

Advantages

• High - precision Positioning: The 650nm red light has high visibility, which can achieve accurate positioning and is not easily affected by complex light environments.

• Flexible Installation: It has a small size, light weight, and a standard industrial interface, which is convenient for installation in various devices and small spaces.

• Stable Performance: It has good stability during operation and can maintain a stable laser output, ensuring the reliability of detection and vision inspection results.

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
