JBP5280-009

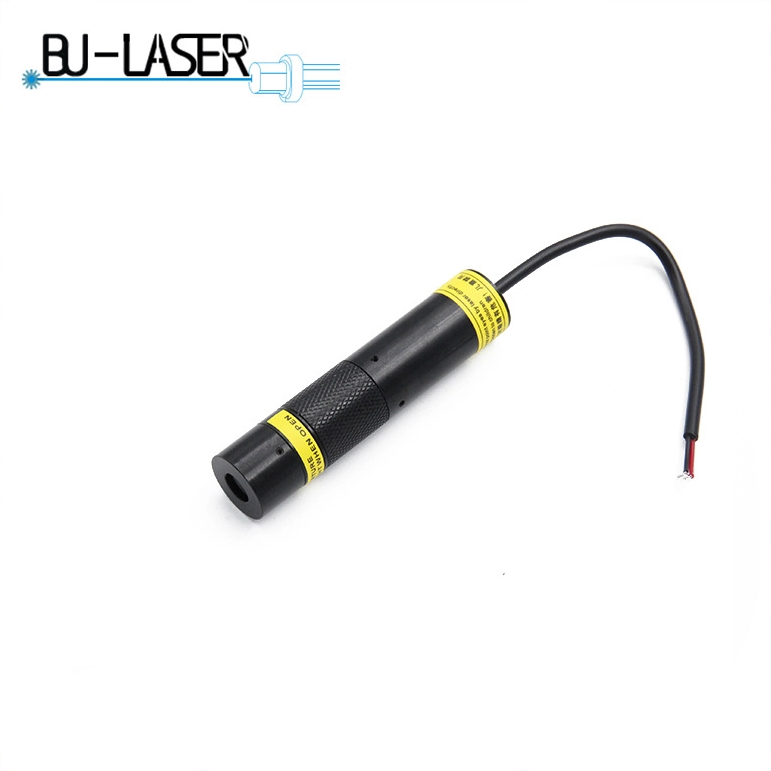

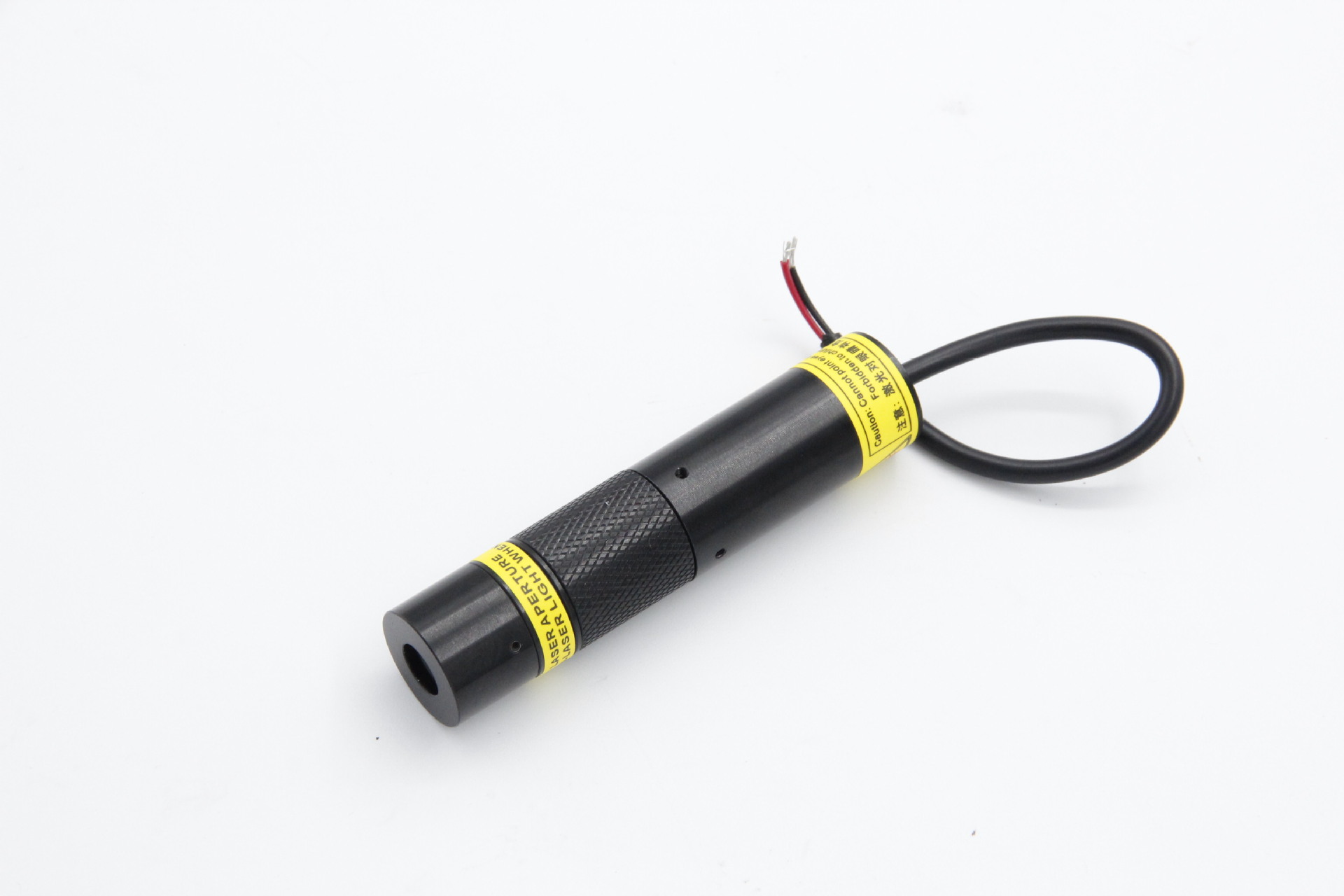

520nm 50mW Uniform Line laser Module
Introducing our 520nm 50mW uniform Line laser Module with Powell lens, a cutting-edge product designed for a wide range of applications including 3D scanning, inspection, positioning, and machine vision. This high-quality laser module emits a bright and uniform line with a wavelength of 520nm, making it ideal for precision tasks that require accurate alignment and measurement.
Equipped with a Powell lens, this laser module ensures that the line remains uniform and consistent across various distances, allowing for reliable and repeatable results. The 50mW power output provides ample brightness for indoor and outdoor use, while maintaining a safe level of intensity for user protection.
Whether you are conducting detailed inspections, aligning components in a manufacturing process, or implementing machine vision systems, our 520nm 50mW uniform Line laser Module with Powell lens is the perfect tool for the job. Trust in its superior performance and reliability to enhance your operations and achieve precise results every time.
Core Specification :
Wavelength | 520nm |
Output Power | 45-55mW |
Working Voltage | 12V |
Line Fan Angle | 90 degree |
Line Width | <1mm@200m distance |
Housing Size | 18*42.5mm (Customizable) |
Lens | Optical Glass & Powell Line lens |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
