450nm 80mW Blue Laser Speckle Structured Light Laser Module for 3D Imaging

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • JCP4550-001

Overview

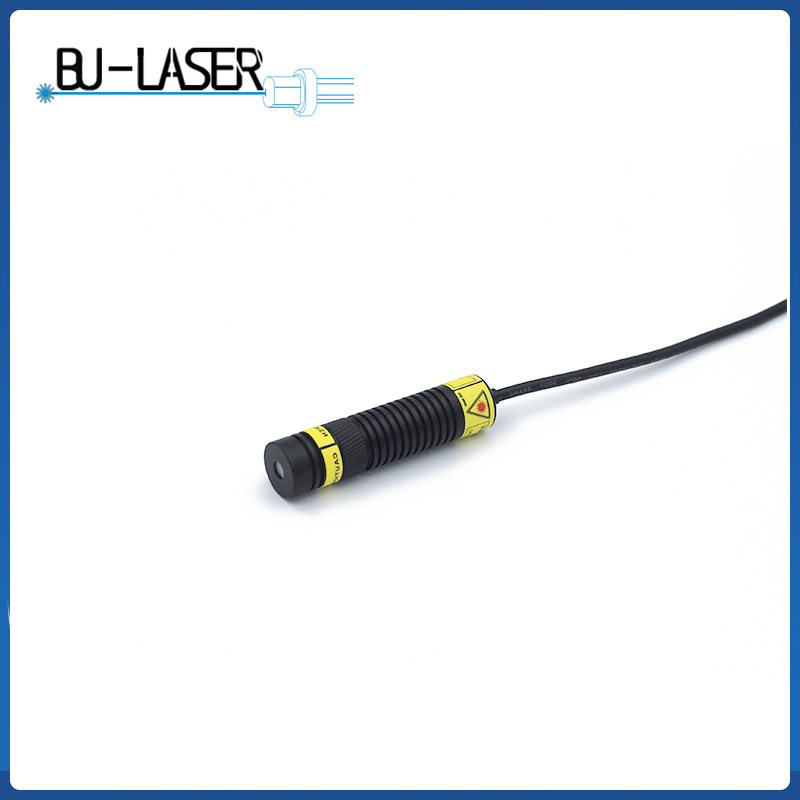

Speckle Structured Light Laser Module

450nm 80mW Blue Laser Speckle Structured Light Laser Module

Introducing the 450NM 80MW Blue Light Speckle Structured Light Laser, a cutting-edge technology designed for a variety of applications including three-dimensional imaging, scanning detection, machine vision, and facial recognition.


This high-powered laser is capable of emitting a blue light at a wavelength of 450 nanometers with a power output of 80 milliwatts. The speckle structured light produced by this laser enables precise and accurate imaging for a wide range of industrial and scientific purposes.


Ideal for use in three-dimensional imaging applications, this laser can create detailed and accurate representations of objects and environments. Its scanning detection capabilities allow for the rapid and efficient scanning of surfaces and objects for various purposes such as quality control and inspection.


In addition, the 450NM 80MW Blue Light Speckle Structured Light Laser is well-suited for machine vision systems, providing the necessary illumination and contrast for automated visual inspection processes. Its high-quality light output ensures reliable and consistent results in a variety of industrial settings.


Furthermore, this laser is equipped with advanced facial recognition technology, making it an ideal solution for security and surveillance applications. Its precise and reliable performance ensures accurate identification and tracking of individuals in real-time scenarios.


Overall, the 450NM 80MW Blue Light Speckle Structured Light Laser is a versatile and powerful tool for a wide range of applications, offering exceptional performance and reliability for demanding industrial and scientific environments.


Product Description

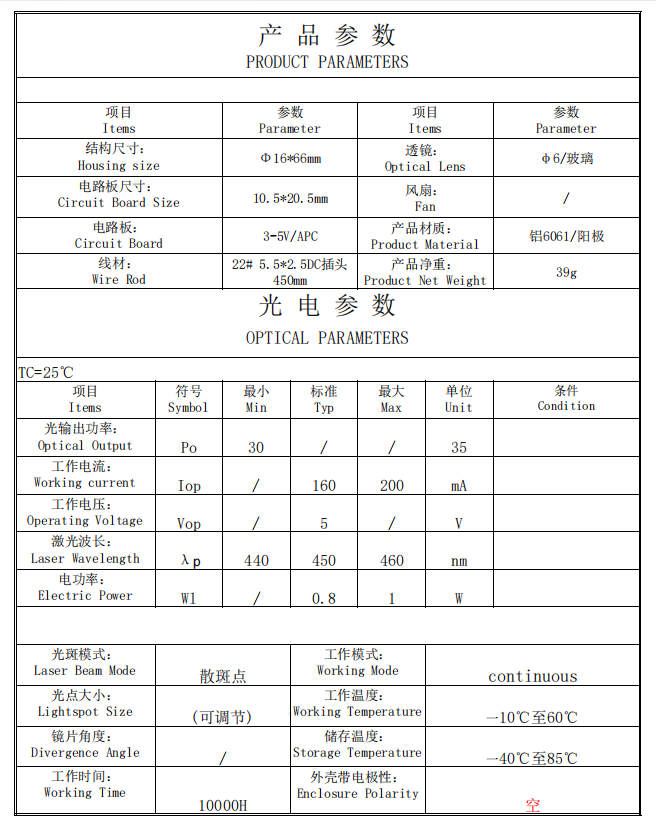

Core Specification :

Wavelength 450nm
Output Power 30mW
Working Voltage 5V
Beam Mode Random speckle dots
Dot beam size /

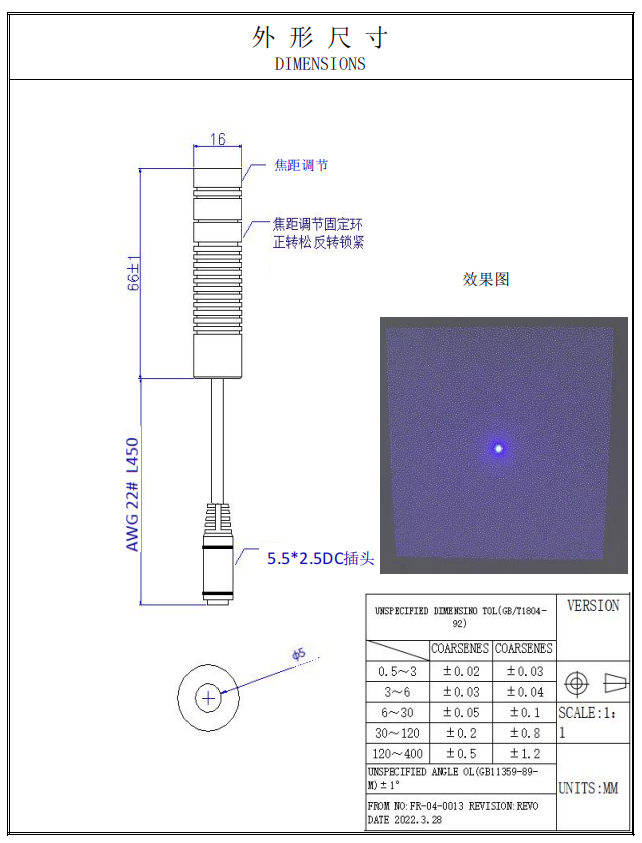

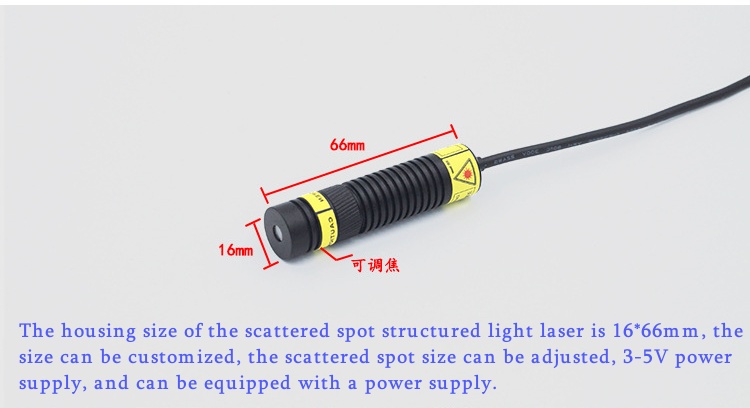

Housing Size 16*66mm (Customizable)
Lens Optical Glass +DOE
Lifespan > 10,000 hours

Speckle Structured Light Laser Module

Speckle Structured Light Laser Module

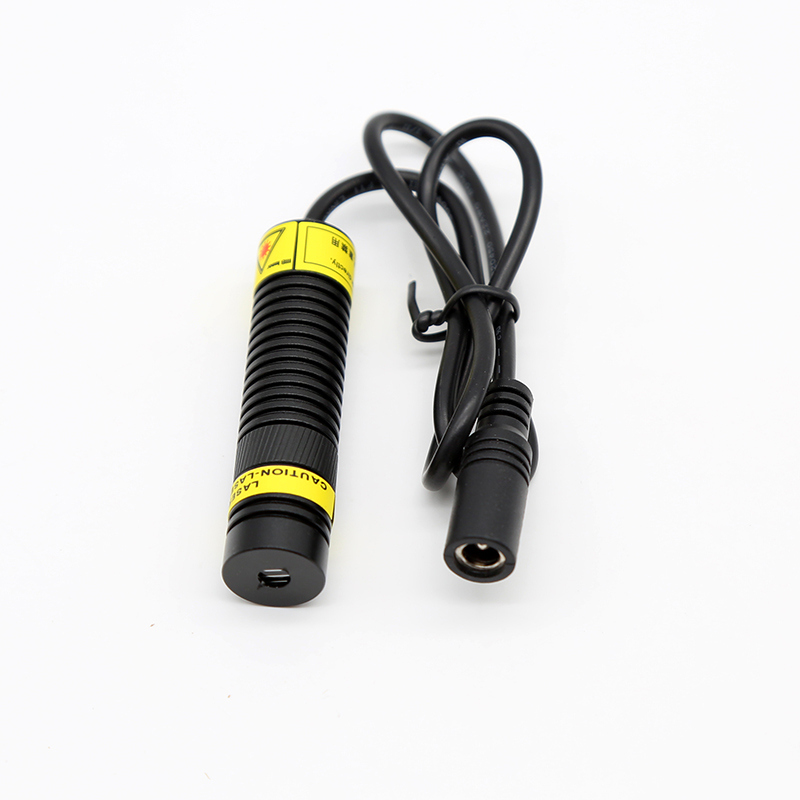

Product Display


Speckle Structured Light Laser Module

Speckle Structured Light Laser Module

Speckle Structured Light Laser Module

<img src="https://ikrorwxhmolkjj5p-static.micyjz.com/cloud/lpBpnKkijqSRilkqpkkrjo/qiyeweixinjietu_1748314300962.png" title="Speckle Structured Light Laser Module alt="Speckle Structured Light Laser Module"/>

Speckle Structured Light Laser Module

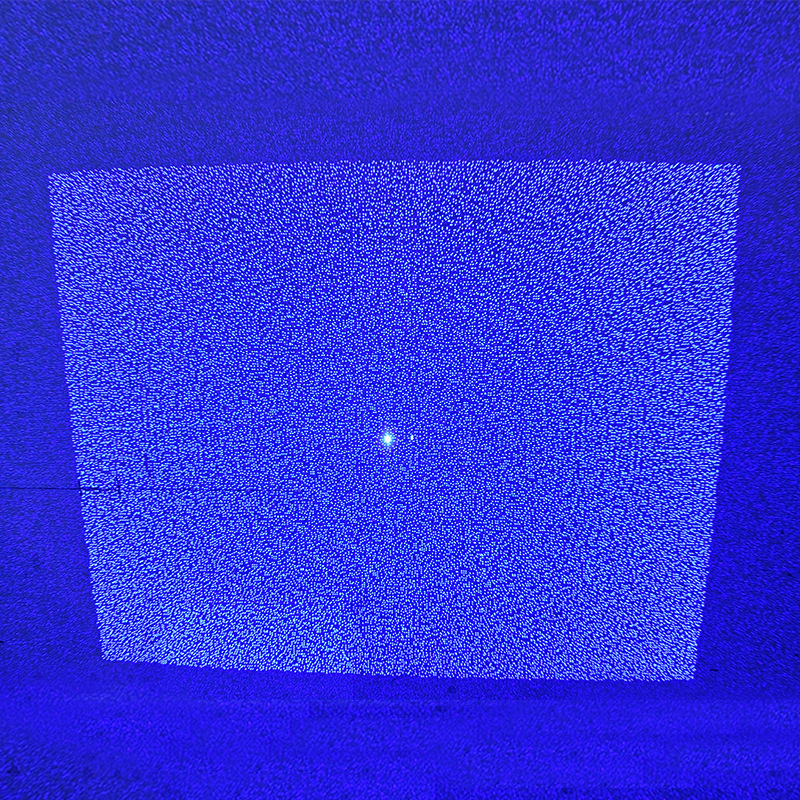

The speckle laser uses imported laser diodes and glass lenses with clear points. You can choose 1000 points, 3000 points, 5000 points, 10,000 points, 30,000 points, and 50,000 points. It can be customized according to your needs.


The Below are other DOE pattern options you can select:

Speckle Structured Light Laser Module

Application for Structured Light Laser:

Speckle Structured Light Laser Module

Speckle Structured Light Laser Module


Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!


Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mw-3W 20mw-3W 10mw-1.6W 5mw-2.5W 5mw-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc.
CDRH Class class1/class2/class3A/class3B/class4
