LY520-3W-FF200
520nm 3W Fiber-Coupled Laser Module
Introducing the 520nm 3W Fiber-Coupled Laser Module, a cutting-edge medical device designed for the treatment of vascular diseases, retinal photocoagulation, and fluorescence excitation imaging.
This high-powered laser is specifically engineered for precision and efficacy in medical procedures such as vascular coagulation therapy and retinal photocoagulation. With a wavelength of 520nm and an output power of 3W, this laser delivers optimal performance for targeted tissue treatment.
The fiber-coupled design of this laser allows for easy and efficient delivery of laser energy to the desired treatment area, ensuring accurate and controlled application. This feature is particularly beneficial for procedures requiring precise targeting, such as retinal photocoagulation and fluorescence excitation imaging.
Whether used in a clinical setting or research environment, the 520nm 3W Fiber-Coupled Laser offers unparalleled versatility and reliability. Trust in this advanced medical device for superior results in the treatment of vascular disorders and retinal conditions.

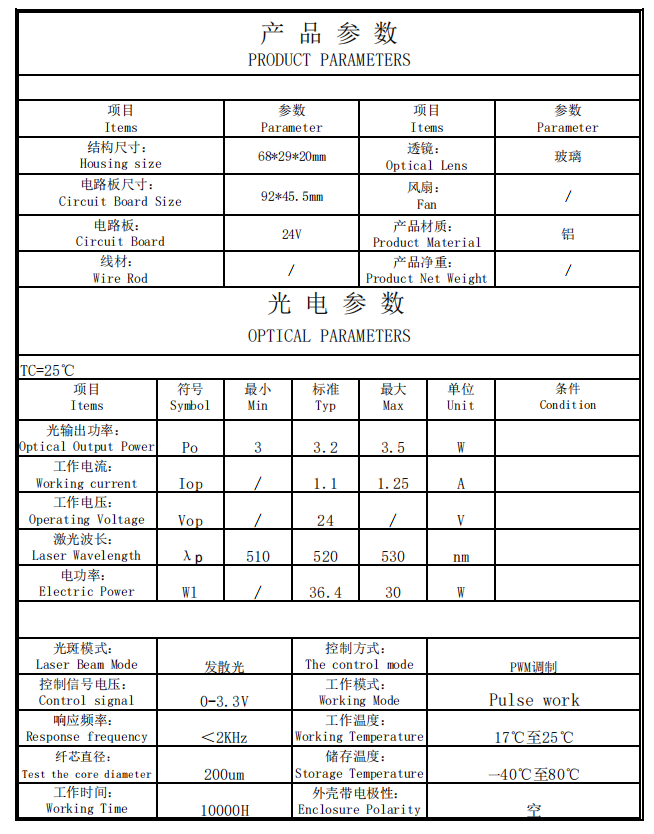

Core Specification :
Wavelength | 520nm |
Output Power | 3-3.5W |
Working Voltage | 24V |
Fiber Core Diameter | 200um ( the standard module is without Fiber, please contact the sales person if you will need the fiber for the order) |
Coupling Efficiency | 80%~85% |

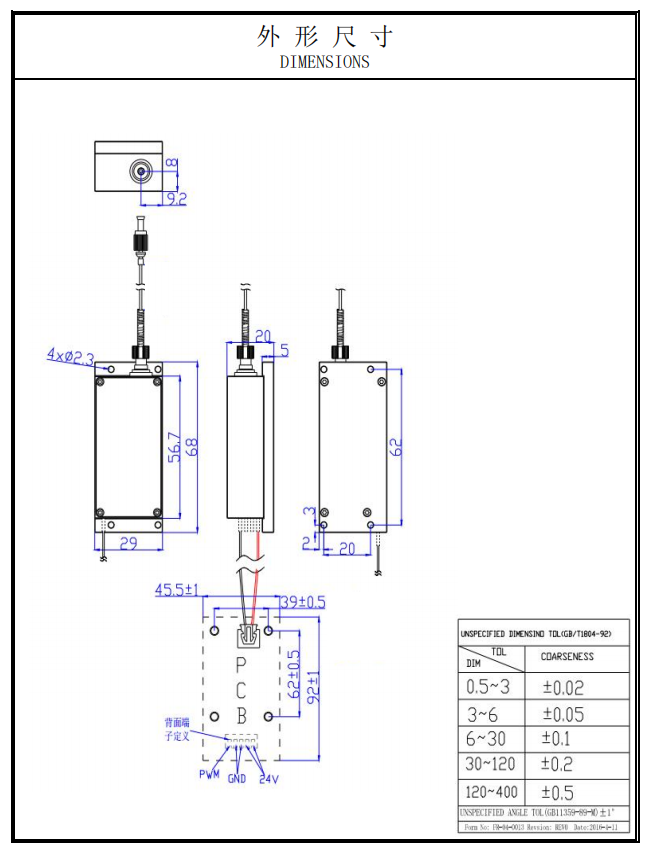

Housing Size | 68*29*20mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
