105um 520nm 10W Green Fiber Coupled Laser Module for Eyes Surgery

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • LYM520-10W-SM105


Overview
520nm10W Green laser

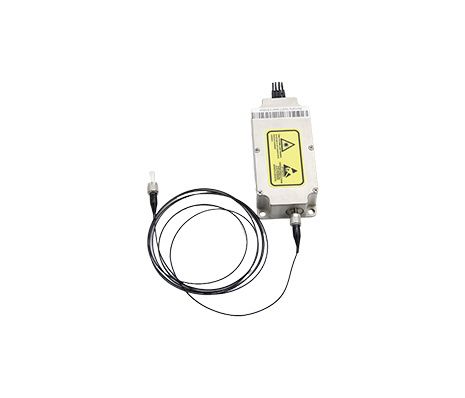

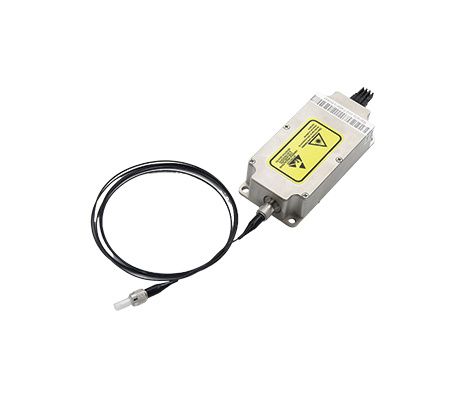

520nm 10W Green Fiber Coupled Laser Module for Eyes Surgery

Introducing our 520nm 10W fiber coupled laser module, a cutting-edge device designed for a wide range of applications including ophthalmic surgery, biological imaging, skin treatments, and stage lighting displays.


This high-powered laser module emits a precise 520nm wavelength, making it ideal for delicate procedures in the field of ophthalmology. Its exceptional beam quality and stability ensure accurate and reliable results, making it a valuable tool for surgeons and medical professionals.


In the realm of biological imaging, this laser module offers unparalleled clarity and resolution, allowing researchers and scientists to capture detailed images of cells and tissues with ease. Its high power output enables deep tissue penetration, making it suitable for a variety of imaging techniques.


For skin treatments, this laser module provides targeted and effective therapy for a range of dermatological conditions. Its adjustable power settings and fiber coupling capabilities allow for precise control over treatment parameters, ensuring optimal results for patients.


In the world of entertainment, this laser module shines as a versatile tool for creating captivating stage lighting displays. Its vibrant 520nm wavelength produces striking visual effects that enhance performances and events, making it a popular choice among lighting designers and event planners.


Overall, our 520nm 10W fiber coupled laser module is a versatile and reliable device that meets the demands of various industries. With its advanced features and exceptional performance, it is sure to exceed expectations in any application.

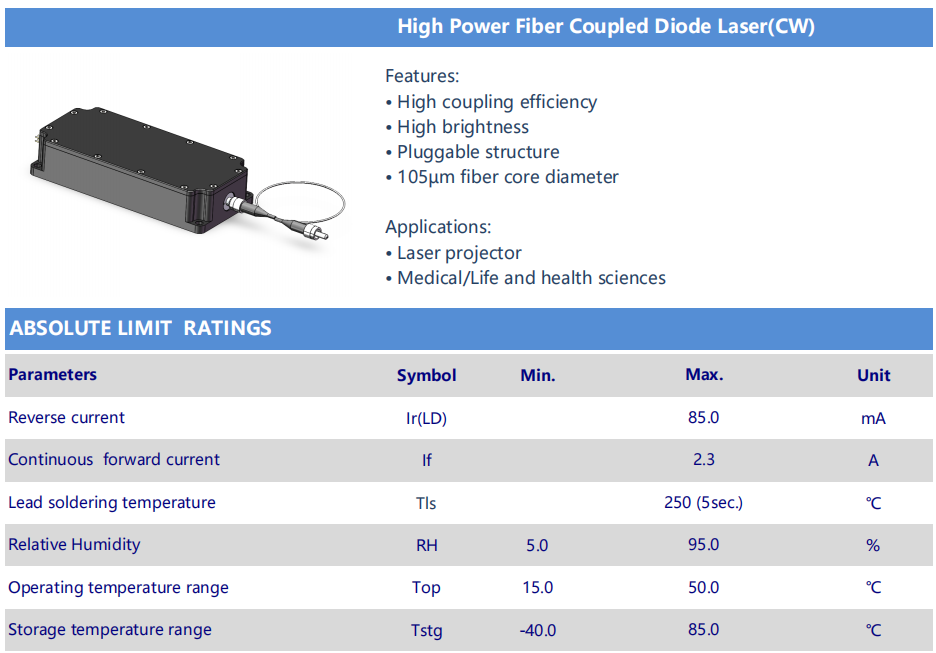

Product Description

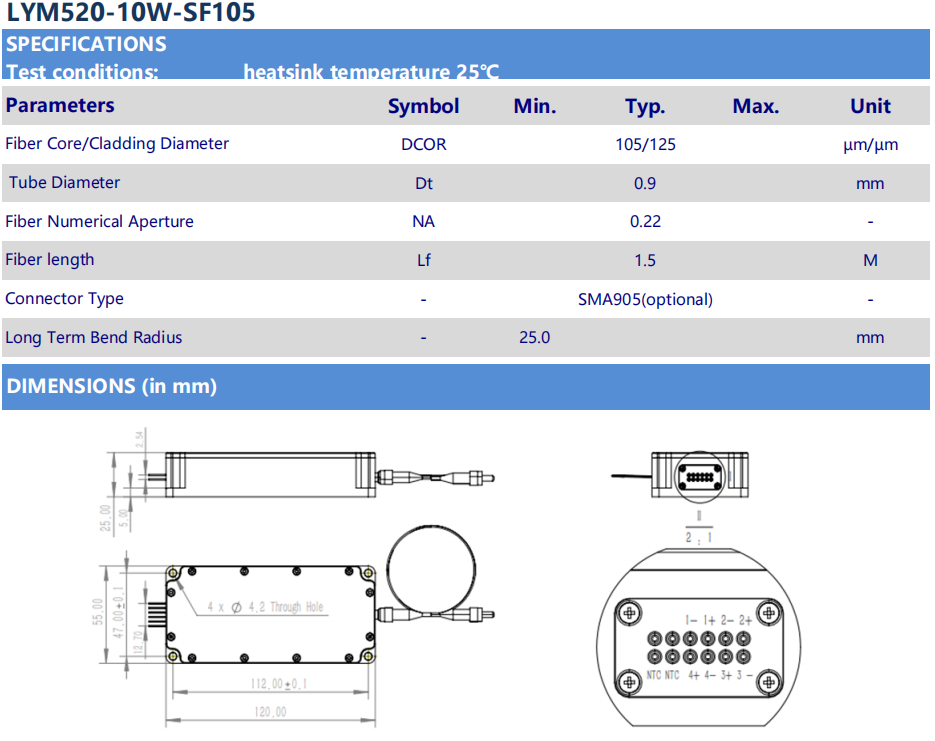

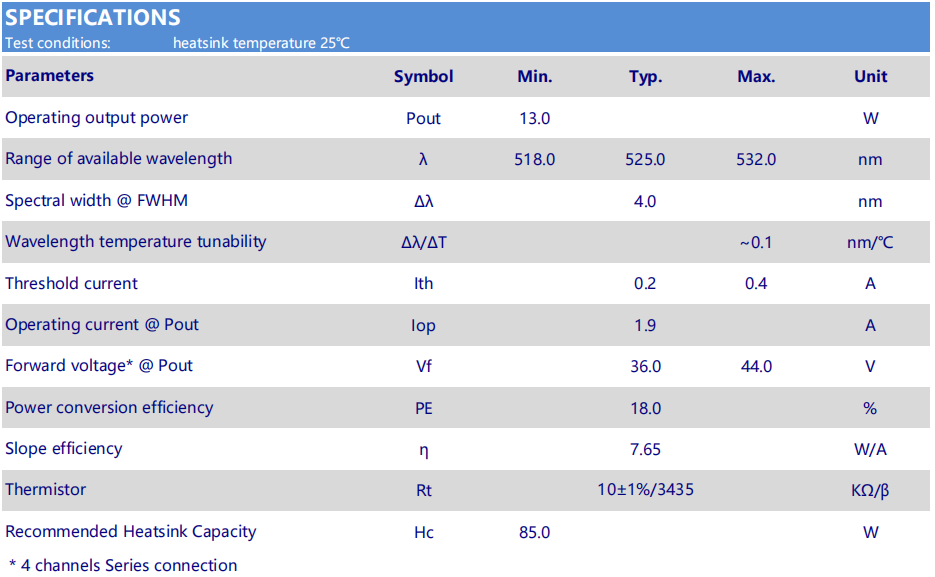

Core Specification :

Wavelength 525nm
Output Power >13W
Working Voltage 36V
Fiber Core Diameter 105um
Fiber Interface SMA 905 (Customizable)
Collimated dot Beam size /
Housing Size 120*55*25mm (Customizable)
Lens Optical Glass
Cooling Method /
Lifespan > 10,000 hours

x

520nm10W Green laser

520nm10W Green laser


520nm10W Green laser

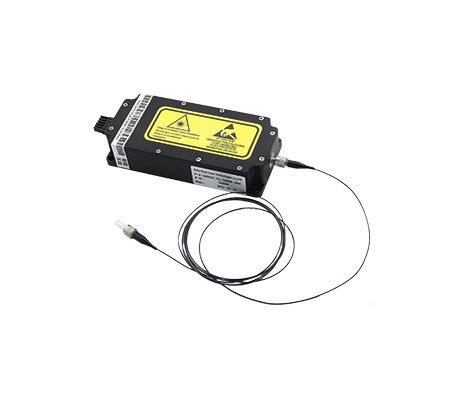

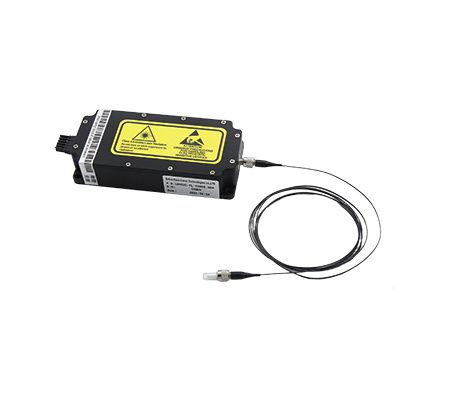

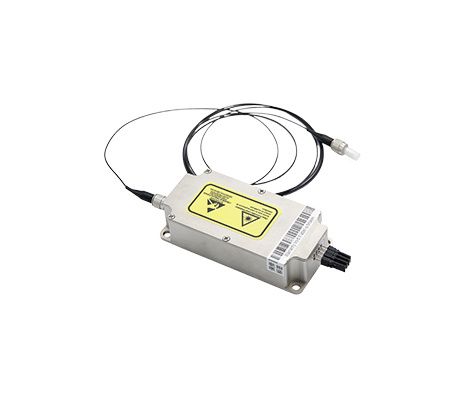

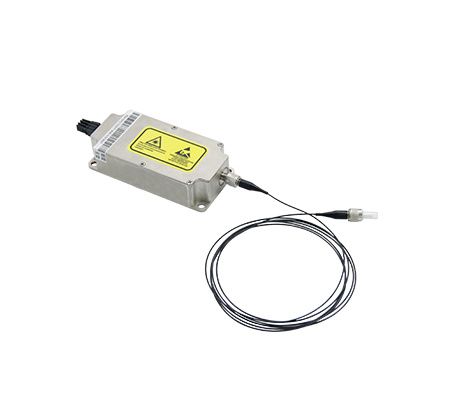

Product Display

520nm10W Green laser

Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!

Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/80°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc.
CDRH Class class1/class2/class3R/class3B/class4
Power Level of the Single Laser diodes:


 Fiber Coupled Laser
