JCP6505-021
650nm 5mW Red Laser Module with 11 Lines
Introducing the 650nm 5mW Red Light 11-Line Laser for Tire Inspection, 3D Scanning, and Machine Vision applications. This high-quality laser device is designed for precision and accuracy in various industrial settings.
Featuring 11 red laser lines, this product is ideal for tire inspection, ensuring thorough and efficient examination of tire treads and surfaces. The 650nm wavelength provides a clear and visible red light for enhanced visibility and accuracy during inspections.
In addition to tire inspection, this laser is also suitable for 3D scanning and machine vision applications. The 11-line configuration allows for detailed and comprehensive scanning of objects, making it a versatile tool for various industrial processes.
With its advanced technology and reliable performance, the 650nm 5mW Red Light 11-Line Laser is a valuable asset for industries requiring precise measurements and inspections. Trust in this laser device for superior results in tire inspection, 3D scanning, and machine vision tasks.

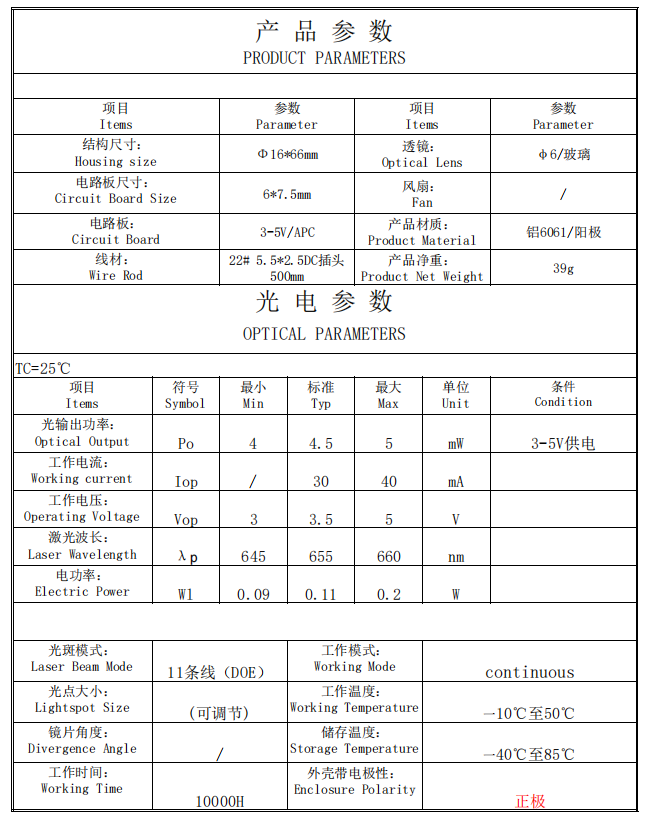

Core Specification :
Wavelength | 650nm |
Output Power | 5mW |
Working Voltage | 3-5V |
Beam Mode | 11 laser lines |
Dot beam size | / |

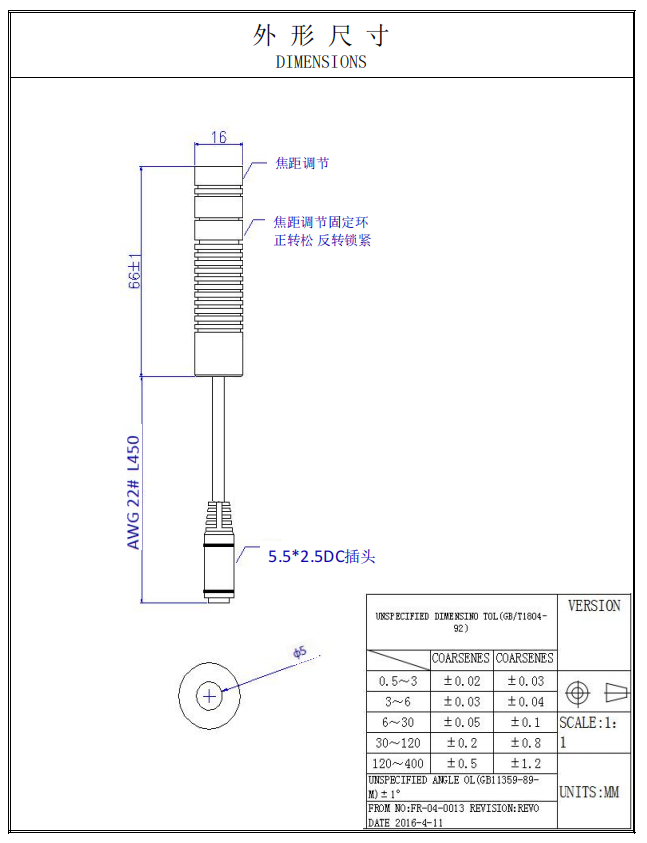

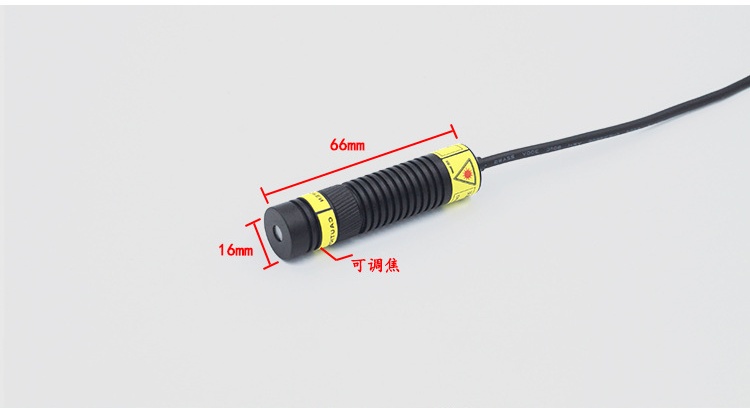

Housing Size | 16*66mm (Customizable) |
Lens | Optical Glass +DOE |
Lifespan | > 10,000 hours |
The Below are other DOE pattern options you can select:
Application for Structured Light Laser:
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
