Model:
JCP45160Z-003

Overview

Customizable 7-Line 450nm Blue Laser Module for 3D Applications

Introducing our high-performance Customizable Small Size 7 Lines Laser Module – the ideal solution for precision 3D scanning, modeling, inspection, and imaging applications.

Operating at 450nm with 1W output power, this compact blue laser module projects 7 clear, evenly distributed laser lines, delivering exceptional accuracy for detailed 3D data acquisition. Its small form factor allows seamless integration into various 3D scanner designs, while customizable parameters ensure compatibility with specific project requirements.

Whether you're developing professional 3D scanners, creating detailed digital models, performing precise dimensional inspections, or enabling advanced 3D imaging systems, this laser module provides reliable performance and consistent results.

Engineered for stability and durability, it maintains optimal line quality even in demanding industrial environments, making it a trusted component for both research and production-grade 3D measurement solutions.

Elevate your 3D technology with a laser module designed to meet the rigorous demands of modern 3D applications.

Product Description

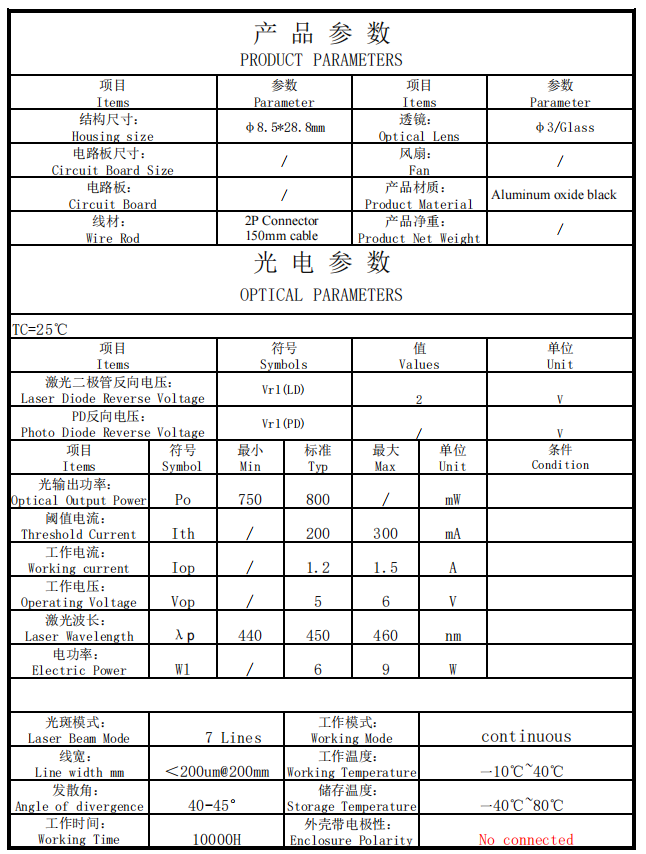

Core Specification :

Wavelength	450nm
Output Power	800mW-1W
Working Voltage	5-6V
Multi Line Laser	7 lines
Line Width	<200um@20cm distance (Customizable)

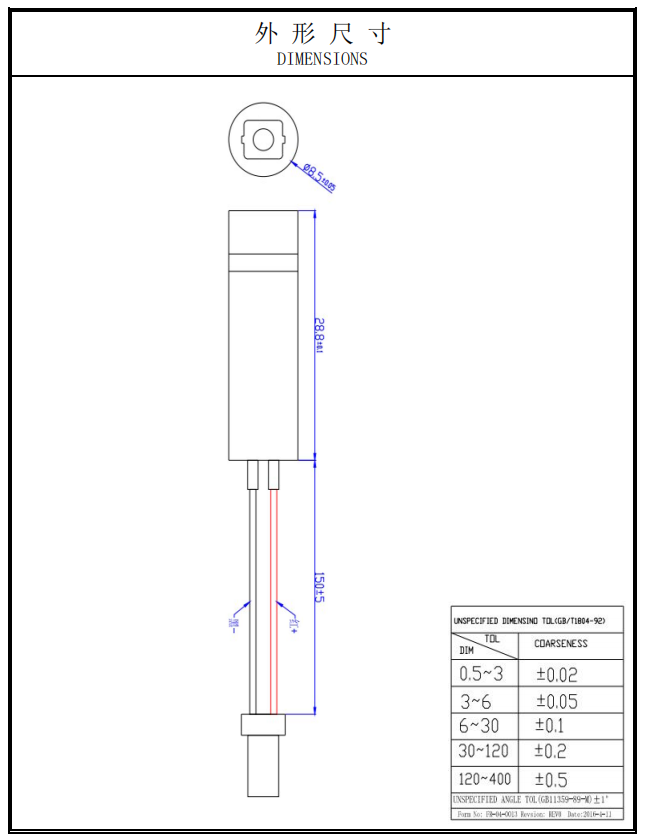

Housing Size	8.5*28.8mm (Customizable)
Lens	Optical Glass
Lifespan	> 10,000 hours

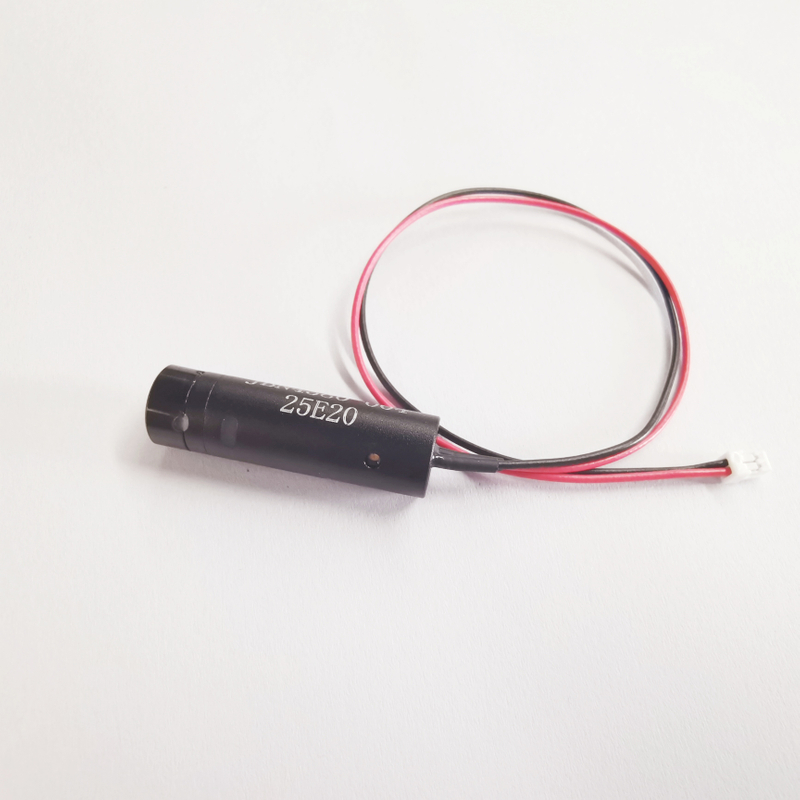

Product Display

微信图片_20250614091533_副本微信图片_202506140915321_副本

多线激光器 (1)(1)

The Below are other Laser pattern options you can select:

企业微信截图_17483143197053

Application Scenario：

企业微信截图_17483143579045

33334 1111

Our Service

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!

Item	Parameter
Wavelength	375-405nm	425-488nm	515-520nm	635-670nm	780-980nm
Single Diode Module Optical Power	20mw-3W	20mw-3W	10mw-1.6W	5mw-2.5W	5mw-75W
Multi Diodes Module Optical Power	3W-200W	6W-500W	1.6W-50W	2.5W-30W	75W-100W
Operating Voltage	3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode	Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam	5°/10°/15°/20°/25°/30°/45°/60°/80°/110°/130°/180° etc.
Optical Lens	Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension	48mm/ 610.5mm715mm/921mm/1666mm/ 3333*55mm etc.
CDRH Class	class1/class2/class3A/class3B/class4
