JBP6520Z-053

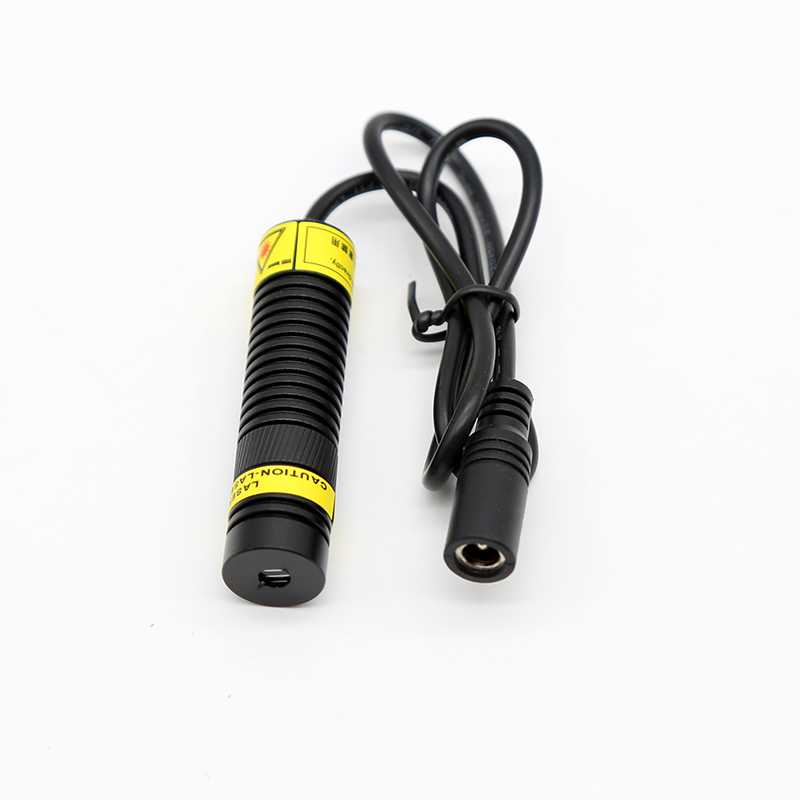

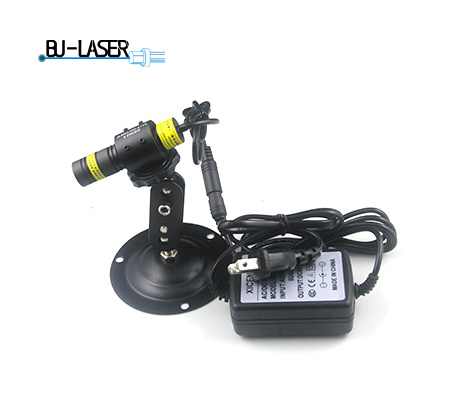

Introducing the 658nm 100mW cross beam laser module, a versatile and high-quality laser module designed for precision positioning and indication applications. This laser module features an adjustable cross beam, allowing for customizable spot size and shape to suit various needs.
The 658nm wavelength offers excellent visibility and accuracy, making it ideal for tasks such as alignment, calibration, and targeting. With a power output of 100mW, this laser module provides a bright and reliable beam for consistent performance.
Whether used for industrial machinery alignment, construction site layout, or scientific research, the 658nm 100mW cross beam laser module delivers exceptional precision and visibility. Its compact design and easy-to-use controls make it a convenient and practical tool for a wide range of applications.
Trust in the quality and reliability of this laser module for all your positioning and indication needs. Upgrade your equipment with the 658nm 100mW cross beam laser module and experience enhanced accuracy and efficiency in your work.
| Wavelength | 660nm |
| Output Power | 100mW |
| Working Voltage | 24V |
| Beam Mode | Line Laser |
| Laser Line Width | Focusable |

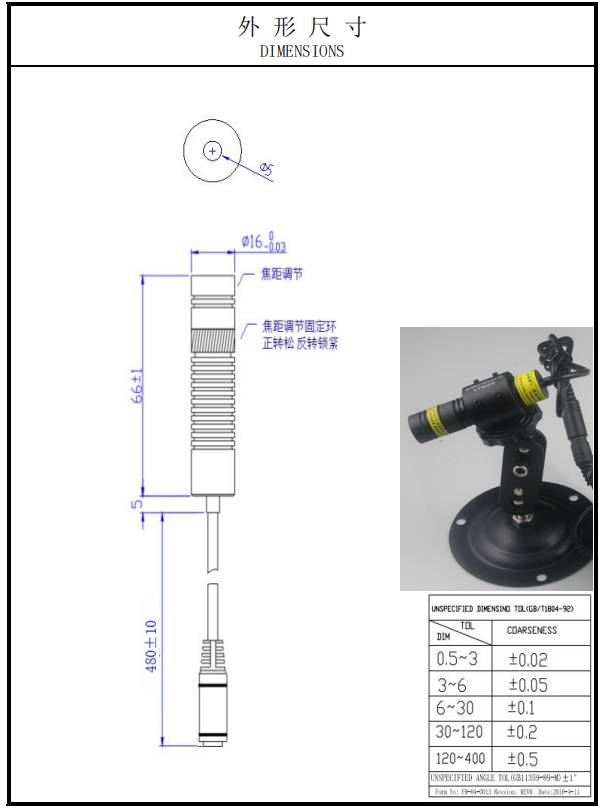

| Housing Size | 16*66mm (Customizable) |
| Lens | Glass |
| Lifespan | > 10,000 hours |




We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mW-3W | 20mW-3W | 10mW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3R/class3B/class4 | ||||

Introducing the 658nm 100mW cross beam laser module, a versatile and high-quality laser module designed for precision positioning and indication applications. This laser module features an adjustable cross beam, allowing for customizable spot size and shape to suit various needs.
The 658nm wavelength offers excellent visibility and accuracy, making it ideal for tasks such as alignment, calibration, and targeting. With a power output of 100mW, this laser module provides a bright and reliable beam for consistent performance.
Whether used for industrial machinery alignment, construction site layout, or scientific research, the 658nm 100mW cross beam laser module delivers exceptional precision and visibility. Its compact design and easy-to-use controls make it a convenient and practical tool for a wide range of applications.
Trust in the quality and reliability of this laser module for all your positioning and indication needs. Upgrade your equipment with the 658nm 100mW cross beam laser module and experience enhanced accuracy and efficiency in your work.
| Wavelength | 660nm |
| Output Power | 100mW |
| Working Voltage | 24V |
| Beam Mode | Line Laser |
| Laser Line Width | Focusable |
| Housing Size | 16*66mm (Customizable) |
| Lens | Glass |
| Lifespan | > 10,000 hours |




We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mW-3W | 20mW-3W | 10mW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3R/class3B/class4 | ||||
