LY4205-A

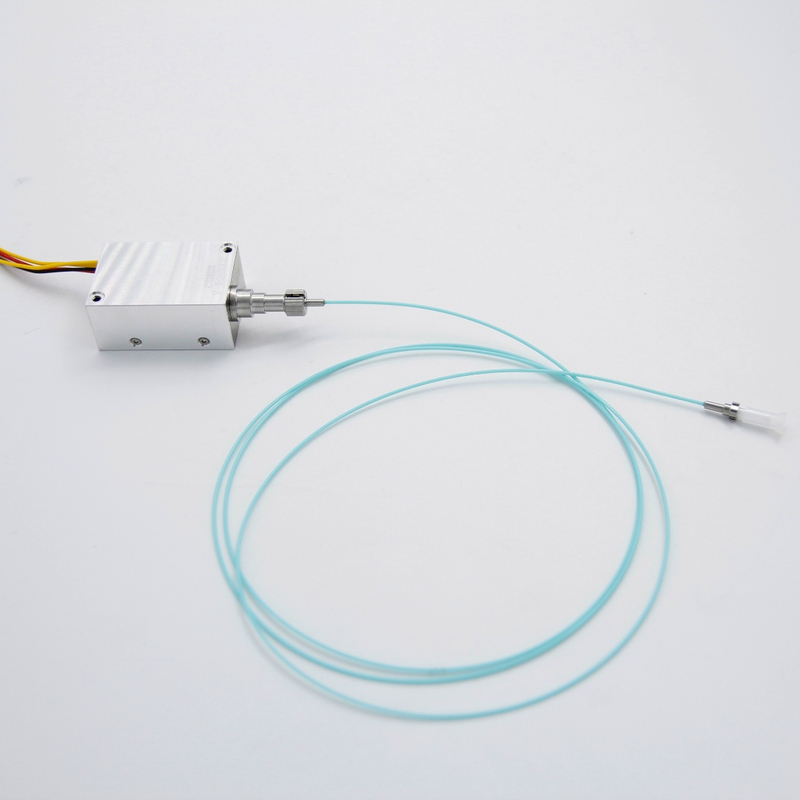

105um 425nm 6W Blue Fiber Coupled Laser Module
The spatially coupled fiber laser is a light source device that is calibrated through an optical lens group, combined to increase power, and then coupled to an optical fiber.
Introducing the 425nm 6W Fiber-Coupled Laser, a cutting-edge tool designed for precision cutting and engraving of materials such as glass, sapphire, and ceramics. This high-powered laser is ideal for a wide range of applications including processing flexible printed circuits (FPC), flow cytometry, and sterilization and disinfection processes.
With its advanced fiber-coupling technology, this laser delivers consistent and reliable performance for demanding industrial applications. The 425nm wavelength offers exceptional precision and control, making it perfect for intricate designs and fine details.
Whether you are working in the electronics industry, medical research, or manufacturing, the 425nm 6W Fiber-Coupled Laser is a versatile and powerful tool that will help you achieve superior results. Invest in this cutting-edge technology and take your projects to the next level.

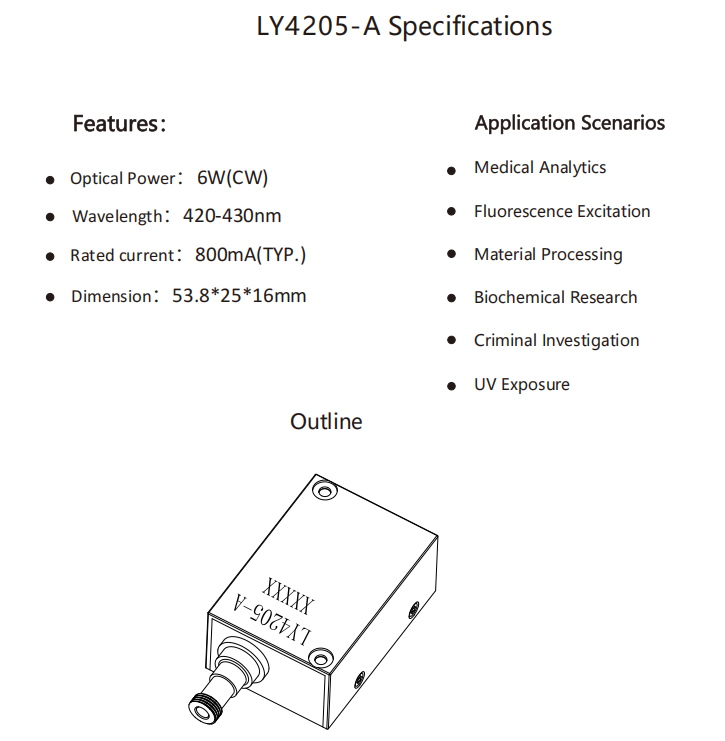

Features:
425nm 6W Space Coupling Fiber Laser Module
Wavelength: 425nm
Output Power(CW): 6W
Type: Space Coupling Fiber Laser
Coupling Efficiency: 80%-85%
Note: The standard product is without the fiber, if you need to buy the fiber also, please do not hesitate to contact us.
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
