LY4080-10AS
Feature

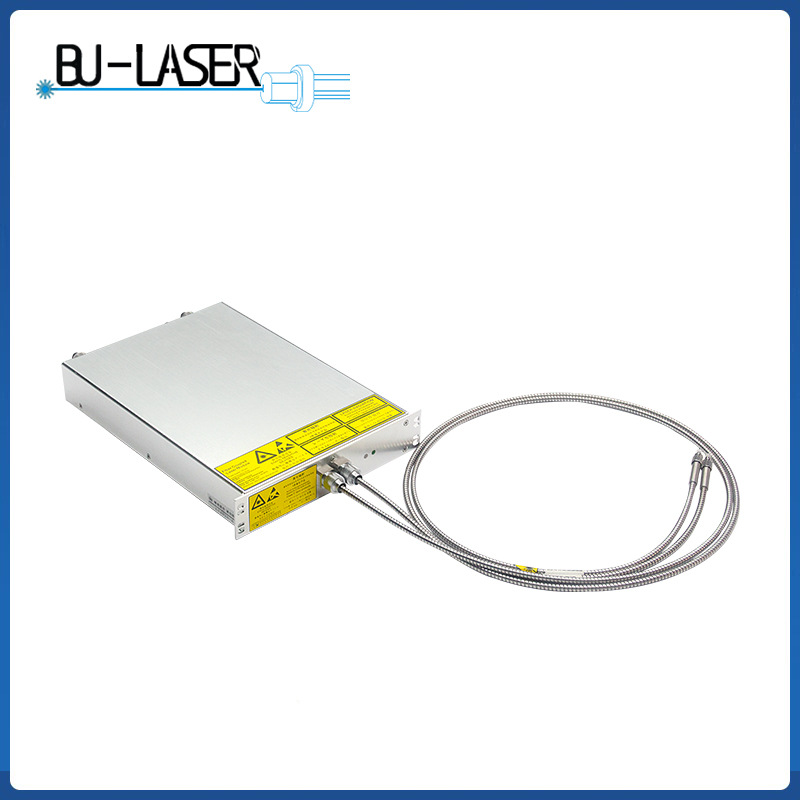

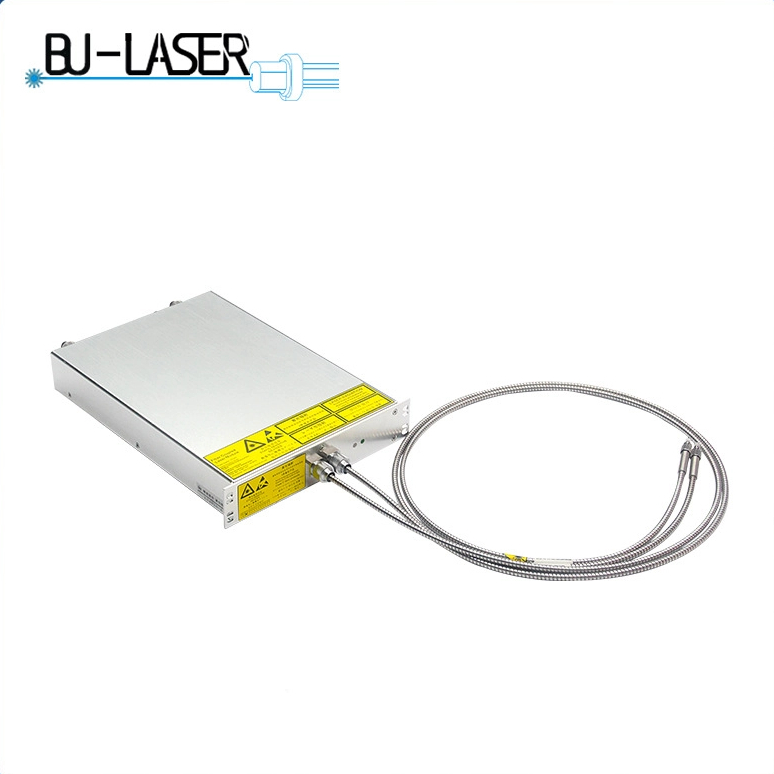

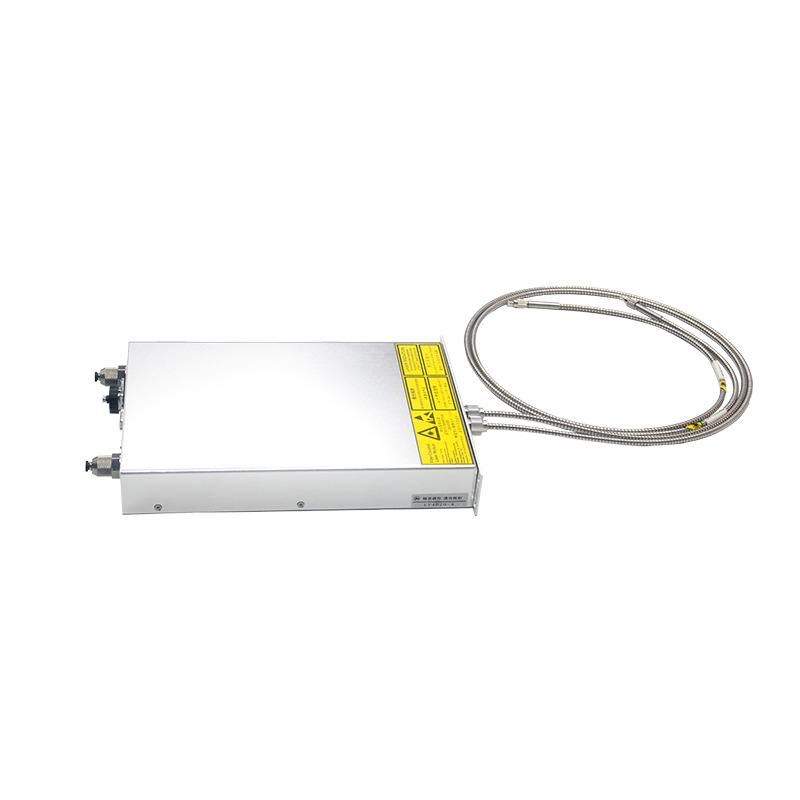

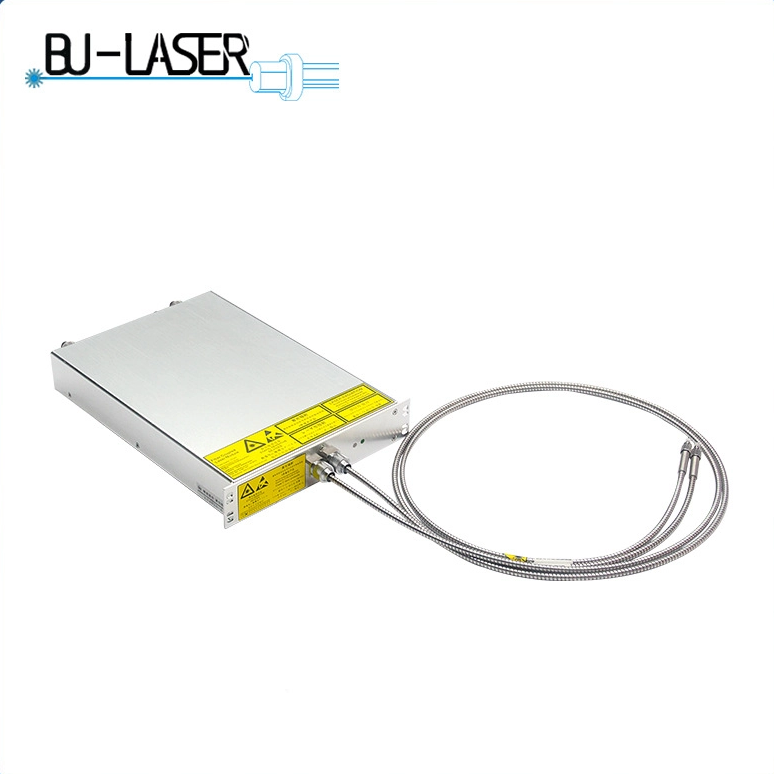

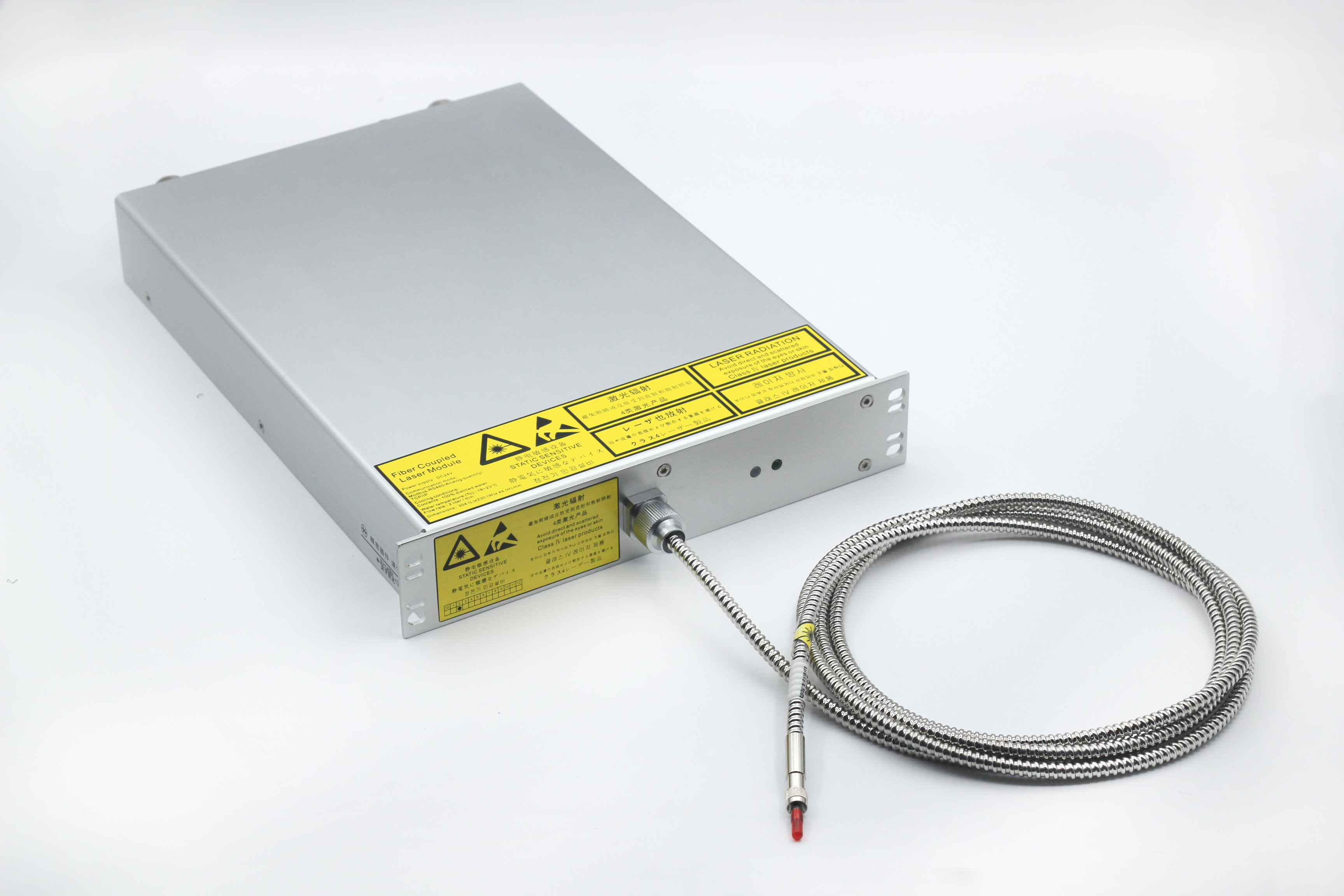

It is a high-power but integrated 405nm 80W fiber-coupled laser module, it is combined and bundled by so many single 405nm diode laser modules, then bundled those fibers into one bundle. It uses high-quality 405nm laser diodes and a higher precision coupling lens inside, and it is designed with water cooling systems inside. The driver inside is already integrated with RS-485 communication software.
Wavelength: 405nm laser
Output Power(CW): 80W
Type: Fiber Coupling Laser (Fiber bundled)
Fiber Core diameter: 105um/ 125um
Fiber Length: 1.5M
Coupling Efficiency: 80%-85%
Cooling type : Water Cooling
Note: As it is a fiber-bundled laser, we can increase or decrease the quantity of the laser diode inside to change the power so that the power can be from 1W to 100W. And the fiber type and length also can be selected by you!
Our 405nm 80W fiber coupled laser module is a cutting-edge product designed for a variety of applications, including PCB exposure, Direct Imaging, Lithography, and UV curing. This high-powered laser module offers precision and efficiency, making it ideal for use in industries such as electronics manufacturing, semiconductor fabrication, and medical device production.
With a wavelength of 405nm, this laser module delivers exceptional performance for tasks requiring high resolution and accuracy. The fiber coupled design ensures stable and reliable operation, while the 80W power output provides ample energy for demanding applications.
Whether you need to expose PCBs, create intricate patterns in photoresist, or cure UV-sensitive materials, our 405nm 60W fiber coupled laser module is the perfect solution. Trust in our product to deliver consistent results and meet your most demanding requirements.
Our advantage
1. We use the sharp brand new laser diode chip inside, so the quality is stable and the lifetime is longer.
2.We offer professional OEM and ODM service for all laser modules, so the apperance, size, power, Driver , all can be customized by you!

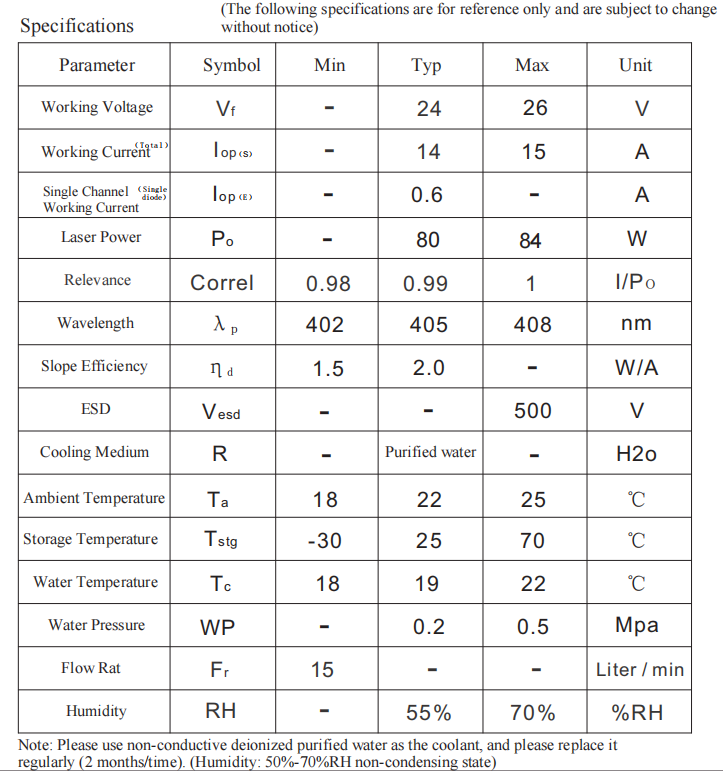

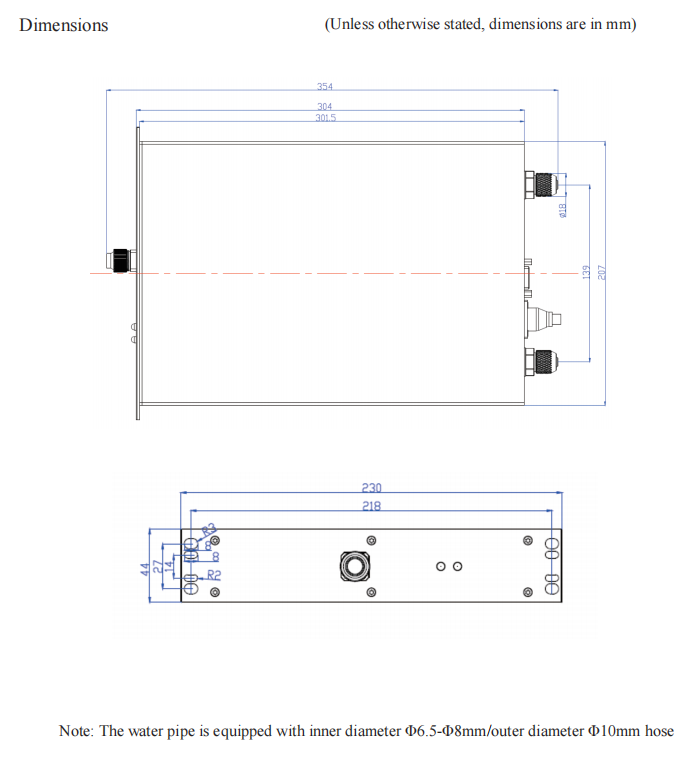

Specification of the High Power 405nm 80W UV Fiber Coupled Laser Module for Direct Imaging:
Feature
It is a high-power but integrated 405nm 80W fiber-coupled laser module, it is combined and bundled by so many single 405nm diode laser modules, then bundled those fibers into one bundle. It uses high-quality 405nm laser diodes and a higher precision coupling lens inside, and it is designed with water cooling systems inside. The driver inside is already integrated with RS-485 communication software.
Wavelength: 405nm laser
Output Power(CW): 80W
Type: Fiber Coupling Laser (Fiber bundled)
Fiber Core diameter: 105um/ 125um
Fiber Length: 1.5M
Coupling Efficiency: 80%-85%
Cooling type : Water Cooling
Note: As it is a fiber-bundled laser, we can increase or decrease the quantity of the laser diode inside to change the power so that the power can be from 1W to 100W. And the fiber type and length also can be selected by you!
Our 405nm 80W fiber coupled laser module is a cutting-edge product designed for a variety of applications, including PCB exposure, Direct Imaging, Lithography, and UV curing. This high-powered laser module offers precision and efficiency, making it ideal for use in industries such as electronics manufacturing, semiconductor fabrication, and medical device production.
With a wavelength of 405nm, this laser module delivers exceptional performance for tasks requiring high resolution and accuracy. The fiber coupled design ensures stable and reliable operation, while the 80W power output provides ample energy for demanding applications.
Whether you need to expose PCBs, create intricate patterns in photoresist, or cure UV-sensitive materials, our 405nm 60W fiber coupled laser module is the perfect solution. Trust in our product to deliver consistent results and meet your most demanding requirements.
Our advantage
1. We use the sharp brand new laser diode chip inside, so the quality is stable and the lifetime is longer.
2.We offer professional OEM and ODM service for all laser modules, so the apperance, size, power, Driver , all can be customized by you!

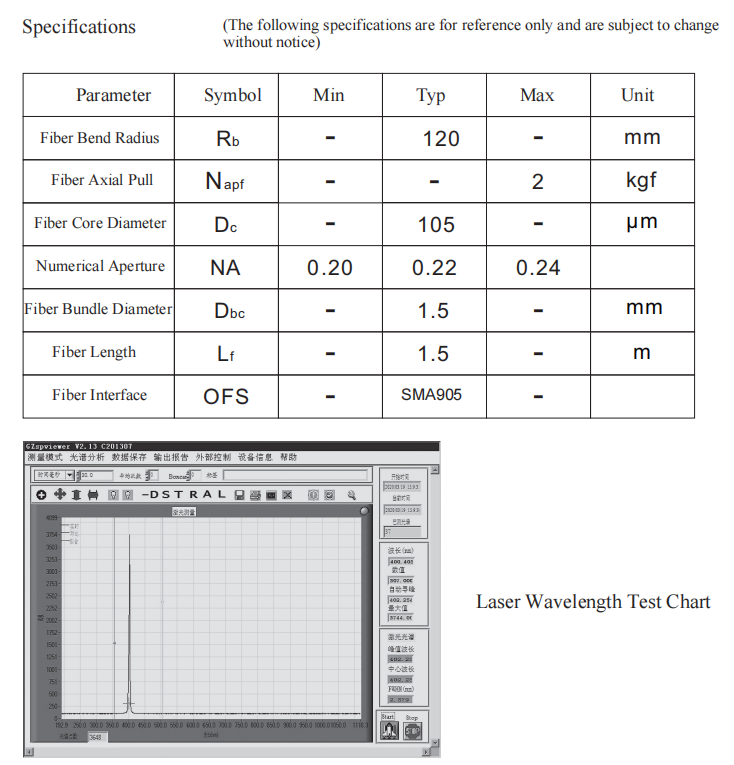

Specification of the High Power 405nm 80W UV Fiber Coupled Laser Module for Direct Imaging:
