LY45120-A

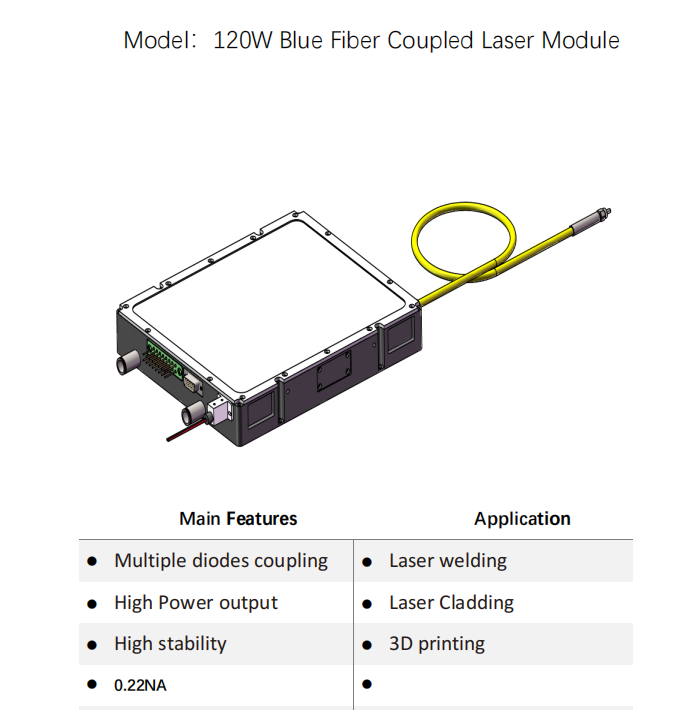

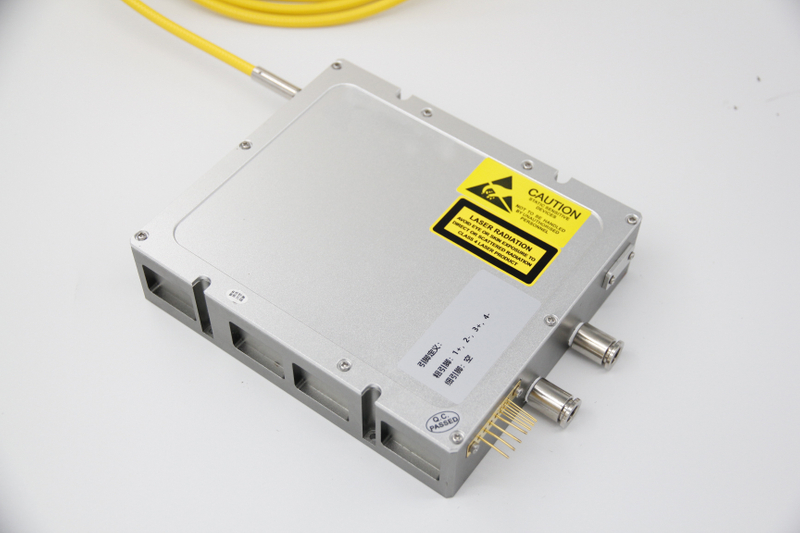

450nm 120W Fiber Coupled Laser Module
Introducing our 450nm 100W 120W Fiber Coupled Laser Module, a cutting-edge solution for a wide range of industrial applications. This high-powered 450nm 120W laser module is specifically designed for laser welding, laser cladding, 3D printing, and metal powder sintering processes.
With a wavelength of 450nm and power options of 100W or 120W, this fiber-coupled laser module offers exceptional precision and efficiency in various manufacturing tasks. The compact design and robust construction ensure reliable performance even in demanding production environments.
Ideal for applications such as laser welding and laser cladding, this module delivers precise heat input and minimal distortion, resulting in high-quality welds and coatings. In 3D printing and metal powder sintering processes, the high power output enables rapid prototyping and production of complex metal parts with superior strength and durability.
Backed by advanced technology and superior engineering, our 450nm 100W 120W Fiber Coupled Laser Module is the perfect choice for manufacturers looking to enhance their productivity and quality standards. Invest in this versatile and reliable laser module to take your industrial processes to the next level.

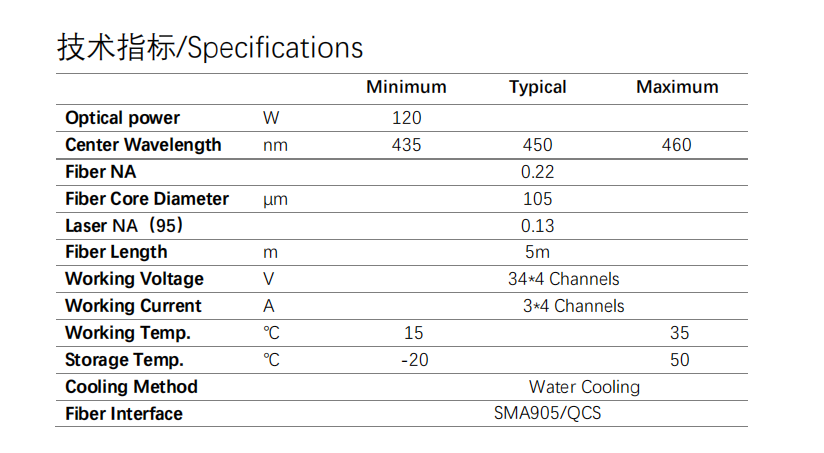

Core Specification:
Wavelength | 450nm |
Output Power | 120W |
Working Voltage | 34V*4 channel |
Fibe Core Diameter | 105um |
Fiber length | 5m (Customizable) |

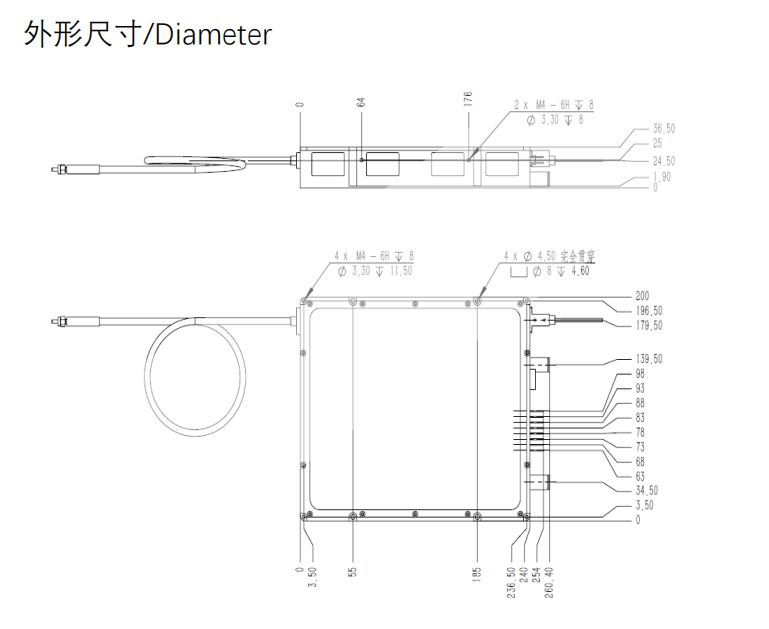

Dimension | 260*200*36.5mm |
Coupling Efficiency | 80%-85% |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
450nm 120W Fiber Coupled Laser Module
Introducing our 450nm 100W 120W Fiber Coupled Laser Module, a cutting-edge solution for a wide range of industrial applications. This high-powered 450nm 120W laser module is specifically designed for laser welding, laser cladding, 3D printing, and metal powder sintering processes.
With a wavelength of 450nm and power options of 100W or 120W, this fiber-coupled laser module offers exceptional precision and efficiency in various manufacturing tasks. The compact design and robust construction ensure reliable performance even in demanding production environments.
Ideal for applications such as laser welding and laser cladding, this module delivers precise heat input and minimal distortion, resulting in high-quality welds and coatings. In 3D printing and metal powder sintering processes, the high power output enables rapid prototyping and production of complex metal parts with superior strength and durability.
Backed by advanced technology and superior engineering, our 450nm 100W 120W Fiber Coupled Laser Module is the perfect choice for manufacturers looking to enhance their productivity and quality standards. Invest in this versatile and reliable laser module to take your industrial processes to the next level.
Core Specification:
Wavelength | 450nm |
Output Power | 120W |
Working Voltage | 34V*4 channel |
Fibe Core Diameter | 105um |
Fiber length | 5m (Customizable) |
Dimension | 260*200*36.5mm |
Coupling Efficiency | 80%-85% |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
