LY4560-A

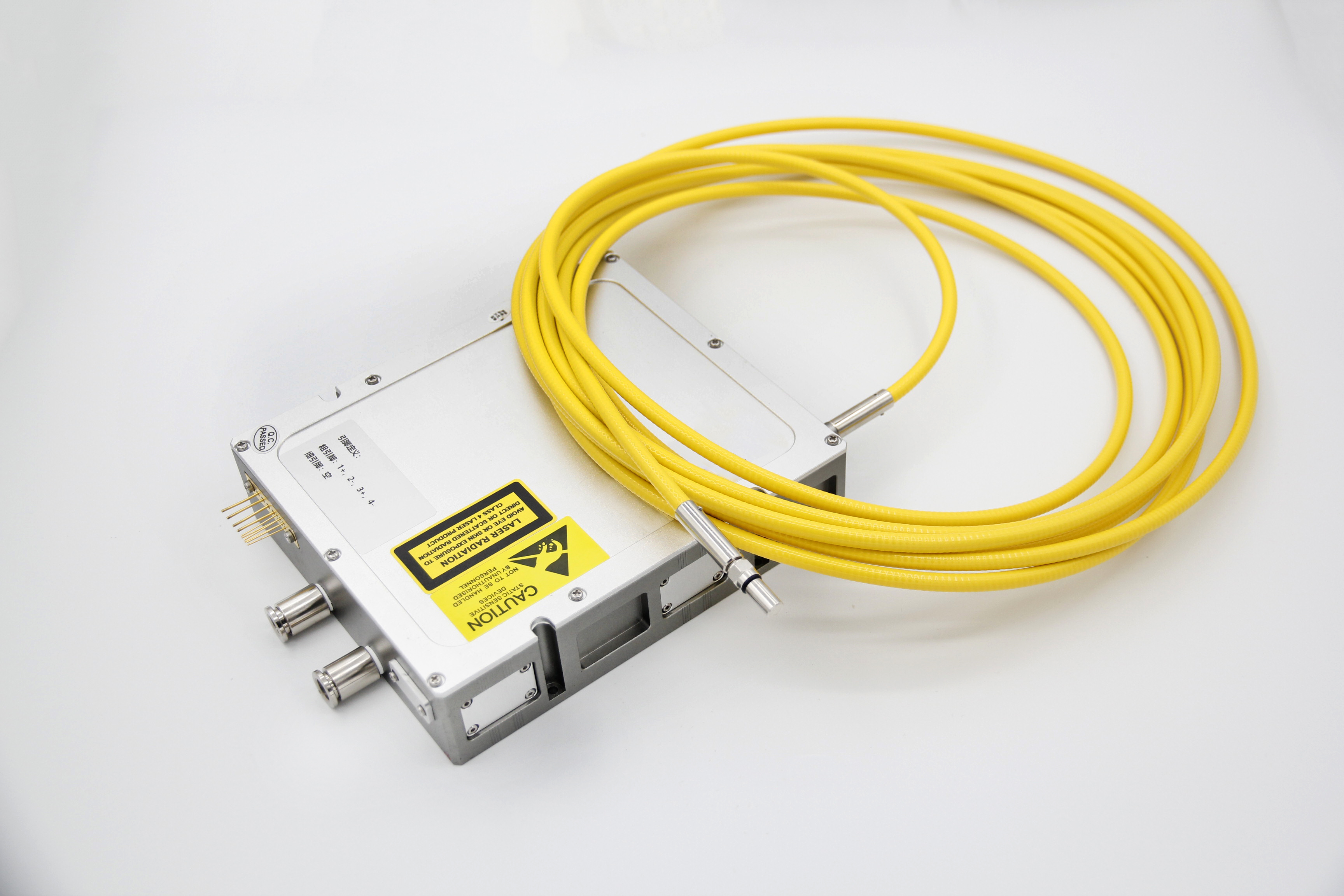

Introducing our 450nm 60W Fiber coupled laser module, a cutting-edge solution for laser welding, laser cladding, and 3D printing applications. This high-powered laser module is designed to deliver precise and efficient performance in a variety of industrial settings.
Equipped with a 450nm wavelength and 60W power output, this laser module offers superior beam quality and stability for consistent results. The fiber coupled design ensures easy integration into existing systems, allowing for seamless operation and maximum productivity.
Ideal for applications such as laser welding and laser cladding, this module provides the precision and control needed for intricate and demanding tasks. Its high power output enables fast and efficient processing, making it a valuable tool for a wide range of manufacturing processes.
In addition, this laser module is well-suited for 3D printing applications, offering the speed and accuracy required for producing complex and detailed objects. Its advanced technology and reliable performance make it a versatile and dependable solution for a variety of industrial needs.
Trust in our 450nm 60W Fiber coupled laser module to deliver exceptional results for your laser processing needs. With its advanced features and professional-grade performance, this module is sure to meet and exceed your expectations.
| Wavelength | 450nm |
| Output Power | >60W |
| Working Voltage | 34V * 2 Channel |
| Fiber Core Diameter | 50um |
| Fiber Interface | SMA 905 (Customizable) |
| Collimated dot Beam size | / |
| Housing Size | 181*144*29mm (Customizable) |
| Lens | Optical Glass |
| Cooling Method | Water Cooling |
| Lifespan | > 10,000 hours |





We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mW-3W | 20mW-3W | 10mW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/80°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3R/class3B/class4 | ||||
