3D Printing Defect Detection & Laser Module Application in In-line Inspection

1. What is 3D printing defect detection?

3D printing defect detection is a quality control procedure to find abnormal flaws during or after additive manufacturing, aiming to eliminate unqualified parts caused by layer shifting, missing printing, air pores, surface pits, warpage, unfused powder and dimensional deviation.

It splits into two working modes:

• In-process online detection: Inspect each printed layer in real time while printing runs, pause equipment instantly once defects emerge to reduce raw material waste.

• Post-process offline detection: Full-scan finished workpieces to verify surface & internal flaws before delivery for aerospace, medical and auto spare parts.

2. How laser modules work for 3D printing defect detection

Three mainstream laser inspection solutions with our customized laser modules:

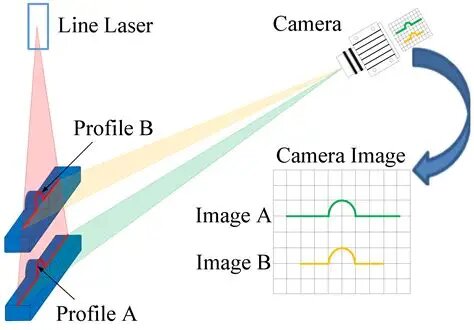

1. Line laser profilometer inspection (most widely used)

   Line laser modules project thin straight laser line onto printed surface; matched industrial cameras capture distorted laser contour to generate 3D point cloud data. The system compares actual 3D data with standard CAD model, automatically marks pits, bulges, layer height error and dimensional out-of-tolerance spots. Commonly adopt 650nm red / 850nm IR laser modules with adjustable line width.

2. Speckle structured light laser 3D scanning

   Speckle laser projects random dot array to reconstruct full 3D workpiece profile rapidly. It excels at complex curved-surface part inspection, fast detecting concave/convex defects and assembly deformation after printing. 830/940nm IR speckle laser is preferred for industrial non-contact testing.

3. In-situ melt pool monitoring for metal SLM printing

   Near-infrared laser sensors trace reflected light signal from molten metal pool. Abnormal light waveform means keyhole pores, unfused metal or balling defects inside metal parts; the printer adjusts laser power in real time to fix faults on-spot.

Core Application Fields

Aerospace metal components, medical implant parts, automotive functional spare parts, industrial FDM plastic prototypes.
