JAP8505-006

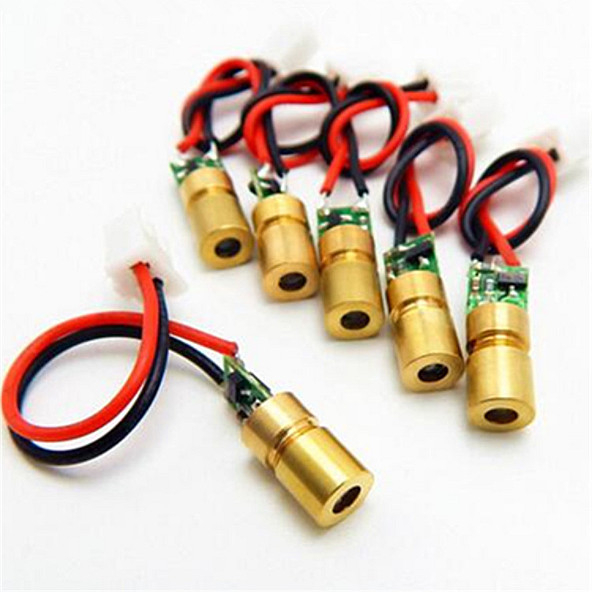

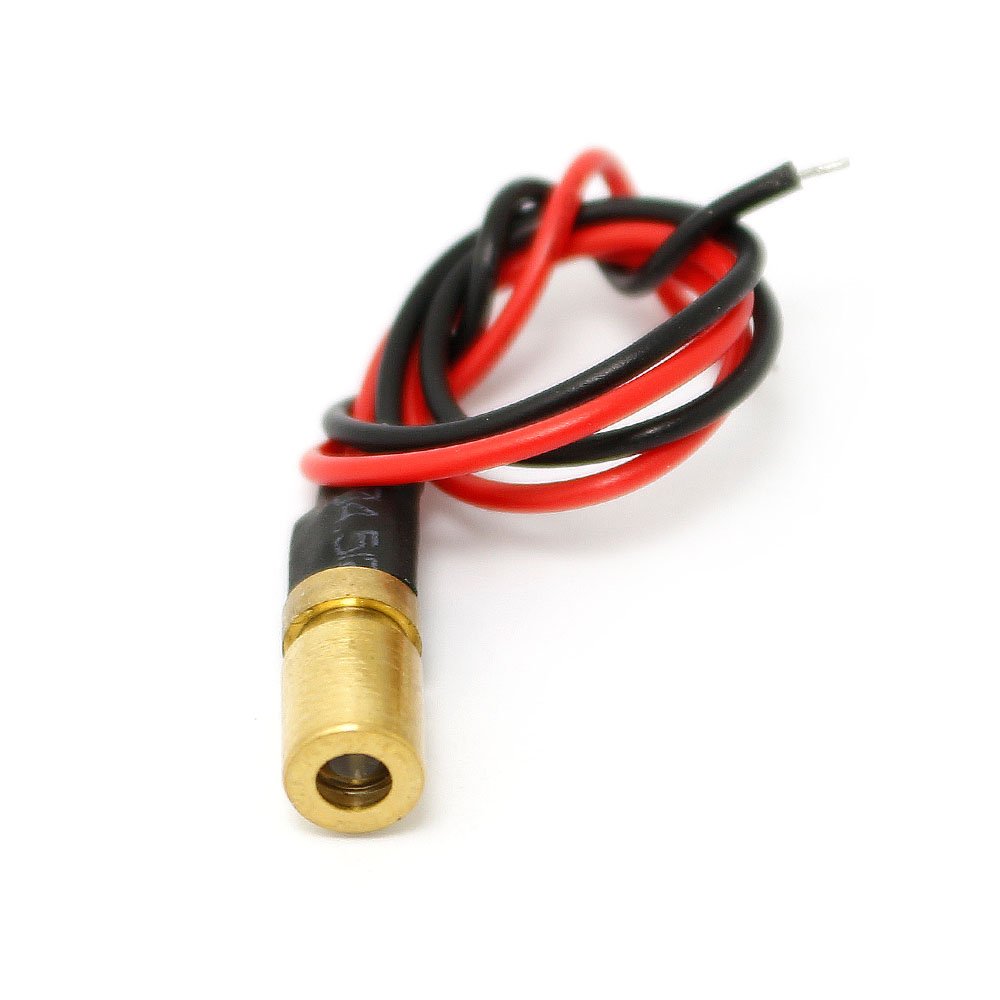

850nm 5mW Dot Laser Diode Module
Our 850nm 5mW dot laser diode module is a cutting-edge product designed for a wide range of applications including laser sensing, laser ranging, laser positioning, and laser radar. This high-quality diode module emits a powerful 5mW laser beam at a wavelength of 850nm, ensuring precise and accurate results in various industrial and scientific settings.
Equipped with advanced technology, this laser diode module offers exceptional performance and reliability. Its compact design allows for easy integration into existing systems, making it ideal for use in robotics, automation, security systems, and more. The 850nm wavelength provides excellent visibility and sensitivity, making it suitable for applications that require precise measurements and positioning.
Whether you are looking to enhance your laser sensing capabilities, improve your laser ranging accuracy, or optimize your laser positioning systems, our 850nm 5mW dot laser diode module is the perfect solution. Trust in our product to deliver consistent and dependable results for all your laser-related needs.

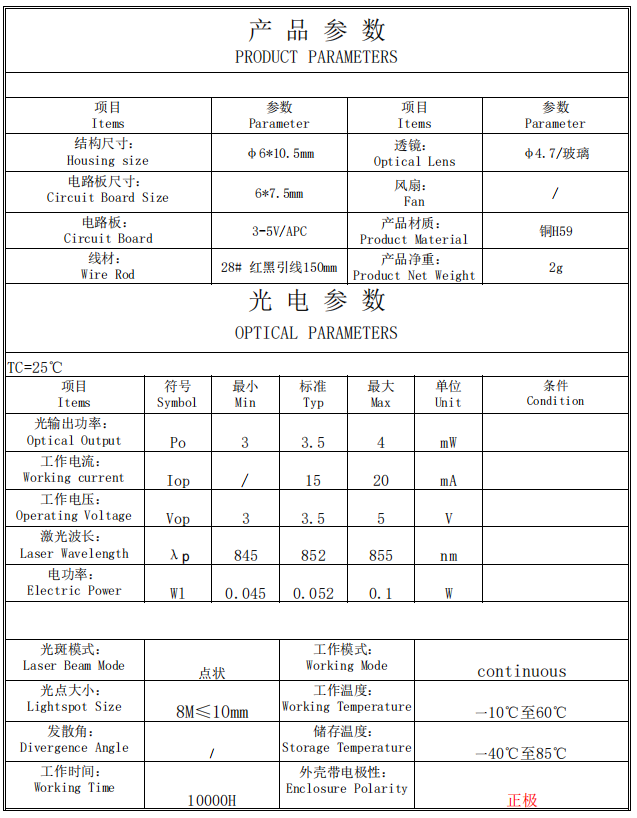

Core Specification :
Wavelength | 850nm |
Output Power | 3-4mW |
Working Voltage | 3-5V |
Beam Mode | Dot beam |
Beam Size | <10mm @8mm (Customizable) |

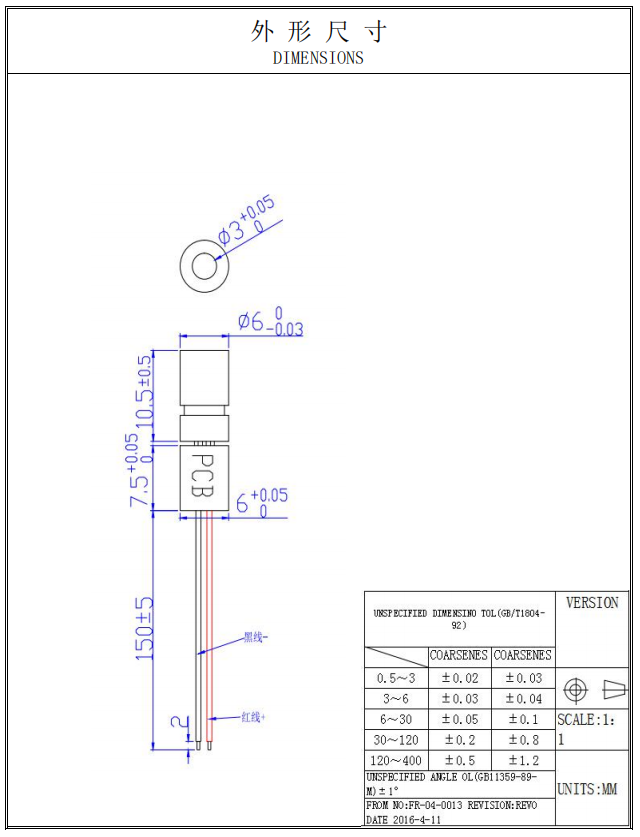

Housing Size | 6*10.5mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
