JAP6505-104

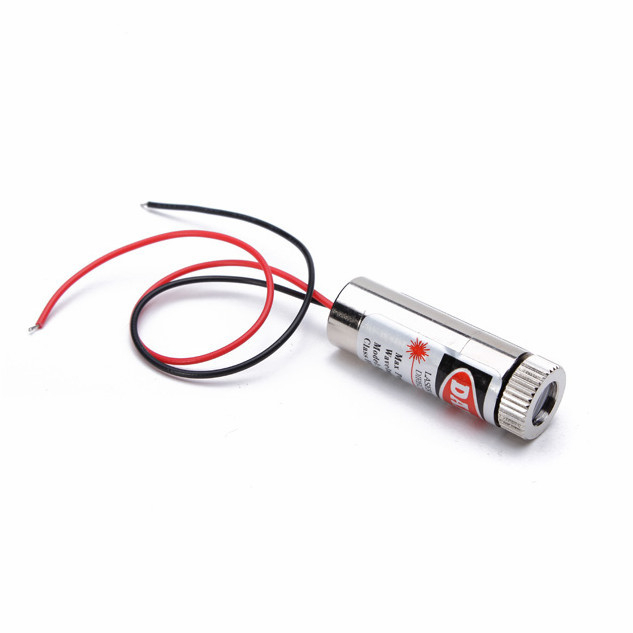

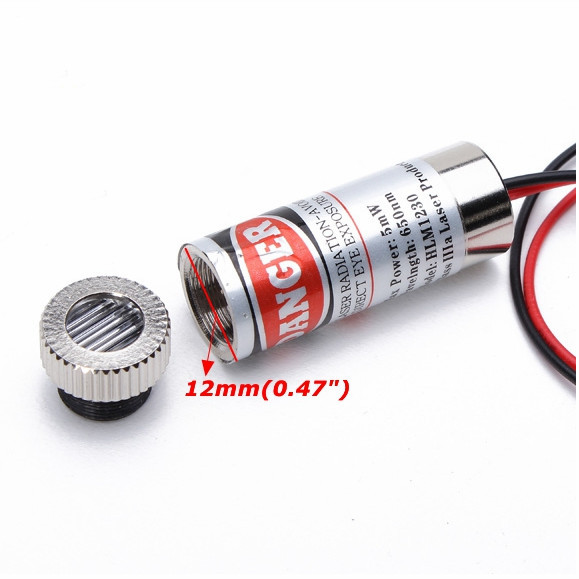

Focusable 650nm 5mW Laser Module
Introducing the 650nm 5mW Laser Module, a versatile and high-quality product designed for a variety of applications. This laser module is equipped with a 650nm wavelength and 5mW power output, making it ideal for use as a laser pointer, laser locator, sensor, or laser sight.
The 650nm 5mW Laser Module is perfect for precision tasks such as pointing out specific objects or locations, providing accurate positioning information, detecting objects or obstacles, and aiming with precision. Whether you need a reliable laser pointer for presentations, a laser locator for surveying or mapping, a sensor for detecting motion or distance, or a laser sight for aiming in sports or tactical applications, this laser module is up to the task.
With its compact size and durable construction, the 650nm 5mW Laser Module is easy to integrate into a wide range of devices and systems. Its high-quality components ensure long-lasting performance and reliable operation, making it a valuable tool for professionals in various industries.
Trust the 650nm 5mW Laser Module to deliver exceptional results in your next project or application. Experience the precision and versatility of this top-of-the-line laser module today.

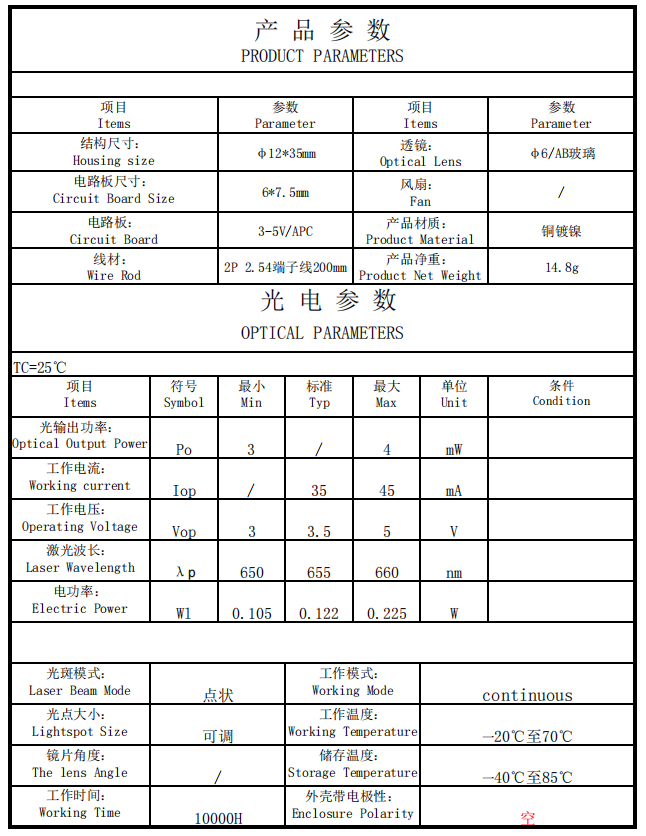

Core Specification :
Wavelength | 660nm |
Output Power | 3-4mW |
Working Voltage | 3-5V |
Beam Mode | Dot |
Dot beam size | Adjustable |

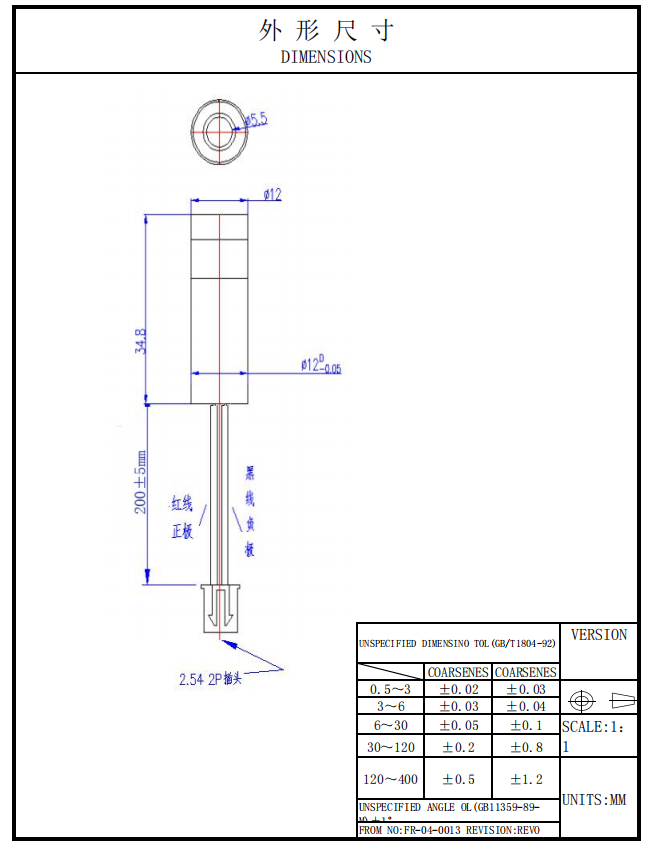

Housing Size | 12*35mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
Focusable 650nm 5mW Laser Module
Introducing the 650nm 5mW Laser Module, a versatile and high-quality product designed for a variety of applications. This laser module is equipped with a 650nm wavelength and 5mW power output, making it ideal for use as a laser pointer, laser locator, sensor, or laser sight.
The 650nm 5mW Laser Module is perfect for precision tasks such as pointing out specific objects or locations, providing accurate positioning information, detecting objects or obstacles, and aiming with precision. Whether you need a reliable laser pointer for presentations, a laser locator for surveying or mapping, a sensor for detecting motion or distance, or a laser sight for aiming in sports or tactical applications, this laser module is up to the task.
With its compact size and durable construction, the 650nm 5mW Laser Module is easy to integrate into a wide range of devices and systems. Its high-quality components ensure long-lasting performance and reliable operation, making it a valuable tool for professionals in various industries.
Trust the 650nm 5mW Laser Module to deliver exceptional results in your next project or application. Experience the precision and versatility of this top-of-the-line laser module today.
Core Specification :
Wavelength | 660nm |
Output Power | 3-4mW |
Working Voltage | 3-5V |
Beam Mode | Dot |
Dot beam size | Adjustable |
Housing Size | 12*35mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
