Mini 980nm 50mW Infrared IR Dot Laser Module for Anti-Counterfeiting Detection

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 98MZ-09

Overview
980nm dot laser module

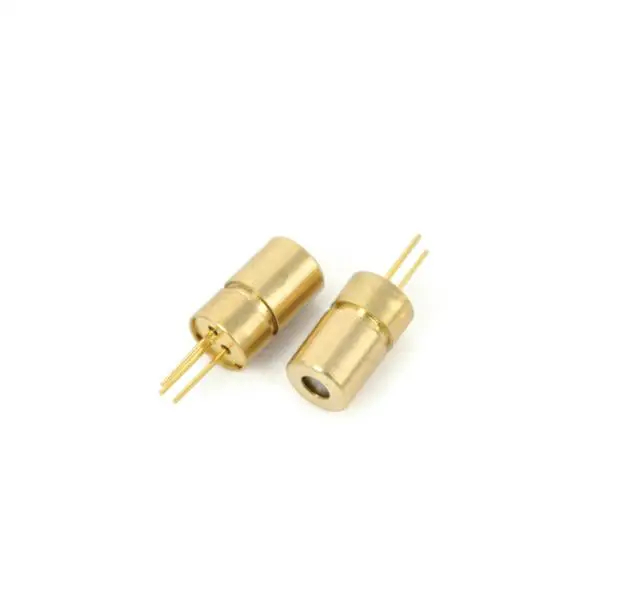

Mini 980nm 50mW Infrared IR Dot Laser Module for Anti-Counterfeiting Detection

It is a small size but high quality Red laser module, it uses imported brand new and original package laser diodes inside, and the lifetime is 10000 hours.  It normally uses a glass lens inside, the dot beam will be higher precision. Of course, with different requirements of different customers, we also can do it with PMMA material lens at a lower cost.


Introducing our 980nm 50mW IR dot laser module, designed for high precision applications requiring authentication and sensing capabilities. This advanced laser module is equipped with anti-counterfeiting detection features, ensuring the authenticity and integrity of the product.


The 980nm wavelength provides a powerful and focused infrared beam, ideal for applications such as security systems, industrial automation, and medical devices. With a power output of 50mW, this laser module delivers reliable performance and consistent results.


In addition to its anti-counterfeiting capabilities, this laser module also features sensor technology, allowing for precise and accurate detection in various environments. Whether used for authentication purposes or sensing applications, this laser module offers exceptional reliability and performance.


Trust in the quality and precision of our 980nm 50mW IR dot laser module for your authentication and sensing needs. Experience the difference with this advanced laser technology that delivers unparalleled performance and reliability.

Product Description

Core Specification :

Wavelength 980nm
Output Power <50mW
Working Voltage 1.5-2.1V
Beam Mode Dot Laser
Laser Spot Size Small dot beam size at 68mm distance (Customizable)
Housing Size 6*10.5mm  (Customizable)
Lens Glass /PMMA
Lifespan > 10,000 hours

980nm dot laser module

980nm dot laser module


Product Display


980nm dot laser module

980nm dot laser module

980nm dot laser module

Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!

Item Parameter
Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm
Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W
Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W
Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc.
CDRH Class class1/class2/class3R/class3B/class4
