JAP45450Z-003
Features
1. Small size 450nm laser, the Optical power of the laser module is over 4.5w, and normal can reach 5W.

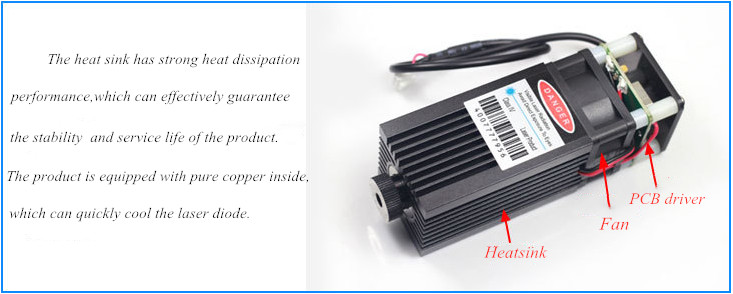

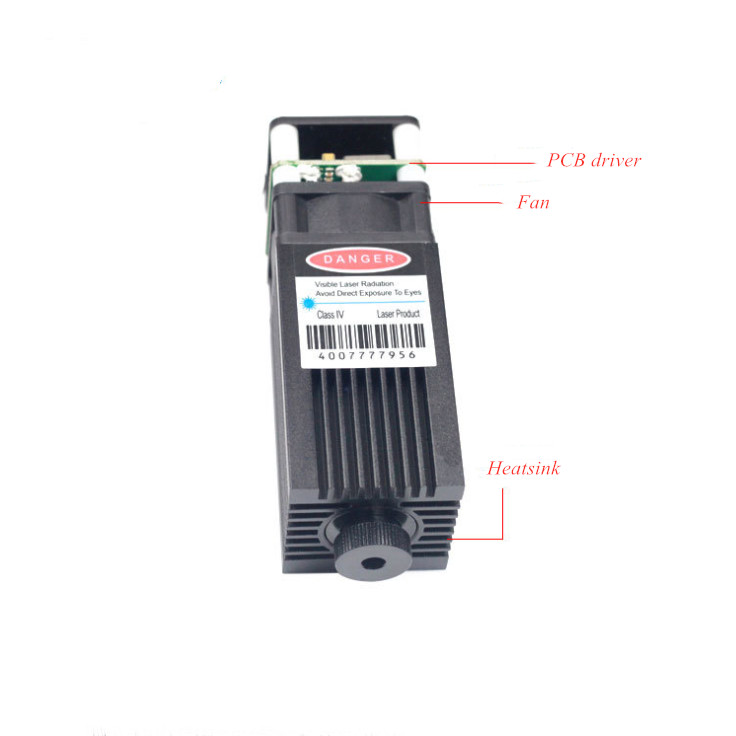

2. The heat sink has strong heat dissipation performance, which can effectively guarantee the stability and the service life of the laser module head. The laser module head adopts pure copper inside that allows the internal laser diode to cool down quickly.

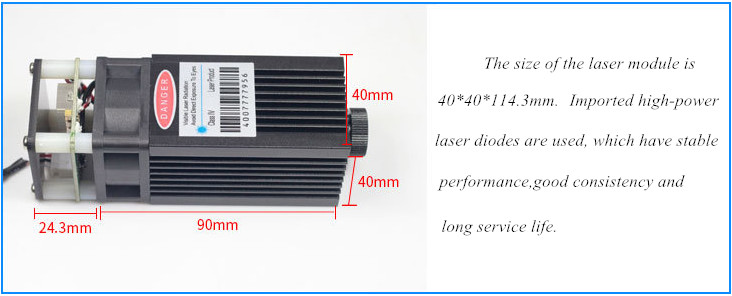

3. The size of the laser module is 40*40*114.3mm. Adopting original-imported high-power laser diodes inside which have stable performance, good consistency, and long service life.

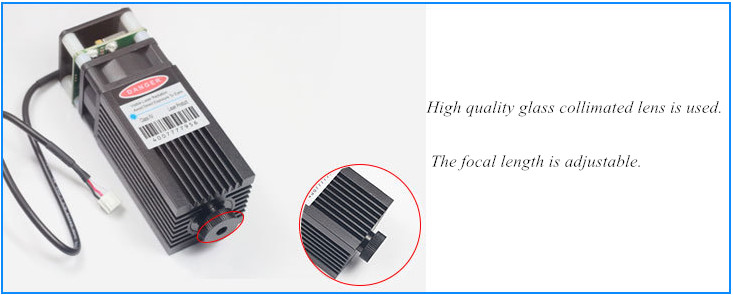

4. Adopting high quality glass collimated lens which focal length is adjustable.
5. The LD inside we use the Nichia/Osram brand new diode, so the lifetime is normally over 10,000 hours.
6. We offer professional OEM and ODM services, so if you want to customize a special laser module, please just let us know your requirements.
Specification
Item | Parameter | Item | Parameter | ||||||
Housing size | 40*40*70mm | Optical Lens | Φ6/glass | ||||||
Circuit Board Size | 40*40mm | Fan | 12V | ||||||
Circuit Board | 12V/PWM modulation board | Product Material | Al6061/CuH59 | ||||||
Wire Rod | 24# 4P2.0mm Terminal wire 270mm | Product Net Weight | 295g | ||||||
Item | Symbol | Min | Typ | Max | Unit | Condition | |||
Optical Output Power | Po | 4.2 | / | 4.5 | W | 12V Power supply | |||
Working Current | Iop | / | 2.1 | 2.3 | A | ||||
Operating Voltage | Vop | / | 12 | / | V | ||||
Laser Wavelength | λp | 450 | 455 | 460 | nm | ||||
Electric Power | Wl | / | 25.2 | 27.6 | W | ||||
Laser Beam Mode | Dot | Working Mode | Pulse Work | ||||||
Light spot Size | Adjustable | Working Temperature | 0~70 degree | ||||||
Divergence Angle | / | Storage Temperature | -40~85 degree | ||||||
Working Time | 10000H | Enclosure Polarity | / | ||||||
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3A/class3B/class4 | ||||
