JBP5210-003

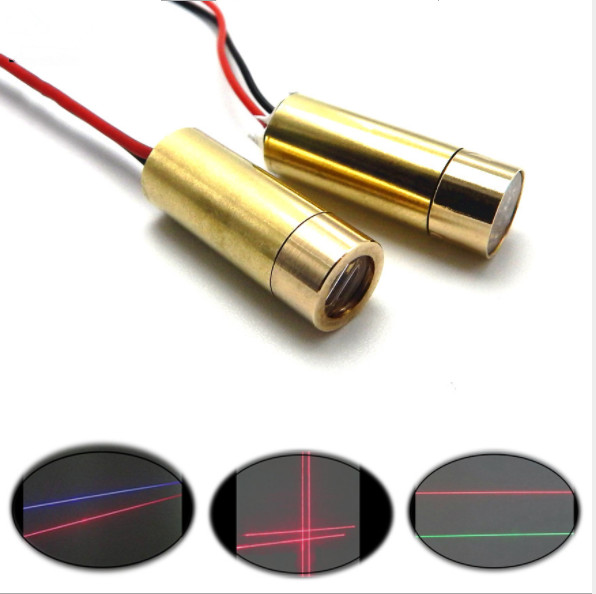

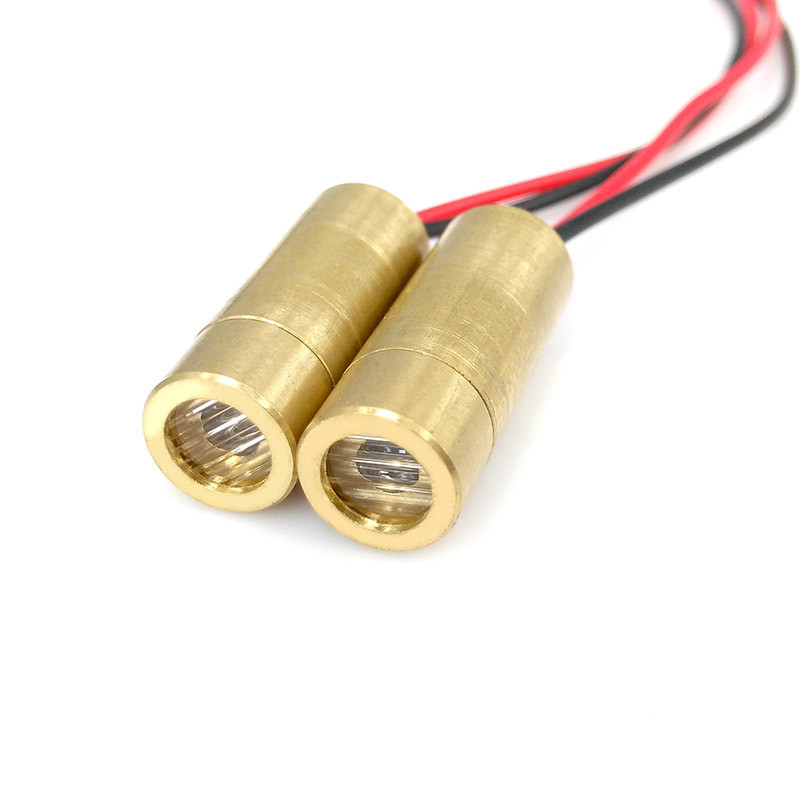

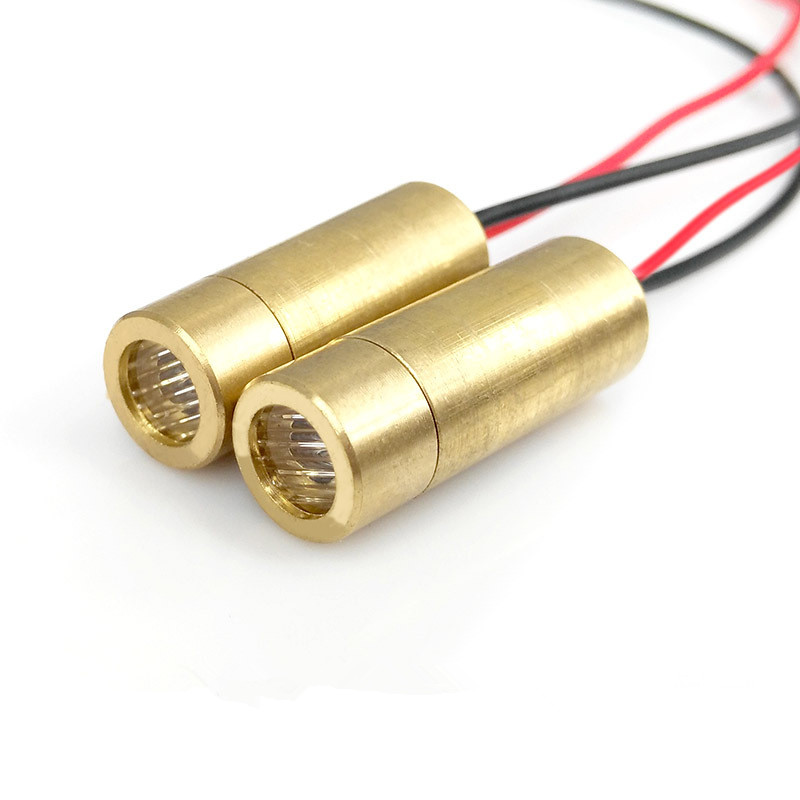

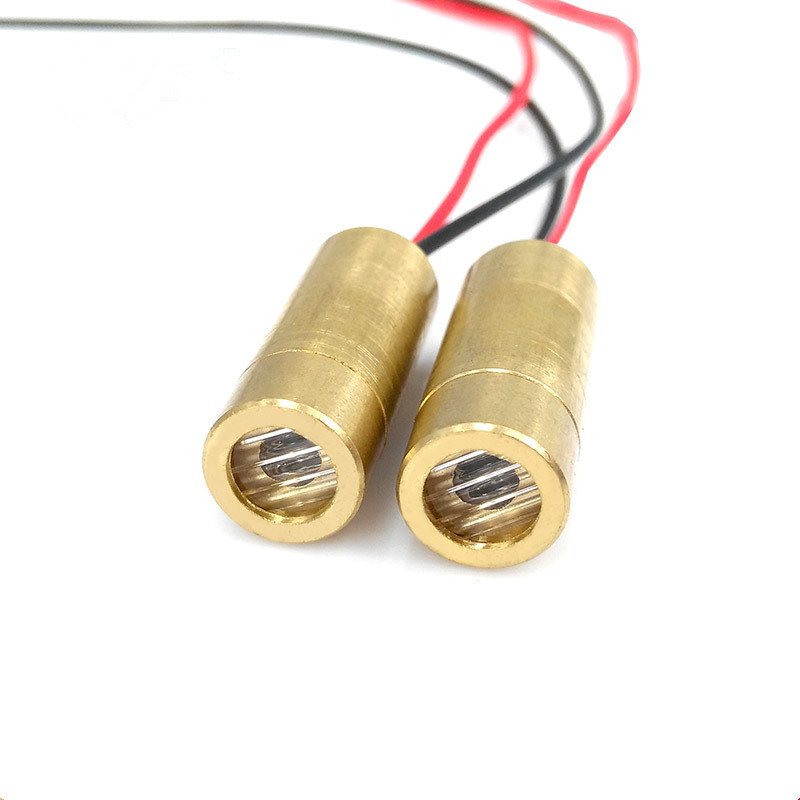

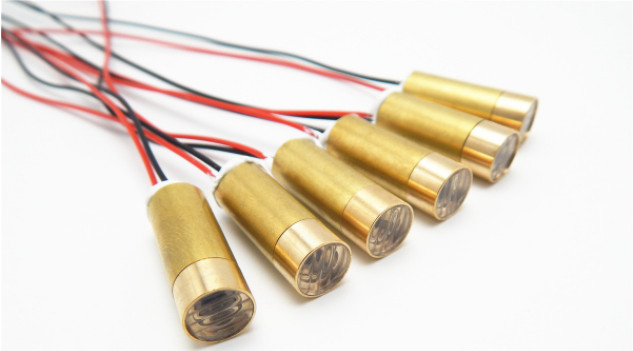

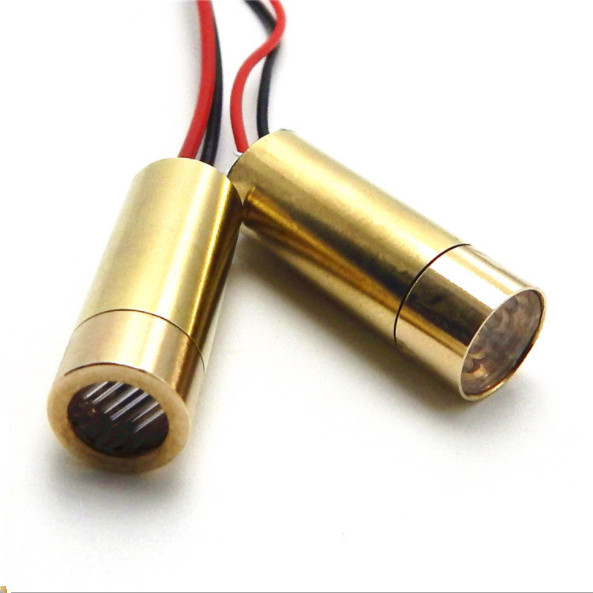

520nm 5mW Green Line Laser Module for Laser Positioning
Introducing the 520nm 5mW green line laser module, a cutting-edge device designed for precision laser positioning, distance measurement, and detection applications. This high-quality green line laser module emits a vibrant green laser line with a wavelength of 520nm and a power output of 5mW, ensuring clear and accurate results in various industrial and scientific settings.
Equipped with advanced laser technology, this module offers unparalleled performance and reliability for tasks such as alignment, leveling, and inspection. The green laser line is highly visible and easily distinguishable against different backgrounds, making it ideal for applications that require precise positioning and measurement.
In addition to its laser positioning capabilities, this module also features laser distance measurement and detection functions, allowing users to accurately assess distances and detect objects with ease. Whether used in construction, manufacturing, or research environments, this versatile laser module delivers consistent and dependable results.
Constructed with durable materials and built to withstand rigorous use, the 520nm 5mW green line laser module is a valuable tool for professionals seeking high-quality laser solutions. Trust in this innovative device to enhance your workflow and achieve optimal results in your projects.

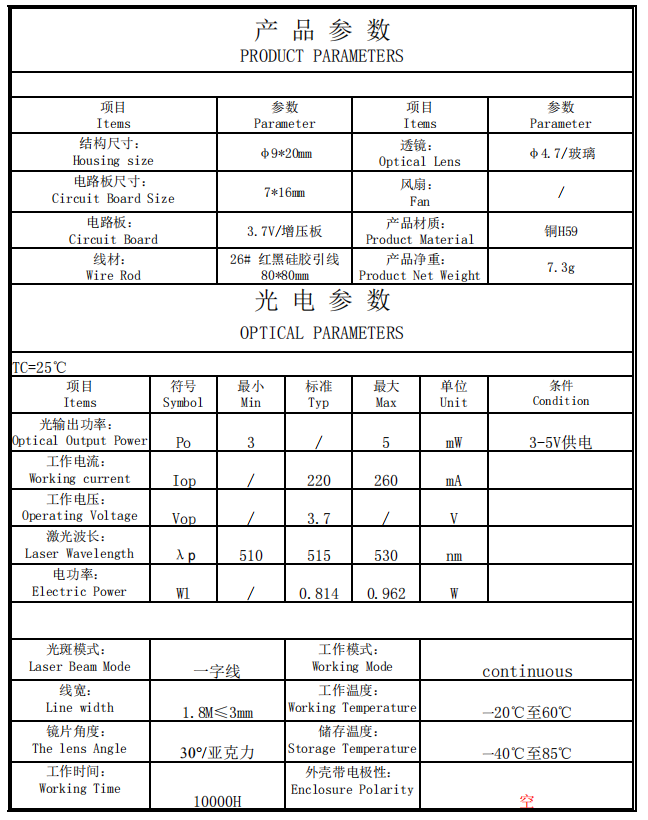

Core Specification :
Wavelength | 520nm |
Output Power | 5mW |
Working Voltage | 3-5V |
Beam Mode | Line (Customizable) |
Laser line width | <3mm @1.8m |

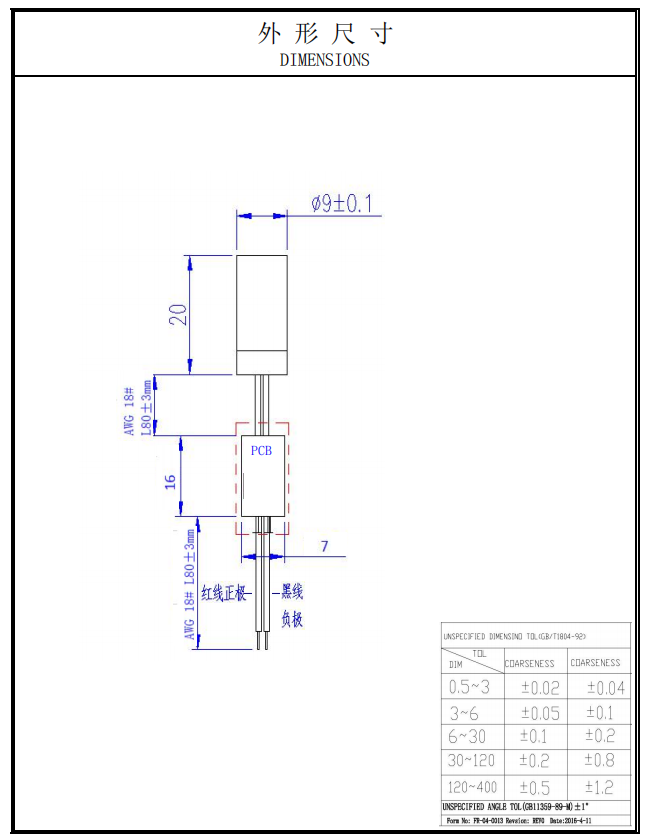

Housing Size | 9*20mm (Customizable) |
Lens | Optical Glass + 30 degree Plastic wave line lens |
Lifespan | > 10,000 hours |
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
