JBP6520Z-012
650nm 200mW Red Line Laser Module
Introducing the 650nm 200mW Line Laser Module, a cutting-edge product designed for a variety of applications including forklift positioning, three-dimensional scanning, laser positioning, machine vision, and oral cavity scanning. This high-quality red line laser module emits a 650nm wavelength with a power output of 200mW, ensuring precision and accuracy in all your projects.
The forklift positioning feature allows for seamless navigation and positioning of forklifts in warehouses and industrial settings, increasing efficiency and reducing the risk of accidents. The three-dimensional scanning capability enables detailed and accurate scanning of objects and environments, perfect for applications in construction, engineering, and design.
The laser positioning function provides precise alignment and positioning in various industries such as manufacturing and assembly. The machine vision feature enhances automation processes by capturing and analyzing visual information, improving productivity and quality control. Additionally, the oral cavity scanning feature offers advanced imaging capabilities for dental and medical professionals, allowing for detailed examination and diagnosis.
Overall, the 650nm 200mW Line Laser Module is a versatile and reliable product that meets the demands of a wide range of industries. With its advanced features and high-performance specifications, this laser module is the perfect solution for your positioning, scanning, and imaging needs.

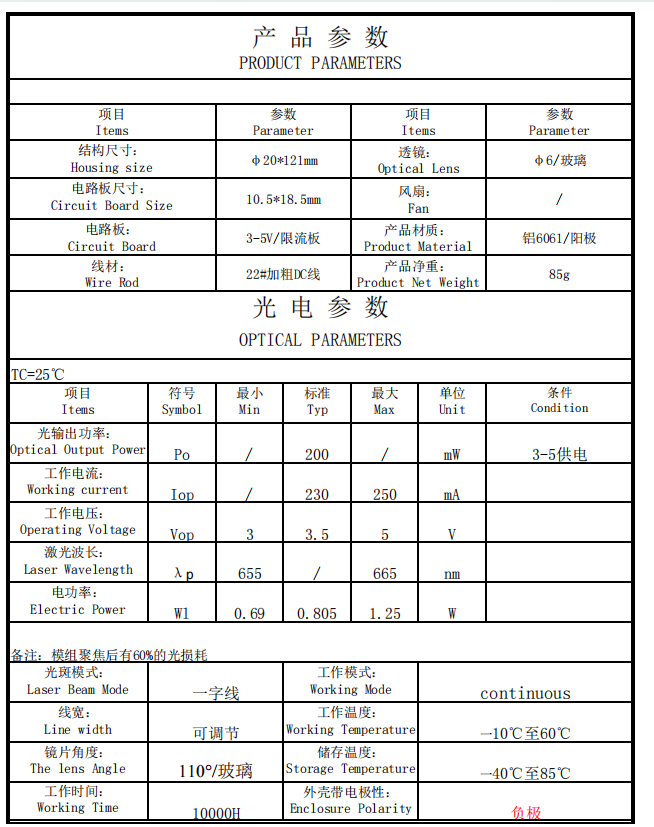

Core Specification :
Wavelength | 658nm |
Output Power | 200mW |
Working Voltage | 3-5V |
Beam Mode | Line |
Laser Line width | Adjustable |

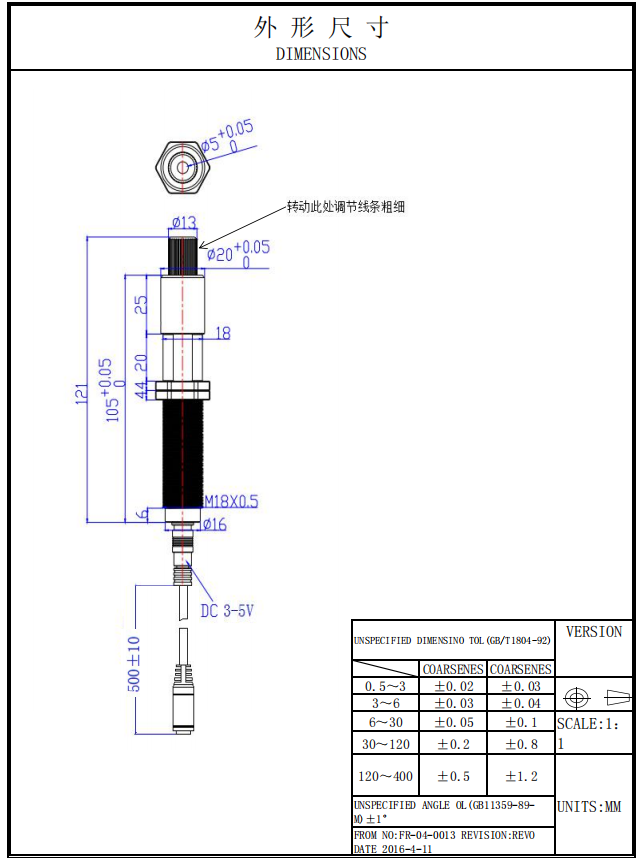

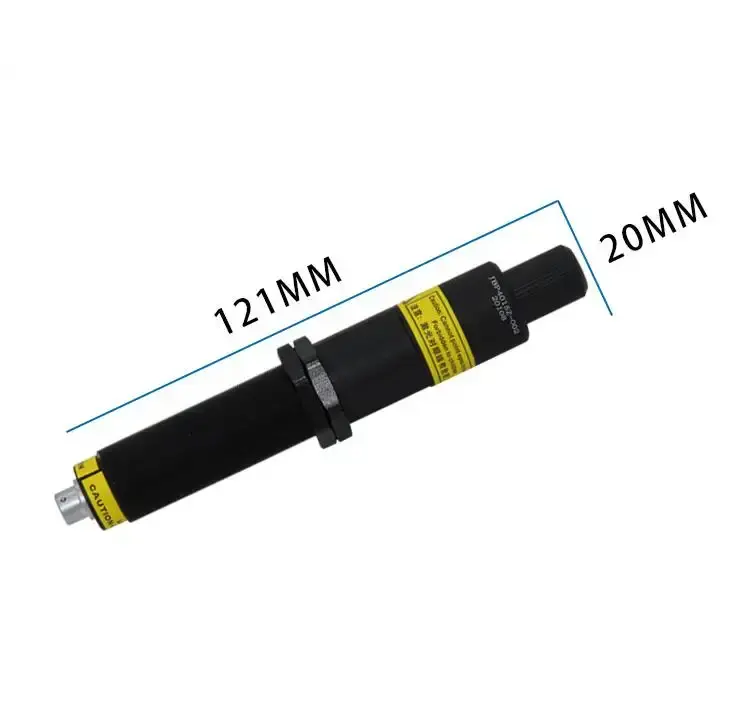

Housing Size | 20*121mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
