JCP5213Z-001

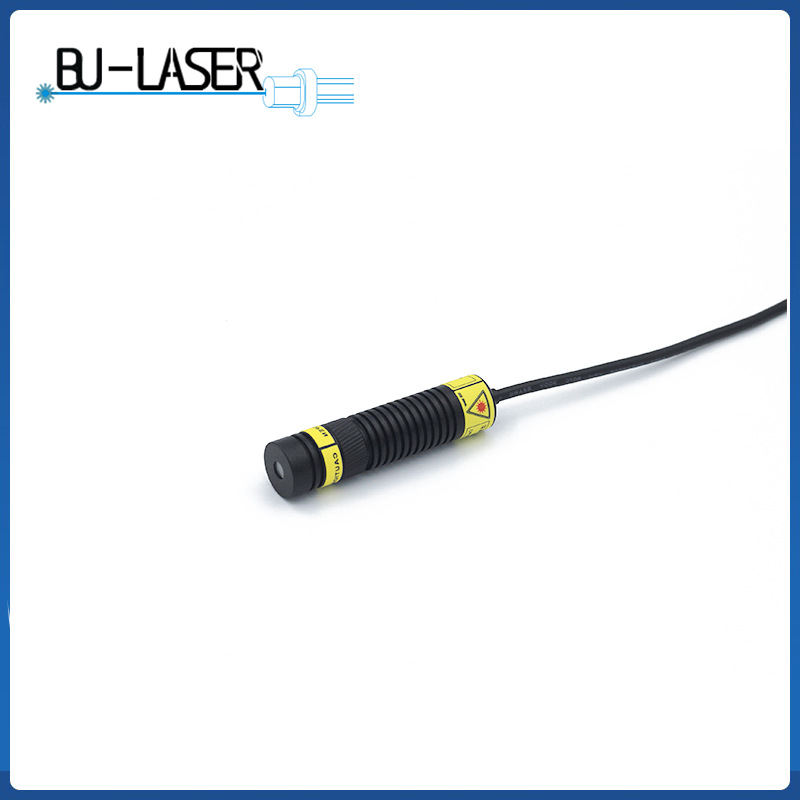

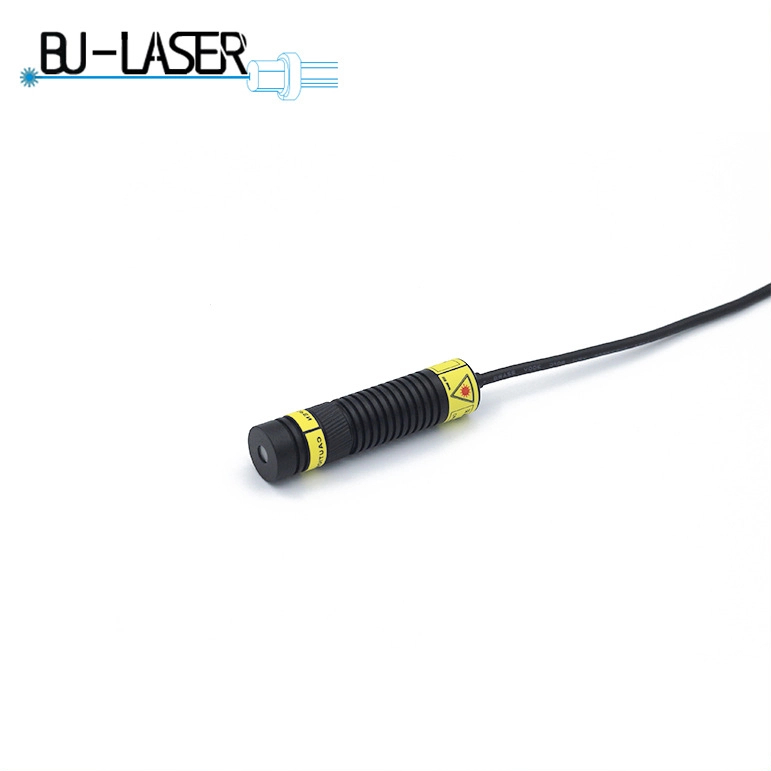

520nm 60mW Green Scattered Spots Laser Module
Introducing the 520nm 60mW Green Scattered Spots Laser Module, a cutting-edge laser module designed for a variety of applications including three-dimensional imaging, 3D scanning, and
machine vision. This high-quality product offers precision and reliability for professionals in the fields of research, manufacturing, and technology.
The 520nm wavelength provides optimal visibility and accuracy for intricate imaging and scanning tasks. With a power output of 60mW, this laser module delivers a strong and consistent beam for enhanced performance in various environments.
Equipped with advanced technology, the 520nm 60mW Green Scattered Spots Laser Module is capable of producing scattered laser points that are ideal for creating detailed and accurate 3D images. Whether used for industrial inspections, medical imaging, or robotic vision systems, this laser module offers unparalleled precision and efficiency.
Trust in the quality and reliability of the 520nm 60mW Green Scattered Spots Laser Module for all your three-dimensional imaging, 3D scanning, and machine vision needs. Enhance your projects and streamline your processes with this professional-grade laser module.
Core Specification :
Wavelength | 520nm |
Output Power | 60mW |
Working Voltage | 12V |
Beam Mode | 50,000 random scattered spots |
Working distance | 2m |

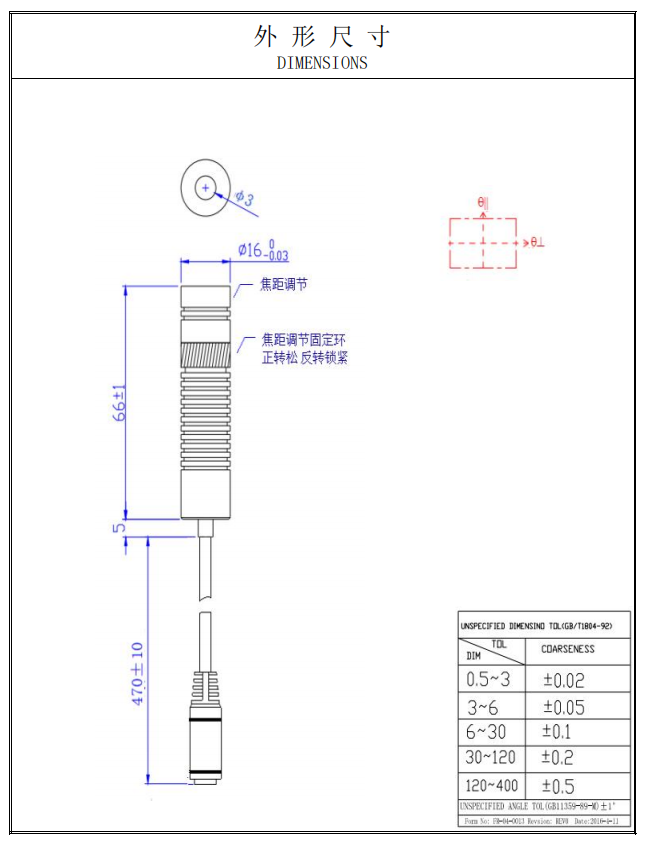

Housing Size | 16*66mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
The speckle laser module uses imported laser diodes and glass lenses with clear points. You can choose 1000 points, 3000 points, 5000 points, 10,000 points, 30,000 points, and 50,000 points. It can be customized according to your needs.
Application for Structured Light Laser:
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
