JAP6505-216

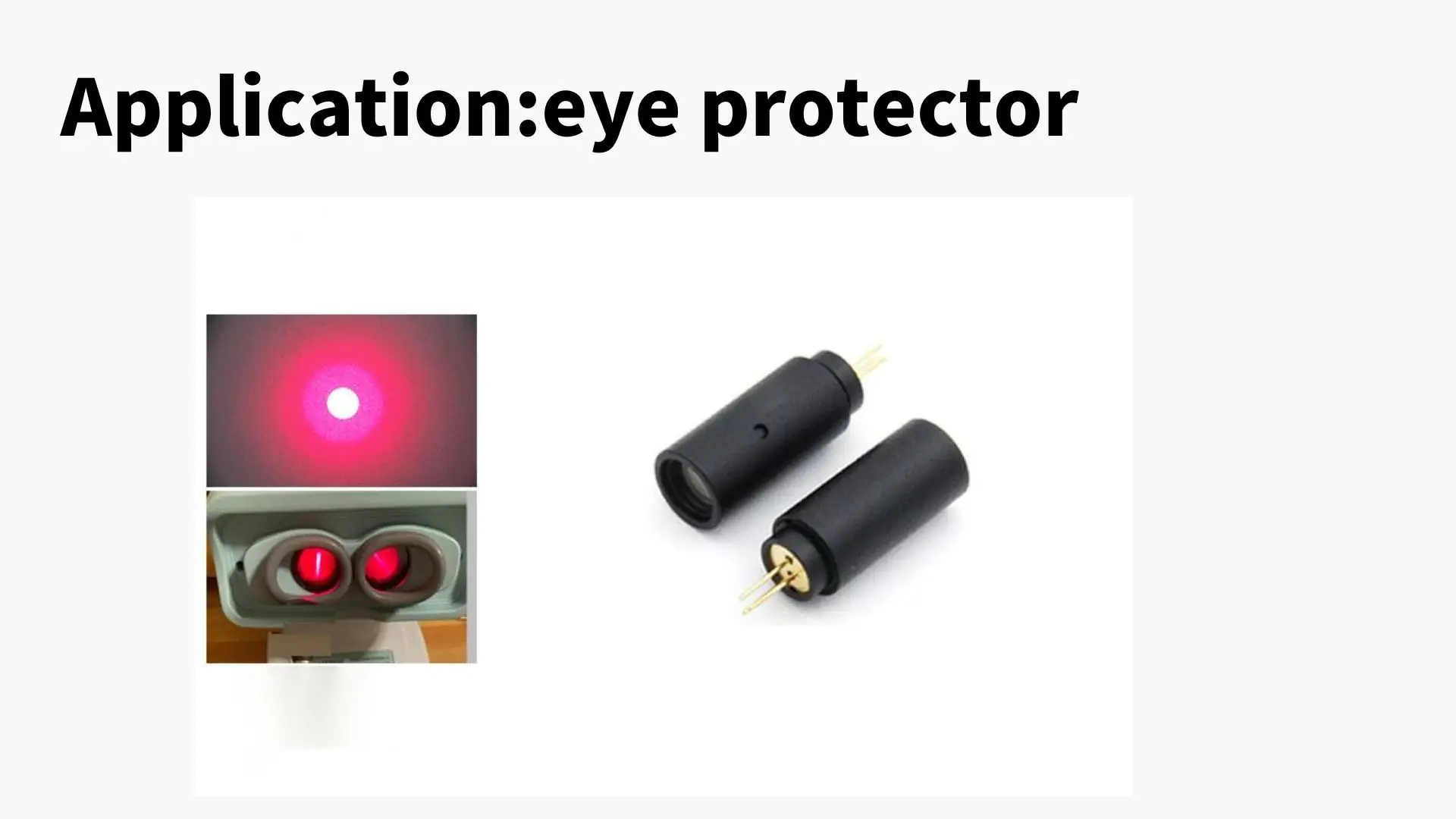

This Class 1 Treatment Laser Red 650nm 0.3mW Laser Module is custom-built for eye protectors, prioritizing eye safety while delivering gentle therapeutic effects for daily eye care.
This red laser module meets Class 1 laser safety standards—with 0.3mW ultra-low output power—ensuring no damage to retinal cells even with prolonged exposure. It emits 650nm red laser, a wavelength proven gentle on the eyes, which penetrates shallowly to soothe eye fatigue without irritating the cornea or conjunctiva.
The Class 1 Treatment Laser Red 650nm 0.3mW Laser Module boasts stable performance: its narrow spectral linewidth (≤5nm) ensures consistent light intensity, making it ideal for eye protectors targeting digital eye strain, dry eyes, or mild visual fatigue.
It integrates easily with mainstream eye protector devices: supports 3V-5V low-voltage DC power supply, fits compact eye protector housings (diameter 9mm), and uses standard pin connections for quick assembly. Its sealed design resists dust and moisture, adapting to daily wearable use.
Note: Even as a Class 1 safe module, avoid disassembling the eye protector during use to prevent laser path misalignment. Ensure the module’s emission window aligns with the eye’s target area for optimal care effects.
1.Eye Massage: Relieve eye fatigue and discomfort through gentle laser massage. It can promote blood circulation in the eyes, relax eye muscles, reduce eye fatigue, and make your eyes rejuvenated.
2.Eye Moisturizing: The laser can penetrate deep into the eye area to provide long-lasting moisturizing effect. It moisturizes eye skin, reduces dryness and the appearance of wrinkles, and keeps eye skin hydrated and youthful.
3.Eye care adjustment: The laser has different light intensity and frequency adjustment functions, which can provide personalized eye care according to your needs. You can choose soothing mode, powerful mode or massage mode to meet your different needs.
4.Eye tightening: Lasers can also stimulate the production of collagen, increasing the elasticity and firmness of eye skin. It reduces the appearance of eye bags and dark circles, making your eye area younger and more vibrant.
5.Safe and reliable: Our eye protection lasers undergo strict quality control and safety testing to ensure safety and reliability during use. You can use it with confidence without worrying about any potential risks.







| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3R/class3B/class4 | ||||
The Below are other laser pattern options you can select:

This Class 1 Treatment Laser Red 650nm 0.3mW Laser Module is custom-built for eye protectors, prioritizing eye safety while delivering gentle therapeutic effects for daily eye care.
This red laser module meets Class 1 laser safety standards—with 0.3mW ultra-low output power—ensuring no damage to retinal cells even with prolonged exposure. It emits 650nm red laser, a wavelength proven gentle on the eyes, which penetrates shallowly to soothe eye fatigue without irritating the cornea or conjunctiva.
The Class 1 Treatment Laser Red 650nm 0.3mW Laser Module boasts stable performance: its narrow spectral linewidth (≤5nm) ensures consistent light intensity, making it ideal for eye protectors targeting digital eye strain, dry eyes, or mild visual fatigue.
It integrates easily with mainstream eye protector devices: supports 3V-5V low-voltage DC power supply, fits compact eye protector housings (diameter 9mm), and uses standard pin connections for quick assembly. Its sealed design resists dust and moisture, adapting to daily wearable use.
Note: Even as a Class 1 safe module, avoid disassembling the eye protector during use to prevent laser path misalignment. Ensure the module’s emission window aligns with the eye’s target area for optimal care effects.
1.Eye Massage: Relieve eye fatigue and discomfort through gentle laser massage. It can promote blood circulation in the eyes, relax eye muscles, reduce eye fatigue, and make your eyes rejuvenated.
2.Eye Moisturizing: The laser can penetrate deep into the eye area to provide long-lasting moisturizing effect. It moisturizes eye skin, reduces dryness and the appearance of wrinkles, and keeps eye skin hydrated and youthful.
3.Eye care adjustment: The laser has different light intensity and frequency adjustment functions, which can provide personalized eye care according to your needs. You can choose soothing mode, powerful mode or massage mode to meet your different needs.
4.Eye tightening: Lasers can also stimulate the production of collagen, increasing the elasticity and firmness of eye skin. It reduces the appearance of eye bags and dark circles, making your eye area younger and more vibrant.
5.Safe and reliable: Our eye protection lasers undergo strict quality control and safety testing to ensure safety and reliability during use. You can use it with confidence without worrying about any potential risks.







| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3R/class3B/class4 | ||||
The Below are other laser pattern options you can select:
