Model:
JAP5230-022

Overview

520nm 5mW Green Dot Laser Diode Module

Elevate accuracy in positioning, indicating, and aiming tasks with the collimated 520nm 5mW green laser module—engineered to deliver unwavering precision across long distances. Designed for reliability, this module features a precision-collimated beam that maintains a tight 25mm spot size even at 100 meters, ensuring consistent targeting and alignment where precision matters most.

Ideal for positioning applications, it provides a clear, stable reference point for industrial assembly, construction alignment, or equipment calibration, eliminating guesswork in setup and installation. For indicating tasks, its vibrant 520nm green wavelength offers exceptional visibility, making it perfect for marking target areas, guiding workflows, or highlighting critical points in educational, medical, or event settings. When it comes to aiming, the module’s focused beam ensures precise targeting in scenarios like surveying, hobbyist projects, or equipment alignment, where pinpoint accuracy is essential.

Product Description

Core Specification :

Wavelength	520nm
Output Power	4-6mW
Working Voltage	3-5V
Dot Beam Size	<30mm@100m distance
Housing Size	12*55mm
Lens	Optical Glass
Lifespan	> 10,000 hours

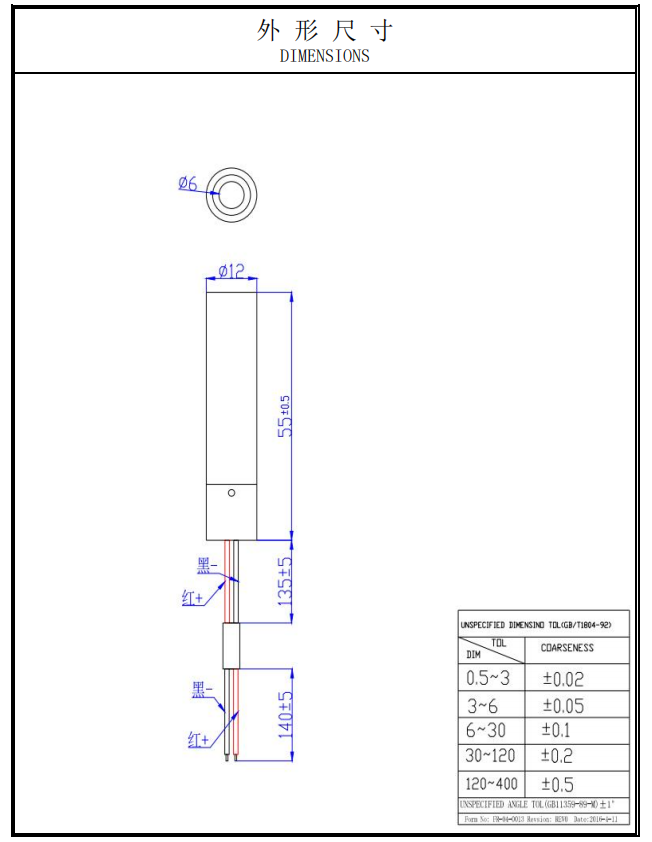

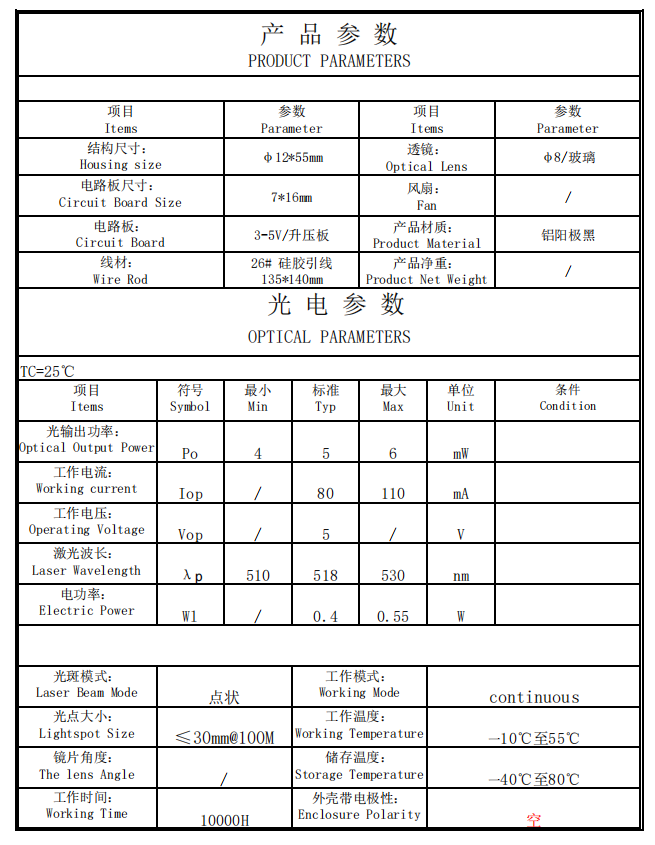

企业微信截图_17536914057602 企业微信截图_17536914342001

P

pRODUC

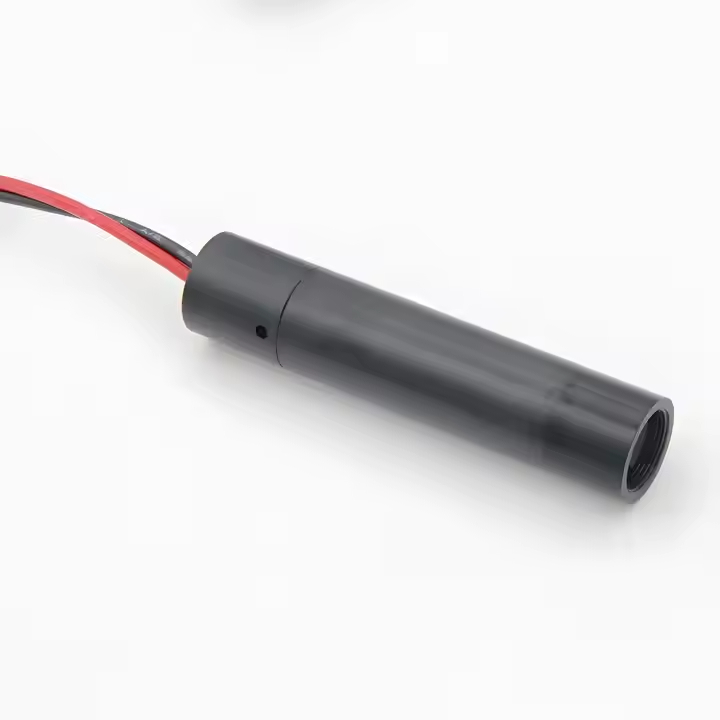

Product Display and Beam Performance:

36m光斑

Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!

Item	Parameter
Wavelength	375-405nm	425-488nm	515-520nm	635-670nm	780-980nm
Single Diode Module Optical Power	20mw-3W	20mw-3W	10mw-1.6W	5mw-2.5W	5mw-75W
Multi Diodes Module Optical Power	3W-200W	6W-500W	1.6W-50W	2.5W-30W	75W-100W
Operating Voltage	3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode	Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam	5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens	Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension	48mm/ 610.5mm715mm/921mm/1666mm/ 3333*55mm etc.
CDRH Class	class1/class2/class3A/class3B/class4

The Below are other laser pattern options you can select:

企业微信截图_17483143197053
