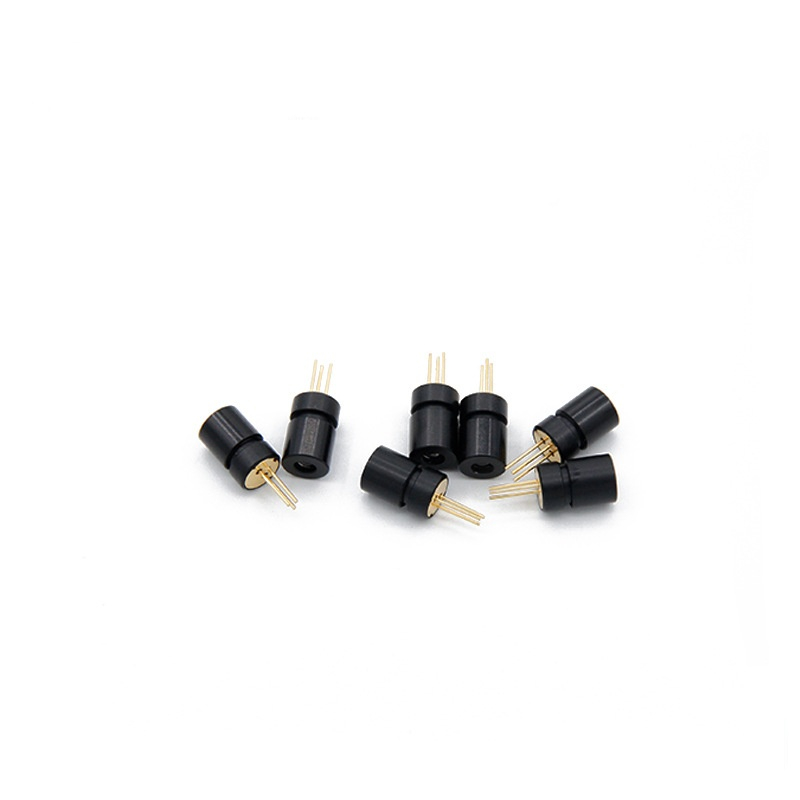

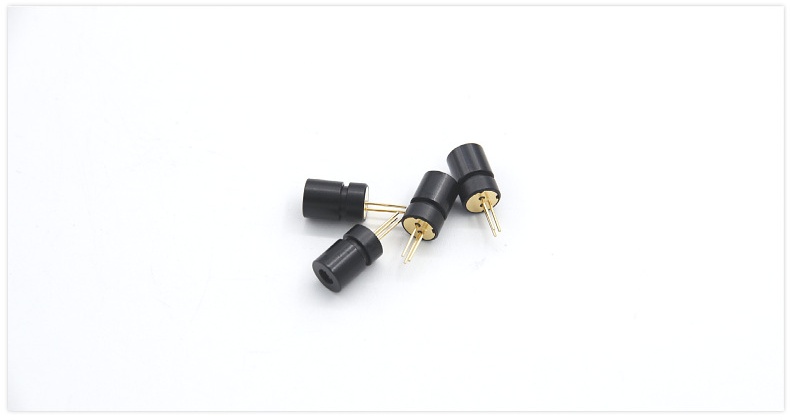

Mini 650nm 5mW Red Dot Laser Diode Module for Photoelectric Switch Sensor

This ultra-compact red dot laser diode module is a core optical component customized for industrial photoelectric switch sensors, featuring a mini 6mm outer diameter, 650nm visible red light, and 5mW low-power stable output. Optimized for the compact structural design and high-precision detection requirements of photoelectric switches, it delivers a collimated, high-pointing-accuracy red laser dot, and is widely integrated into diffuse reflection, through-beam, and retroreflective photoelectric switch sensors for industrial automation, intelligent detection, and mechanical equipment control systems. With its industrial-grade anti-interference performance and easy integration, it is the ideal optical solution for miniaturized photoelectric sensing devices.

Basic Core Characteristics

• Wavelength & Power: 650nm visible red laser dot output, 5mW standard power (Class IIIa laser safety standard), no harm to human eyes and industrial equipment, perfectly matching the low-power, high-sensitivity detection needs of photoelectric switch sensors.

• Ultra-Mini Size: Standard D6mm outer diameter metal shell, ultra-compact volume, designed for the narrow internal installation space of miniaturized photoelectric switches, solving the integration problem of optical components in small-size sensing devices.

• High-Precision Beam Performance: Collimated red laser dot output, no spot scattering or blurring, high beam pointing accuracy, and uniform spot size at the detection distance, ensuring the trigger accuracy and anti-false detection performance of photoelectric switches.

Core Application Scenarios (Photoelectric Switch Sensor Focus)

1. Through-beam Photoelectric Switches: As the emission end light source, the collimated red laser dot is transmitted to the receiving end, realizing high-precision object blocking detection for automated production lines (e.g., conveyor belt material counting, product positioning).

2. Diffuse Reflection Photoelectric Switches: The focused red laser dot irradiates the detected object, and the reflected light is received by the sensor to judge the presence/position of the object, suitable for small part detection (e.g., electronic component sorting, hardware fitting inspection).

3. Retroreflective Photoelectric Switches: Matches with reflective plates, the laser dot is reflected back to the receiving end after hitting the reflective plate, realizing long-distance (0.5-10m) non-contact detection for large mechanical equipment (e.g., crane anti-collision, door/window opening/closing control).

4. Miniature Proximity Photoelectric Sensors: Integrated into micro photoelectric switches for precision instruments (e.g., medical equipment, smart home sensors), realizing non-contact proximity detection with small installation space.

5. Industrial Automation Detection Modules: Assembled into integrated photoelectric detection equipment for AGV robot navigation, CNC machine tool workpiece positioning, and packaging machine material shortage alarm systems.
