JAP52100Z-001

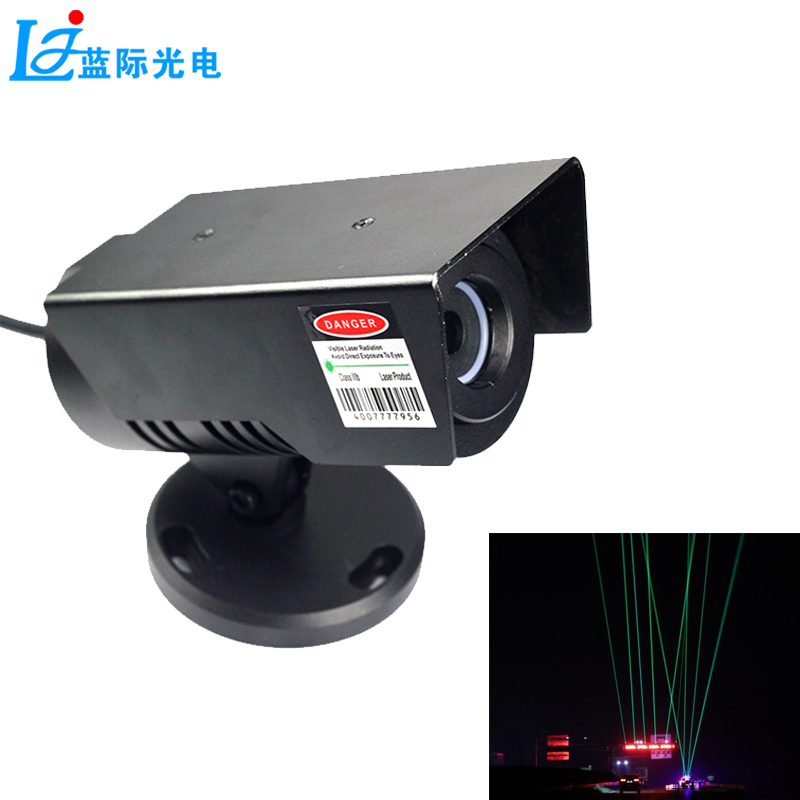

BU-LASER’s 520nm 1W Green Traffic Laser Light redefines traffic safety with cutting-edge laser technology. Unlike traditional LED signals, our laser system projects a highly concentrated, ultra-bright beam that cuts through fog, rain, and darkness—ensuring drivers see critical warnings from kilometers away. Perfect for highway safety, work zone alerts, and emergency vehicle signaling, this product delivers unmatched visibility when lives depend on it.
Superior Penetration: Laser beam cuts through atmospheric particles better than conventional lights—ideal for fog-prone areas
Driver Alert Optimization: 520nm wavelength triggers quick visual response without causing glare or discomfort
Durable Construction: Aircraft-grade aluminum housing resists corrosion, vibration, and impact
Smart Operation: Optional motion sensor activation and automatic dusk-to-dawn switching
Low Maintenance: 10,000+ hour laser diode lifespan—minimal replacement costs
Highway Safety: Prevent fatigue-related accidents by projecting horizontal laser lines across lanes
Work Zone Protection: Alert drivers to road construction with highly visible warning patterns
Emergency Vehicle Signaling: Mount on patrol cars, fire trucks, or ambulances for instant traffic attention
Bridge & Tunnel Safety: Enhance visibility in low-light, enclosed transportation infrastructure
Traffic Intersection Control: Supplement traditional signals for improved compliance
Landmark & Boundary Marking: Create visible boundaries for restricted areas
| Parameter | Value | Advantage |
|---|---|---|
| Wavelength | 520nm Pure Green | Highest visibility in low-light conditions; minimal eye strain |
| Output Power | > 0.8W (800mW) | Long-range projection (up to 5km in clear weather) |
| Operating Voltage | 12V DC (220V AC optional) | Versatile for vehicle and fixed installations |
| Current Draw | 800mA | Energy-efficient, low power consumption |
| Working Temperature | 0°C to +50°C | All-weather performance |
| Protection Rating | IP65 | Dust-tight and water-resistant for outdoor use |
| Certification | IEC/EN60825 | Meets international laser safety standards |
| Beam Pattern | Continuous/Strobe (adjustable) | Customizable for different warning scenarios |





| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mW-3W | 20mW-3W | 10mW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Beam Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3R/class3B/class4 | ||||
The Below are other laser pattern options you can select:
