JAP6505-205

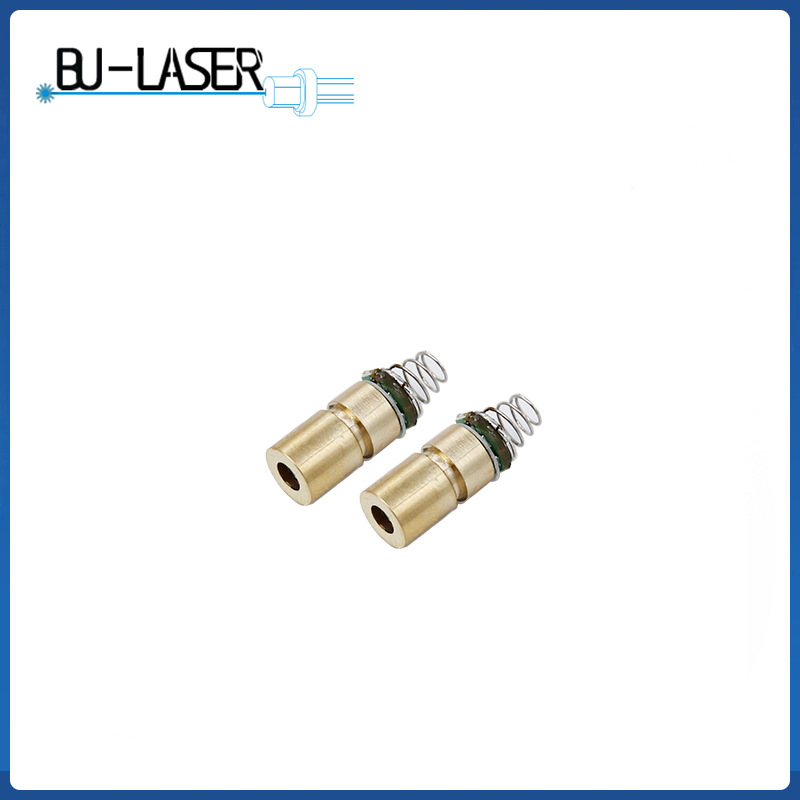

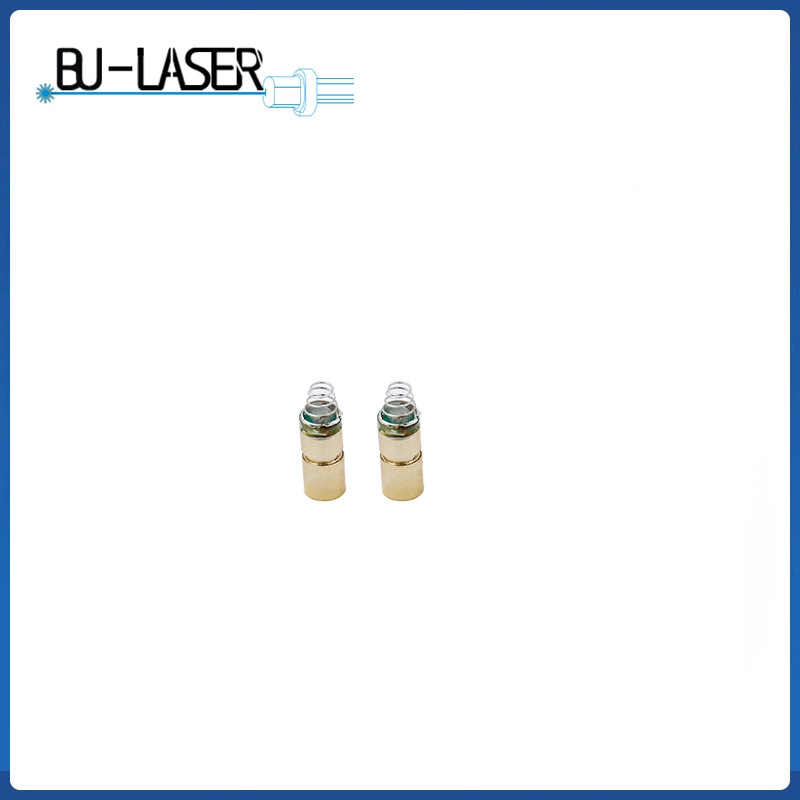

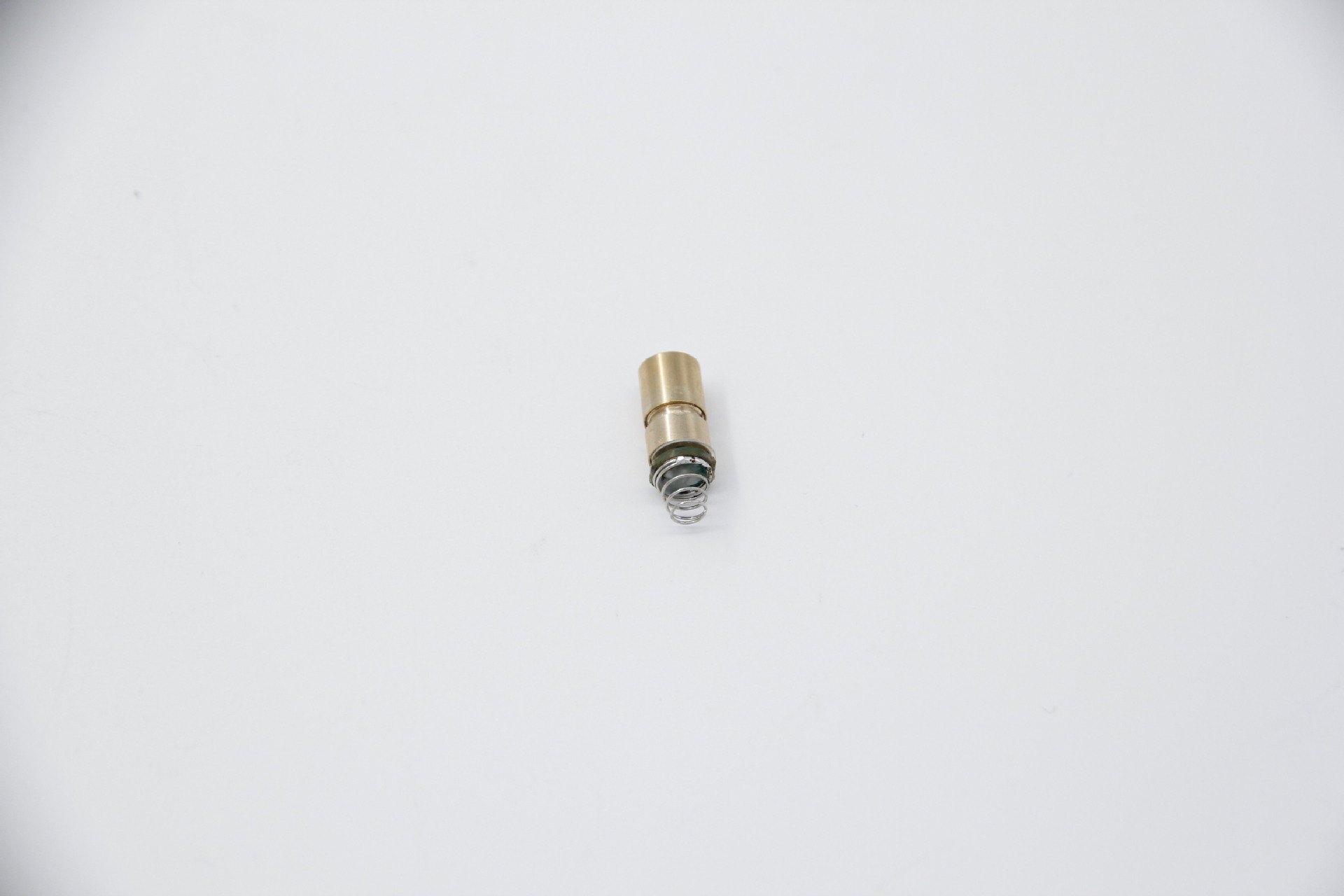

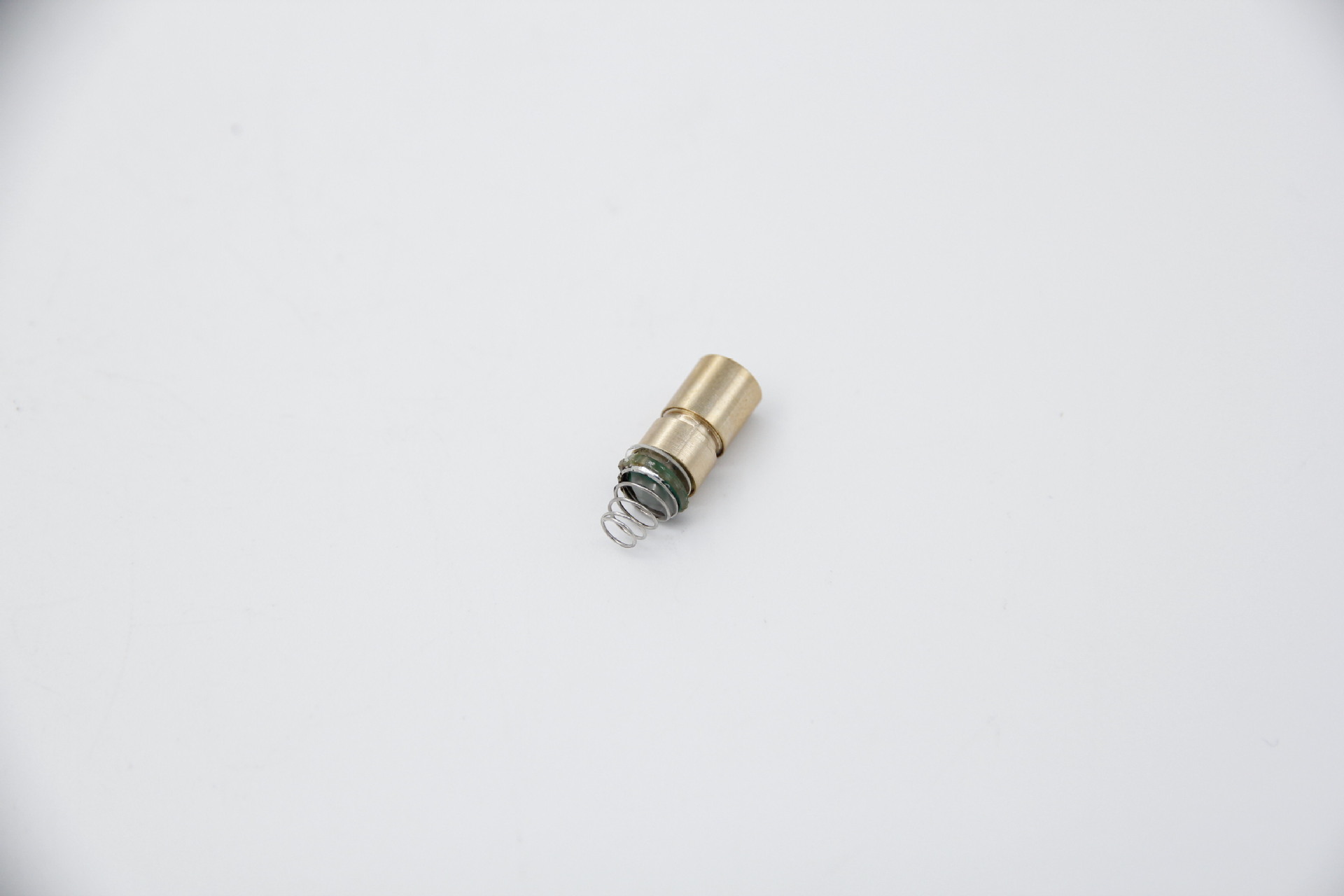

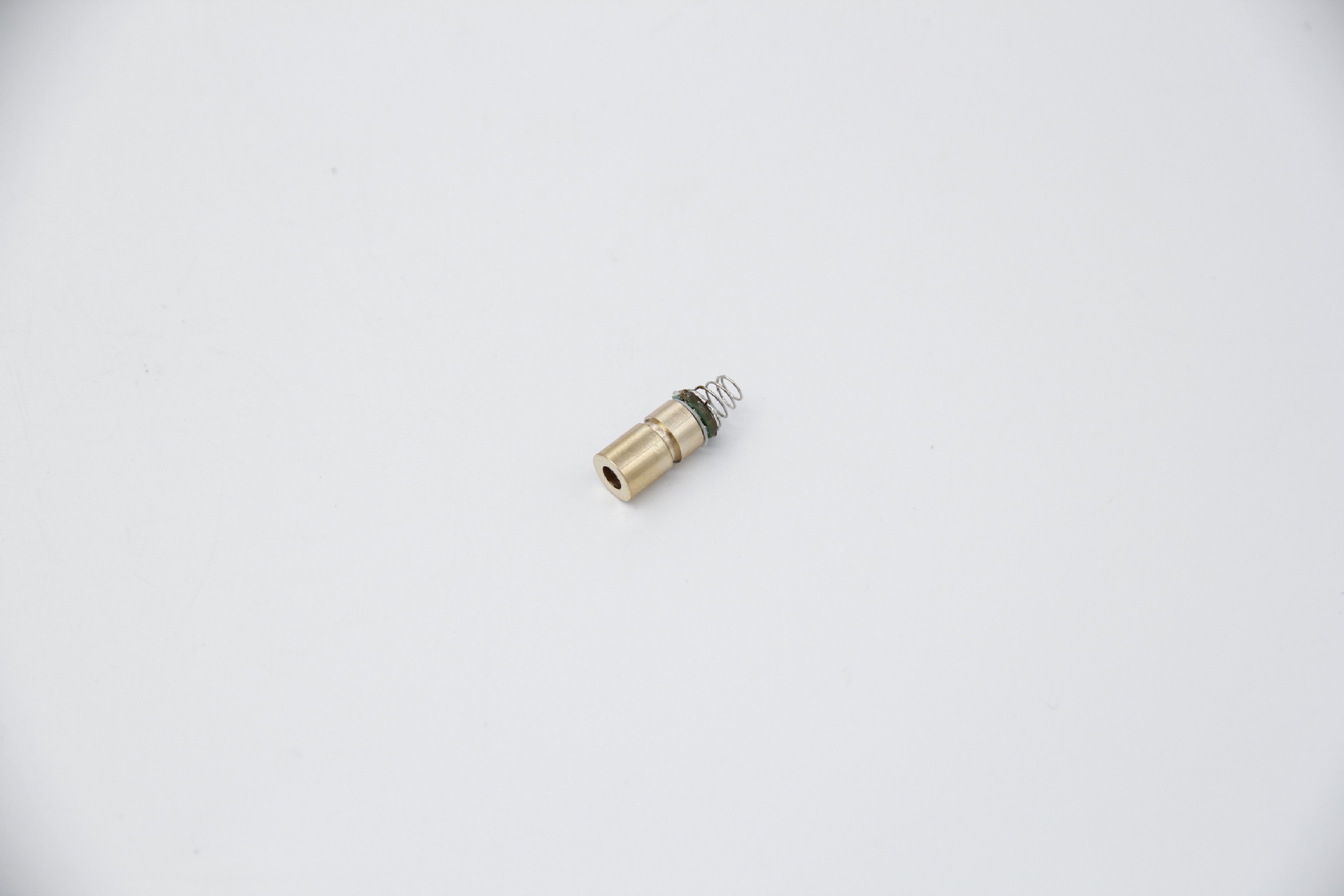

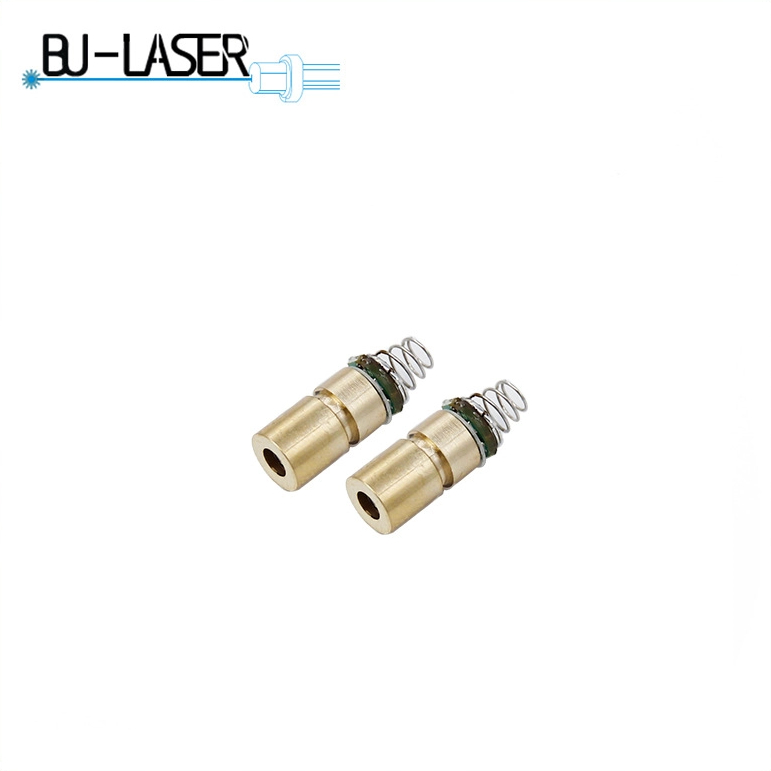

Mini 650nm 5mW Red Dot Laser Diode Module with Spring
The 650nm 5mW dot laser module is a versatile and high-quality product designed for a variety of applications. This laser module is equipped with advanced technology that allows for precise laser positioning, making it ideal for use as a laser sight, laser pointer, or laser indicator pen.
With a wavelength of 650nm and a power output of 5mW, this laser module provides a bright and visible laser beam that can be easily seen in both indoor and outdoor settings. The compact design of this module makes it easy to install and use, making it a convenient and reliable tool for any project requiring laser guidance or alignment.
Whether you need to accurately target a specific area, align components with precision, or simply highlight a point of interest, the 650nm 5mW dot laser module is the perfect solution. Its durable construction and long-lasting performance ensure that it will meet your needs for years to come. Upgrade your equipment with this top-of-the-line laser module and experience the benefits of laser technology in your work.

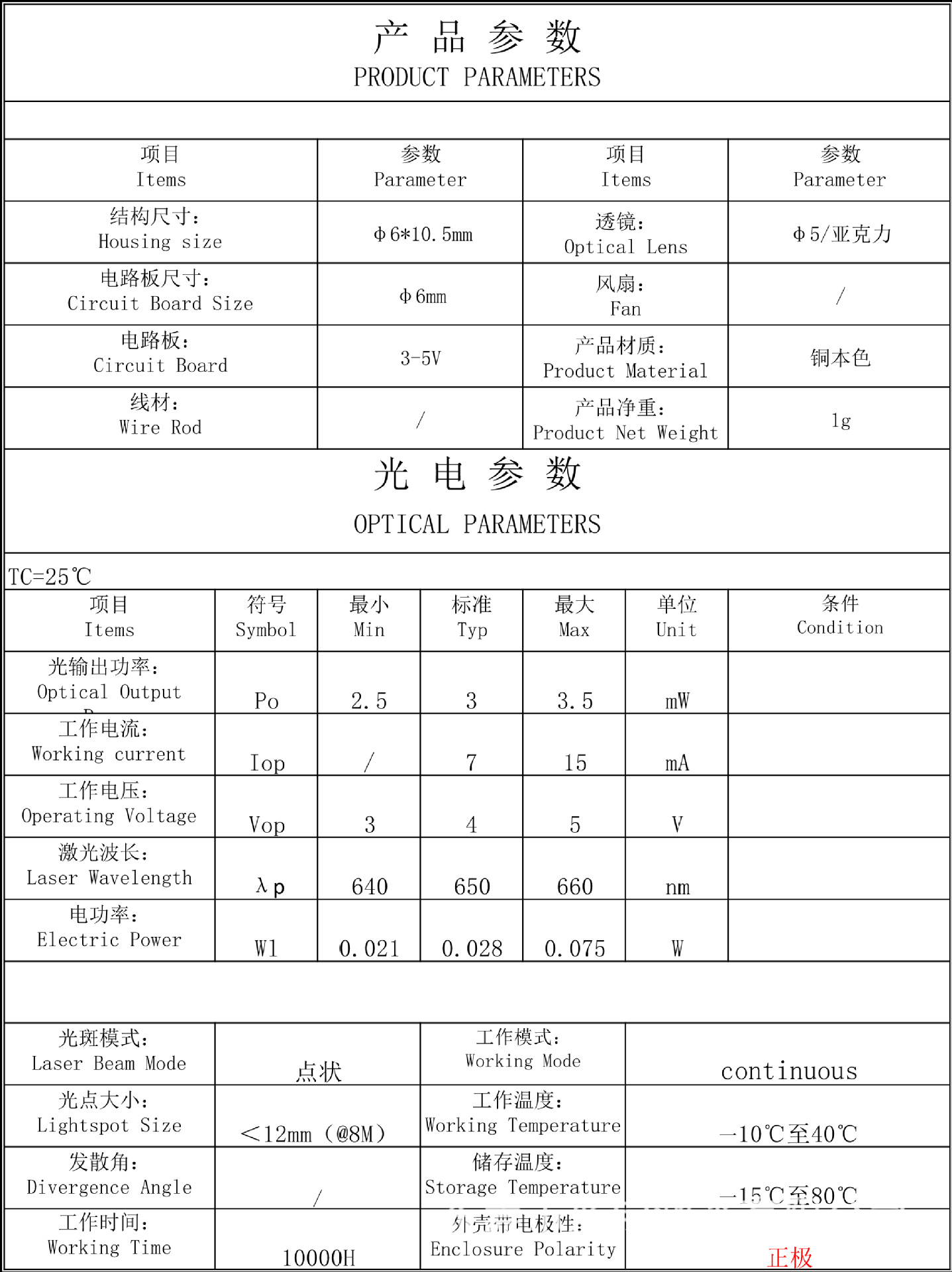

Core Specification :
Wavelength | 650nm |
Output Power | 2-4mW |
Working Voltage | 3-5V |
Beam Mode | Dot |
Dot beam size | <12mm @8m |
Housing Size | 6.0*10.5mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
