85MZ-32

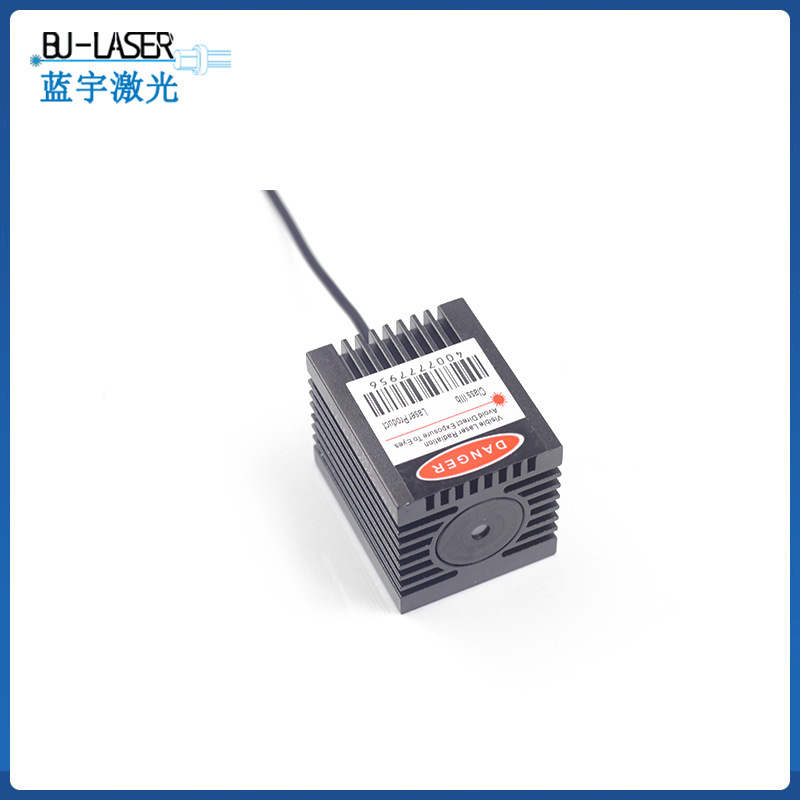

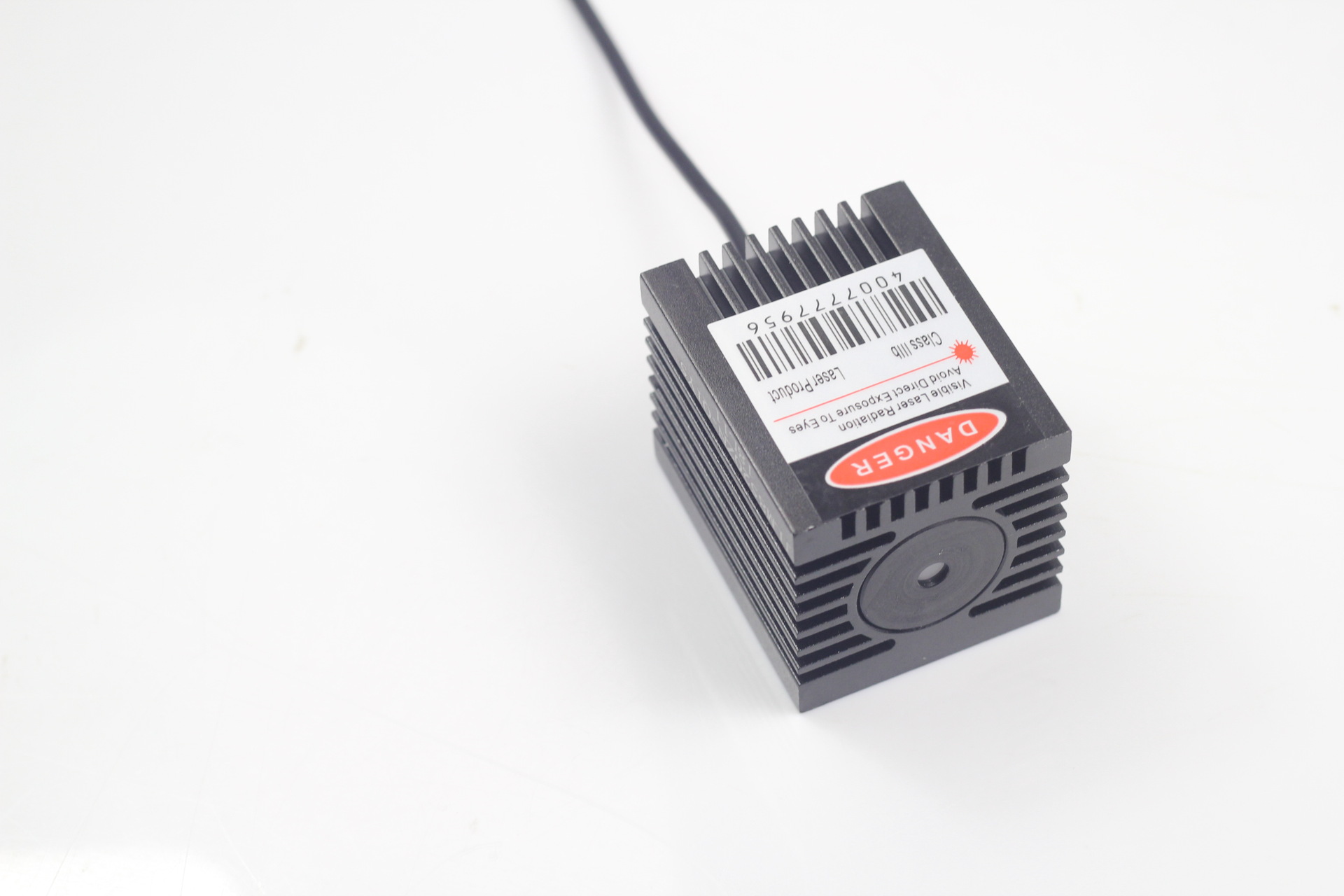

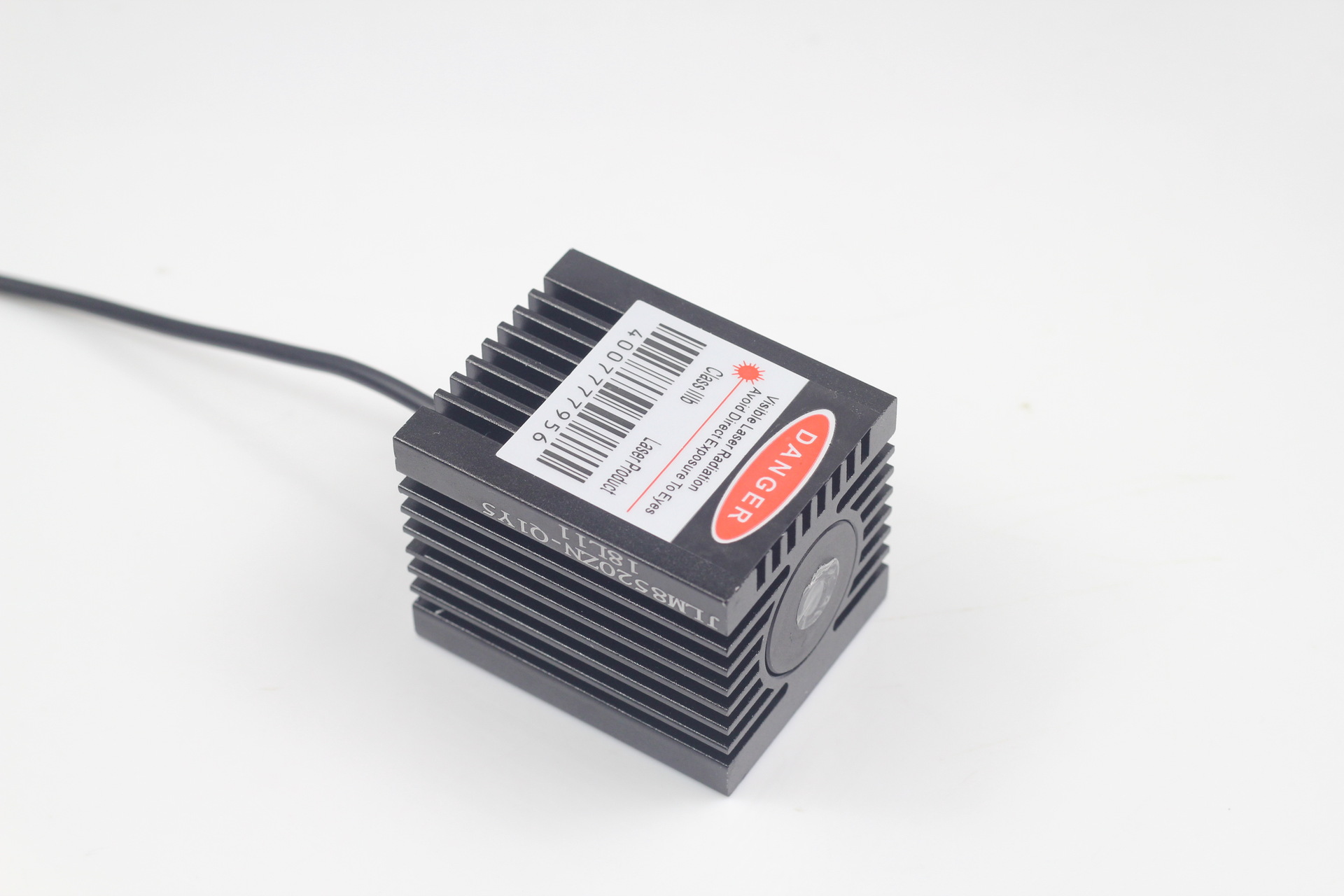

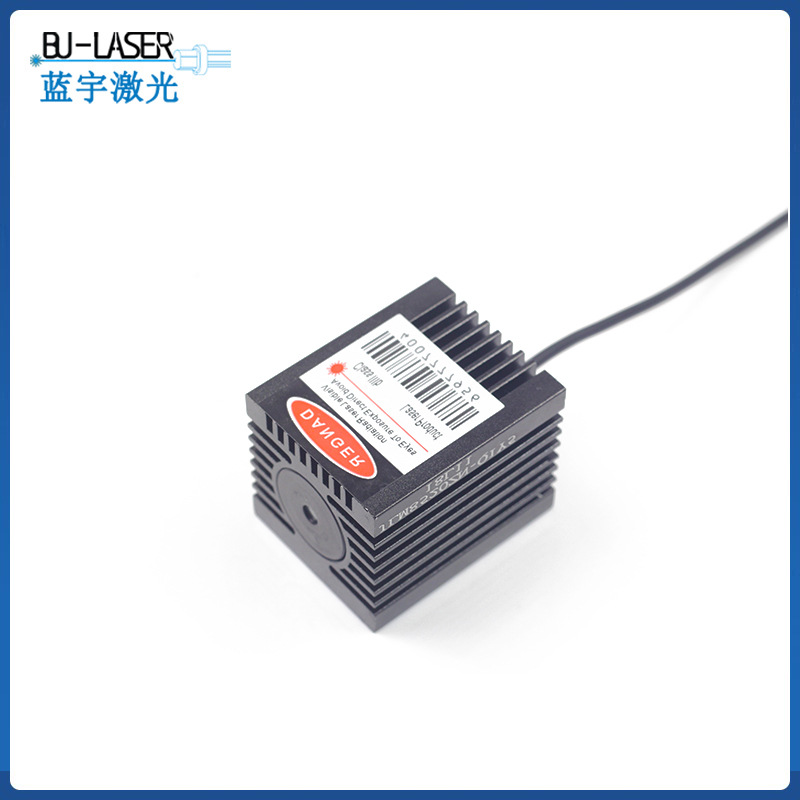

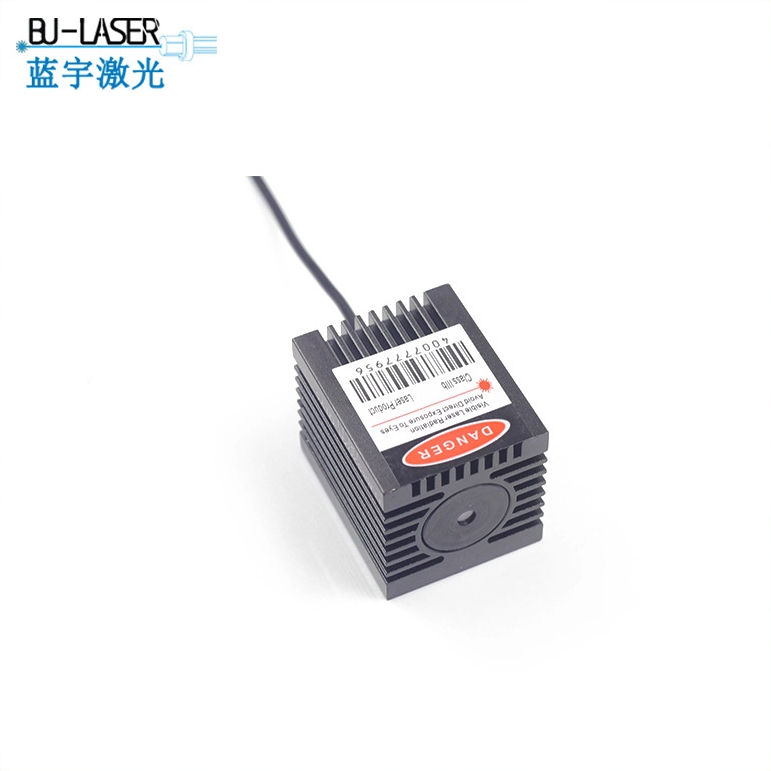

850nm 100mW Infrared Multi-lines Laser Module
Introducing the 850nm 100mW 11-line laser, a cutting-edge product designed for tire inspection, 3D scanning, and machine vision applications. This high-powered laser is equipped with 11 lines for precise and accurate measurements, making it ideal for a wide range of industrial and commercial uses.
The 850nm wavelength ensures optimal performance in various lighting conditions, while the 100mW power output provides sufficient strength for long-range scanning and detection. Whether you need to inspect tires for defects, conduct detailed 3D scans of objects, or enhance machine vision systems, this laser is up to the task.
With its advanced technology and reliable performance, the 850nm 100mW 11-line laser is a must-have tool for professionals in industries such as automotive, manufacturing, and robotics. Invest in this versatile and efficient product today to take your projects to the next level.

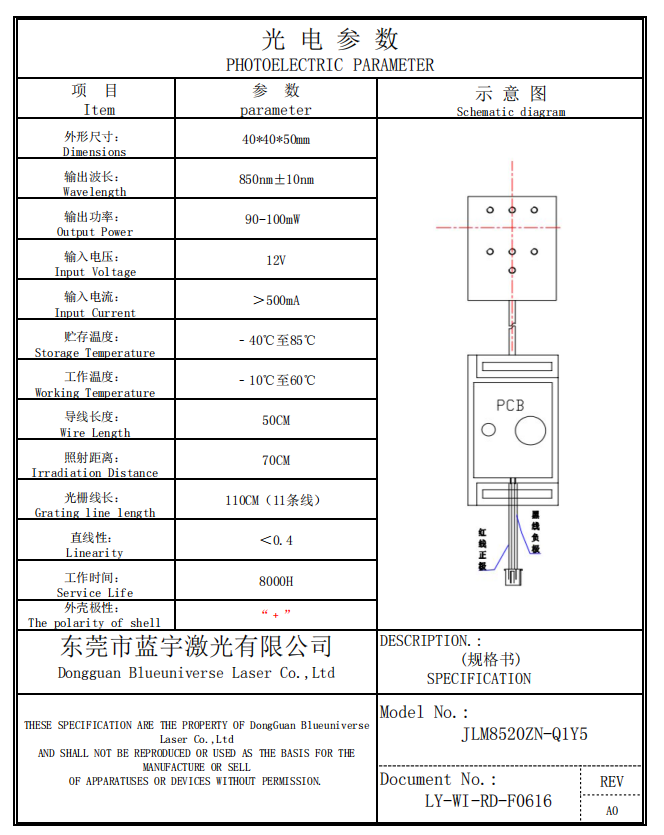

Core Specification :
Wavelength | 850nm |
Output Power | 100mW |
Working Voltage | 12V |
Beam Mode | Multi-Lines, 11 Lines |
Line Length | 110cmmm @70cm |

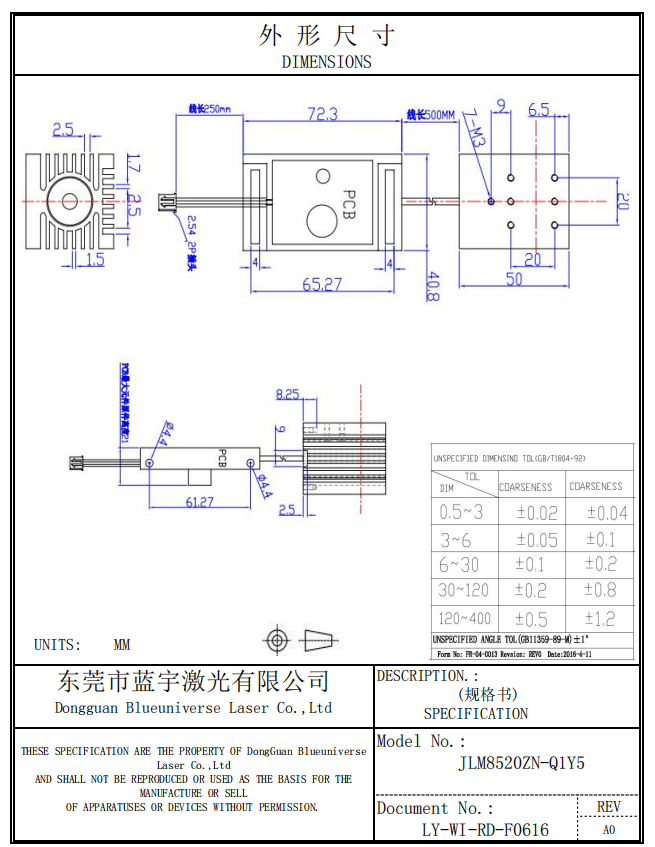

Housing Size | 40*40*50mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
The Below are other DOE pattern options you can select:
Application for Structured Light Laser:
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
