JBP8330Z-002

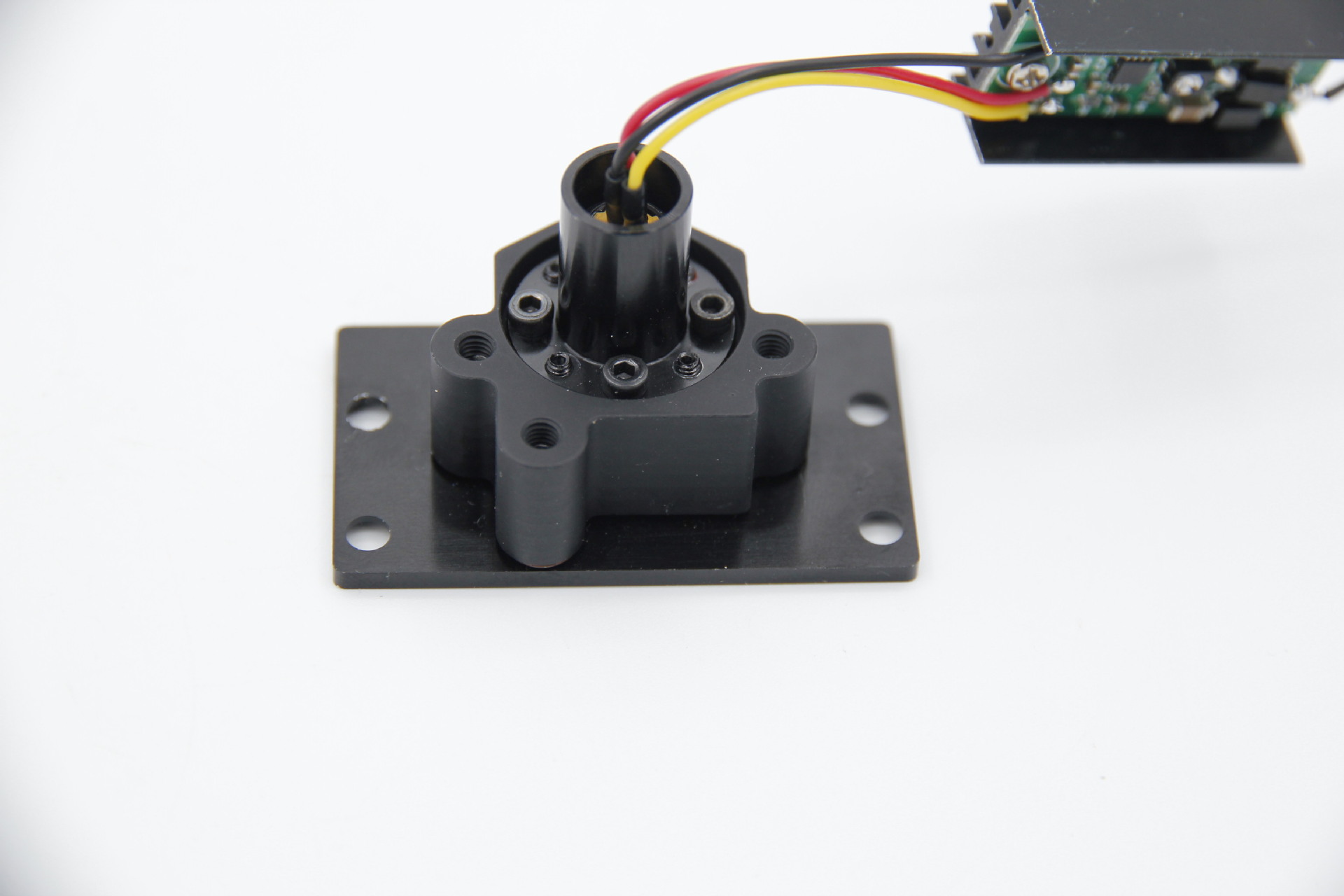

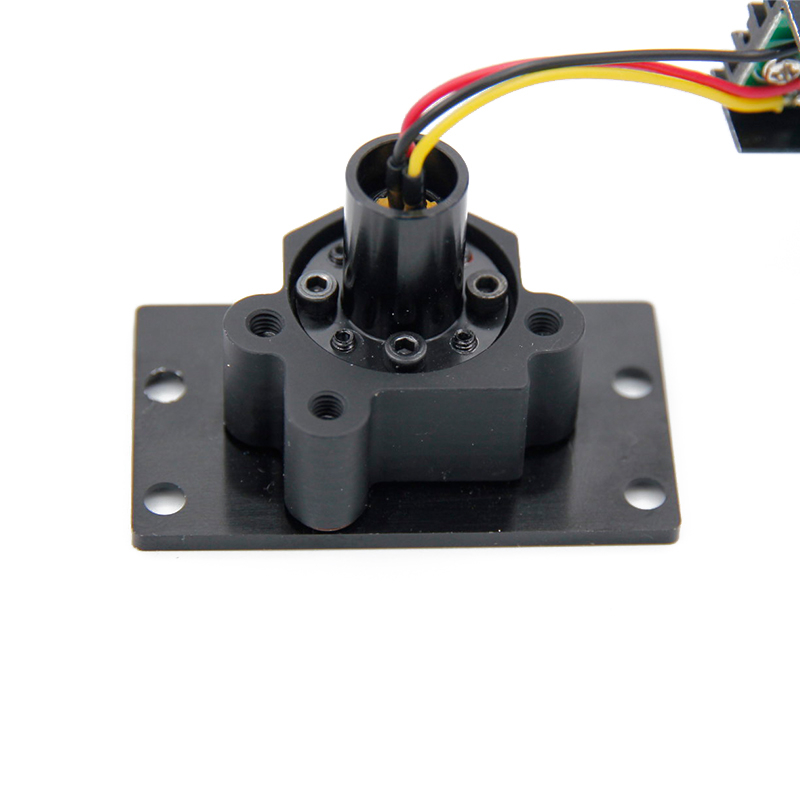

Introducing the 830nm 300mW 180-degree straight line laser module, a cutting-edge product designed for a variety of applications. This laser module is equipped with advanced features such as scanning capabilities, intelligent interactive whiteboard functionality, smart touch projection, and intelligent desktop interactive projection.
The 830nm wavelength ensures precise and accurate laser performance, making it ideal for tasks that require high levels of precision. With a power output of 300mW, this laser module delivers a strong and consistent beam that can be used for a wide range of applications.
The 180-degree straight line feature allows for a wider coverage area, making it suitable for large-scale projects and applications that require a broad projection range. Whether you are looking to create interactive presentations, enhance your workspace with smart touch technology, or improve your desktop projection capabilities, this laser module has you covered.
With its innovative design and advanced features, the 830nm 300mW 180-degree straight line laser module is the perfect solution for professionals seeking a reliable and versatile laser module for their projects. Experience the power of precision and efficiency with this state-of-the-art product.
Our Advantage
1. The product can be customized, according to the customers needs.
2. Factory products pass the test, the quality and working time can be guaranteed.
3. Its advantages include high definition, high brightness, can be used in a variety of environments, and easy to maintain and adjust.

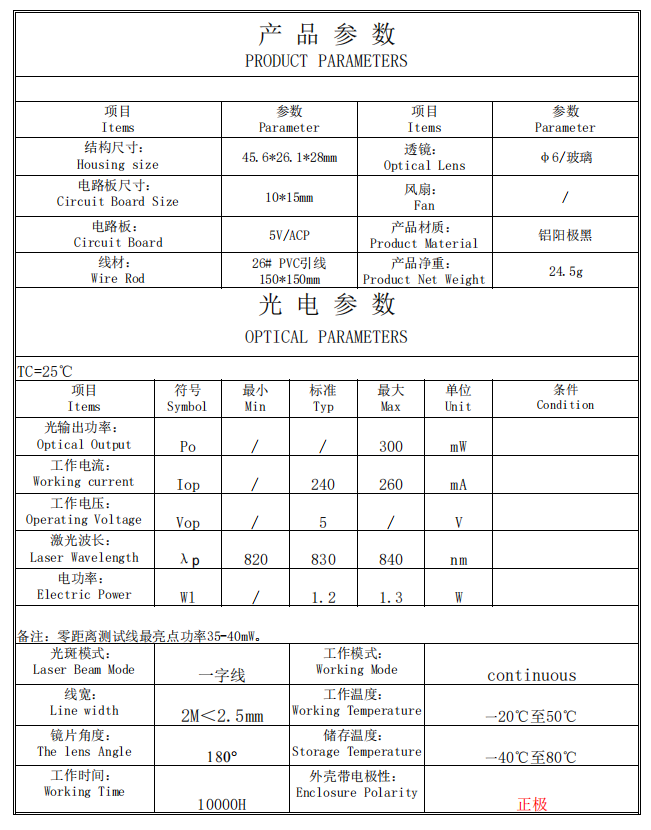

Specification
Item | Symbol | Min | Typ | Max | Unit | Test Condition |
Optical Power | Oop | - | - | 300 | mW | Continue |
Working Current | lop | - | 240 | 260 | mA | |
Working Voltage | Vop | - | 5 | - | V | |
Laser Wavelength | λ | 820 | 930 | 840 | nm | |
Line Width | - | - | 2.5 | mm | 2M | |
Angle of Divergence | - | 180 | ° | |||
Working Mode | C/P | Continuously | ||||
Shell Polarity | Anode | Shell Polarity | ||||
Working Temperature | TEMP | -20 | - | 50 | ℃ | |
Storage Temperature | TSTG | -40 | - | 80 | ℃ | |
Note: The board supports PWM signal modulation | ||||||
