LY450-40W-SF200

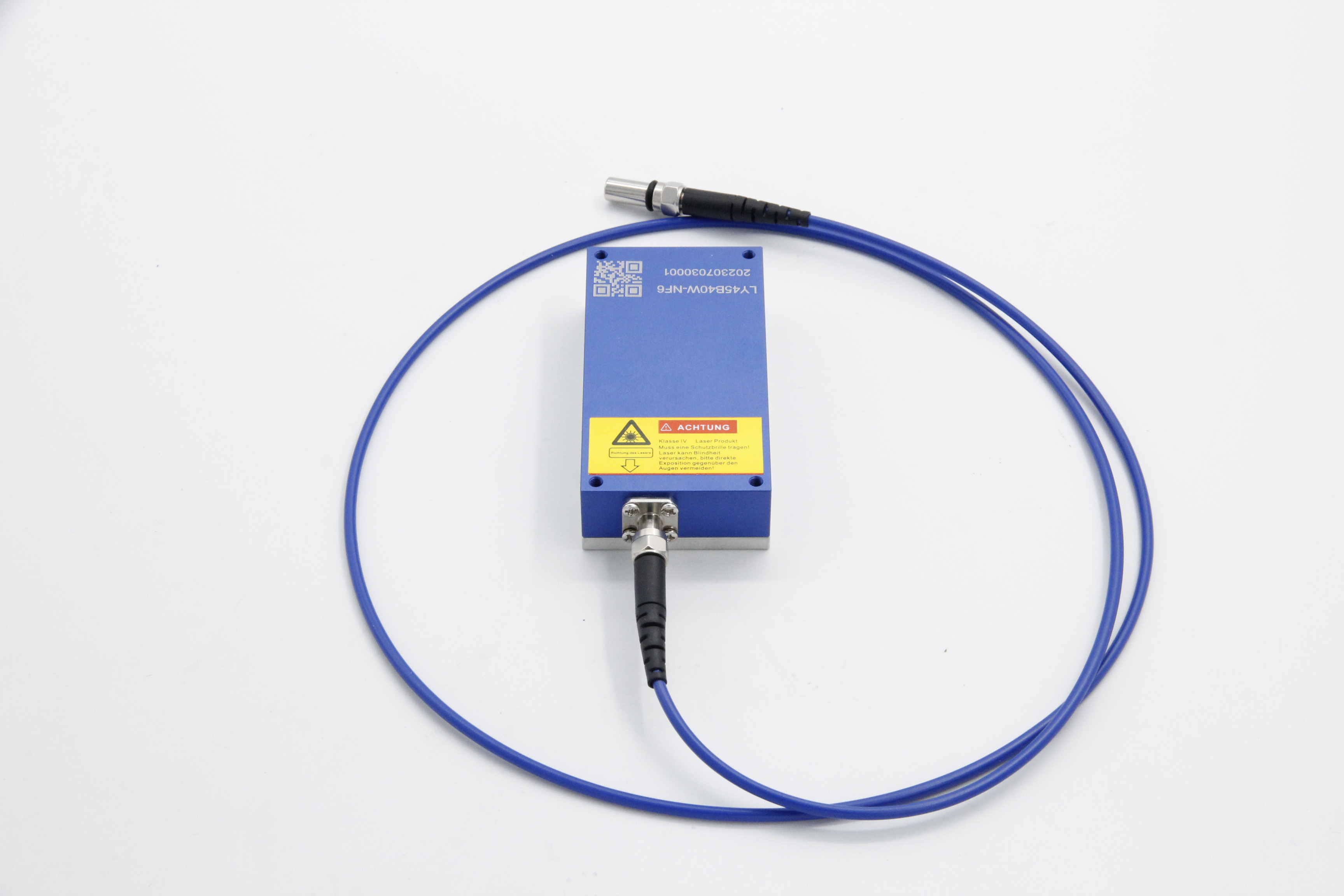

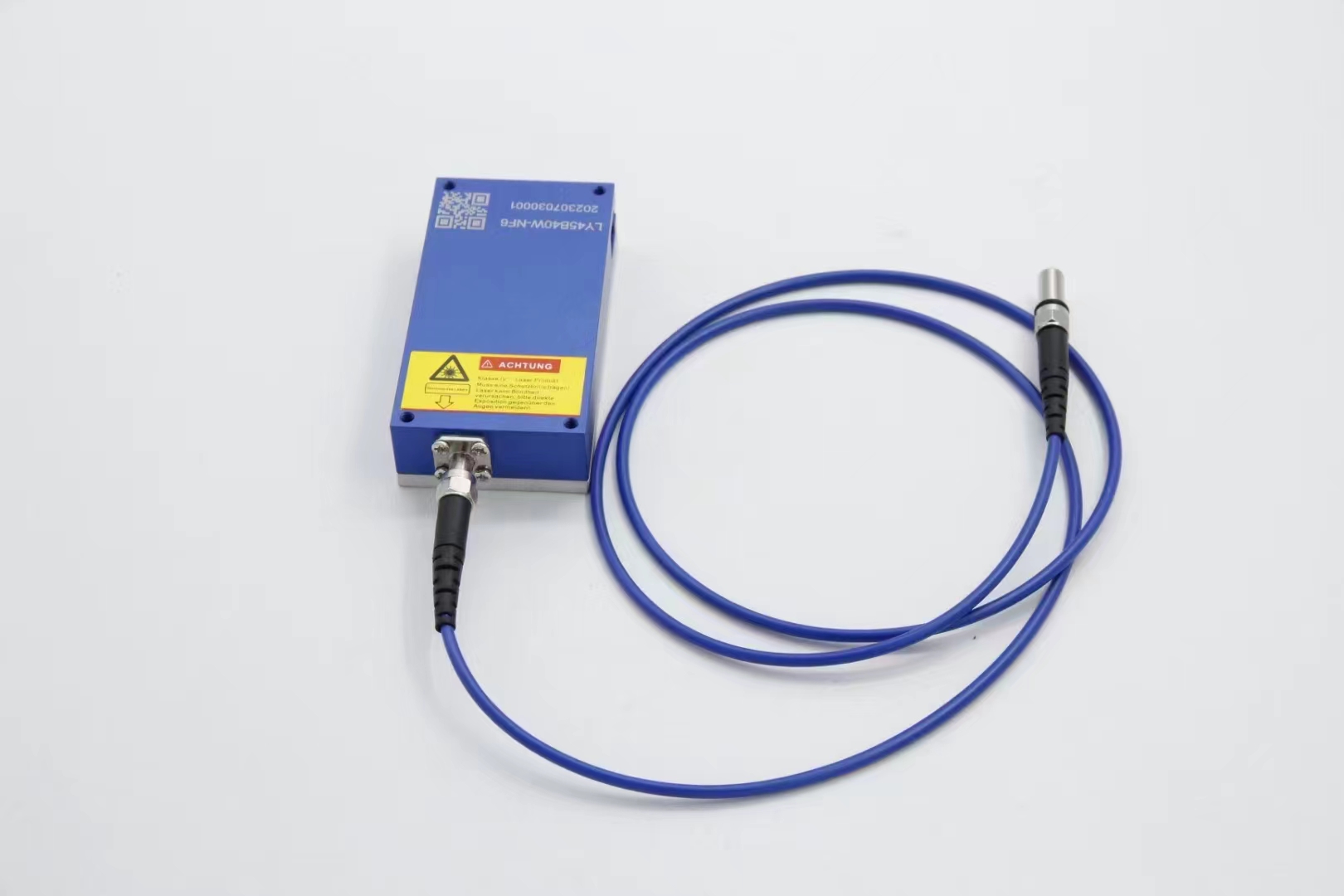

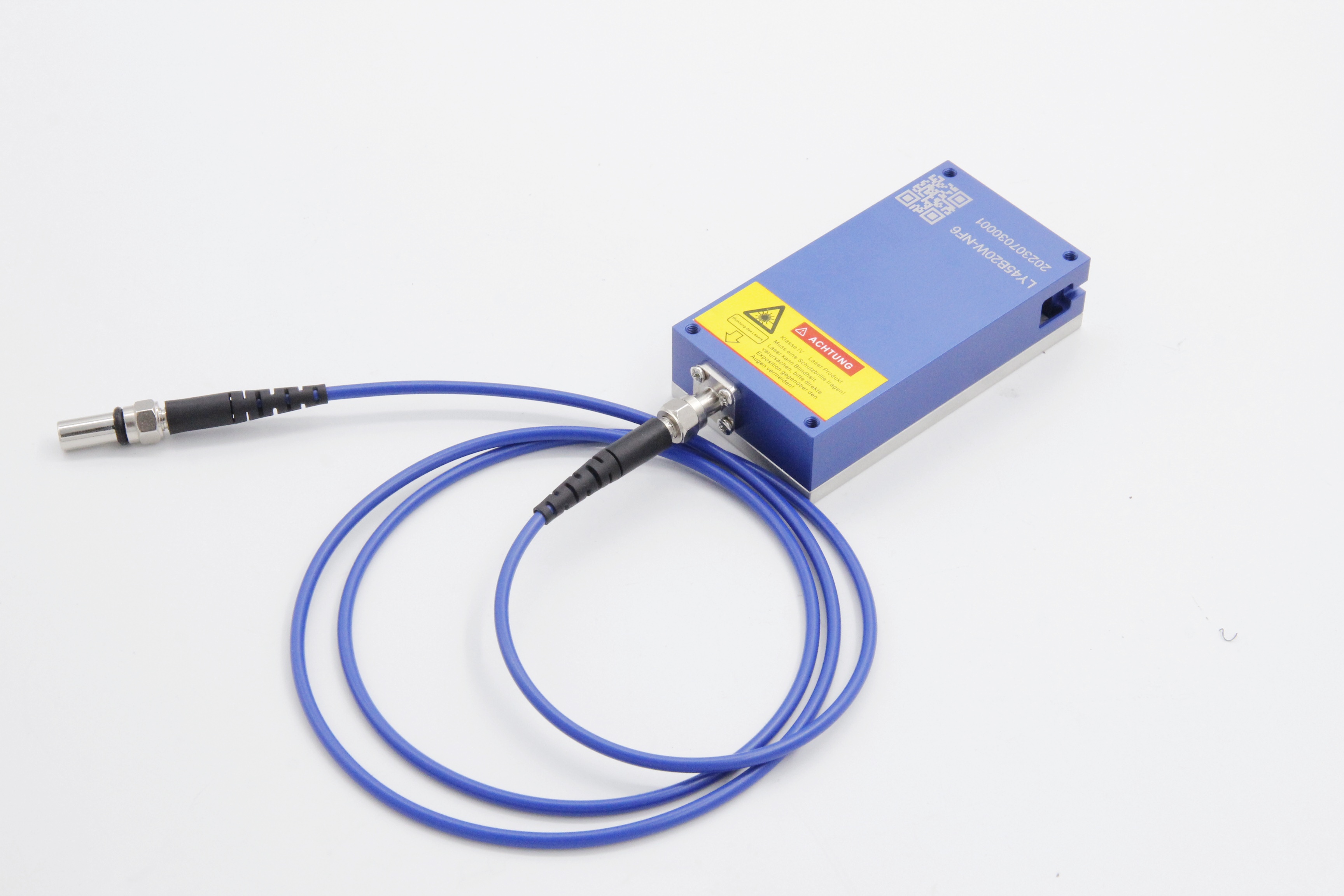

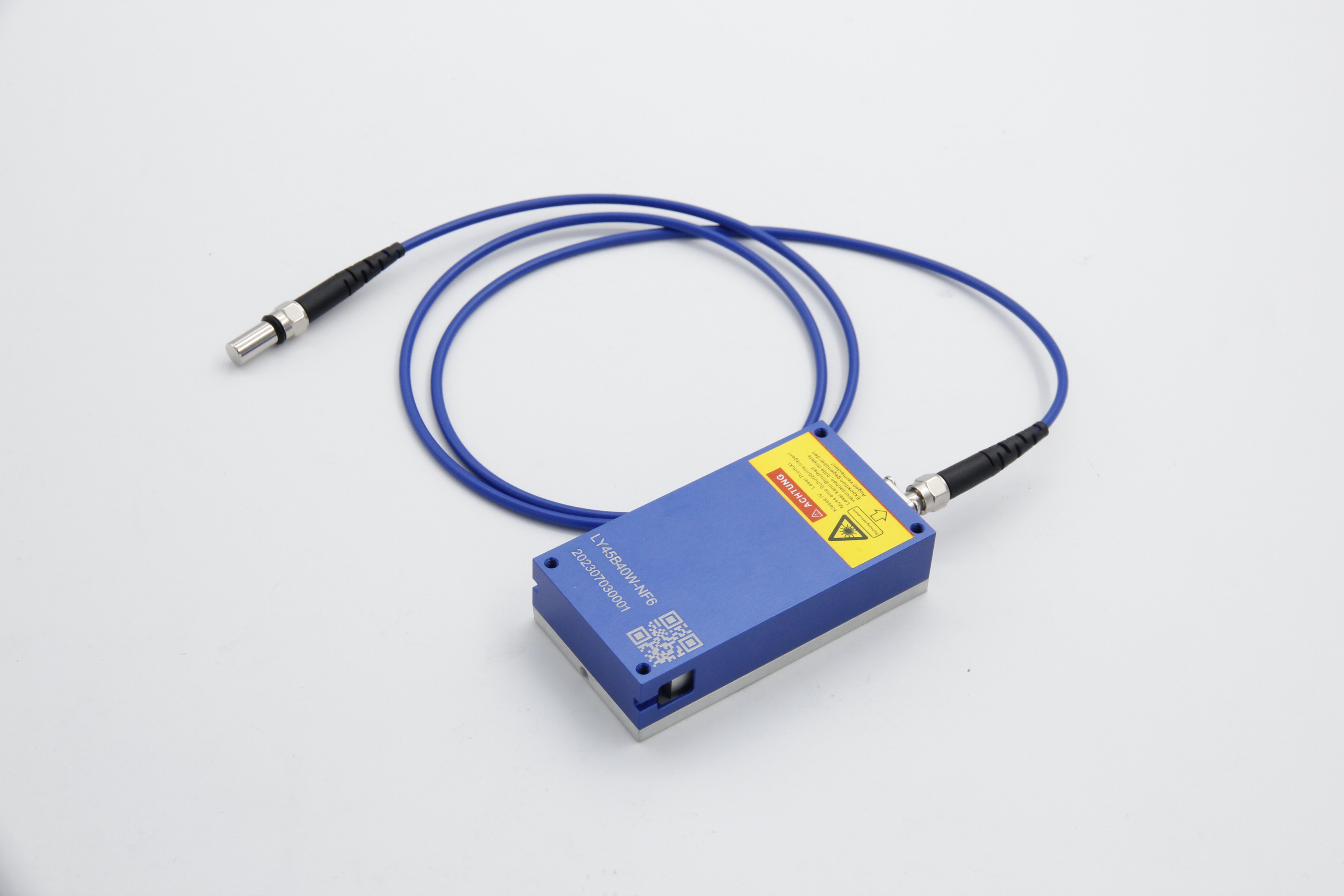

450nm 40W Fiber Coupled Laser Module
Introducing our 450nm 40W fiber coupled laser module, a versatile and powerful tool designed for a wide range of applications in the dental, medical, illumination, and laser welding industries.
This laser module is specifically engineered for precision and efficiency, making it ideal for dental treatments, medical diagnostics, illumination detection, and laser welding processes. With a wavelength of 450nm and a power output of 40W, this laser module delivers consistent and reliable performance for demanding applications.
The fiber coupled design ensures easy integration into existing systems, allowing for seamless operation and precise control. Additionally, the compact and durable construction of the module makes it suitable for use in various environments, from clinical settings to industrial production facilities.
Whether you are performing delicate dental procedures, conducting medical tests, inspecting illuminated surfaces, or carrying out intricate laser welding tasks, our 450nm 40W fiber coupled laser module is the perfect solution for your needs. Trust in our product to deliver exceptional results and enhance the efficiency of your operations.
Core Specification :
| Wavelength | 450nm |
| Output Power | 40W |
| Working Voltage | 17-20V |
| Fiber Core Diameter | 2000um ( the standard module is without Fiber, please contact the sales person if you will need the fiber for the order) |
| Coupling Efficiency | 80%~85% |
| Housing Size | 97*48*20mm (Customizable) |
| Lens | Optical Glass |
| Lifespan | > 10,000 hours |






We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3A/class3B/class4 | ||||
The Below are other laser pattern options you can select:
