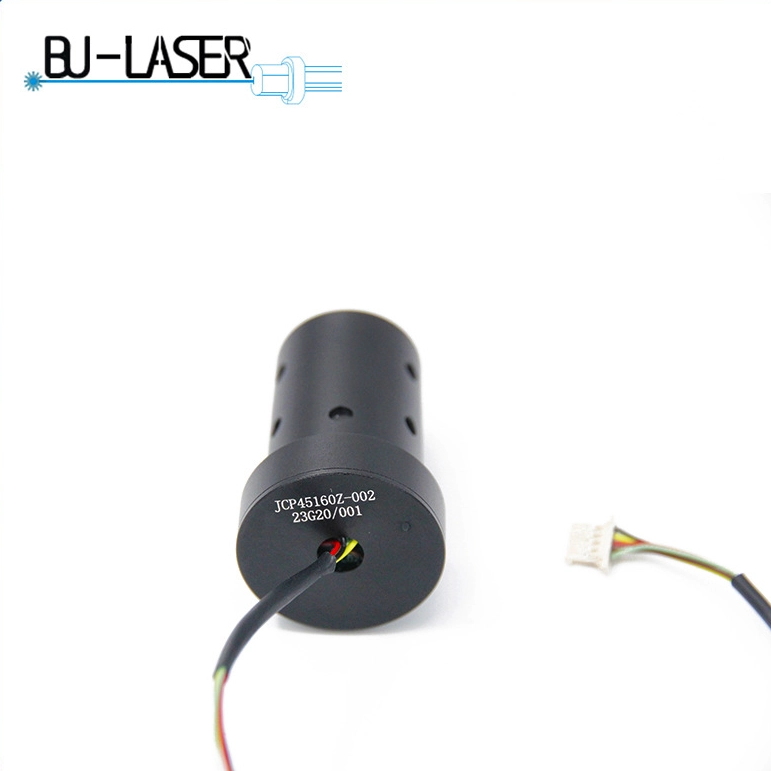

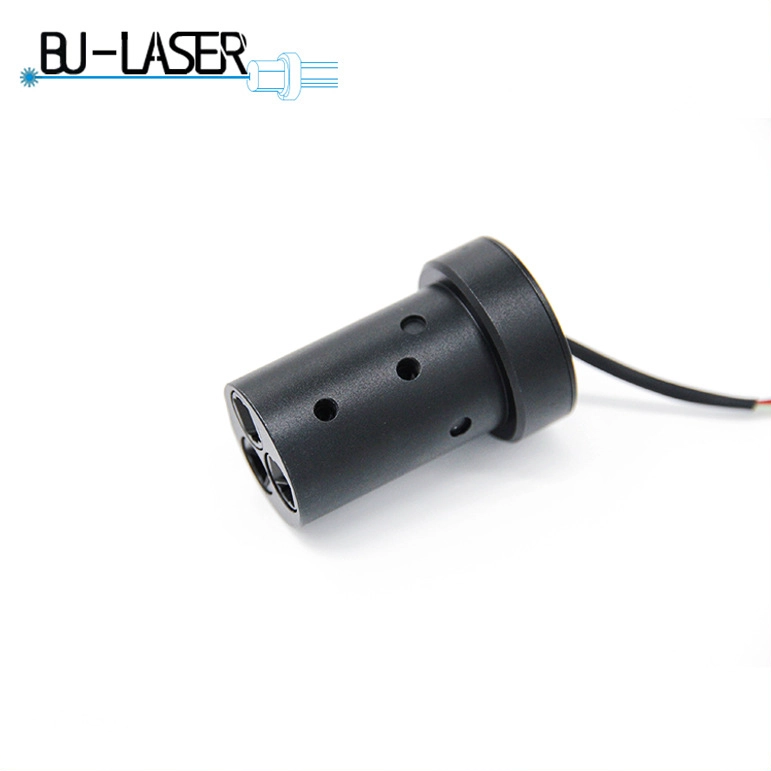

3D Scanning Laser 450nm 1.6W Blue 7+7+1 Multi-Line Laser Module

This is a high-stability industrial 3D scanning dedicated multi-line blue laser module, using 450nm wavelength, 1.6W optical power, structured as 7 horizontal lines + 7 vertical lines + 1 central positioning dot (7+7+1 multi-line grid laser), specially designed for 3D profilometry, machine vision scanning, volume measurement, robot guidance and industrial inspection.

Key Features

450nm blue laser

Higher contrast and anti-interference ability than red laser in metal, high-reflective surface and dark object scanning, not easy to overexposure, more stable point cloud imaging.

1.6W high power

Strong anti-environmental light ability, can be used in bright workshop, outdoor semi-outdoor 3D scanning, long working distance.

7+7+1 grid structure

7 horizontal lines + 7 vertical lines form a dense rectangular grid, with 1 center bright line for positioning and calibration.

Suitable for high-speed 3D contour scanning, improving point cloud density and reconstruction accuracy.

Uniform line width & good linearity

Optimized Powell lens and DOE diffractive optical elements, lines are straight, uniform brightness, no obvious bright spots, matching vision algorithm.

Long-term stability

Built-in PWM control driver, stable power output, suitable for 24-hour industrial equipment.

Typical Applications

• Industrial 3D scanner / handheld 3D scanner

• Machine vision size measurement, volume scanning

• Robot 3D positioning, obstacle avoidance, path planning

• Reverse engineering 3D reconstruction

• Logistics parcel volume measurement

• High-precision surface defect detection

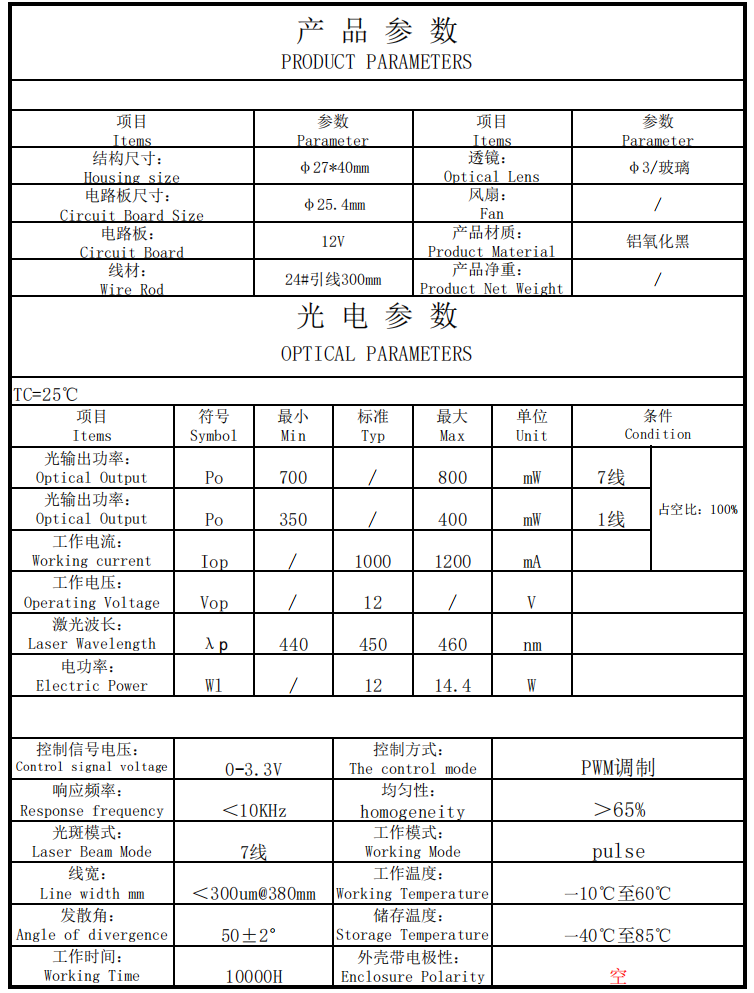

Core Specification :
