Model:
LY8010BS12A-105

Overview

IR 808nm 1W Fiber Coupled Laser Module

The IR Infrared 808nm 1W Fiber Coupled Laser Module is an industrial-grade high-power optical device that emits 808nm infrared laser with 1W stable output power (power fluctuation ≤±5%), featuring low-loss fiber coupling (compatible with common fiber diameters for minimal energy attenuation) and continuous wave (CW) operation with built-in thermal management; this IR Infrared 808nm 1W Fiber Coupled Laser Module is widely used in the medical field for photothermal therapy and physical therapy (relying on 808nm infrared laser’s deep penetration for targeted energy), industrial manufacturing for small metal welding and surface heat treatment, scientific research for photothermal effect studies and infrared spectroscopy, as well as security & sensing for infrared laser radar and perimeter alarms, boasting high power stability (reducing errors in long-duration operations), efficient fiber coupling (maximizing 1W power utilization), broad adaptability (compatible with various connectors and control systems), and safety compliance (meeting laser safety standards with protective measures); note that the IR Infrared 808nm 1W Fiber Coupled Laser Module emits invisible infrared light, so operators must wear dedicated 808nm laser safety goggles, avoid direct exposure to eyes or skin, and ensure proper heat dissipation during continuous use.

Product Description

Core Specification :

Wavelength	808nm
Output Power	1W
Working Voltage	2.2-2.4V
Fiber Core Diameter	400um， NA0.22(Customizable)
Coupling Efficiency	/
Housing Size	251312mm (Customizable)
Lens	Optical Glass
Lifespan	> 10,000 hours

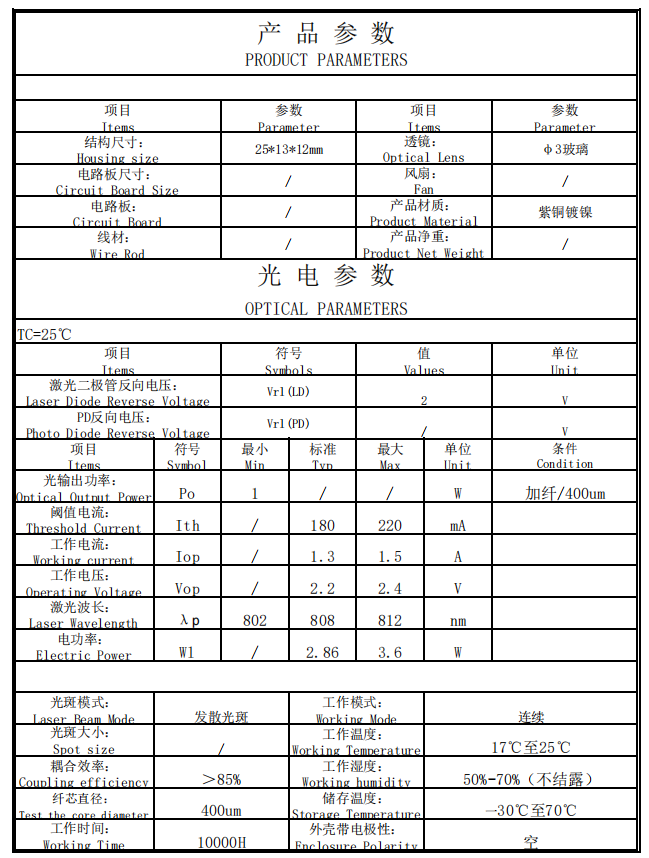

Infrared fiber coupled laser

Product Display

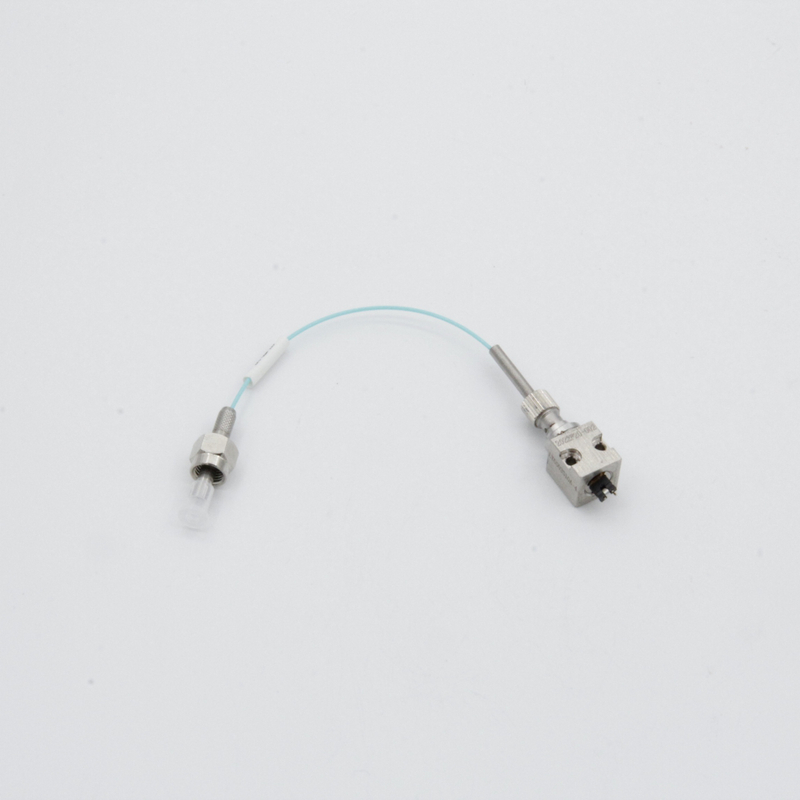

Fiber Coupled Laser Module

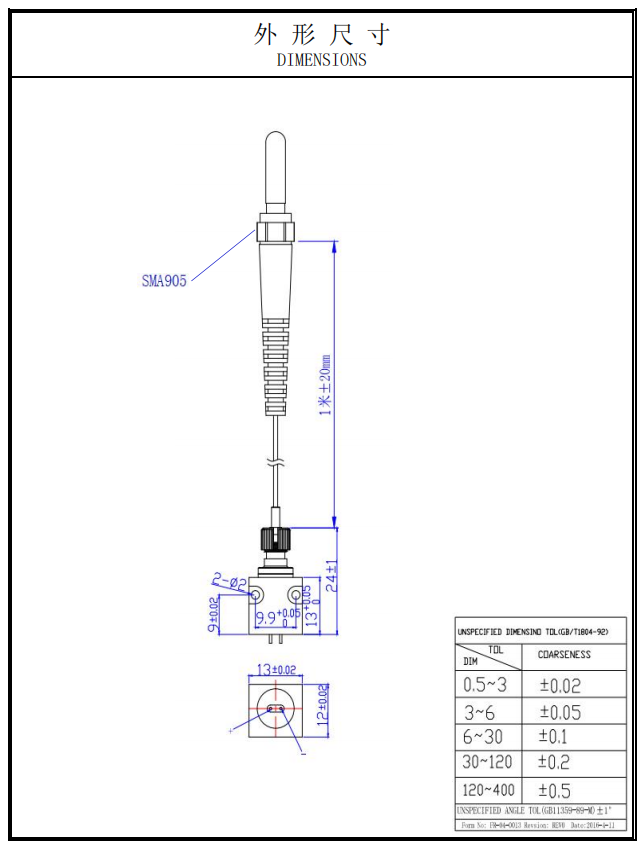

Infrared fiber coupled laser

Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!

Item	Parameter
Wavelength	375-405nm	425-488nm	515-520nm	635-670nm	780-980nm
Single Diode Module Optical Power	20mw-3W	20mw-3W	10mw-1.6W	5mw-2.5W	5mw-75W
Multi Diodes Module Optical Power	3W-200W	6W-500W	1.6W-50W	2.5W-30W	75W-100W
Operating Voltage	3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode	Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam	5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens	Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension	48mm/ 610.5mm715mm/921mm/1666mm/ 3333*55mm etc.
CDRH Class	class1/class2/class3A/class3B/class4

The Below are other laser pattern options you can select:

Fiber Coupled Laser Module

Laser Module Fiber Coupled Laser Module IR Fiber laser 808nm 1W fiber coupled laser Infrared fiber coupled laser 400um fiber laser Fiber Coupled Laser Diode Module Laser diode Module Laser for Medical Treatment
