Model:
LY5250S10A-9-A

Overview

520nm 35mW Green Fiber Coupled Laser Module (9μm Fiber)

520nm 35mW Green Fiber Coupled Laser Module with 9um Fiber is a medical-grade precision device, engineered to deliver stable 520nm green laser output with 35mW power, efficiently transmitted via a 9um ultra-fine fiber core. This 520nm 35mW Green Fiber Coupled Laser Module with 9um Fiber stands out for its focused light delivery—thanks to the 9um fiber, which concentrates laser energy into a tiny spot, ensuring minimal impact on surrounding tissues.

In ophthalmological treatment, the 520nm 35mW Green Fiber Coupled Laser Module with 9um Fiber excels at targeted therapy: its 9um fiber enables precise targeting of retinal or ocular surface lesions, while the 35mW power balances efficacy and safety, reducing risks of over-irritation. For medical surgery, the module’s stable 520nm green laser, transmitted via 9um fiber, supports minimally invasive procedures (e.g., small lesion removal), delivering controlled energy to avoid excessive tissue damage.

In physical therapy, the 520nm 35mW Green Fiber Coupled Laser Module with 9um Fiber uses gentle 35mW green light to stimulate local tissues, aiding microcirculation and recovery—its 9um fiber ensures the laser acts exactly where needed. For research，this 520nm 35mW Green Fiber Coupled Laser Module with 9um Fiber serves as a reliable light source in biophotonics and photomedicine studies, with consistent 520nm output and 9um fiber transmission enabling accurate, repeatable experiments.

Boasting medical safety compliance and precise energy control, the 520nm 35mW Green Fiber Coupled Laser Module with 9um Fiber is a versatile choice for critical optical applications.

Product Description

Core Specification :

Wavelength	520nm
Output Power	35mW
Working Voltage	6-7V
Fiber Core Diameter	9um (Customizable)
Coupling Efficiency	60%~70%
Housing Size	201010mm (Customizable)
Lens	Optical Glass
Lifespan	> 10,000 hours

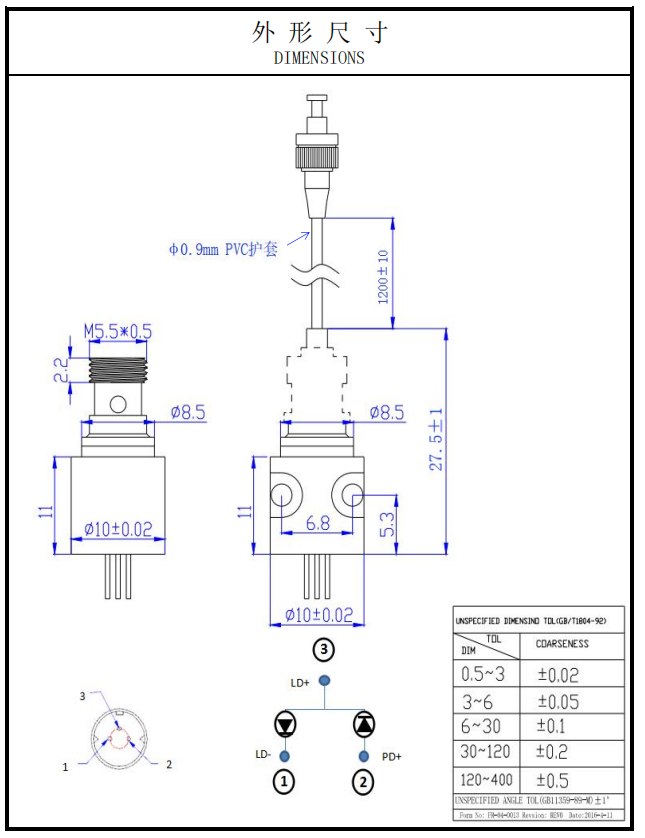

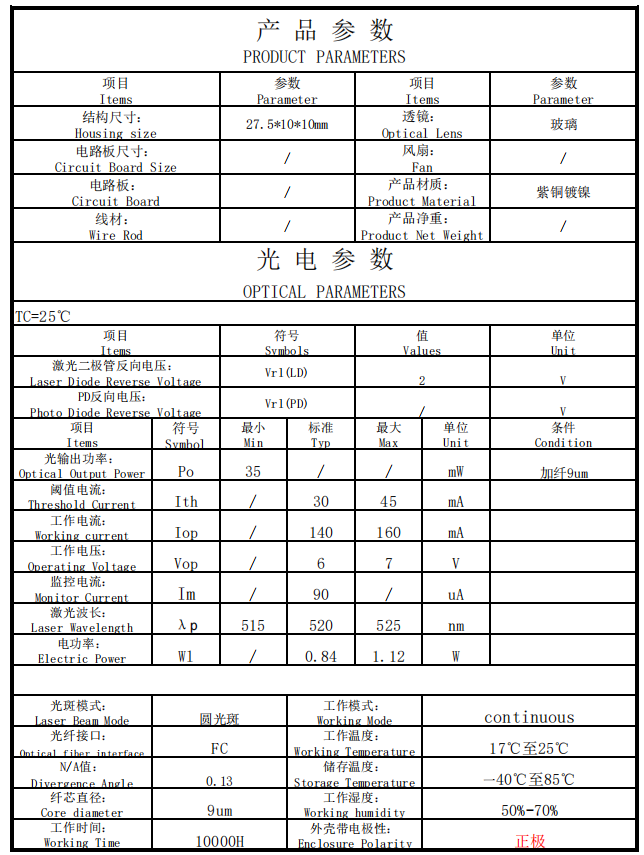

企业微信截图_17609483601913 企业微信截图_17609483743742

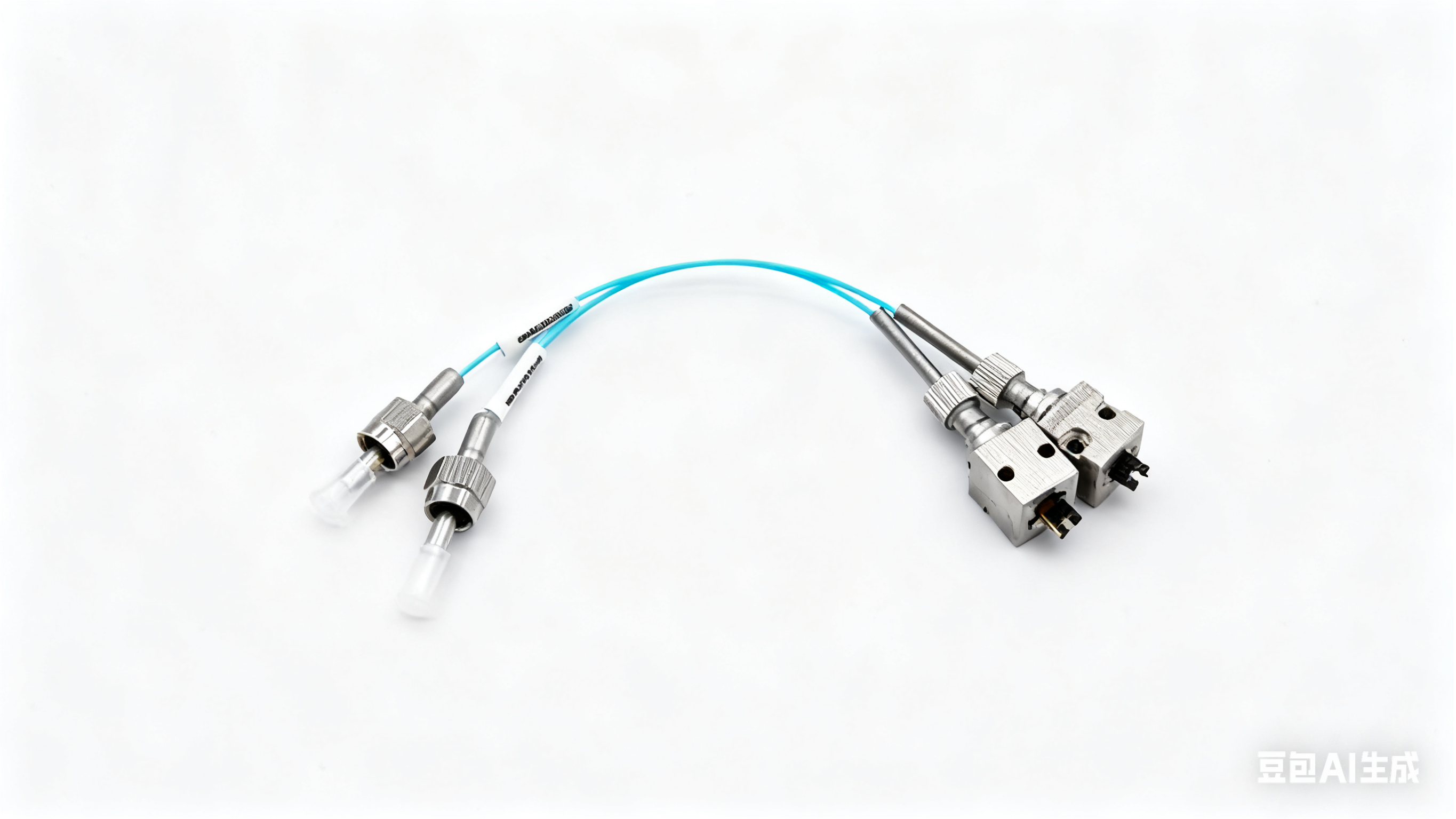

Product Display

Fiber Coupled Laser Module

1 (1) 1 (2) 1 (3)

Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!

Item	Parameter
Wavelength	375-405nm	425-488nm	515-520nm	635-670nm	780-980nm
Single Diode Module Optical Power	20mw-3W	20mw-3W	10mw-1.6W	5mw-2.5W	5mw-75W
Multi Diodes Module Optical Power	3W-200W	6W-500W	1.6W-50W	2.5W-30W	75W-100W
Operating Voltage	3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode	Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam	5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens	Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension	48mm/ 610.5mm715mm/921mm/1666mm/ 3333*55mm etc.
CDRH Class	class1/class2/class3A/class3B/class4

The Below are other laser pattern options you can select:

Fiber Coupled Laser Module

Laser Module Fiber Coupled Laser Module Green Fiber laser 520nm 35mW Fiber coupled laser Laser diode Module Fiber Coupled Laser Diode Module laser for Ophthalmological Treatment
