Single Mode 4um Fiber 638nm 50mW Red Fiber Coupled Laser Module for Myringitis Treatment

405nm 600mW 105um Fiber Coupled Laser Module for Lithography Equipment

Single Mode 4um Fiber 638nm 50mW Red Fiber Coupled Laser Module for Myringitis Treatment

Quantity:
Availability:





Inquire Add to Basket

Model:
LY6350S10A-4

Overview

4um Fiber 638nm 50mW Red Fiber Coupled Laser Module

The Single Mode 4um Fiber 638nm 50mW Red Fiber Coupled Laser Module is a medical-grade precision device, featuring single-mode 4um fiber transmission, 638nm red laser output, and stable 50mW power. This Single Mode 4um Fiber 638nm 50mW Red Fiber Coupled Laser Module delivers concentrated, uniform laser energy via its 4um single-mode fiber, ensuring precise targeting for diverse applications.

For Myringitis Treatment, the Single Mode 4um Fiber 638nm 50mW Red Fiber Coupled Laser Module uses its 4um fiber to deliver localized 638nm red light, aiding inflammation reduction while protecting surrounding auditory tissues. In medical surgery, its stable 50mW power and single-mode 4um fiber enable minimally invasive procedures (e.g., small soft tissue treatments) with controlled energy delivery. For physical therapy, the 638nm red laser of this module stimulates tissue repair, with the 4um fiber ensuring targeted action on affected areas. In research, the Single Mode 4um Fiber 638nm 50mW Red Fiber Coupled Laser Module serves as a reliable light source for biophotonics and medical optics studies, thanks to its consistent single-mode transmission and 638nm wavelength stability. Compliant with medical safety standards, it’s a versatile choice for precision optical needs.

Product Description

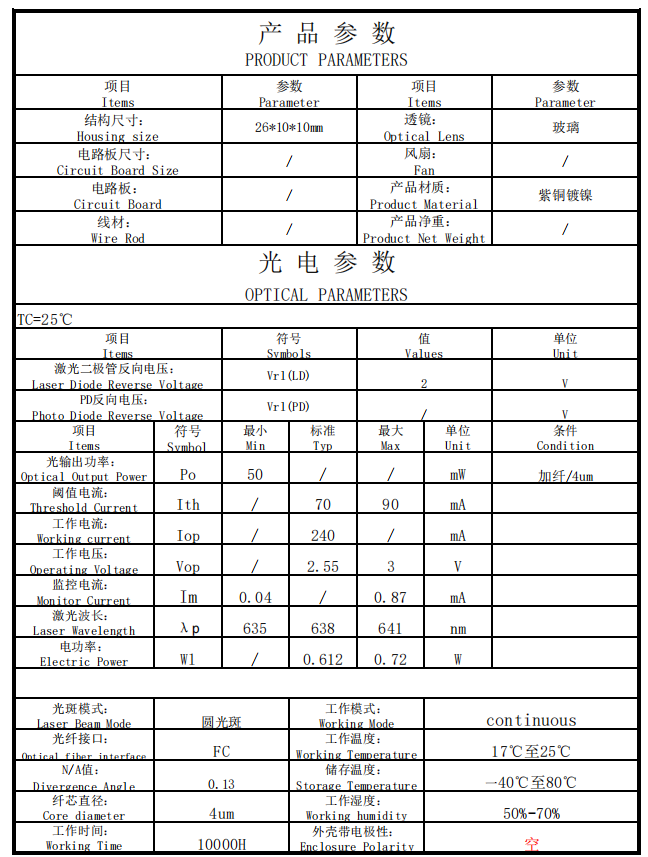

Core Specification :

Wavelength	638nm
Output Power	50mW
Working Voltage	6-7V
Fiber Core Diameter	4um， NA0.13 (Customizable)
Coupling Efficiency	60%~70%

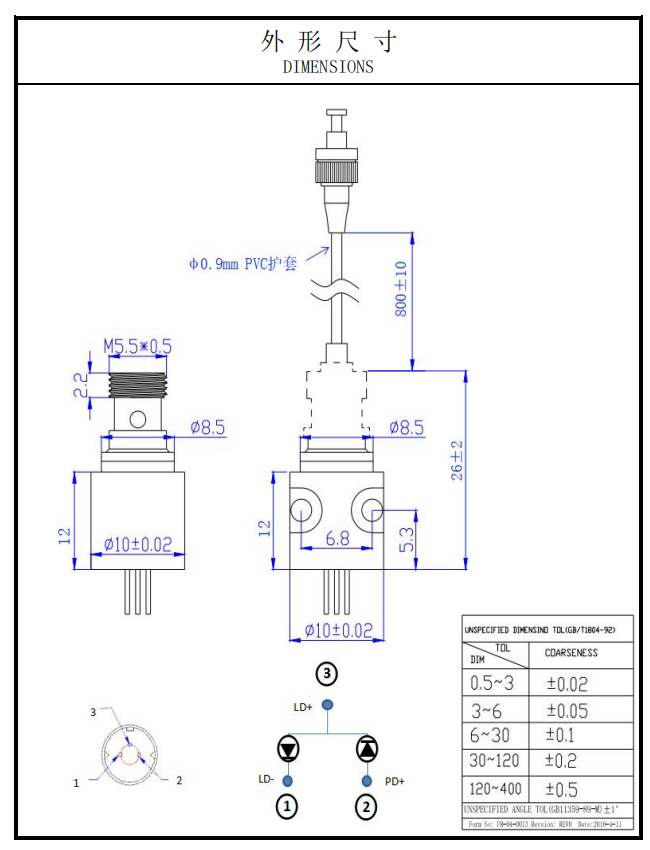

Housing Size	201010mm (Customizable)
Lens	Optical Glass
Lifespan	> 10,000 hours

Laser for Myringitis treatment

Product Display

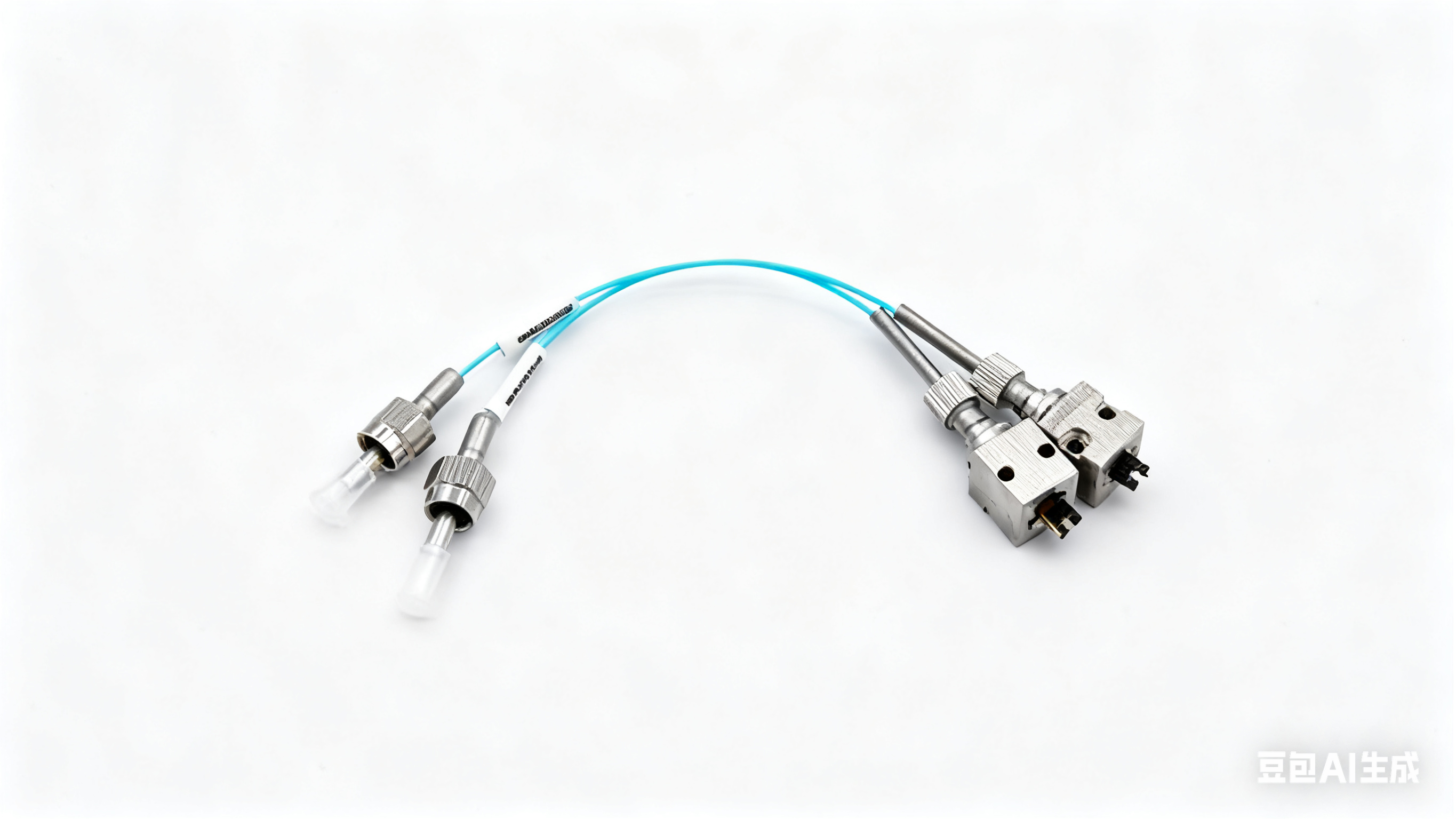

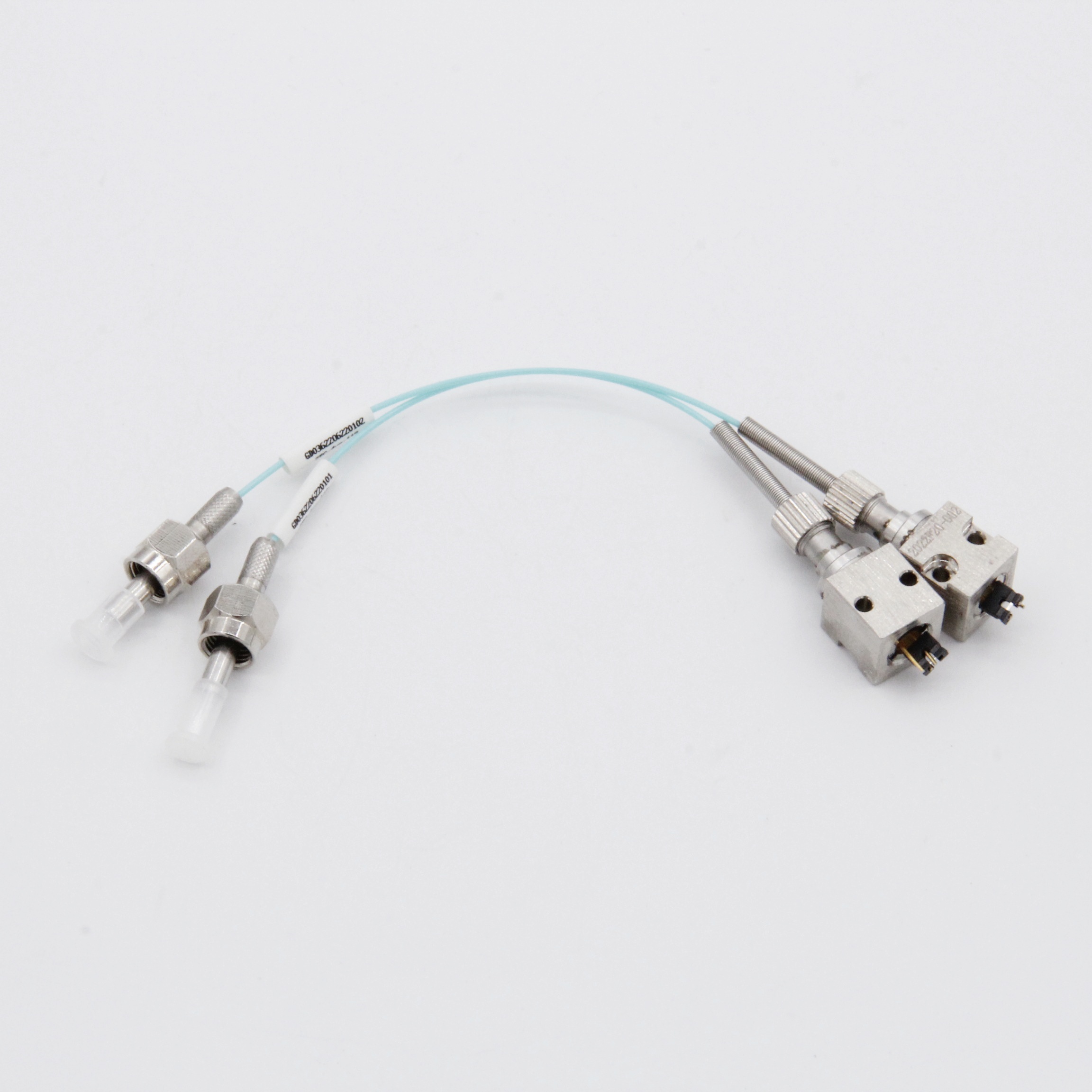

Fiber Coupled Laser Module

Laser for Myringitis treatment

Our Services

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!

Item	Parameter
Wavelength	375-405nm	425-488nm	515-520nm	635-670nm	780-980nm
Single Diode Module Optical Power	20mw-3W	20mw-3W	10mw-1.6W	5mw-2.5W	5mw-75W
Multi Diodes Module Optical Power	3W-200W	6W-500W	1.6W-50W	2.5W-30W	75W-100W
Operating Voltage	3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc.
Spot Mode	Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc.
Fan Angle Options of the Line Beam	5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc.
Optical Lens	Acrylic lenses, glass lenses, wave lenses, Powell lenses etc.
Dimension	48mm/ 610.5mm715mm/921mm/1666mm/ 3333*55mm etc.
CDRH Class	class1/class2/class3A/class3B/class4

The Below are other laser pattern options you can select:

Fiber Coupled Laser Module

Laser Module Fiber Coupled Laser Module 638nm Red Fiber laser Laser for Myringitis treatment single mode fiber laser 638nm 50mW Fiber coupled laser Fiber Coupled Laser Diode Module Laser diode Module
