JAP6510Z-058

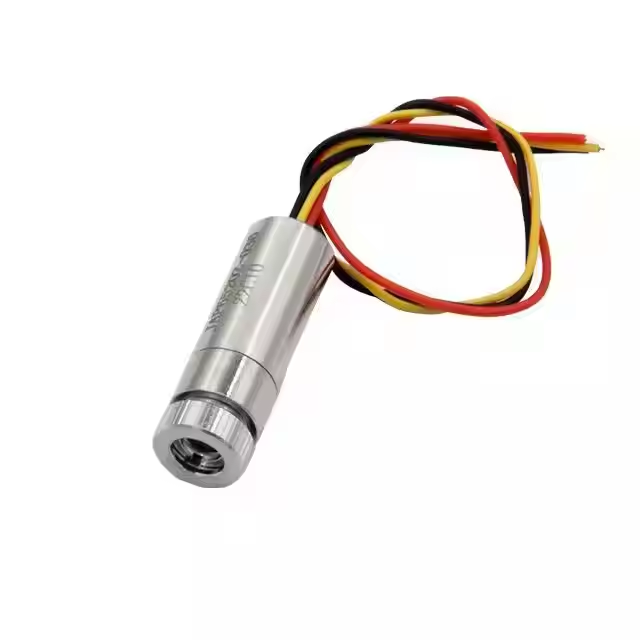

Adjustable Collimated 658nm 100mW Red Dot Laser Module
Introducing the 658nm 100mW dot laser module, a cutting-edge product designed for precision laser positioning, laser indication, laser targeting, sensor integration, and laser ranging applications. This high-quality laser module emits a bright red 658nm laser beam with a power output of 100mW, ensuring clear and accurate visibility in various environments.
Equipped with advanced technology, this laser module is ideal for a wide range of industrial, commercial, and scientific applications. Whether you need to accurately align components, mark targets, or measure distances, this versatile laser module delivers reliable performance and consistent results.
The 658nm 100mW dot laser module features a compact and durable design, making it easy to integrate into existing systems or equipment. With its precise beam alignment and adjustable focus, this laser module offers flexibility and convenience for a variety of applications.
Trust in the quality and reliability of the 658nm 100mW dot laser module for all your laser positioning, indication, targeting, sensing, and ranging needs. Experience the power of precision with this innovative laser module that is sure to enhance your projects and operations.

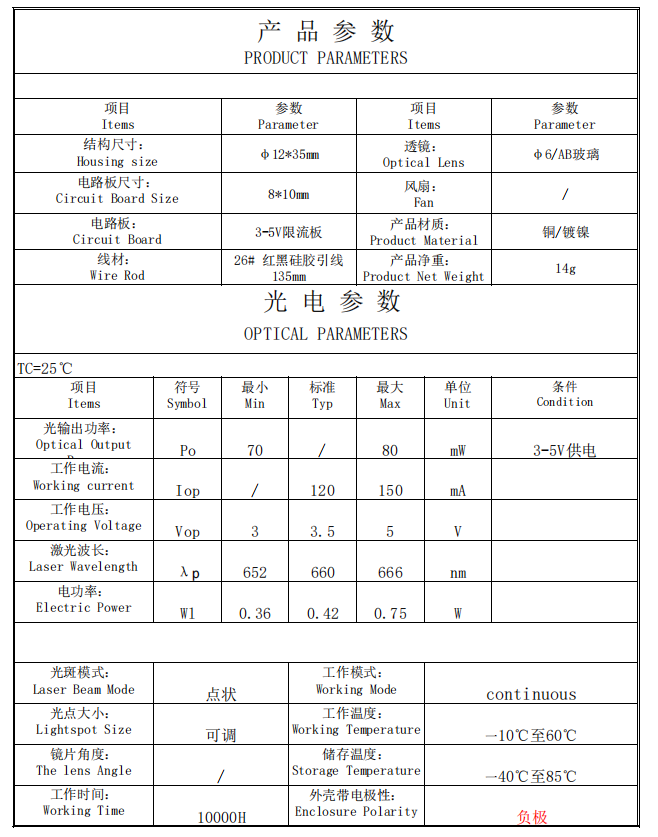

Core Specification :
Wavelength | 658nm |
Output Power | 70-80mW |
Working Voltage | 3-5V |
Beam Mode | Dot |
Dot beam size | Adjustable |

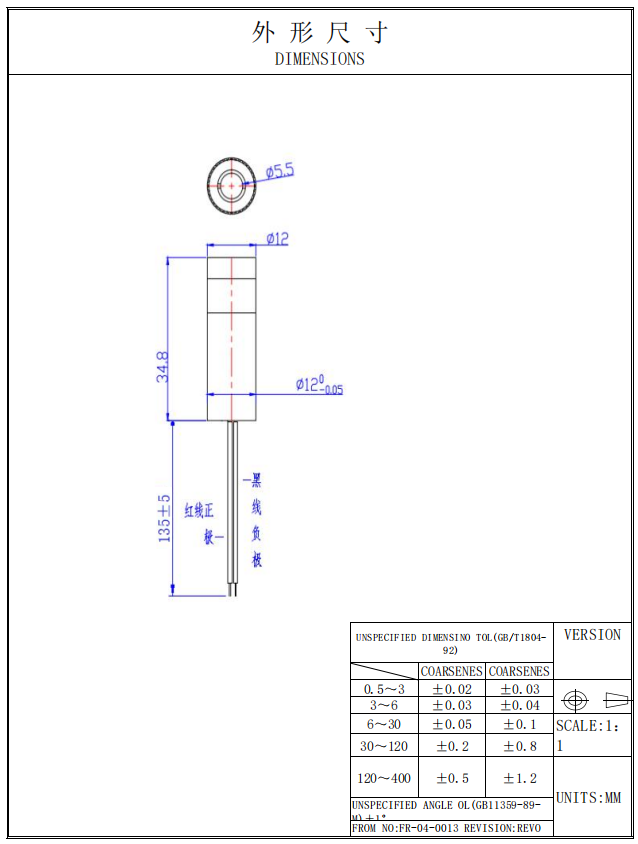

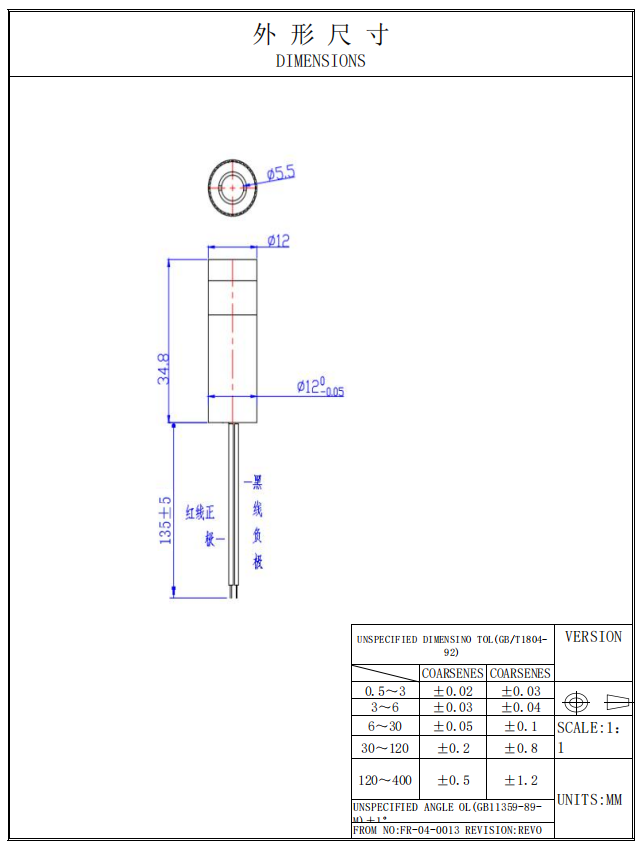

Housing Size | 12*35mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
