JAP5210-043

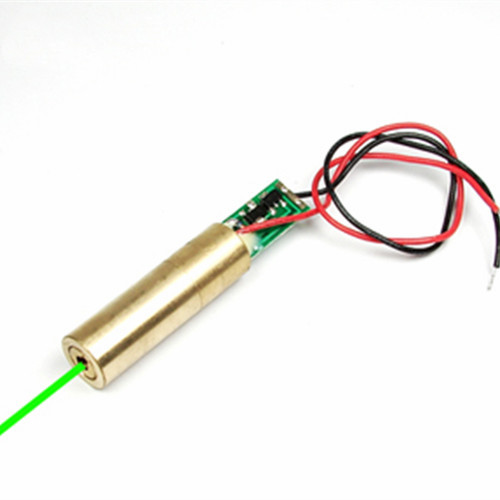

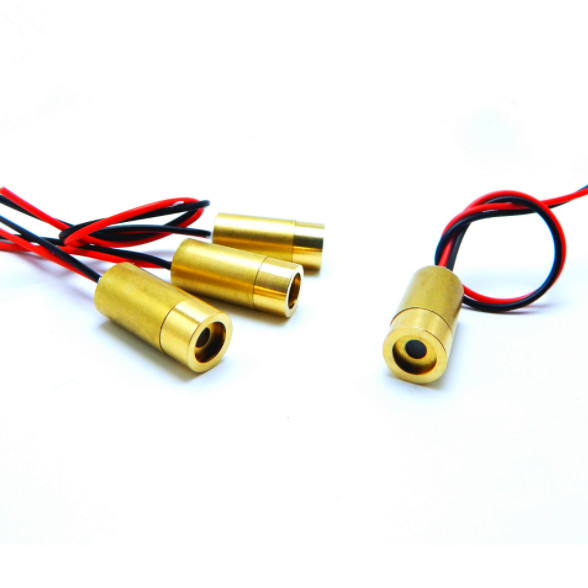

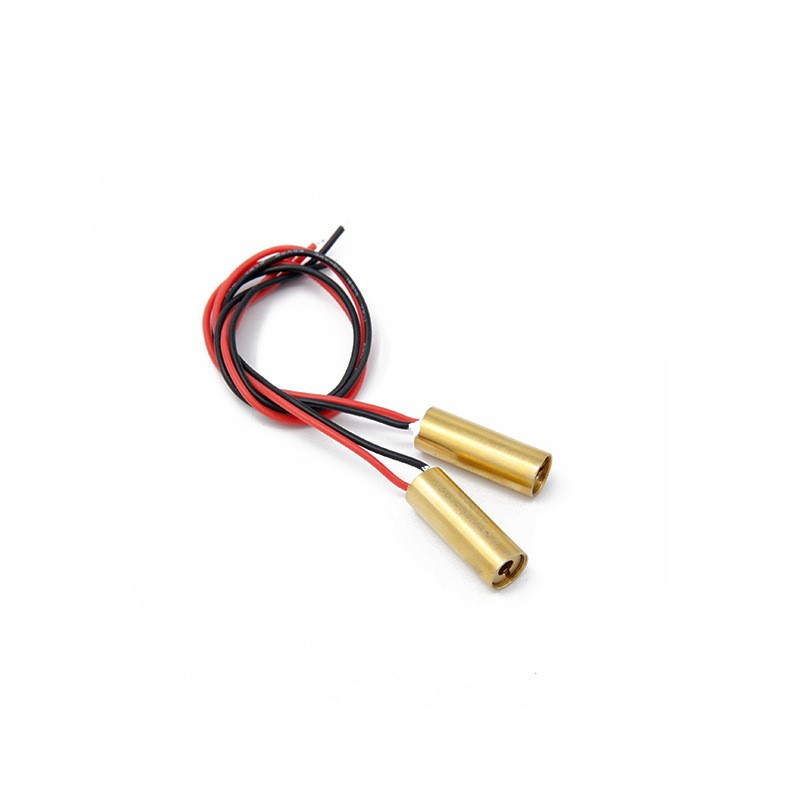

D9mm 520nm 5mW Green Dot Laser Module
Introducing the 520nm 5mW green dot laser module, a versatile and reliable tool designed for precision aiming, positioning, indicating, and distance measuring applications. This greeb dot laser module emits a bright green laser beam at a wavelength of 520nm with a power output of 5mW, ensuring clear visibility and accuracy in various settings.
Equipped with advanced laser technology, this laser module is ideal for use as a laser sight for firearms, a laser pointer for presentations, a laser indicator for machinery alignment, and a laser rangefinder for distance measurement. Its compact and lightweight design makes it easy to handle and mount on different surfaces, while its durable construction ensures long-lasting performance in demanding environments.
Whether you are a professional in need of a reliable laser tool for your work or an enthusiast looking for a high-quality laser module for personal projects, the 520nm 5mW green dot laser module is the perfect choice. Trust in its precision, versatility, and durability to enhance your accuracy and efficiency in various applications.

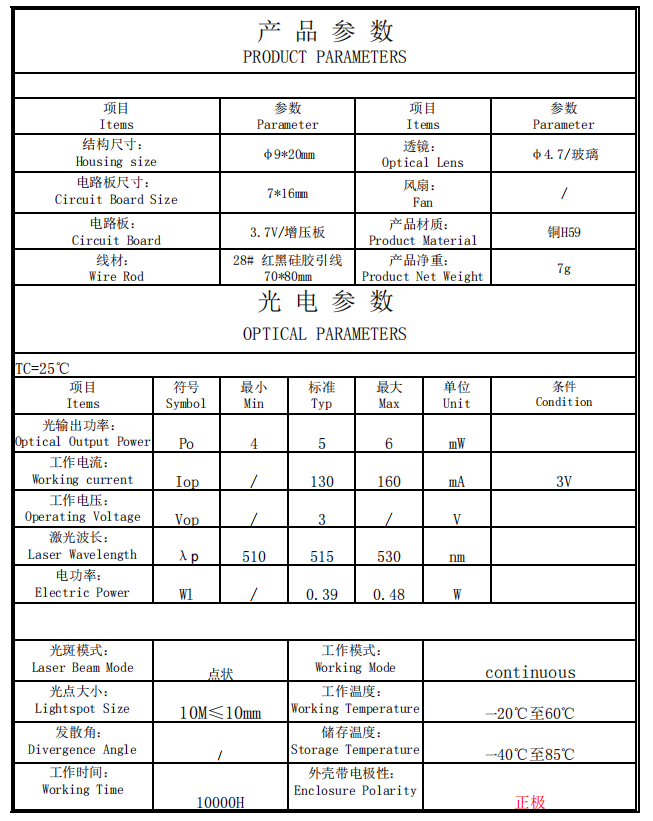

Core Specification :
Wavelength | 520nm |
Output Power | 4-6mW |
Working Voltage | 3-5V |
Beam Mode | Dot |
Dot beam size | <10mm @10m (Customizable) |

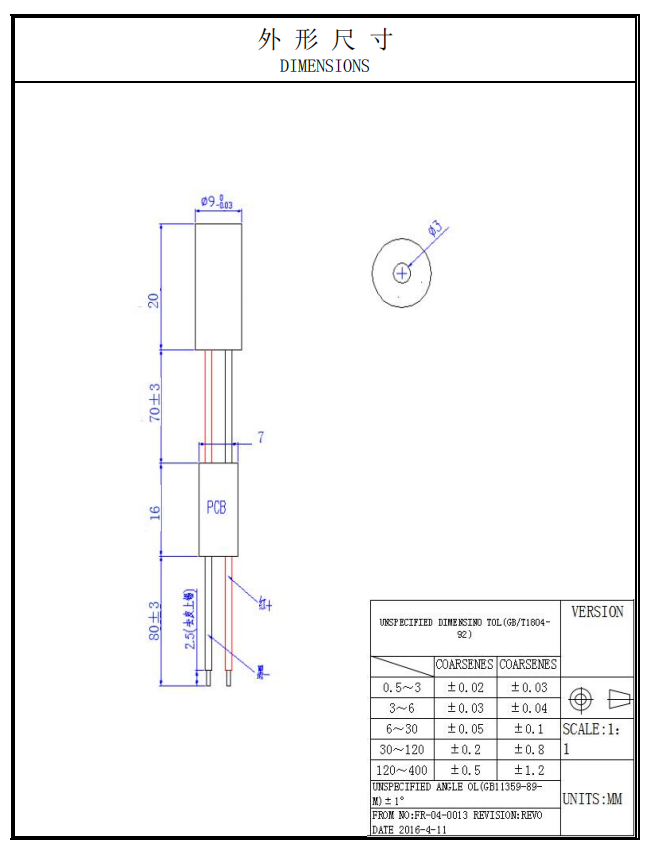

Housing Size | 9*20mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |

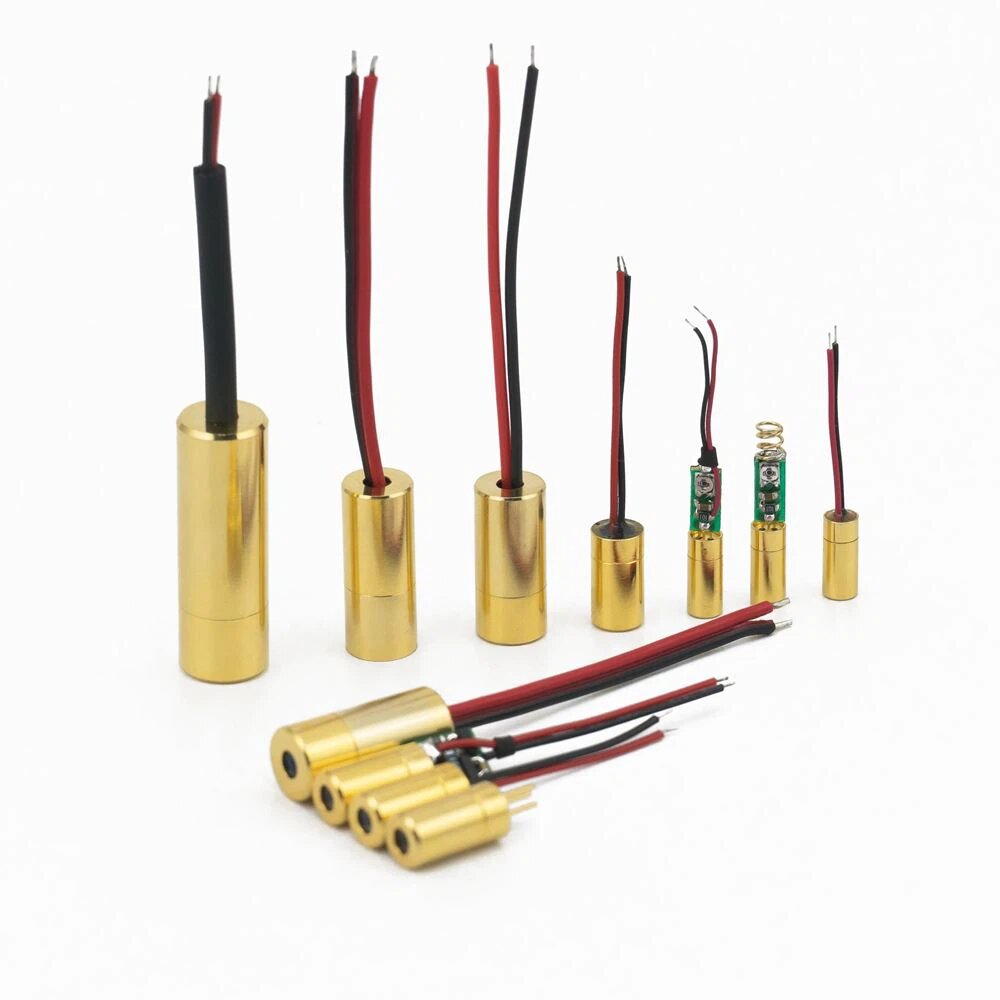

We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |
The Below are other laser pattern options you can select:
