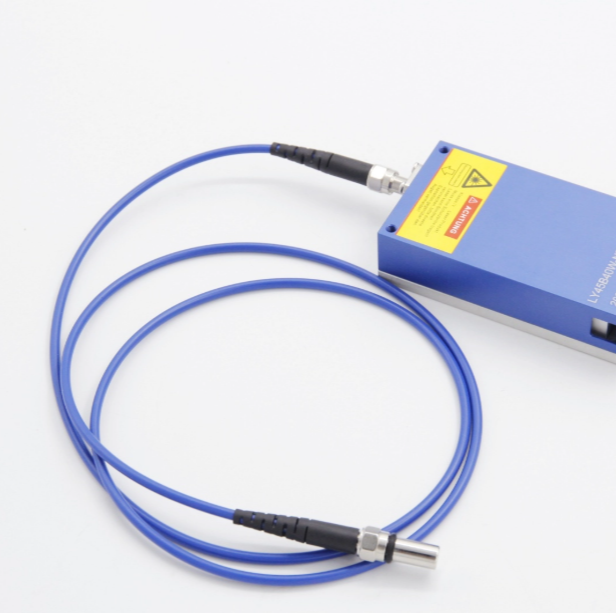

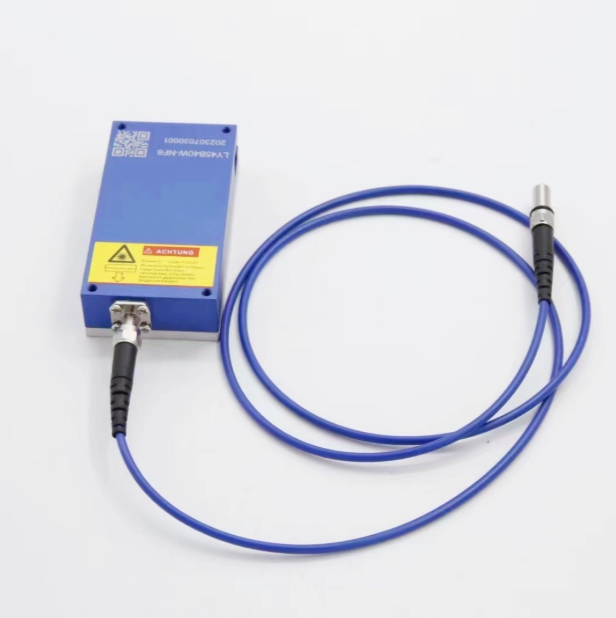

Ever wondered how a tiny device can cut metal or create art? Meet the laser module, a powerful tool used in various fields. From engraving intricate designs to aiding in precise measurements, laser modules have countless applications. But with great power comes the need for safety. In this post, you'll learn about laser modules, their uses, and essential safety precautions.
Laser diodes and LEDs both emit light, but they do so in very different ways. An LED spreads light in many directions, creating a broad glow. A laser diode, on the other hand, produces a focused, narrow beam of light that travels straight. This focused beam is what makes laser diodes useful for tasks like cutting, engraving, or precise measurements. Think of a laser diode as a flashlight that shines a tiny, powerful beam instead of a wide glow.
There are several types of laser diodes, each designed for specific uses:
Edge-Emitting Laser Diodes: These emit light from the edge of the semiconductor chip. They are common in applications like fiber optic communications and laser pointers.
Vertical-Cavity Surface-Emitting Lasers (VCSELs): These emit light perpendicular to the surface of the chip and often include a built-in photodiode to monitor output power. VCSELs are used in 3D sensing, data communications, and some medical devices.
Quantum Cascade Lasers: Used mainly for mid-infrared applications, such as gas sensing and spectroscopy.
Each type varies in power, wavelength, and complexity, so choosing the right one depends on your project needs.
A laser diode typically includes:
Active Region: Where electrons and holes recombine to produce light.
Reflective Surfaces: These form an optical cavity that amplifies light by bouncing it back and forth, creating a coherent beam.
Electrical Contacts: To provide power to the diode.
Some laser diodes also have a monitor photodiode. This small sensor measures the laser's output power and helps keep it stable by adjusting the current. This feature is especially important in applications requiring precise control.
Picking the right laser module depends on your project’s needs. Laser modules come in various power levels, wavelengths, and sizes. For beginners or hobbyists, modules with built-in driver circuits are easier to use. These modules usually have two wires—red for positive voltage and black for ground. For example, the popular Arduino-compatible KY-008 laser module operates at 5V and is great for simple projects like laser pointers or basic engraving.
If your project requires more precision or higher power, look for modules with adjustable power settings or integrated cooling systems. Also, consider the wavelength. Red lasers (around 650 nm) are common and affordable, but green or blue lasers might be better for visibility or specific applications.
Most laser modules are designed to run on low DC voltages, typically 3V to 5V. Always check the datasheet or seller’s info for the correct voltage. Connecting the module is simple: attach the red wire to the positive terminal of your power supply and the black wire to the negative terminal.
If you’re using a microcontroller like Arduino, connect the module’s positive wire to the 5V pin and the negative wire to GND. To control the laser, you can connect the module’s power through a transistor or a MOSFET, allowing you to switch the laser on and off via code.
Never exceed the recommended voltage; too much power can damage the laser diode. Also, avoid powering the module directly from unstable sources to prevent current spikes.
Some laser modules come with a built-in potentiometer, a small adjustable resistor. This lets you fine-tune the laser’s power output. Turning the potentiometer changes the current flowing through the laser diode, which affects the brightness and strength of the beam.
To adjust it, use a small screwdriver to turn the potentiometer slowly while the laser is powered on. Increase the power until you reach the desired brightness, but never exceed the maximum current rating listed in the datasheet. Doing so can shorten the laser’s lifespan or cause immediate failure.
If your module doesn’t have a built-in potentiometer, you can add an external one in the driver circuit. This setup gives you more control but requires basic electronics knowledge.
Laser modules emit a concentrated beam of light that can harm your eyes instantly. Always wear laser safety goggles designed for the laser’s specific wavelength. Ordinary sunglasses won’t protect you. If you’re working with high-power lasers, consider face shields and gloves as well. Never look directly into the laser beam or its reflection, even for a brief moment. Keep the laser beam below eye level to reduce accidental exposure. If you’re in a shared workspace, post warning signs to alert others.
Laser cutting or engraving produces smoke and fumes that can be harmful if inhaled. Always operate your laser module in a well-ventilated area. Use an exhaust system or smoke purifier to remove airborne particles and gases. Check local regulations to ensure your ventilation method complies with environmental standards. Keep a fire extinguisher nearby—CO2 types work well for electrical and laser-related fires. Never leave a laser machine unattended during operation; fires can start quickly if the beam hits flammable material.
Reflective surfaces like mirrors, polished metals, or shiny plastics can bounce the laser beam unpredictably. This reflection can damage your equipment or cause injuries. Avoid engraving or cutting highly reflective materials unless your laser system is designed to handle them safely. If you must work with these materials, use matte coatings or masking tape to reduce reflectivity. Always monitor the laser beam’s path carefully and keep reflective objects out of the beam’s range.

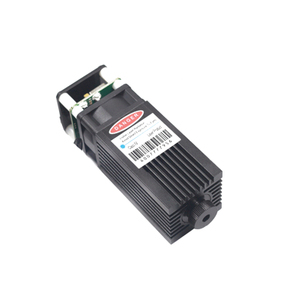

Laser modules are fantastic tools for engraving and cutting various materials. You can create detailed designs on wood, leather, plastic, and even some metals. For hobbyists, a low-power laser module (around a few watts) is enough to engrave softer materials like wood or leather. Higher power modules can cut through thicker or harder materials like acrylic or thin metal sheets.
Many DIY enthusiasts build laser engravers by combining a laser module with stepper motors and a controller board like Arduino or Raspberry Pi. These setups allow precise movement of the laser beam over the material, creating intricate patterns or text. You can find open-source software and guides online to help you get started.
When engraving or cutting, the laser’s power and speed settings must be adjusted carefully. Too much power or too slow a speed can burn or melt the material. Too little power or too fast a speed may not leave a visible mark. Experimentation and testing on scrap pieces help find the right balance.
Laser modules can also create stunning light shows. By controlling the laser’s intensity, color, and movement, you can produce visual effects for entertainment or art installations. Using mirrors or galvanometer scanners, the laser beam can be directed rapidly to form shapes, patterns, or animations.
For multi-color shows, different laser modules (red, green, blue) can be combined. Software tools allow synchronization of the laser patterns with music or other media. These projects require careful planning and safety measures, as laser beams can be hazardous when pointed at people or reflective surfaces.
In robotics, laser modules serve as eyes for detecting distances and obstacles. Laser rangefinders emit a beam toward an object and measure the time it takes for the reflection to return. This data helps robots navigate, avoid collisions, or map their surroundings.
Laser modules used in rangefinding are usually paired with photodiodes or sensors to detect the reflected light. The system calculates distances with high precision, which is crucial for autonomous robots or drones.
Besides rangefinding, lasers can enable communication between robots by transmitting coded light signals. This method is useful where radio frequency communication is unreliable or restricted.
To get the most out of a laser diode, building a proper driver circuit is crucial. A driver circuit controls the current flowing through the laser diode, keeping it stable and safe. Without one, the diode can easily be damaged by current spikes or overheating.
A simple constant current driver uses a voltage regulator like the LM317. This regulator maintains a steady current by adjusting voltage as needed. Adding a potentiometer lets you fine-tune the current, adjusting the laser’s power output. For example, if you want a laser to engrave lightly or cut deeper, changing the current controls how strong the beam is.
Here’s a basic layout for an LM317 driver:
| Input Voltage | Supply voltage higher than the laser diode’s operating voltage. |
| LM317 Regulator | Set to constant current mode. |
| Resistor and Potentiometer | Determine the current flowing through the diode. |
| Laser Diode | Connected at the output, powered safely. |
Make sure to calculate resistor values according to your laser diode’s specifications. Datasheets often provide formulas or example circuits.
Some laser diodes include a built-in photodiode to monitor output power. This tiny sensor detects how much light the laser emits. Feeding this signal back into the driver circuit helps maintain a consistent beam intensity.
Why is this important? Laser output can fluctuate due to temperature changes or power supply variations. The photodiode feedback loop adjusts current automatically, stabilizing the laser. This feature is especially useful in precision applications like fiber optics or 3D sensing.
If your laser diode doesn’t have a monitor photodiode, you can add an external photodiode positioned near the laser beam. Connect it to a control circuit that adjusts the laser current based on the detected light. This setup requires some electronics knowledge but improves performance and safety.
An exciting project you can build using a laser module is an invisible tripwire alarm. The idea is simple: a laser beam shines across an entrance, aimed at a light sensor on the other side. When someone crosses the beam, the sensor detects the interruption and triggers an alarm.
Here’s what you need:
Laser Module: Emits the beam.
Photoresistor or Photodiode: Detects the beam.
555 Timer IC: Acts as a timer to sound the alarm.
Transistor: Switches the alarm on.
Active Buzzer: Sounds when triggered.
Resistors, Capacitors, Potentiometer: For circuit tuning.
The laser stays on continuously, shining on the photoresistor. When the beam breaks, the photoresistor’s resistance changes, activating the transistor. The transistor triggers the 555 timer, which powers the buzzer for a set time.
You can adjust the alarm duration by changing the capacitor or resistor values in the 555 timer circuit. This project is great for learning about sensors, timers, and laser safety.
Keeping your laser module clean and well-maintained is essential for its performance and longevity. After each use, remove any dust, debris, or residue that may have accumulated around the laser lens or housing. Dust can scatter the laser beam, reducing its effectiveness and causing uneven engraving or cutting.
Use a soft, lint-free cloth lightly dampened with isopropyl alcohol to clean the lens. Avoid touching the lens directly with your fingers, as oils can damage the surface. Also, check for any loose connections or damaged wires regularly. Tighten screws and connectors to prevent intermittent power issues.
Inspect the cooling system if your module has one. Fans or heat sinks should be free of dust to ensure proper heat dissipation. Overheating can shorten the laser diode’s life or cause sudden failure.
Even with proper care, you might face some issues. Here are common problems and how to fix them:
Laser Does Not Turn On: Check the power supply and connections first. Confirm the voltage matches the laser module’s requirements. If the power supply is stable and connections are secure, the laser diode might be damaged and need replacement.
Laser Beam Is Weak or Flickering: This could be due to a dirty lens, loose wiring, or a failing driver circuit. Clean the lens, check all connections, and test the driver circuit for stability.
Laser Overheating: Ensure the cooling system is working. If the fan isn’t spinning or heat sinks are clogged, clean or replace them. Running the laser at maximum power for extended periods can also cause overheating.
Laser Power Adjustment Not Working: If your module has a potentiometer but adjusting it doesn’t change the beam intensity, the potentiometer may be faulty or disconnected. Verify the wiring and replace the potentiometer if needed.
Laser safety standards and regulations evolve over time. Stay informed about the latest guidelines from organizations like the American National Standards Institute (ANSI) or the International Electrotechnical Commission (IEC). Regularly review and update your safety protocols to protect yourself and others.
If you work in a shared or professional environment, make sure all users are trained on the current safety measures. Post updated safety signs near your laser setup, and keep safety gear like goggles and fire extinguishers accessible.
Tip: Schedule regular maintenance checks and keep a log of issues and fixes to extend your laser module’s lifespan and ensure safe operation.
Laser modules are versatile tools used for engraving, cutting, and creating light shows. Key components include driver circuits and photodiodes for power stability. Future trends may enhance precision and efficiency in laser technology. Safety remains crucial, with protective gear and proper ventilation being essential. Regular maintenance ensures longevity and performance. Blueuniverse Laser offers innovative laser solutions, providing high-quality modules that cater to various project needs, ensuring reliability and safety.
A: A laser module is a device that emits a focused beam of light, used for applications like cutting, engraving, and precise measurements.
A: Connect the red wire to the positive terminal and the black wire to the negative terminal of a power supply, ensuring the voltage matches the module’s requirements.
A: A driver circuit controls the current, preventing damage from spikes and overheating, ensuring stable operation of the laser module.
A: Laser modules offer precision, efficiency, and versatility in applications like engraving, cutting, and rangefinding in robotics.
A: Check for a dirty lens, loose connections, or a failing driver circuit. Clean the lens and ensure all connections are secure.
