A fiber-coupled laser is a diode laser where the generated light is guided and delivered by an optical fiber instead of being emitted as a free-space beam. A fiber coupled laser is a type of laser system where the laser beam, generated by a laser source (e.g., diode lasers, solid-state lasers), is efficiently coupled into an optical fiber for transmission, delivery, or further processing. Unlike "free-space lasers" (where the beam travels through air), fiber coupled lasers leverage optical fibers to guide the laser beam, enabling flexible, stable, and precise beam delivery in industrial, medical, scientific, and consumer applications.
A typical fiber coupled laser system consists of three key parts, working together to ensure efficient beam coupling and transmission:
Component
Function
Key Details
Laser Source
Generates the initial laser beam
Common types: - Diode lasers (most widely used for cost/efficiency). - Solid-state lasers (e.g., Nd:YAG, for high power/beam quality). - Fiber lasers (note: fiber lasers generate light in fibers; fiber coupled lasers deliver light via fibers, which may include fiber laser sources).
Coupling Optics
Bridges the laser source to the optical fiber
Critical for minimizing beam loss: - Lenses (collimating lenses to focus the divergent laser beam; focusing lenses to match the beam’s numerical aperture to the fiber’s). - Alignment mechanisms (to precisely align the laser beam with the fiber’s core, as even micron-scale misalignment causes major losses).
Optical Fiber
Guides the coupled laser beam
Designed for laser compatibility: - Core: Central region that transmits the laser beam (diameter ranges from ~5 μm for high beam quality to ~1000 μm for high-power delivery). - Cladding: Surrounds the core; has a lower refractive index to trap light via total internal reflection (TIR). - Coating: Protects the fiber from mechanical damage and environmental interference (e.g., moisture, dust).
How Does Fiber Coupling Work?
The goal of "coupling" is to transfer as much of the laser beam’s power into the fiber’s core as possible, while preserving beam quality. The process relies on two key principles:
Matching Beam Parameters For efficient coupling, the laser beam’s properties must match the fiber’s specifications:
Numerical Aperture (NA): A measure of the fiber’s ability to accept light. The laser beam’s NA (determined by its divergence angle) must be ≤ the fiber’s NA to avoid light escaping the core.
Beam Diameter: The focused laser beam’s diameter must match the fiber core’s diameter. If the beam is too large, it hits the cladding and is lost; if too small, it wastes the fiber’s capacity.
Minimizing Losses Even with perfect parameter matching, losses occur due to:
Alignment Errors: Misalignment (lateral, angular, or axial) between the laser beam and fiber core (the #1 cause of coupling loss).
Optical Imperfections: Scattering from dirty lenses/fiber ends, or reflections at air-glass interfaces (mitigated with anti-reflective coatings).
Fiber Bending: Excessive bending of the fiber can cause "bending loss" (light leaks out of the core), so fibers are rated for minimum bend radius.
Key Advantages Over Free-Space Lasers
Fiber coupled lasers solve critical limitations of free-space laser systems, making them dominant in most practical applications:
Advantage
Description
Flexible Beam Delivery
Optical fibers are lightweight and bendable, allowing the laser beam to reach tight or remote spaces (e.g., inside a machine tool or human body).
Stable Performance
The fiber protects the beam from environmental interference (air turbulence, dust, vibration) that degrades free-space beams.
Compact Design
The fiber eliminates the need for large, fixed mirrors/lenses (used in free-space systems), reducing the laser’s size and cost.
Safe Operation
The fiber contains the laser beam, reducing the risk of accidental exposure (critical for high-power lasers).
Scalability
Multiple fiber coupled lasers can be combined (via fiber combiners) to deliver higher power than a single laser.

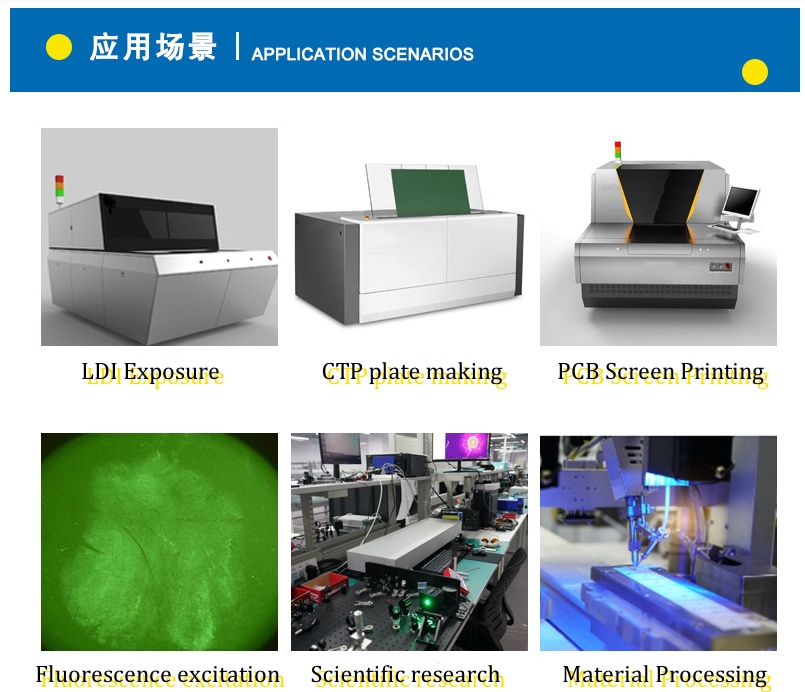

Common Applications
Fiber coupled lasers are ubiquitous across industries due to their versatility. Key use cases include:
Industrial Manufacturing
Laser Cutting/Welding: Fibers deliver high-power beams to robotic arms for precision cutting of metals (e.g., automotive parts) or welding of electronics.
Laser Marking: Low-power fiber coupled lasers mark barcodes, logos, or serial numbers on plastics, metals, and glass (e.g., smartphone casings).
Medical & Biomedical
Surgery: Fiber-coupled diode lasers deliver controlled heat for minimally invasive procedures (e.g., laser eye surgery, dermatological treatments for tattoos or lesions).
Imaging: Low-power lasers coupled to optical fibers enable endoscopy (imaging inside the body) or confocal microscopy (high-resolution biological imaging).
Scientific Research
Spectroscopy: Fibers deliver laser light to samples in harsh environments (e.g., high-temperature reactors) or remote locations (e.g., field studies of atmospheric gases).
Optical Sensing: Fiber coupled lasers power sensors for measuring temperature, pressure, or strain (e.g., monitoring oil pipelines or bridge structural integrity).
Consumer & Telecommunications
Fiber Optic Communications: While telecom uses "communication-grade" lasers, fiber coupling is foundational to transmitting laser signals over long distances (e.g., internet backbones).
3D Printing: Fiber coupled lasers melt or sinter materials (e.g., metal powders) in additive manufacturing.
Key Performance Metrics
When evaluating a fiber coupled laser, these metrics define its quality and suitability for an application:
Coupling Efficiency: The percentage of laser power transferred into the fiber (typically 70–95% for commercial systems; >90% is considered high-efficiency).
Output Power/Beam Quality: Power (watts, mW) and beam quality (M² factor; M²=1 is a perfect Gaussian beam, critical for precision tasks like surgery or micro-machining).
Fiber Type:
Single-Mode Fiber (SMF): Small core (~5–10 μm), low NA, delivers high beam quality (M²≈1) but low power (used for telecom, microscopy).
Multi-Mode Fiber (MMF): Larger core (~50–1000 μm), higher NA, delivers high power but lower beam quality (used for cutting, welding).
Reliability: Mean Time Between Failures (MTBF) — industrial systems require MTBF >10,000 hours.
Summary
In short, a fiber coupled laser is a "beam-delivery solution" that combines the power/precision of lasers with the flexibility/stability of optical fibers. By solving the limitations of free-space lasers, it has become the workhorse of modern laser applications, from manufacturing to medicine. Its core value lies in efficient, flexible, and reliable transmission of laser light to where it is needed most.

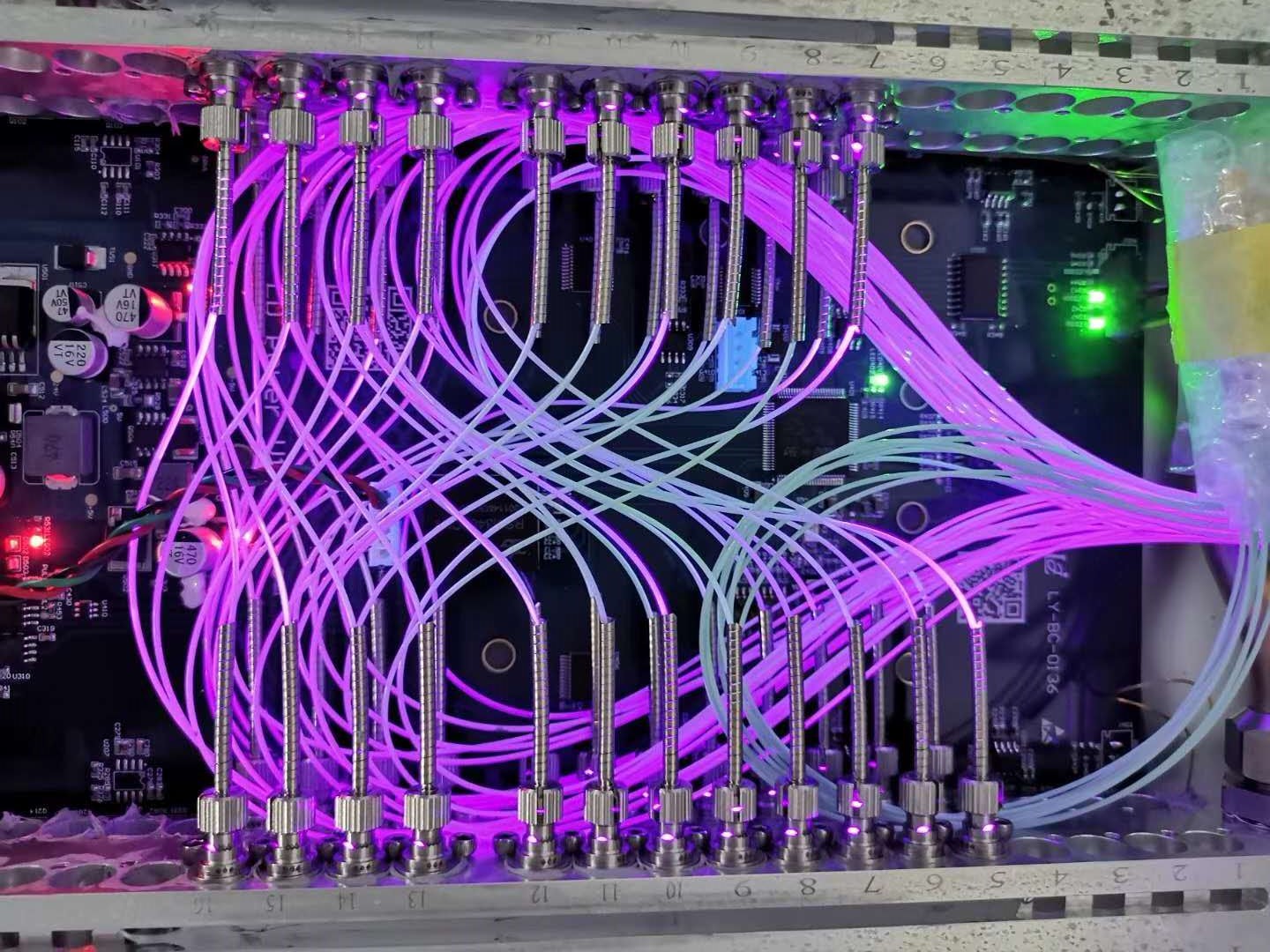

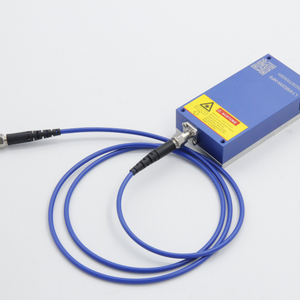

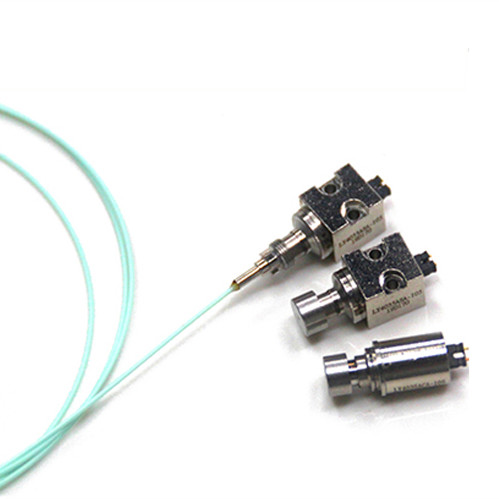

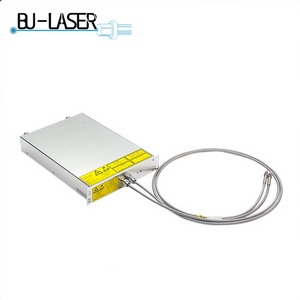

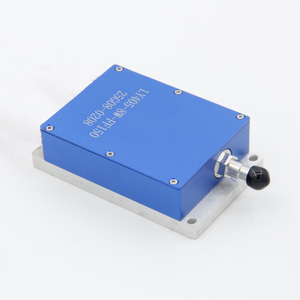

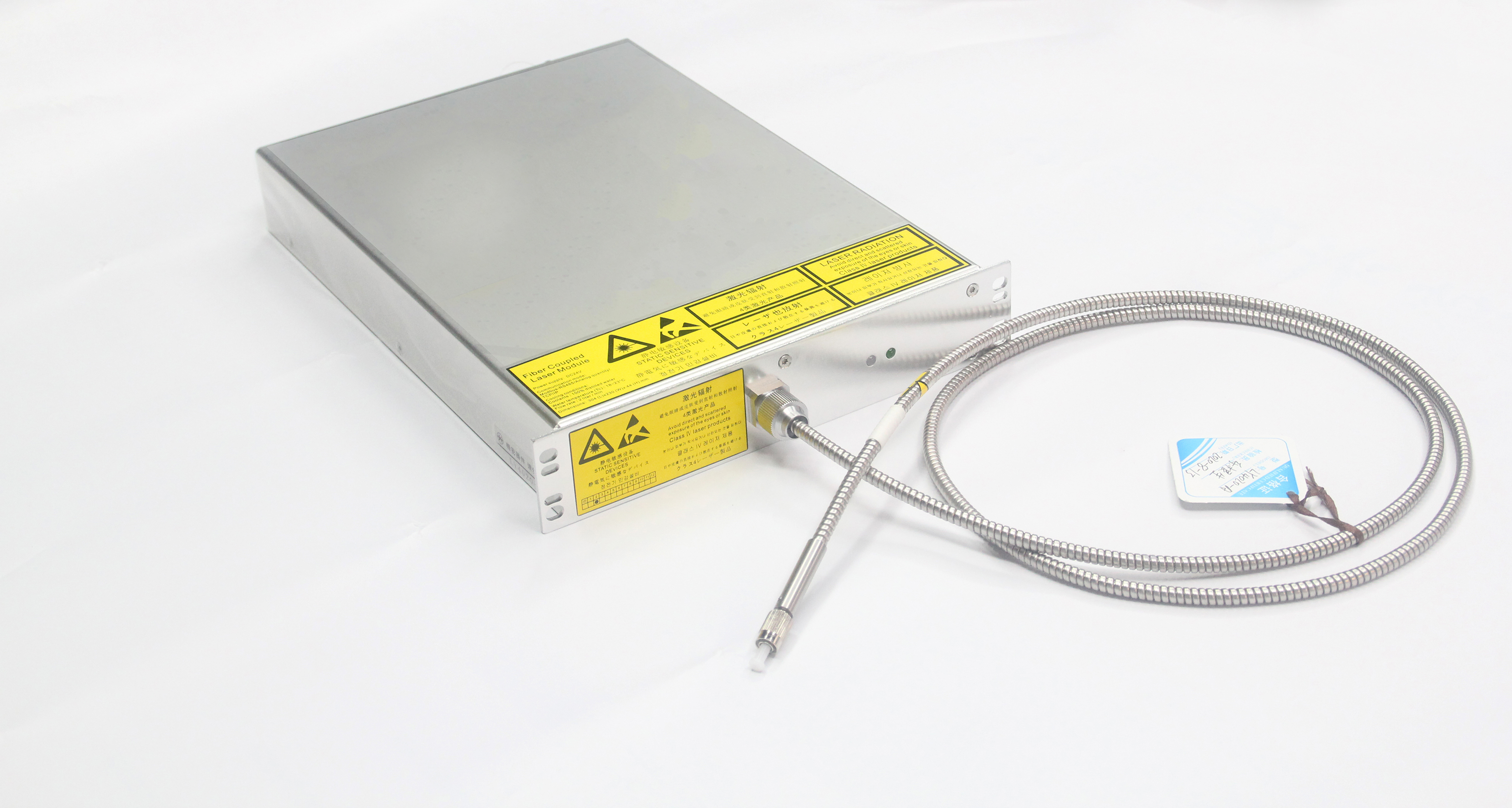

BU-LASER provides fiber-coupled laser modules with multiple specification choices(375nm- 980nm, 1mW-200W output power, different fibers, and dimensions) to better meet customers’ needs of LDI laser/CTS laser/Medical treatment laser. To know more, please get in touch with us at song@bu-laser.com.
