JAN7805-015

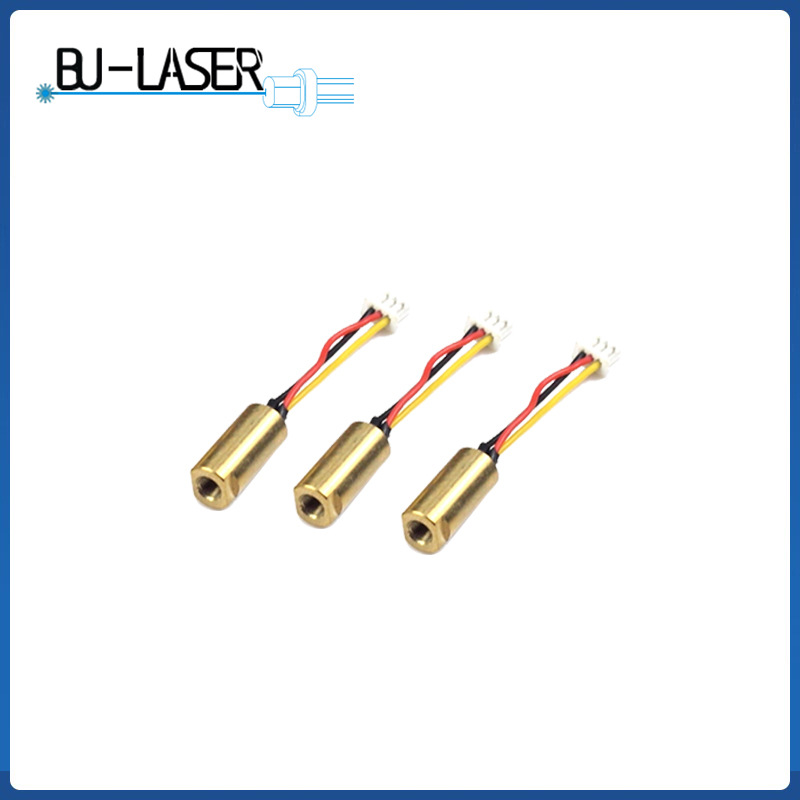

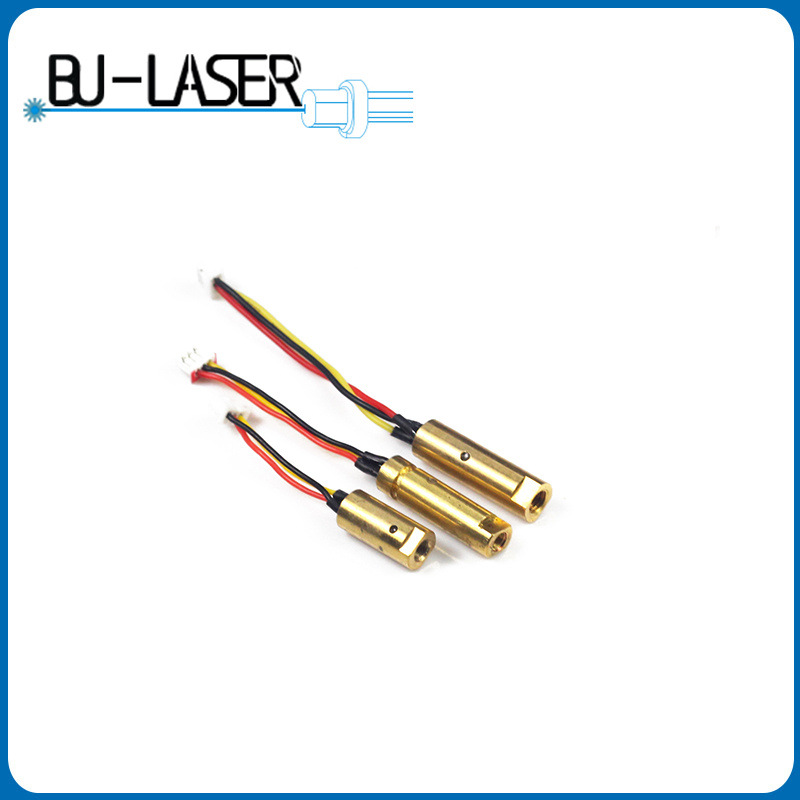

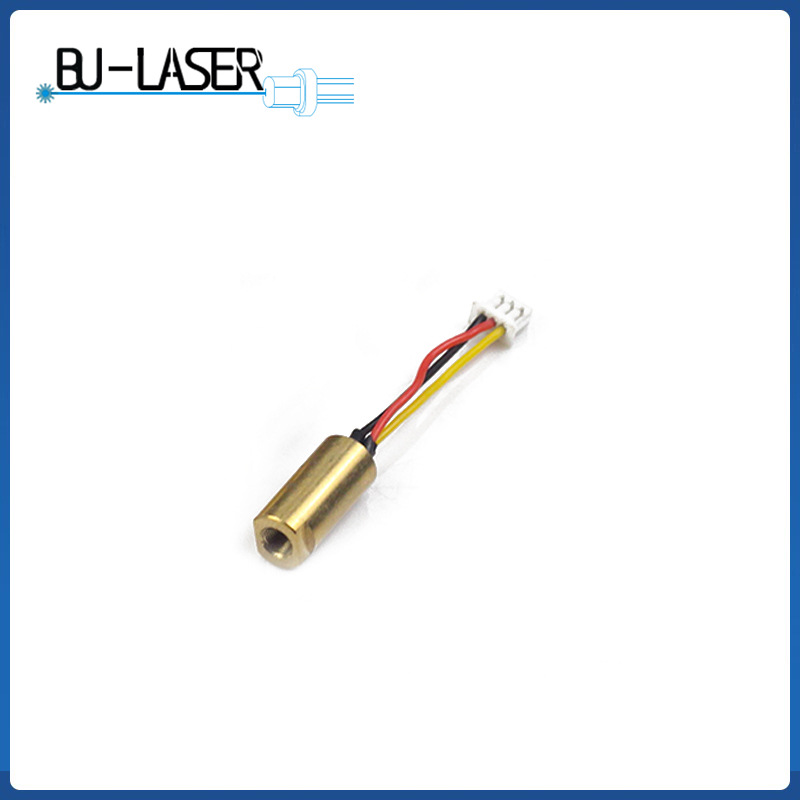

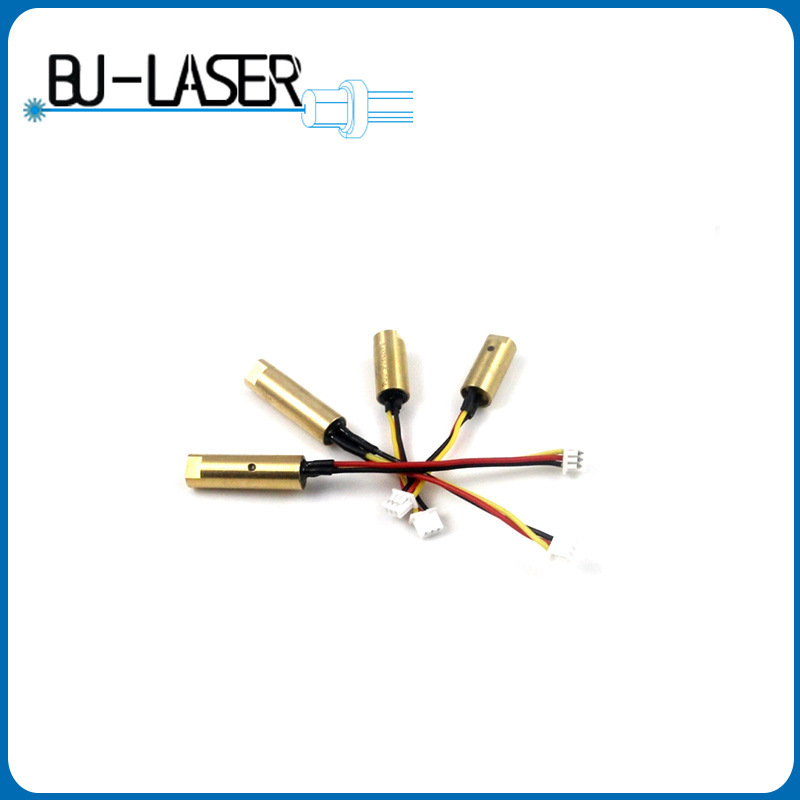

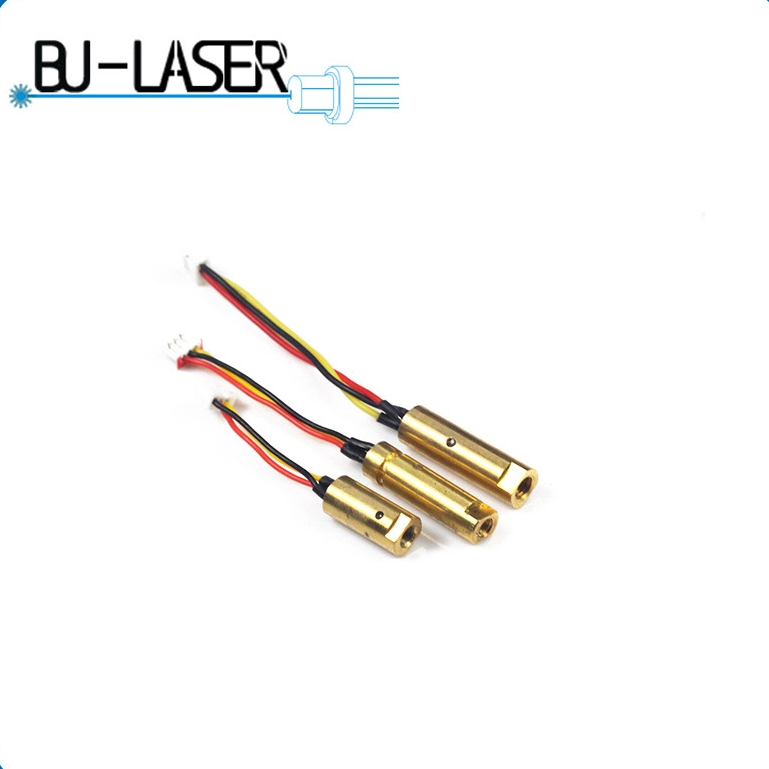

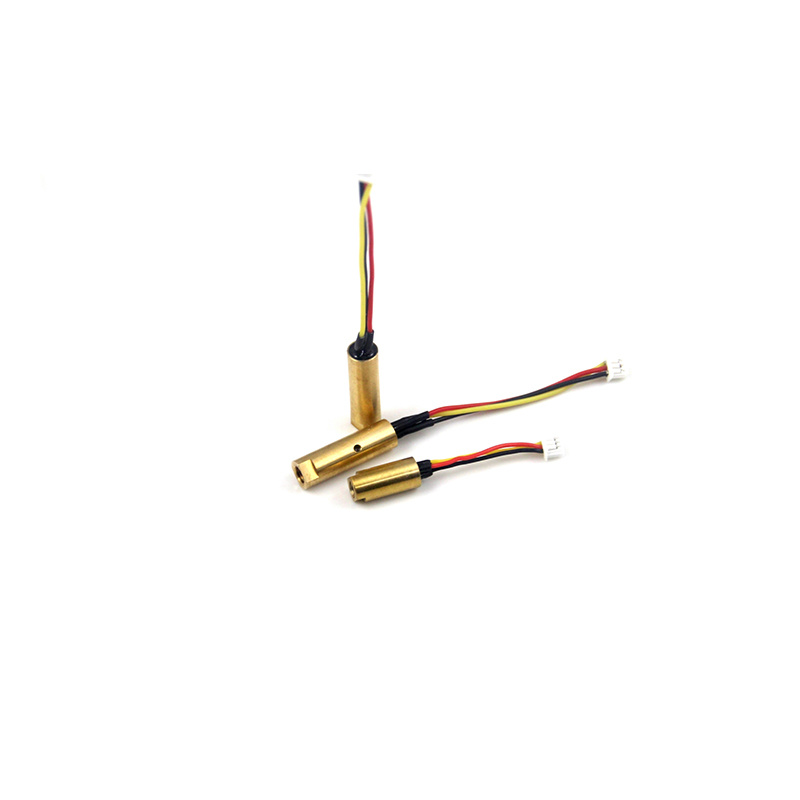

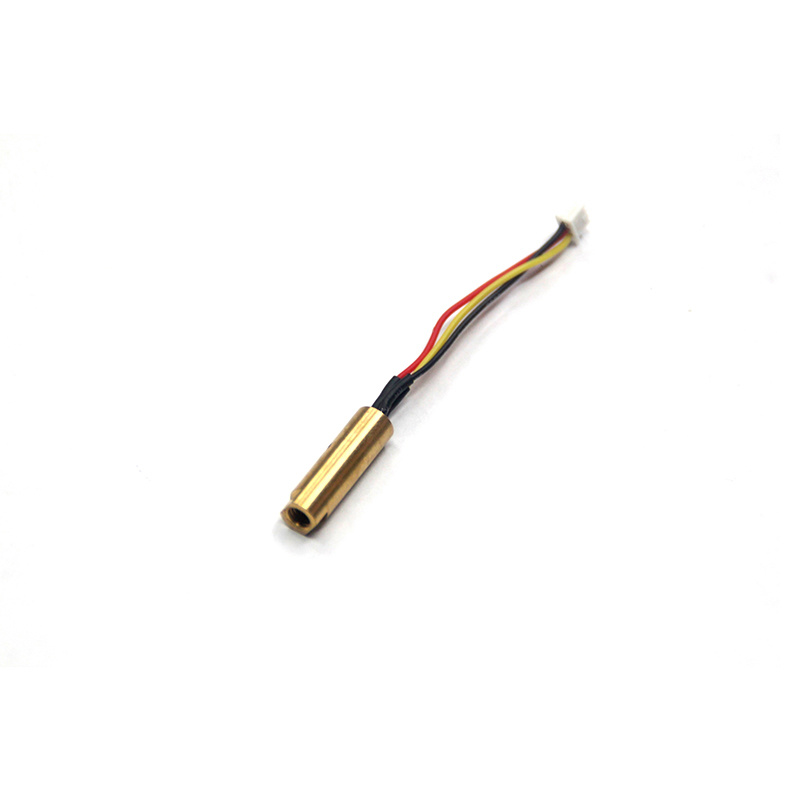

780nm 5mW Laser Diode Module for LDS Lidar
Introducing the 780nm 5mW Dot Laser Module, a cutting-edge product designed for use in robotic applications such as floor cleaning robots. This high-quality laser module is equipped with advanced sensors and positioning capabilities, making it an essential component for precise navigation and mapping tasks.
The 780nm wavelength ensures optimal performance and visibility, while the 5mW power output provides a reliable and consistent laser beam. The dot laser design allows for accurate point-to-point measurements and positioning, making it ideal for applications that require precision and efficiency.
Whether you are developing a new robotic system or upgrading an existing one, the 780nm 5mW Dot Laser Module is the perfect choice for enhancing the performance and functionality of your machine. Trust in the quality and reliability of this product to take your robotic applications to the next level.

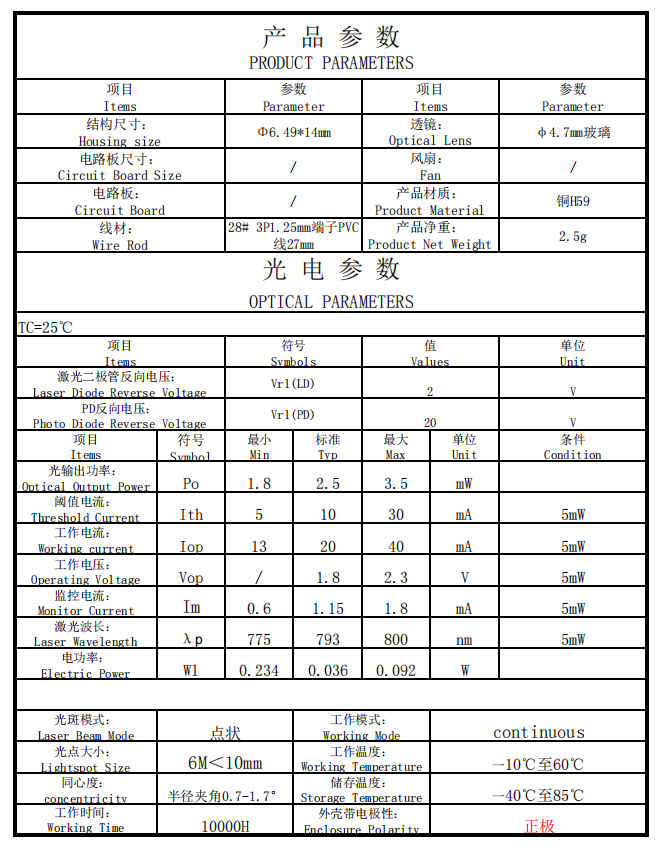

Core Specification :
Wavelength | 780nm |
Output Power | 5mW |
Working Voltage | 1.8-2.3V |
Beam Mode | Dot |
Dot beam size | <10mm @6m |

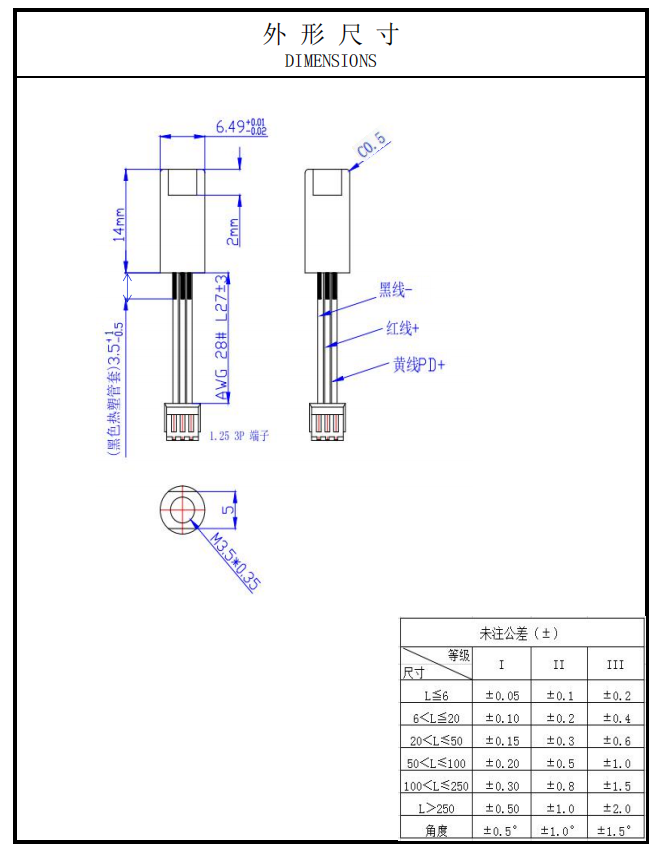

Housing Size | 6.5*14mm (Customizable) |
Lens | Optical Glass |
Lifespan | > 10,000 hours |
We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
Item | Parameter | ||||
Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
Single Diode Module Optical Power | 20mw-3W | 20mw-3W | 10mw-1.6W | 5mw-2.5W | 5mw-75W |
Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. | ||||
Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
Dimension | 4*8mm/ 6*10.5mm7*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
CDRH Class | class1/class2/class3A/class3B/class4 |

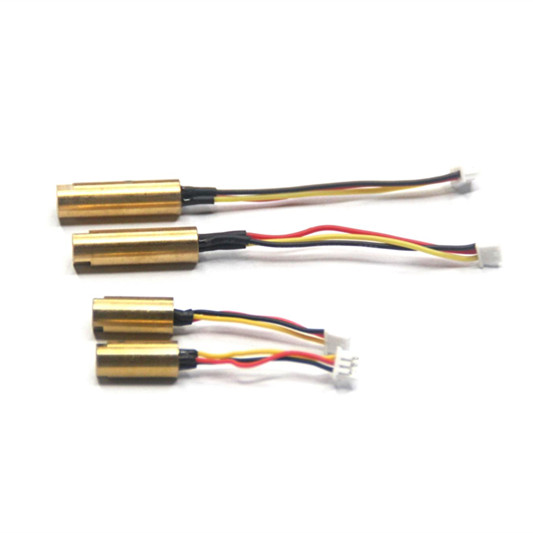

The Below are other laser pattern options you can select:
