What is A Laser Diode Module?

A laser diode module (Laser Module)is an integrated device that combines a laser diode (the core light-emitting component) with supporting components to enable stable, safe, and practical laser emission. It is designed to simplify the use of laser diodes by packaging essential elements into a single, ready-to-use unit.

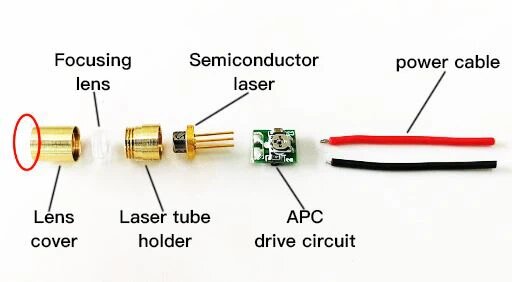

Key Components

1. Laser Diode Chip: The core semiconductor device that generates coherent light through stimulated emission when electrically powered.

2.Drive Circuitry: Regulates current/voltage to stabilize the laser diode’s output, preventing damage from fluctuations and ensuring consistent performance.

3. Optical Elements: May include lenses, collimators, or filters to shape, focus, or modify the laser beam (e.g., collimating it into a parallel beam or concentrating it into a spot).

4. Housing: A protective casing (often metal or plastic) that shields internal components from dust, moisture, and physical damage, while sometimes aiding in heat dissipation.

5. Cooling Mechanism: Passive (heat sinks) or active (small fans) systems to manage heat, as laser diodes are sensitive to overheating.

Functions and Applications

     Laser diode modules convert electrical energy into a focused, coherent laser beam with specific wavelengths (e.g., visible red, green, or infrared). They are widely used in:

• Industrial settings: Cutting, engraving, alignment, and measurement.

• Medical fields: Laser therapy, diagnostics, and surgical tools.

• Consumer devices: Laser pointers, barcode scanners, and optical drives.

• Research and communication: Fiber optics, spectroscopy, and lab experiments.

Their compact size, low power consumption, and tunable output make them versatile for both professional and everyday applications.

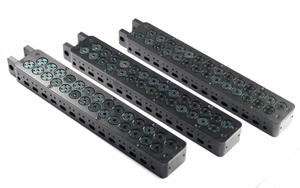

Warning Laser light

Sweeping Robot

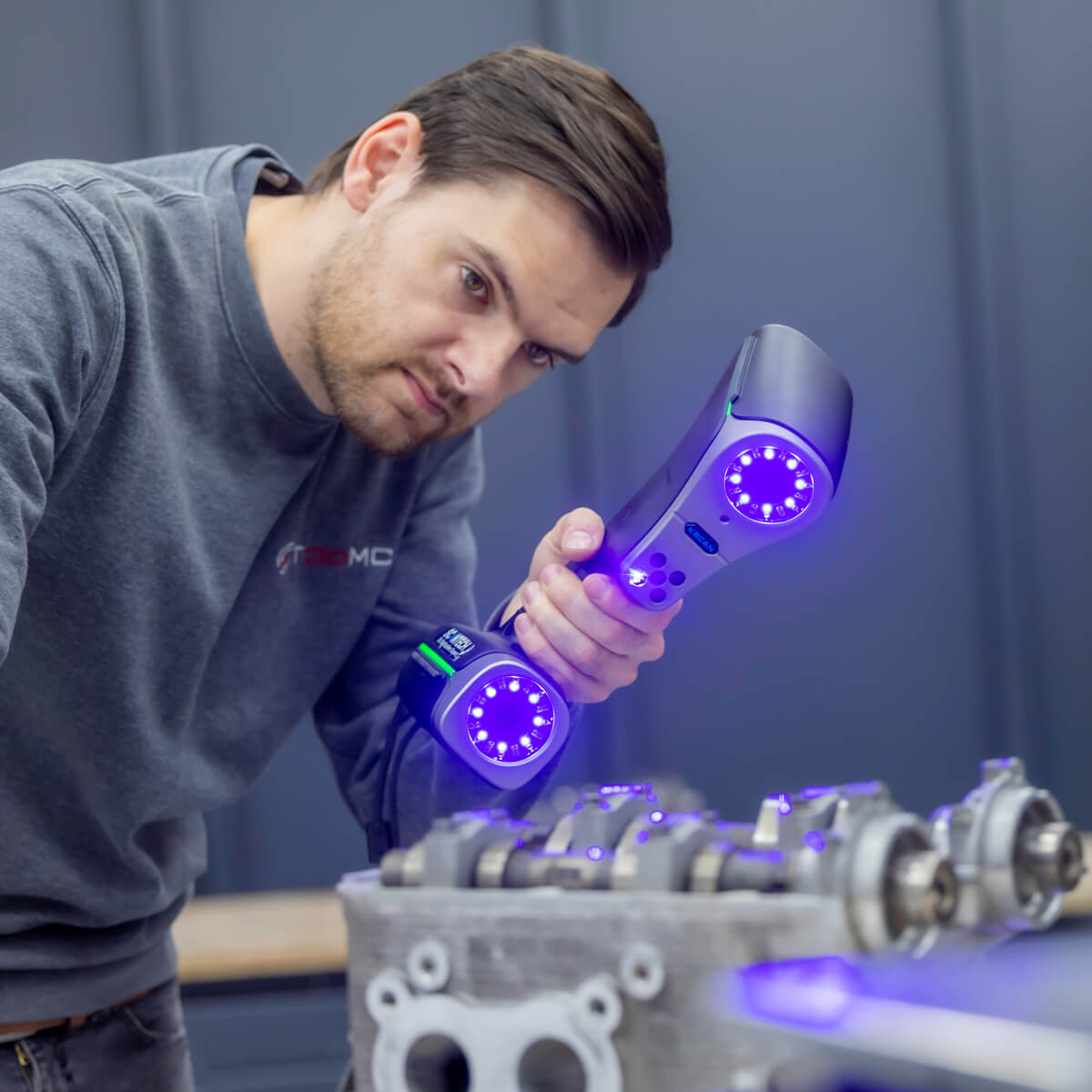

3D Scanner

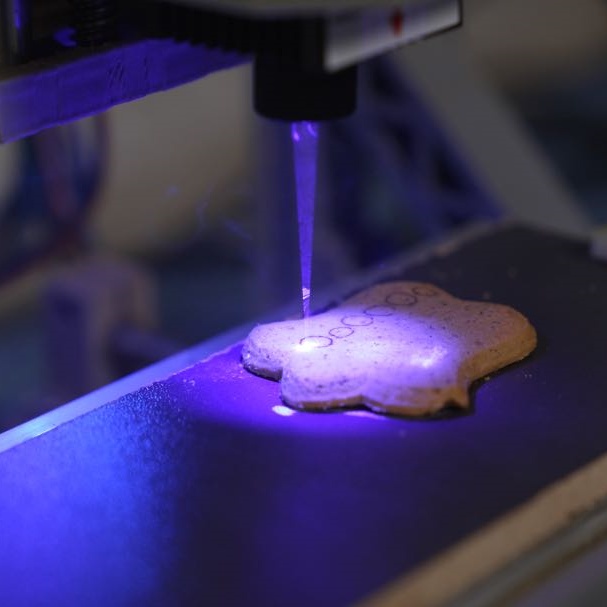

Laser Engraver

    BU-LASER provides laser modules with multiple specification choices(output power, beam divergence, beam size, working distance, and dimension) better meet customers’ needs of accurate laser positioning/locating/orientating. To know more, please contact us at song@bu-laser.com.
