In the field of photopolymer 3D printing, the combination of lasers and UV-curable resins is considered the core technology, directly supporting the stable operation of mainstream photopolymer 3D printing technologies such as SLA, DLP, and LCD. As the "core driving force" for precise curing, 3D printing lasers, with their high-precision UV beam control capabilities, enable the layer-by-layer transformation of liquid photosensitive resin into solid three-dimensional objects, driving continuous upgrades in the precision, efficiency, and convenience of 3D printing, and are widely adaptable to small DIY equipment and various lightweight printing scenarios.
From an application perspective, different sizes of 3D printing equipment have different laser requirements. Small and DIY 3D printers generally use semiconductor lasers as the core light source. These lasers can stably generate UV laser beams, and by precisely controlling the laser's irradiation position and energy intensity, they achieve localized and precise curing of liquid photosensitive resin. This not only meets the needs of fine printing of small objects but also offers advantages such as cost control and easy integration, making it the preferred solution for DIY enthusiasts and small studios.

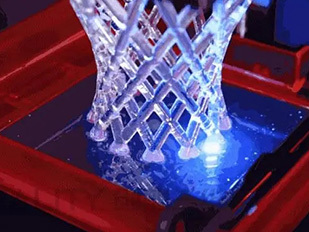

The working logic of 3D printing lasers revolves around "layer-by-layer curing and cumulative molding," a process that is both efficient and precise. After printing begins, the laser emits ultraviolet light beams onto the UV-curable resin laid on the work platform. The resin, irradiated by the UV light, rapidly undergoes a photopolymerization reaction, transforming from a flowing liquid to a stable solid. The laser strictly adheres to the preset 3D model layer data, curing the resin point-by-point and line-by-line according to the design contour of each layer, ensuring that the molding accuracy of each layer highly matches the design.
Once a single layer has cured, the work platform automatically moves a short distance according to preset precision, evenly covering the cured liquid resin with the layer. The laser then begins curing the next layer. This cycle repeats until all layers are cured, resulting in a complete 3D object. In this process, the laser's precise control directly determines the detail accuracy and molding quality of the printed object, representing the core competitiveness of photopolymer 3D printing technology.
The performance of a 3D printing laser is primarily determined by three core parameters: laser wavelength, laser power, and structural dimensions. A proper combination of these parameters ensures both curing efficiency and printing accuracy while also facilitating equipment integration. Specific parameter configurations are tailored to current mainstream application needs:
Firstly, the laser wavelength is focused in the 395nm~405nm range. This wavelength band combines high cost-effectiveness with excellent UV curing characteristics. It can quickly trigger the photopolymerization reaction of photosensitive resins, improving printing efficiency, and is compatible with most conventional UV-curable resins on the market, eliminating the need for additional specialized resins and significantly reducing user costs. Simultaneously, this wavelength band has strong penetrating power, resulting in more stable curing effects on some colored or thicker resin layers, further enhancing printing adaptability.
Secondly, the laser power is controlled between 100mW and 200mW. Unlike industrial-grade high-power lasers, photopolymer 3D printing does not require excessively high power to cure resin. This power range meets the need for rapid curing of liquid resin while avoiding problems such as over-curing and deformation of the object due to excessive power, achieving a balance between accuracy and efficiency.
Thirdly, the structural dimensions are designed for miniaturization. The standard size of current mainstream 3D printing lasers is 16mm*60mm, and the volume can be further reduced according to equipment requirements. This miniaturization design allows for easy integration into the 3D print head, adapting to the structural layout of small and portable 3D printers, and supporting the lightweight and compact design of the equipment.
