LY4040-A

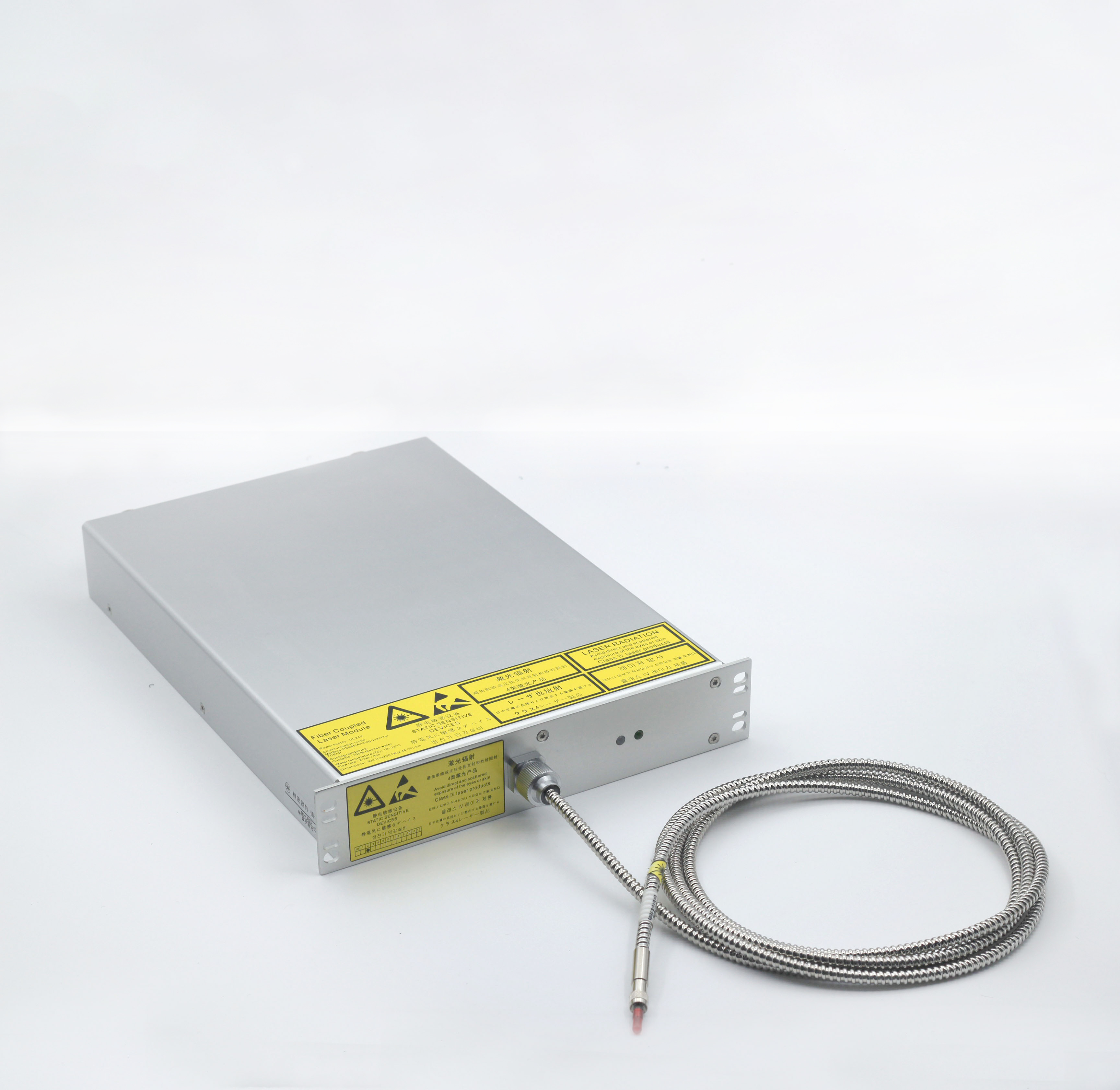

Introducing the 405nm 40W LASER MODULE, a cutting-edge solution for a wide range of applications including LDI equipment, photolithography equipment, PCBA printing, light curing, and exposure machines. This high-powered laser module is designed to deliver precision and efficiency in various industrial processes.
With a wavelength of 405nm and a power output of 40W, this laser module offers exceptional performance and reliability. It is ideal for applications that require high precision and accuracy, such as PCB manufacturing, semiconductor processing, and microelectronics production.
The 405nm 40W LASER MODULE is equipped with advanced features that ensure optimal performance and durability. Its compact design allows for easy integration into existing systems, while its robust construction ensures long-lasting operation in demanding environments.
Whether you are in the semiconductor industry, electronics manufacturing, or any other field that requires precise laser processing, the 405nm 40W LASER MODULE is the perfect solution for your needs. Trust in its superior quality and performance to enhance your production processes and achieve outstanding results.
| Wavelength | 405nm |
| Output Power | >40W |
| Working Voltage | 24V |
| Fiber Core Diameter | 105um |
| Fiber Interface | FC connector /SMA 905 (Customizable) |
| Collimated dot Beam size | / |
| Housing Size | 354*207*44mm (Customizable) |
| Lens | Optical Glass |
| Lifespan | > 10,000 hours |






Note: It is designed with water cooling systems inside. The driver inside is already integrated with RS-485 communication software.
As it is a fiber-bundled laser, we can increase or decrease the quantity of the laser diode inside to change the power so that the power can be from 1W to 100W. And the fiber type and length also can be selected by you!



We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules!
| Item | Parameter | ||||
| Wavelength | 375-405nm | 425-488nm | 515-520nm | 635-670nm | 780-980nm |
| Single Diode Module Optical Power | 20mW-3W | 20mW-3W | 10mW-1.6W | 5mW-2.5W | 5mW-75W |
| Multi Diodes Module Optical Power | 3W-200W | 6W-500W | 1.6W-50W | 2.5W-30W | 75W-100W |
| Operating Voltage | 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. | ||||
| Spot Mode | Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. | ||||
| Fan Angle Options of the Line Beam | 5°/10°/15°/20°/25°/30°/45°/60°/80°/110°/130°/180° etc. | ||||
| Optical Lens | Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. | ||||
| Dimension | 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc. | ||||
| CDRH Class | class1/class2/class3R/class3B/class4 | ||||
