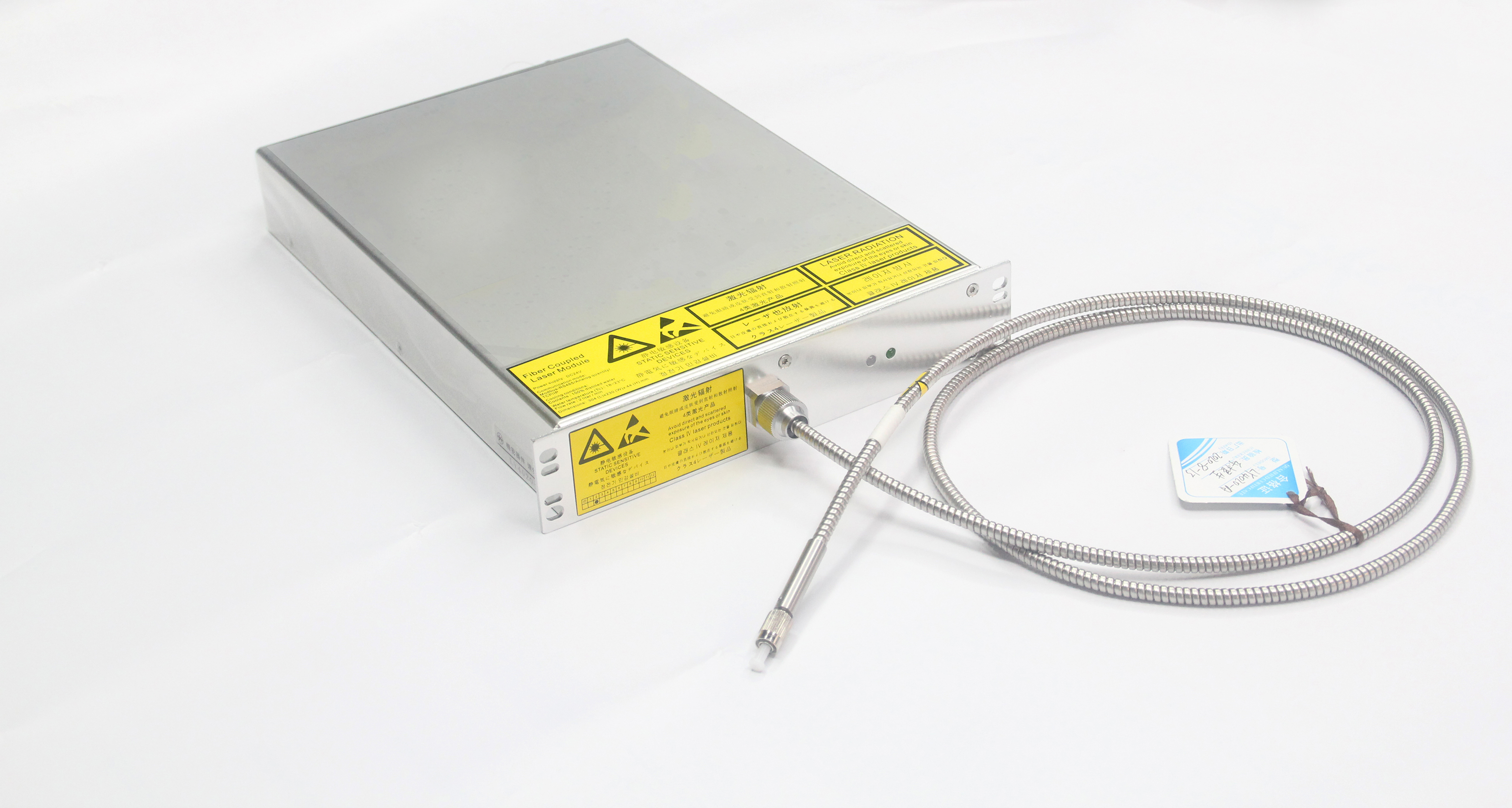

BU-LASER launches this industrial-grade 405nm 100W fiber-coupled UV laser diode module, a high-brightness continuous-wave ultraviolet light source specially optimized for high-speed industrial UV curing production lines. Adopting multi-emitter UV laser diodes, high-efficiency space optical coupling structure, non-detachable integrated bundled fiber and built-in constant current driver with comprehensive safety protection. It supports built-in analog modulation and RS485 communication, delivering stable 100W fiber output power, outstanding spectral purity and reliable long-run performance, ideal for web coating curing, adhesive bonding, resin curing, ink curing and precision continuous manufacturing processes.
Core Advantages for Industrial UV Curing
1. 405nm UV Wavelength, Perfect Matching for Industrial UV Formulations
405nm ±5nm near-UV wavelength matches the absorption peak of widely used photoinitiators in UV resins, adhesives, coatings and printing inks.
Effectively suppresses oxygen inhibition to achieve complete surface curing, eliminating sticky residual surfaces;
Narrow spectral linewidth ≤4nm FWHM, no redundant stray light, reduces substrate thermal deformation caused by broadband heat radiation;
Suitable for transparent resin, colored coating, optical adhesive (OCA) and low-shrinkage industrial curing materials.
2. 100W High Fiber Output Power Improves Line Speed & Throughput
Genuine 100W CW optical power at fiber end with 0–100W stepless power adjustment. Compared with low-power 20–60W UV laser modules, it enables higher conveyor speeds (20–80 mm/s) and supports wider curing zones and thicker coating layers.
Built-in constant current driving scheme for stable long-term operation, suitable for continuous batch curing production. Consistent UV energy output helps maintain stable curing quality within production batches.
3. Bundled Low-OH UV Fiber, Uniform Energy Output

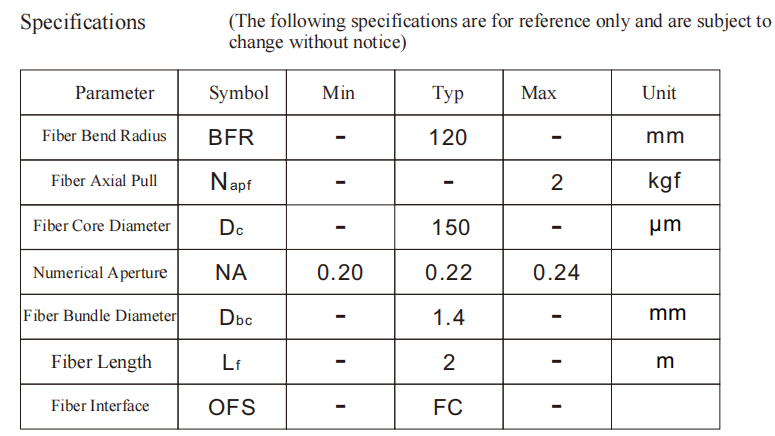

Adopts integrated bundled UV low-OH multimode silica fiber, single unit fiber core 150μm (bundle configuration), with anti-UV aging cladding. Features low transmission loss even under long-duration high-power UV irradiation;
Non-detachable integrated bundled fiber design. Optimized bundle arrangement realizes superior near-field energy uniformity after beam shaping; no power loss risks brought by repeated plugging;
Standard fiber length 2m, customizable from 1–15m with UV-resistant anti-kink metal sleeve. The laser host and curing head can be separately arranged to reduce heat transfer to workpieces.
Matched with external homogenizing optics, it generates ideal flat-top uniform illumination for strip or planar continuous curing.
4. Built-In Active Water Cooling Syste for 24/7 Mass Production
Equipped with integrated high-flow circulating water cooling system, designed for high heat load of 100W full-power continuous output.
Efficient heat dissipation stabilizes laser operating temperature under full load, restraining power attenuation induced by heat accumulation;
G1/4 leak-proof water connectors with flow monitoring. Automatic alarm and laser interlock cut-off will activate once cooling failure is detected to protect laser chips and fiber;
Fanless zero-noise design, prevents dust accumulation, suitable for clean workshop environments. MTBF ≥10,000 hours supporting non-stop automated curing lines.

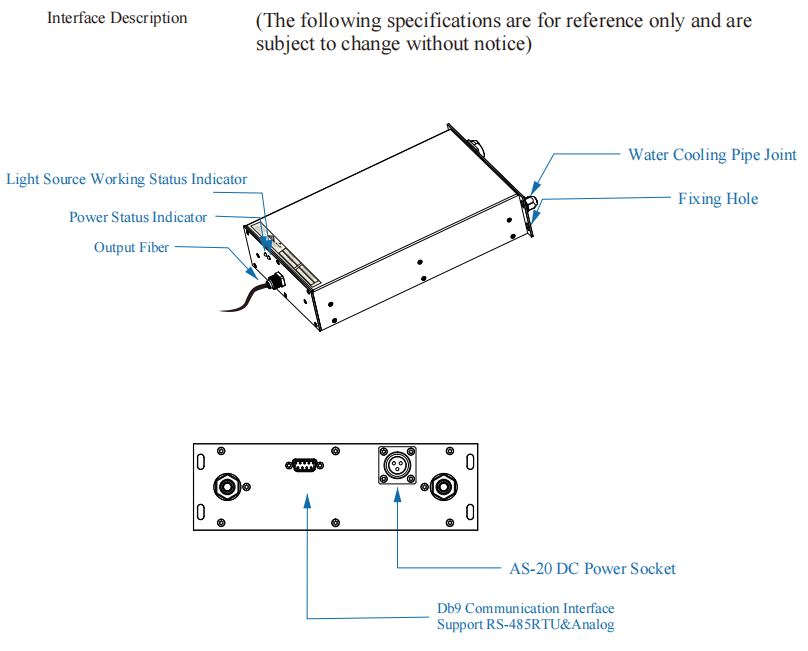

5. Multiple Control Modes & Comprehensive Safety Protection
DC 24V wide input voltage (22–26V tolerance), compatible with mainstream industrial curing equipment control systems.
Supports multiple control modes:
High-frequency PWM modulation (1kHz, 0–100% duty cycle);
Built-in analog modulation (0–24V analog signal for continuous power adjustment);
RS485 Modbus RTU communication for remote parameter configuration, real-time status monitoring and laser on/off control.
Multi-protection circuits: over-temperature protection, over-current protection, over-voltage protection and reverse connection protection. Sealed IP54 anodized aluminum alloy housing with anti-vibration performance for automated production line vibration.
